3M
TM

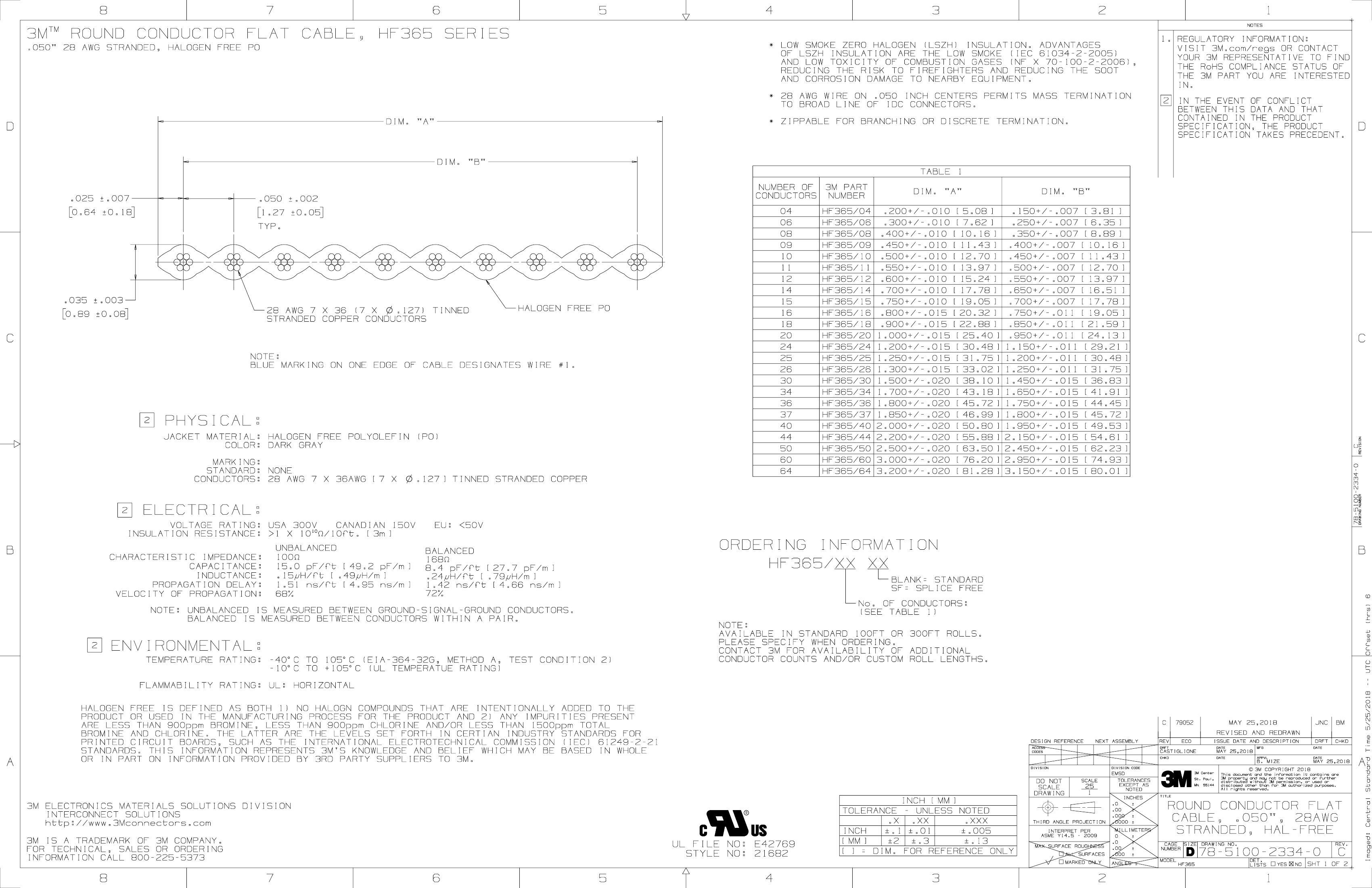

ROUND CONDUCTOR FLAT CABLE, HF365 SERIES
* LOW SMOKE ZERO HALOGEN (LSZH) INSULATION. ADVANTAGES
OF LSZH INSULATION ARE THE LOW SMOKE (IEC 61034-2-2005)
AND LOW TOXICITY OF COMBUSTION GASES (NF X 70-100-2-2006),
REDUCING THE RISK TO FIREFIGHTERS AND REDUCING THE SOOT
AND CORROSION DAMAGE TO NEARBY EQUIPMENT.
* 28 AWG WIRE ON .050 INCH CENTERS PERMITS MASS TERMINATION
TO BROAD LINE OF IDC CONNECTORS.
.050" 28 AWG STRANDED, HALOGEN FREE PO
D
DIM. "A"
* ZIPPABLE FOR BRANCHING OR DISCRETE TERMINATION.
D
DIM. "B"
TABLE 1
.025
0.64
.007
0.18
NUMBER OF
CONDUCTORS
04
06
08
09
10
11
12
14
15
16
18
20
24
25
26
30
34
36
37
40
44
50
60
64
3M PART
NUMBER
HF365/04
HF365/06
HF365/08
HF365/09
HF365/10
HF365/11
HF365/12
HF365/14
HF365/15
HF365/16
HF365/18
HF365/20
HF365/24
HF365/25
HF365/26
HF365/30
HF365/34
HF365/36
HF365/37
HF365/40
HF365/44
HF365/50
HF365/60
HF365/64
DIM. "A"
.200+/-.010 [5.08]
.300+/-.010 [7.62]
.400+/-.010 [10.16]
.450+/-.010 [11.43]
.500+/-.010 [12.70]
.550+/-.010 [13.97]
.600+/-.010 [15.24]
.700+/-.010 [17.78]
.750+/-.010 [19.05]
.800+/-.015 [20.32]
.900+/-.015 [22.88]
1.000+/-.015
[25.40]
1.200+/-.015
[30.48]
1.250+/-.015
[31.75]
1.300+/-.015
[33.02]
1.500+/-.020
[38.10]
1.700+/-.020
[43.18]
1.800+/-.020
[45.72]
1.850+/-.020
[46.99]
2.000+/-.020
[50.80]
2.200+/-.020
[55.88]
2.500+/-.020
[63.50]
3.000+/-.020
[76.20]
3.200+/-.020
[81.28]
DIM. "B"
.150+/-.007 [3.81]
.250+/-.007 [6.35]
.350+/-.007 [8.89]
.400+/-.007 [10.16]
.450+/-.007 [11.43]
.500+/-.007 [12.70]
.550+/-.007 [13.97]
.650+/-.007 [16.51]
.700+/-.007 [17.78]
.750+/-.011 [19.05]
.850+/-.011 [21.59]
.950+/-.011 [24.13]
1.150+/-.011 [29.21]
1.200+/-.011 [30.48]
1.250+/-.011 [31.75]
1.450+/-.015
[36.83]
1.650+/-.015
[41.91]
1.750+/-.015
[44.45]
1.800+/-.015
[45.72]
1.950+/-.015
[49.53]
2.150+/-.015
[54.61]
2.450+/-.015
[62.23]
2.950+/-.015
[74.93]
3.150+/-.015
[80.01]
.050
1.27
TYP.
.002
0.05
.035
0.89
.003
0.08
28 AWG 7 X 36 (7 X
.127) TINNED
STRANDED COPPER CONDUCTORS
HALOGEN FREE PO
C
NOTE:
BLUE MARKING ON ONE EDGE OF CABLE DESIGNATES WIRE #1.
C
2
PHYSICAL:
JACKET MATERIAL: HALOGEN FREE POLYOLEFIN (PO)
COLOR: DARK GRAY
MARKING:
STANDARD: NONE
CONDUCTORS: 28 AWG 7 X 36AWG [7 X
.127] TINNED STRANDED COPPER
2
ELECTRICAL:
EU: <50V
BALANCED
168
8.4 pF/ft [27.7 pF/m]
.24 H/ft [.79 H/m]
1.42 ns/ft [4.66 ns/m]
72%
UNBALANCED
100
15.0 pF/ft [49.2 pF/m]
.15 H/ft [.49 H/m]
1.51 ns/ft [4.95 ns/m]
68%
VOLTAGE RATING: USA 300V
CANADIAN 150V
10
INSULATION RESISTANCE: >1 X 10
/10ft. [3m]
B
NOTE: UNBALANCED IS MEASURED BETWEEN GROUND-SIGNAL-GROUND CONDUCTORS.
BALANCED IS MEASURED BETWEEN CONDUCTORS WITHIN A PAIR.
2
No. OF CONDUCTORS:
(SEE TABLE 1)
NOTE:
AVAILABLE IN STANDARD 100FT OR 300FT ROLLS.
PLEASE SPECIFY WHEN ORDERING.
CONTACT 3M FOR AVAILABILITY OF ADDITIONAL
CONDUCTOR COUNTS AND/OR CUSTOM ROLL LENGTHS.
ENVIRONMENTAL:
TEMPERATURE
RATING: -40 C TO 105 C (EIA-364-32G, METHOD A, TEST CONDITION 2)
-10 C TO +105 C (UL TEMPERATUE RATING)
FLAMMABILITY RATING: UL: HORIZONTAL
HALOGEN FREE IS DEFINED AS BOTH 1) NO HALOGN COMPOUNDS THAT ARE INTENTIONALLY ADDED TO THE
PRODUCT OR USED IN THE MANUFACTURING PROCESS FOR THE PRODUCT AND 2) ANY IMPURITIES PRESENT
ARE LESS THAN 900ppm BROMINE, LESS THAN 900ppm CHLORINE AND/OR LESS THAN 1500ppm TOTAL
BROMINE AND CHLORINE. THE LATTER ARE THE LEVELS SET FORTH IN CERTIAN INDUSTRY STANDARDS FOR
PRINTED CIRCUIT BOARDS, SUCH AS THE INTERNATIONAL ELECTROTECHNICAL COMMISSION (IEC) 61249-2-21
STANDARDS. THIS INFORMATION REPRESENTS 3M'S KNOWLEDGE AND BELIEF WHICH MAY BE BASED IN WHOLE
OR IN PART ON INFORMATION PROVIDED BY 3RD PARTY SUPPLIERS TO 3M.
C
DESIGN REFERENCE
ACCESS
CODES
79052
ECO
MAY 25,2018
REVISED AND REDRAWN
ISSUE DATE AND DESCRIPTION
DATE
MFG
JNC
DRFT
DATE
BM
CHKD
NEXT ASSEMBLY
REV
DRFT
CASTIGLIONE
CHKD
MAY 25,2018
DATE
APPVL
DATE
A
B. MIZE
DIVISION
DIVISION CODE
MAY 25,2018
C
3M Center
St. Paul,
MN
55144
3M COPYRIGHT 2018
A
EMSD
DO NOT
SCALE
DRAWING
SCALE
25
1
TOLERANCES
EXCEPT AS
NOTED
INCHES
.0
.00
.000
.0000
MILLIMETERS
0
.0
.00
.000
ANGLES
TITLE
This document and the information it contains are
3M property and may not be reproduced or further
distributed without 3M permission, or used or
disclosed other than for 3M authorized purposes.
All rights reserved.
3M ELECTRONICS MATERIALS SOLUTIONS DIVISION
INTERCONNECT
SOLUTIONS
http://www.3Mconnectors.com
3M IS A TRADEMARK OF 3M COMPANY.
FOR TECHNICAL, SALES OR ORDERING
INFORMATION CALL 800-225-5373
R
UL FILE NO: E42769
STYLE NO: 21682
INCH [MM]
TOLERANCE - UNLESS NOTED
.X .XX
.XXX
INCH
.1 .01
.005
[MM]
2
.3
.13
[] = DIM. FOR REFERENCE ONLY
THIRD ANGLE PROJECTION
INTERPRET PER
ASME Y14.5 - 2009
MAX SURFACE ROUGHNESS
ALL SURFACES
MARKED ONLY
ROUND CONDUCTOR FLAT
CABLE, .050", 28AWG
STRANDED, HAL-FREE
CAGE SIZE
NUMBER
MODEL
HF365
DRAWING NO.
REV.
78-5100-2334-0
DET.
LISTS
YES
NO
C
SHT 1 OF 2
8
7
6
5
4
3
2
1
Imaged: Central Standard Time 5/25/2018 -- UTC Offset (hrs) 6
CHARACTERISTIC IMPEDANCE:
CAPACITANCE:
INDUCTANCE:
PROPAGATION DELAY:
VELOCITY OF PROPAGATION:
ORDERING INFORMATION
HF365/XX XX
BLANK= STANDARD
SF= SPLICE FREE
78-5100-2334-0
B
DRAWING NUMBER
REVISION
C
8
7
6
5
4
3
2
1
D
D

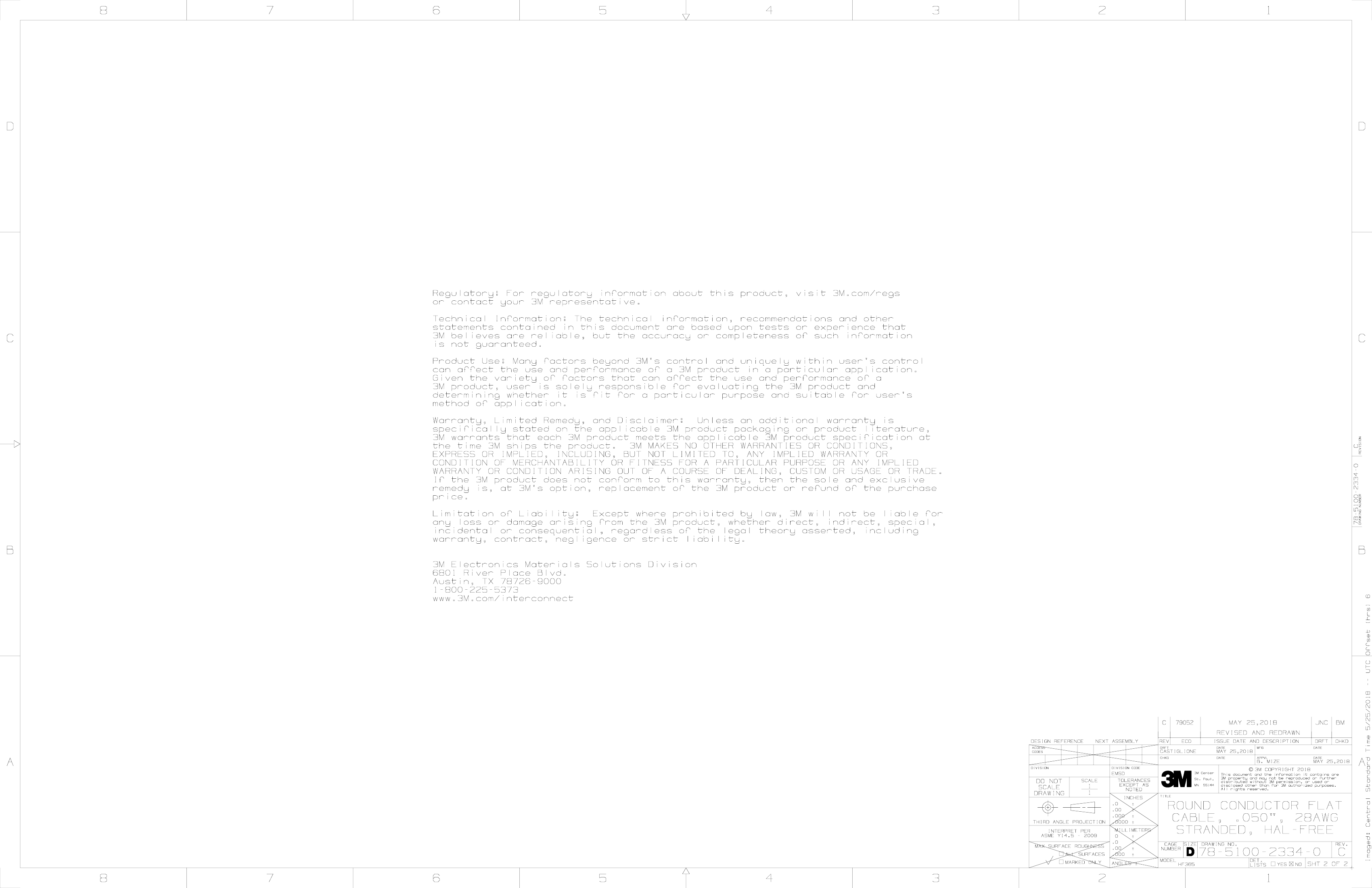

Regulatory: For regulatory information about this product, visit 3M.com/regs
