GS88037BT-xxxV
100-Pin TQFP
Commercial Temp
Industrial Temp
Features
• Single Cycle Deselect (SCD) operation
• 1.8 V or 2.5 V +10%/–10% core power supply
• 1.8 V or 2.5 V I/O supply
• LBO pin for Linear or Interleaved Burst mode
• Internal input resistors on mode pins allow floating mode pins
• Default to Interleaved Pipeline mode
• Byte Write (BW) and/or Global Write (GW) operation
• Internal self-timed write cycle
• Automatic power-down for portable applications
• JEDEC-standard 100-lead TQFP package
• RoHS-compliant 100-lead TQFP package available
256K x 36
9Mb Sync Burst SRAM
250 MHz–200 MHz
1.8 V or 2.5 V V
DD
1.8 V or 2.5 V I/O
Burst mode, subsequent burst addresses are generated
internally and are controlled by ADV. The burst address
counter may be configured to count in either linear or
interleave order with the Linear Burst Order (LBO) input. The
Burst function need not be used. New addresses can be loaded
on every cycle with no degradation of chip performance.
SCD Pipelined Reads
The GS88037BT-xxxV is a SCD (Single Cycle Deselect)
pipelined synchronous SRAM. DCD (Dual Cycle Deselect)
versions are also available. SCD SRAMs pipeline deselect
commands one stage less than read commands. SCD RAMs
begin turning off their outputs immediately after the deselect
command has been captured in the input registers.
Byte Write and Global Write
Byte write operation is performed by using Byte Write enable
(BW) input combined with one or more individual byte write
signals (Bx). In addition, Global Write (GW) is available for
writing all bytes at one time, regardless of the Byte Write
control inputs.
Sleep Mode
Low power (Sleep mode) is attained through the assertion
(High) of the ZZ signal, or by stopping the clock (CK).
Memory data is retained during Sleep mode.
Core and Interface Voltages
The GS88037BT-xxxV operates on a 1.8 V or 2.5 V power
supply. All input are 2.5 V and 1.8 V compatible. Separate
output power (V
DDQ
) pins are used to decouple output noise
from the internal circuits and are 2.5 V and 1.8 V compatible.

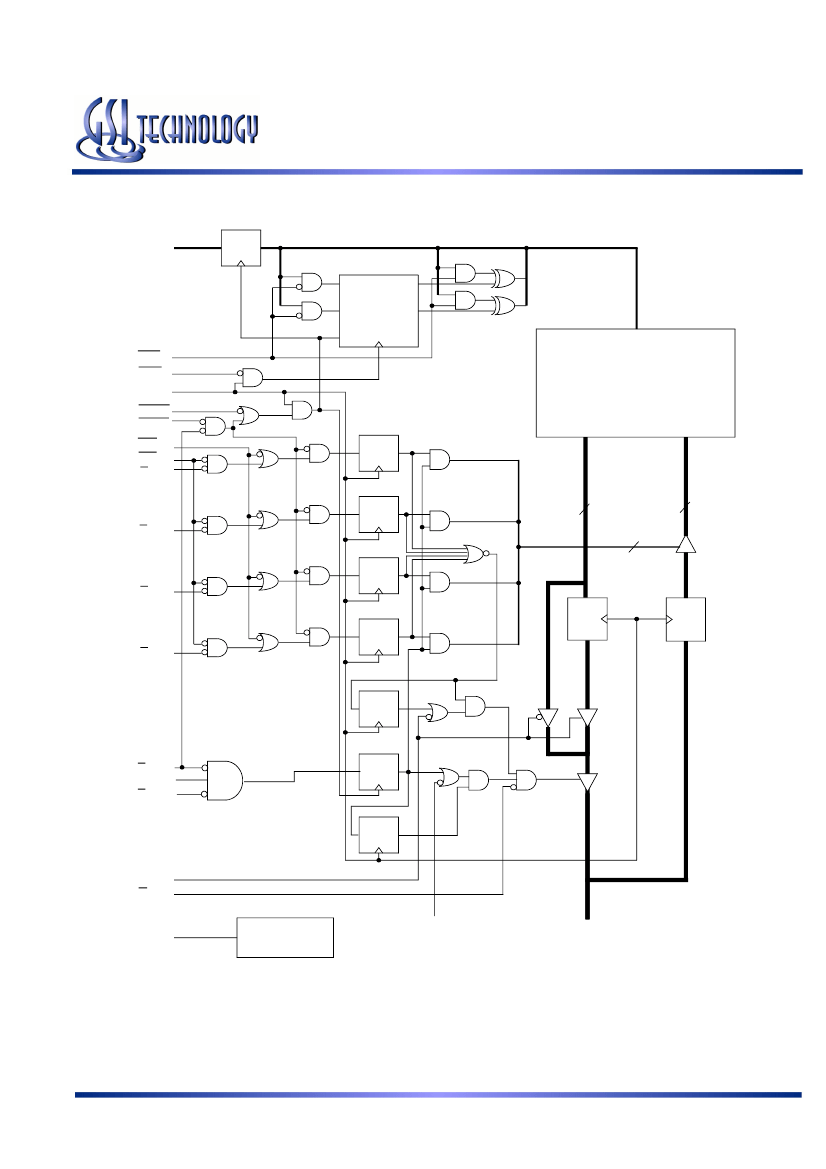

Functional Description
Applications
The GS88037BT-xxxV is a 9,437,184-bit (8,388,608-bit for
x32 version) high performance synchronous SRAM with a
2-bit burst address counter. Although of a type originally
developed for Level 2 Cache applications supporting high
performance CPUs, the device now finds application in
synchronous SRAM applications, ranging from DSP main
store to networking chip set support.
Controls
Addresses, data I/Os, chip enables (E1, E2, E3), address burst
control inputs (ADSP, ADSC, ADV), and write control inputs
(Bx, BW, GW) are synchronous and are controlled by a
positive-edge-triggered clock input (CK). Output enable (G)
and power down control (ZZ) are asynchronous inputs. Burst
cycles can be initiated with either ADSP or ADSC inputs. In
Parameter Synopsis
Pipeline
3-1-1-1
t
KQ
tCycle
Curr
(x36)
-250
2.5
4.0
330
-200
2.5
5.0
270
Unit
ns
ns
mA
Rev: 1.03 6/2006
1/19
© 2002, GSI Technology
Specifications cited are subject to change without notice. For latest documentation see http://www.gsitechnology.com.
GS88037BT-xxxV
TQFP Pin Description
Symbol
A
0
, A
1
A
DQ
A
DQ
B
DQ
C
DQ
D
NC
BW
B
A
, B
B
B
C
, B
D
CK
GW
E
1
, E
3
E
2
G
ADV
ADSP, ADSC
ZZ
LBO
V
DD
V
SS
V
DDQ
V
DDQ
/DNU
Type
I
I
Description
Address field LSBs and Address Counter preset Inputs
Address Inputs
I/O
Data Input and Output pins
—
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
—
No Connect
Byte Write—Writes all enabled bytes; active low
Byte Write Enable for DQ
A
, DQ
B
Data I/Os; active low
Byte Write Enable for DQ
C
, DQ
D
Data I/Os; active low
Clock Input Signal; active high
Global Write Enable—Writes all bytes; active low
Chip Enable; active low
Chip Enable; active high
Output Enable; active low
Burst address counter advance enable; active low
Address Strobe (Processor, Cache Controller); active low
Sleep Mode control; active high
Linear Burst Order mode; active low
Core power supply
I/O and Core Ground
Output driver power supply
V
DDQ
or V
DD
(must be tied high)
or
Do Not Use (must be left floating)
Rev: 1.03 6/2006
3/19
© 2002, GSI Technology
