BNC-C-120 Overview

RF Cable Assemblies BNC 50 OHM RG58C

BNC-C-120 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Pomona
Product Category	RF Cable Assemblies
RoHS	N

Preview

Download Datasheet

View All

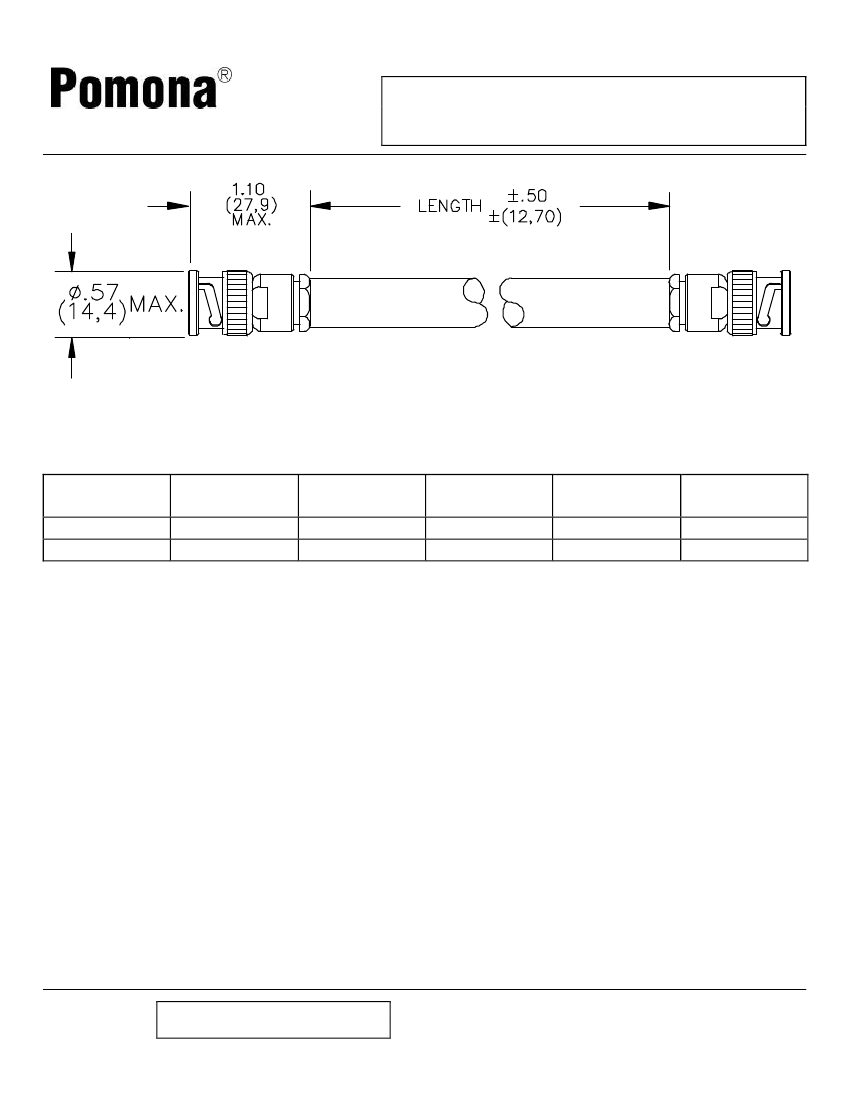

Model BNC-x-XX

BNC Male To Male Cable Assembly

Part No.

BNC-C-XX

BNC-M-XX

Cable Type

RG58C/U

RG62A/U

Capacitance

PF/ft.

30.8

13.5

Nominal

Impedance

50 Ohms

93 Ohms

Cable Color

Black

Cable O. D.

0.195"

0.242"

MATERIALS:

BNC Body: Brass, Tarnish Resistant Plating, Center Contact: Gold Plated Brass

Dielectric: PTFE

RATINGS:

Operating Voltage: Shield-Earth: 30VAC/60VDC Max.

Inner Conductor/Shield: 500VRMS Max.

Operating Temperature: +80ºC (+176ºF) Max.

Nominal Impedance: 50 Ohms

ORDERING INFORMATION:

Model BNC-x-XX

x = Cable Type

XX = Cable Length in inches, length tolerance: ±0.5”

Standard Lengths: 18”, 24”, 36”, 48”, 60” & 600”.

All dimensions are in inches and metric. All specifications are to the latest revisions. Specifications are subject to change without notice.

Registered trademarks are the property of their respective companies. Made in USA

5/21/02 SY/EH/LS

Last saved by PN

Sales: 800-490-2361 Fax: 888-403-3360

Technical Assistance: 800-241-2060

PomonaACCESS

90445

(800) 444-6785 or (425) 446-6010

More drawings available at www.pomonaelectronics.com

Page 1 of 1

S:\Engineering\Release\DataSheets\FlukeDataSheet \d_BNC-C_1_02.doc
