FL CAT5 HEAVY
Heavy Ethernet Installation Cable
for Category 5e Applications
INTERFACE
Data Sheet
100440_01_en
Description
The
FL CAT5 HEAVY
installation cable with twisted-pair
solid wires is particularly suitable for permanent installation
outside the control cabinet/switch box. It has been specifi-
cally developed for Category 5e industrial Ethernet applica-
tions (up to 100 Mbps) and features a very robust second
outer sheath made from polyurethane (PUR). With an out-
side diameter of 7.5 mm, the cable has a high level of me-
chanical capability and is ideal for leading through standard
threaded cable joints. Within the control cabinet, the second
outer sheath is easily removed using a tearing wire. The di-
ameter is then 5.9 mm maximum, enabling the cable to be
directly assembled with the RJ45 connector and connected
to the modules. Cable lengths up to 100 m are permitted in
accordance with CAT 5e.
FL PLUG… connectors and the corresponding
FL CRIMPTOOL crimping pliers are available for field termi-
nation. It is recommended that the connector set (2 connec-
tors) with the gray bending protection bushing be used for
uncrossed connections and that the connector set with the
green bending protection bushing be used for crossover
connections.
© PHOENIX CONTACT - 02/2007

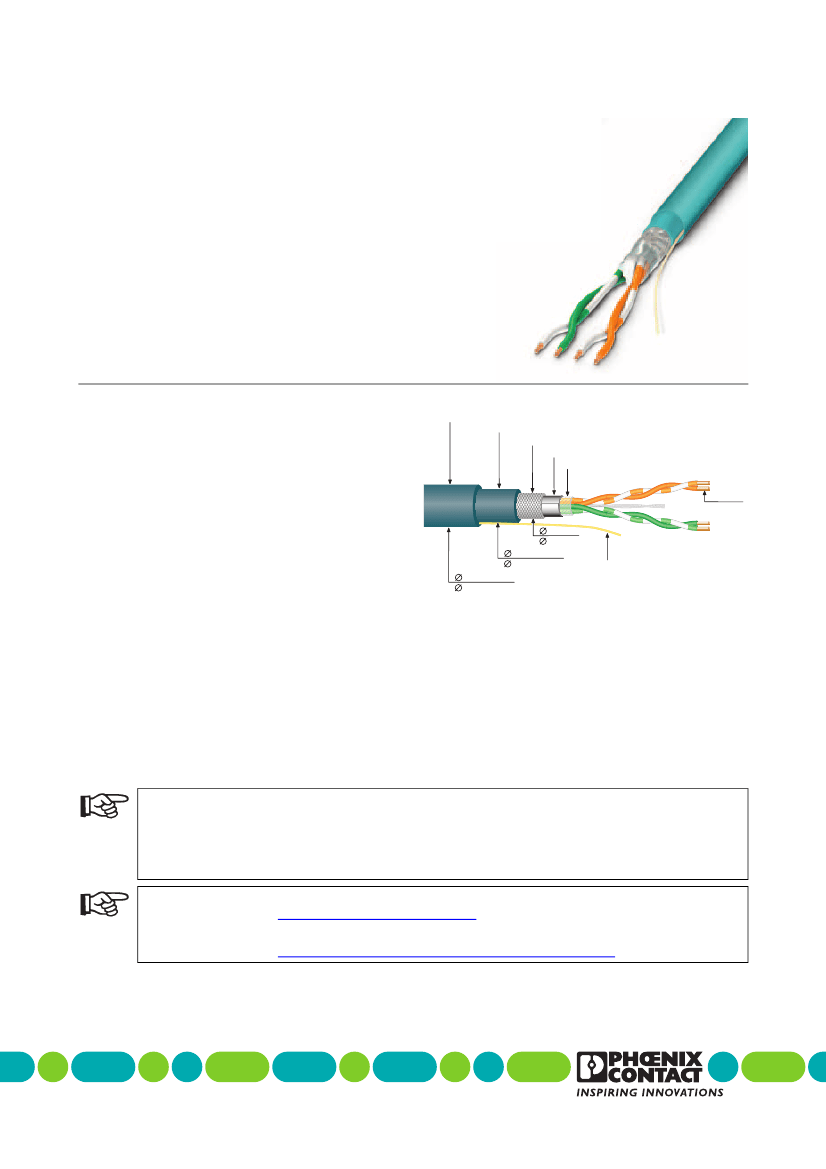

Outer cable sheath
Innenmantel
Schirmgeflecht
Schirmfolie
Separatorfolie
0 .2 m m
2
(A W G 2 4 )
(
(
m a x . 8 .1 m m
m a x . 0 .3 1 9 ")
4 .5 m m
0 .1 7 7 ")
m a x . 5 .9 m m
m a x . 0 .2 3 2 ")
(
Reißfaden
If you have any technical problems, which you cannot resolve with the aid of this documentation, please contact
us during the usual office hours at:
PSI hotline: +49 - 52 35 - 31 98 90
Fax: +49 - 52 35 - 33 09 99
E-mail: interface-service@phoenixcontact.com
Make sure you always use the the latest documentation.
It can be downloaded at
www.download.phoenixcontact.com
A conversion table is available on the Internet.
It can be downloaded at
www.download.phoenixcontact.com/general/7000_en_00.pdf.
FL CAT5 HEAVY
Ordering Data
Cable
Description
CAT 5e SF/UTP cable, heavy installation cable 2 x 2 x 0.14
solid wire,
shielded
mm
2
,
Type
FL CAT5 HEAVY
Order No.
2744814
Pcs./Pkt
1
Connectors
Description
RJ45 connector set, shielded, with bending protection bushing, 2 pieces
Gray for straight cable
Green for straight cable
Plug connector RJ45, IP20, CAT5e, 8-pos., with QUICKON fast connection
method, for 1-wire and 7-wire conductors AWG 26 ... 22, for cable diameter
4.5 mm ... 8.0 mm
Type
FL PLUG RJ-45 GR/2
FL PLUG RJ-45 GN/2
VS-08-RJ45-5-Q/IP20
Order No.
2744856
2744571
1656725
Pcs./Pkt
1
1
1
Tools
Description
Crimping pliers, for assembling the RJ45 connectors
Stripping tool, for conductors and cables of 0 mm to 11 mm diameter
Type
FL CRIMPTOOL
CYCLOPS
Order No.
2744869
1204481
Pcs./Pkt
1
1
Passive Connection Field
Description
Passive connection field, 4 x screw terminal block on RJ45 female connector,
as an alternative to on-site assembly with preassembled RJ45 patch cables
Type
FL CAT TERMINAL BOX
Order No.
2744610
Pcs./Pkt
1
Technical Data
Electric Properties
Loop resistance
Operating capacity
Surge impedance
Category CAT 5e
192
Ω/km,
max.
48 nF/km
100
Ω ±15 Ω
In accordance with IEEE 45 and IEEE 50
Outer Cable Sheath
Material
Color
Diameter
Tearing wire
Marking
Halogen-free PUR compound, HM 2 in accordance with VDE 0207-24
Water blue RAL 5021
7.5 mm ±0.3 mm
Lengthways, metal-free to tear the outer cable sheath
PHOENIX CONTACT FL CABLE CAT.5 HEAVY 2 x 2 x 24 AWG
and continuous meter marking
Inner Cable Sheath
Material
Color
Diameter
Marking
Shielding
Halogen-free compound, HM 2 in accordance with VDE 0207-24
Water blue RAL 5021
5.6 mm ... 5.9 mm
PHOENIX CONTACT FL CABLE CAT.5 FLEX 2 x 2 x 26 AWG
and continuous meter marking
Plastic-coated aluminum foil, braid from tin-plated copper wires (UTP/BS),
coverage 85% ±5%
100440_01_en
PHOENIX CONTACT
2
FL CAT5 HEAVY
Individual Wires
Wires
Cross section
Diameter of the
insulation
Insulation voltage
Core-core
Core-shield
Twisting
Colors
Pair 1
Pair 2
White/orange – orange
White/green – green
1000 V
eff
500 V
eff
Wires to pairs, pairs are arranged to form a cable core
Solid copper wire, plain
0.22 mm
2
1.0 mm, foam skin (polyethylene)
General Data
Abbreviated cable designation
Temperature range
Installation
Operation
Minimum bending radius
Flexible
Permanently installed
Permissible tensile load
During installation
After installation
Fire load
Burning behavior
Chloroform test
Freedom from halogen
Resistance to oil
Resistance to UV radiation
Resistance to ozone
Weight
130 N
65 N
0.41 kWh/m
Flame-retardant in accordance with VDE 0482-265-1 and IEC 60332-1
Free from substances that could impair the application of coating in accor-
dance with the central standard 57650 of VW, Audi, and Seat
Halogen-free compound, HM 2 in accordance with VDE 0207-24
In accordance with EN 60811-2-1/VDE 0473-811-2-1
In accordance with VDE 0282-2, HD 22.1, S3/SEV TP 20B/3C
In accordance with SEV TP 20/3C
63 kg/km, approx,
45 mm
30 mm
-5°C ... +60°C
-30°C ... +80°C
J-02YS(ST) C HP 2 x 2 x 24 AWG
© PHOENIX CONTACT 02/2007
100440_01_en
PHOENIX CONTACT GmbH & Co. KG • 32823 Blomberg • Germany
Phone: +49-(0) 5235-3-00 • Fax: +49-(0) 5235-3-4 12 00
www.phoenixcontact.com
3
