EZ1587C & EZ1587I
POWER MANAGEMENT
Description
The EZ1587 series of high performance positive voltage
regulators are designed for use in applications requiring
low dropout performance at up to 3A. Additionally, the
EZ1587 series provides excellent regulation over
variations in line, load and temperature.
Outstanding features include low dropout performance
at rated current, fast transient response, internal
current limiting and thermal shutdown protection of the
output device.
A variety of options are available for maximum flexibility:
the EZ1587C is intended for commercial applications and
has both fixed and adjustable voltage options; the
EZ1587I is intended for industrial applications and is
adjustable only.
All devices are available in the popular TO-220 and
TO-263 packages.
3 Amp Positive
Voltage Regulator
Features
Low dropout voltage: 1.3V max. for EZ1587C and
1.4V max. for EZ1587I
Full current rating over line and temperature
Fast transient response
±2% total output regulation over line, load and
temperature
Adjust pin current max 90µA over temperature
Fixed/adjustable output voltage (EZ1587C)
Line regulation typically 0.015%
Load regulation typically 0.05%
Industrial temperature range (EZ1587I)
TO-220 and TO-263 packages. Available in RoHS
compliant package
Applications
Printer and plotter supplies
Instrumentation
Medical equipment
Microcontroller systems
Telecommunication systems
Motherboards
Switching supply post regulation
Typical Application Circuit
Fixed Voltage Regulator
U1
VIN > 4.75V
3
IN
EZ1587C-3.3
2
TAB
OUT
VOUT = 3.3V
+
C1
10uF Tant.
GND
1
+
C2
10uF Tant. Min.
Adjustable Voltage Regulator
U1
VIN > 4.75V
3
IN
TAB
EZ1587
OUT
2
VOUT = 3.45V
+
C1
10uF Tant.
ADJ
1
R1
133 Ohm, 1%
+
C2
10uF Tant. Min
Notes:
(1) C1 needed if device is far from filter capacitors
(2) C2 minimum value required for stability
R2
232 Ohm, 1%
R2
V
OUT
=
V
REF
•
1
+
+
I
ADJ
•
R 2
R1
Revision: April 26, 2006
1
www.semtech.com
EZ1587C & EZ1587I
POWER MANAGEMENT
Absolute Maximum Ratings
Exceeding the specifications below may result in permanent damage to the device, or device malfunction. Operation outside of the parameters specified
in the Electrical Characteristics section is not implied.
Parameter
Input Supply Voltage
Power Dissipation
Thermal Resistance Junction to Case
TO-220
TO-263
Thermal Resistance Junction to Ambient
TO-220
TO-263
Operating Ambient Temperature Range
EZ1587C
EZ1587I
Operating Junction Temperature Range
EZ1587C
EZ1587I
Storage Temperature Range
Lead Temperature (Soldering) 10 Sec.
ESD Rating (Human Body Model)
Symbol
V
IN
P
D
θ
J C
Maximum
7
Internally Limited
3
3
50
60
0 to 70
-40 to 85
0 to 125
-40 to 125
-65 to 150
300
2
Units
V
W
°C/W
θ
J A
°C/W
T
A
°C
T
J
T
STG
T
LEAD
ESD
°C
°C
°C
kV
Electrical Characteristics
Unless otherwise specified: Adj. V
IN
= 2.75V to 7.0V and Adj. I
O
= 10mA to 3A; Fixed V
IN
= 4.75 to 7.0V and Fixed I
O
= 0 mA to 3A.
Values in
bold
apply over full operating ambient temperature range.
Parameter
Output Voltage
EZ1587C-X.X
Reference Voltage
(1)
(1)
Symbol
V
O
V
IN
5V
I
O
0mA
Min
0.985lV
O
l
0.98lV
O
l
Typ
V
O
Max
1.015lV
O
l
1.02lV
O
l
Units
V
V
REF
5V
10mA
1.231
1.225
1.250
1.269
1.275
V
EZ1587C, EZ1587I
Line Regulation
(1)
Load Regulation
(1)
Dropout Voltage
(1)(2)
EZ1587C, EZ1587C-X.X
EZ1587I
Current Limit
I
CL
REG
(LINE)
REG
(LOAD)
V
D
5V
3.0A
10mA
0.015
0.05
1.20
1.20
3.1
4.5
0.2
0.4
1.35
1.40
%
%
V
A
2006 Semtech Corp.
2
www.semtech.com
EZ1587C & EZ1587I
POWER MANAGEMENT
Electrical Characteristics (Cont)
Unless otherwise specified: Adj. V
IN
= 2.75V to 7.0V and Adj. I
O
= 10mA to 3A; Fixed V
IN
= 4.75 to 7.0V and Fixed I
O
= 0 mA to 3A.
Values in
bold
apply over full operating ambient temperature range.
Parameter
Quiescent Current
Fixed Voltage Version
Temperature Coefficient
Adjust Pin Current
Adjust Pin Current Change
Temperature Stability
Minimum Load Current
Adj Voltage Versions
RMS Output Noise
(3)
Ripple Rejection Ratio
(4)
Symbol
I
Q
T
C
I
ADJ
∆I
ADJ
T
S
I
O
V
N
R
A
V
IN
5V
I
O
Min
Typ
10
0.005
55
0.2
Max
13
Units
mA
%/°C
90
5
µA
µA
%
5V
5V
0.5A
0.5
5
0.003
10
mA
%V
O
dB
5V
3A
60
72
NOTES:
(1) Low duty cycle pulse testing with Kelvin connections required.
(2)
∆V
OUT
,
∆V
REF
= 1%
(3) Bandwidth of 10 Hz to 10 kHz.
(4) 120 Hz input ripple (C
ADJ
for ADJ = 25µF).
2006 Semtech Corp.
3
www.semtech.com
EZ1587C & EZ1587I
POWER MANAGEMENT
Pin Configurations
Ordering Information
Device
(1)(2)
EZ1587CM-X.X.TR
EZ1587IM.TR
EZ1587CM-X.X.TRT
(5)
EZ1587IM.TRT
(5)
EZ1587CT-X.X
EZ1587IT
EZ1587CT-X.XT
(5)
EZ1587ITT
(5)
P ackag e
TO-263
(3)
TO-220
(4)
Pin Descriptions
Pin
1
Pin Name
ADJUST
GROUND
2
3
OUTPUT
INPUT
Pin Function
Notes:
(1) Where X.X denotes voltage options (EZ1587C only).
Available voltages are: 1.5V, 1.8V, 2.5V,and 3.3V. Leave
blank for adjustable version (1.3 to 5.7V). Contact factory
for additional voltage options.
(2) Where C and I denote Commercial (0°C to 70°C)
and Industrial (-40°C to 85°C) ambient temperature
ranges.
(3) Only available in tape and reel packaging. A reel
contains 800 devices.
(4) Only available in tube packaging. A tube contains 50
devices.
(5) This product is RoHS compliant.
This pin is the negative side of the reference voltage for adjustable devices. Transient response
can be improved by adding a small bypass capacitor from the adjust pin to ground.
This pin is the bottom end of the internal resistor feedback chain for fixed output voltage parts, and
should be connected to ground.
This is the power output of the device and is electrically connected to the TAB.
This is the input supply pin for both the control circuitry and the pass device.
Block Diagram
2006 Semtech Corp.
4
www.semtech.com
EZ1587C & EZ1587I
POWER MANAGEMENT

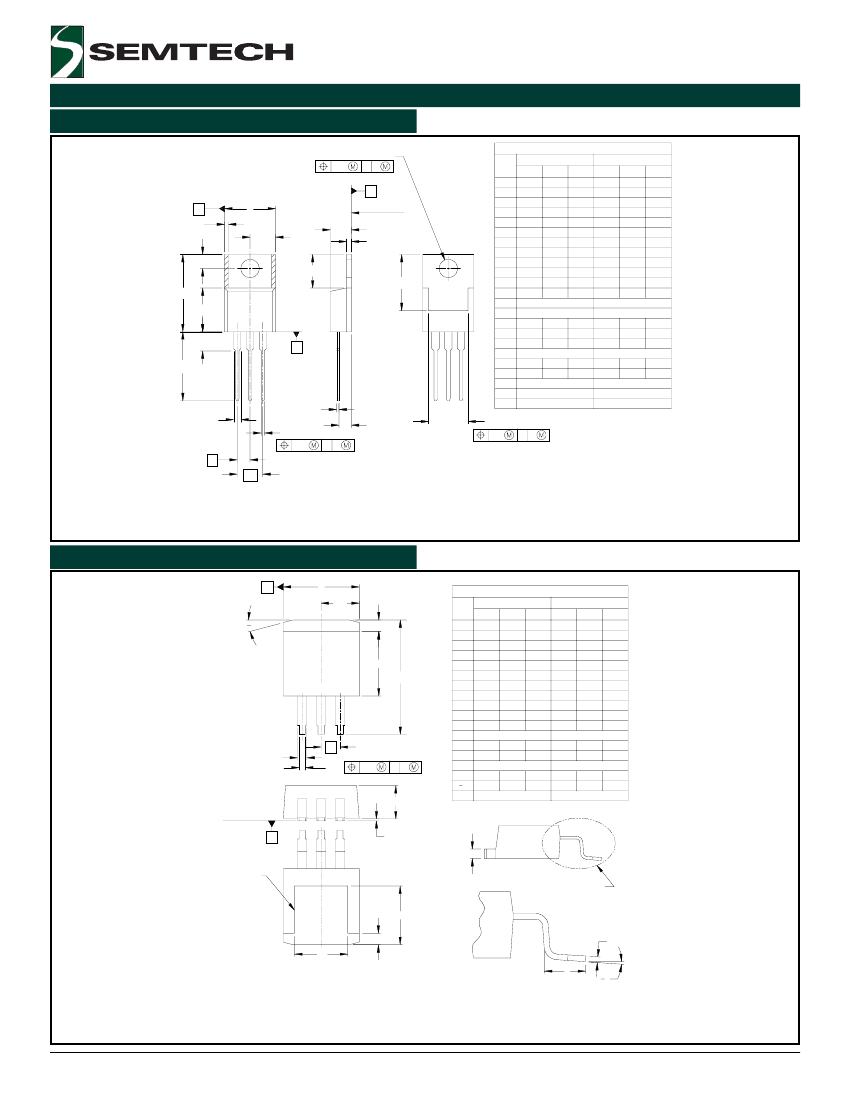

Outline Drawing - TO-220
aaa
ØP
B A
B
A
E2
E/2
Q
H1
D2
D
D1
L1
L
E
A
A1
SEATING
PLANE
DIMENSIONS
INCHES
MILLIMETERS
DIM
MIN NOM MAX MIN NOM MAX
A
A1
A2
b
b2
c
D
D1
D2
E
E1
E2
e
e1
H1
L
L1
N
ØP
Q
aaa
bbb
ccc
.140
.020
.080
.015
.045
.014
.560
.330
.480
.380
.270
-
-
-
4.82
.190 3.56
-
-
1.40
.055 0.51
-
-
2.92
.115 2.03
.027 .040 0.38 0.69 1.02
.057 .070 1.14 1.45 1.78
-
-
0.61
.024 0.36
-
-
.650 14.22
16.51
-
-
.355 8.38
9.02
-
-
.507 12.19
12.88
-
-
.420 9.65
10.66
-
-
.350 6.86
8.90
-
-
-
.030
0.76
2.54 BSC
.100 BSC
5.08 BSC
.200 BSC
-
-
.230
.270 5.84
6.86
-
-
.500
14.73
.580 12.70
-
-
-
-
.250
6.35
3
3
-
-
.139
.156 3.53
3.96
-
-
.100
.120 2.54
3.05
.014
0.36
.015
0.38
.010
0.25
C
c
3 x b2
3xb
bbb
2x e
e1
NOTES:
1.
CONTROLLING DIMENSIONS ARE IN INCHES.
2. DIMENSIONS "D" AND "E" DO NOT INCLUDE MOLD FLASH, PROTRUSIONS
OR GATE BURRS.
A2
B A
E1
ccc
B A
Outline Drawing - T0-263
A
E
E/2
0
L1
DIMENSIONS
INCHES
MILLIMETERS
DIM
MIN NOM MAX MIN NOM MAX
A
A1
b
b1
c
c1
D
D1
E
E1
H
e
L
L1
N
0
01
aaa
-
-
.190 4.06
4.83
-
-
.010 0.00
0.25
-
-
.039 0.51
0.99
-
-
.070 1.14
1.78
-
-
.029 0.38
0.74
-
-
.065 1.14
1.65
-
-
.380 8.28
9.65
-
-
-
-
6.86
-
-
10.67
.420 9.65
-
-
-
-
6.22
-
-
.625 14.61
15.88
.100 BSC
2.54 BSC
-
-
2.79
.070
.110 1.78
-
-
-
-
1.68
.066
3
3
-
15°
-
-
15°
-
-
-
0°
8°
0°
8°
.010
0.25
.160
.000
.020
.045
.015
.045
.326
.270
.380
.245
.575
D
H
1
2
3
e
3x b1
bxN
aaa
B A
A
SEATING
PLANE
B
A1
c1
PLATED COPPER
HEAT SPREADER
D1
(L1)
E1
L
DETAIL
NOTES:
1.
CONTROLLING DIMENSIONS ARE IN INCHES (ANGLES IN DEGREES).
2. DIMENSIONS "D" AND "E" DO NOT INCLUDE MOLD FLASH, PROTRUSIONS
OR GATE BURRS.
SIDE VIEW
SEE DETAIL
A
c
A
01
2006 Semtech Corp.
5
www.semtech.com
