Z84C1510AEC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> Z84C1510AEC

Z84C1510AEC: DescriptionI/O Controller Interface IC 10MHz Z80 IPC XTEMP; CategoryThe embedded processor and controller Microcontrollers and processors; File Size2MB，65 Pages; ManufacturerZilog, Inc.; Websitehttps://www.zilog.com/

Download Datasheet Parametric Compare View All

Z84C1510AEC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	Z84C1510AEC	-	-	View	Buy Now

Z84C1510AEC Overview

I/O Controller Interface IC 10MHz Z80 IPC XTEMP

Z84C1510AEC Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Zilog, Inc.
Parts packaging code	QFP
package instruction	LFQFP, QFP100(UNSPEC)
Contacts	100
Reach Compliance Code	unknown
Has ADC	NO
Address bus width	16
bit size	8
boundary scan	NO
maximum clock frequency	10 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	S-PQFP-G100
JESD-609 code	e0
length	14 mm
low power mode	YES
Number of DMA channels
Number of external interrupt devices	2
Number of I/O lines	16
Number of serial I/Os	2
Number of terminals	100
Number of timers	1
On-chip data RAM width
On-chip program ROM width
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	LFQFP
Encapsulate equivalent code	QFP100(UNSPEC)
Package shape	SQUARE
Package form	FLATPACK, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Celsius)	225
power supply	5 V
Certification status	Not Qualified
RAM (number of words)	0
rom(word)	0
Maximum seat height	1.6 mm
speed	10 MHz
Maximum slew rate	50 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	30
width	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

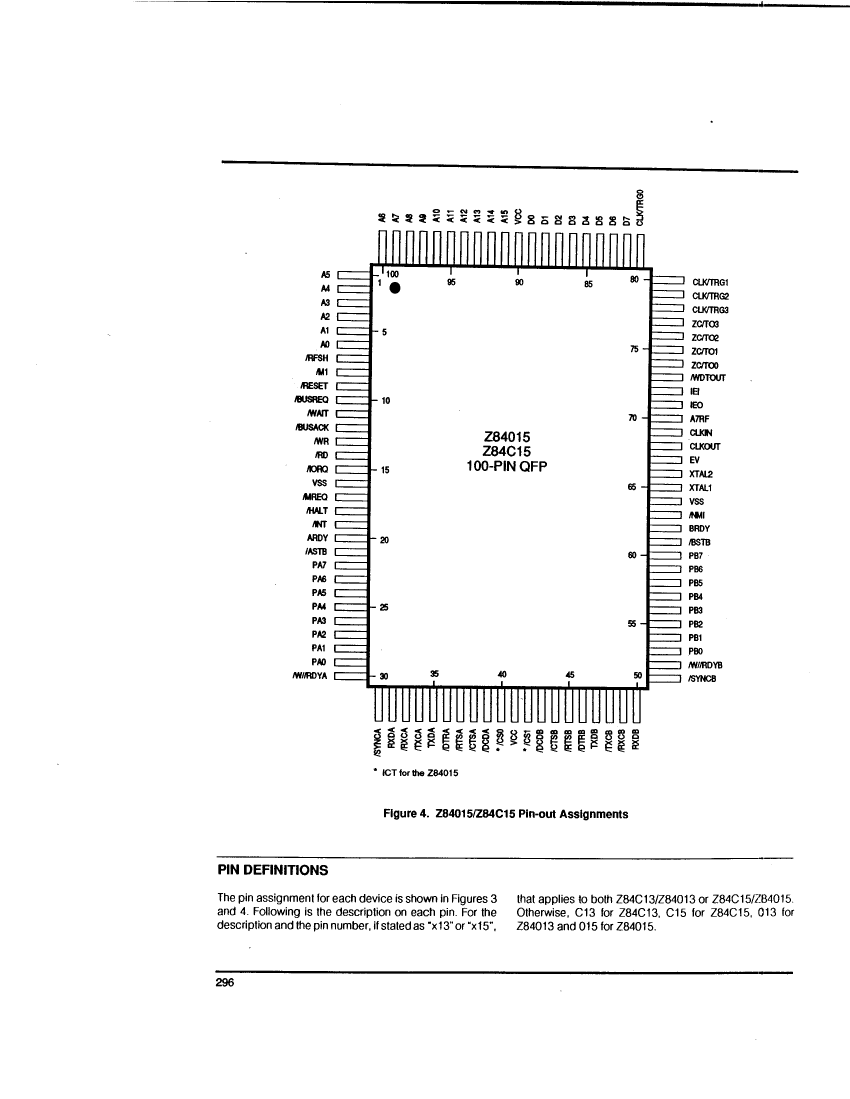

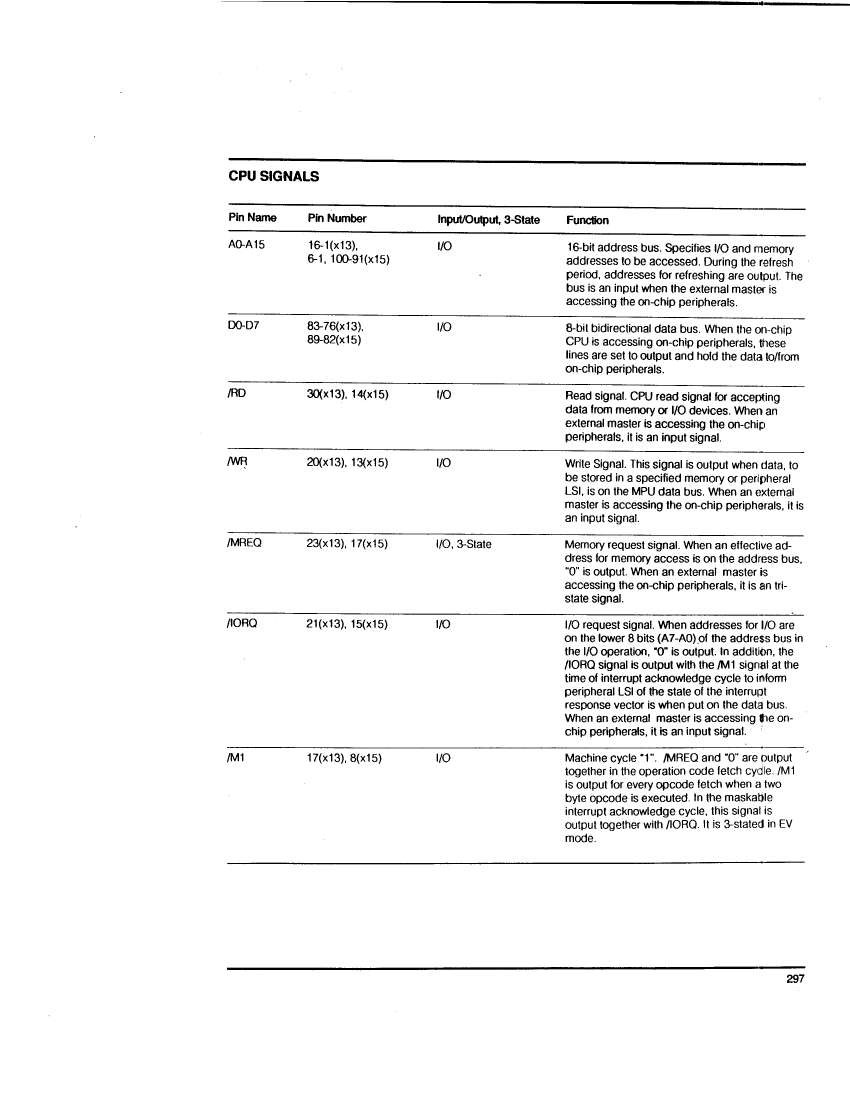

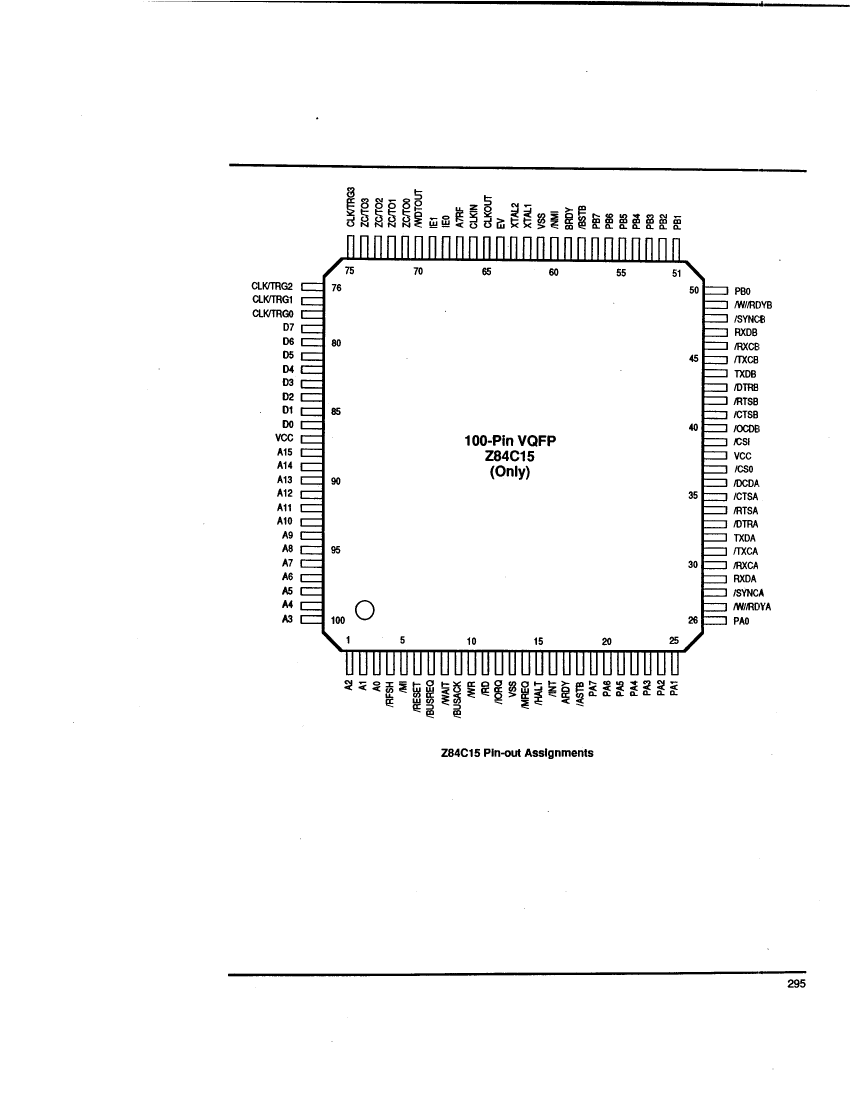

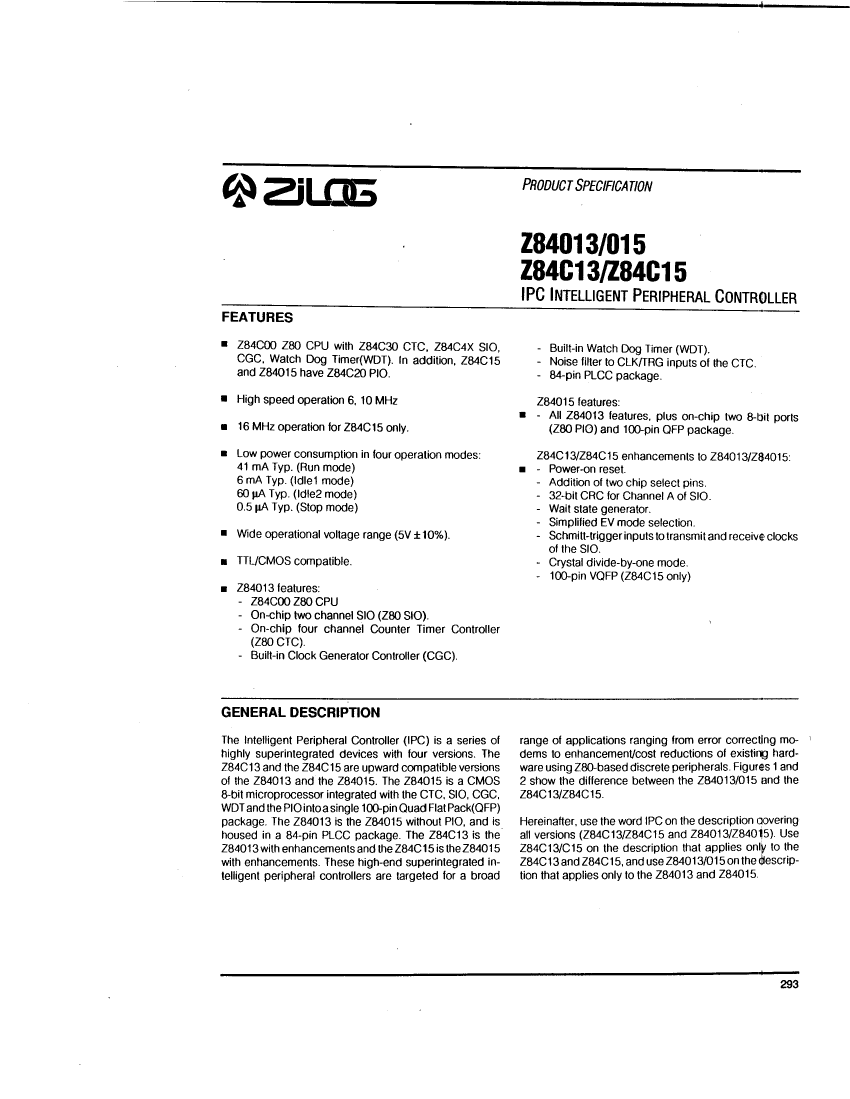

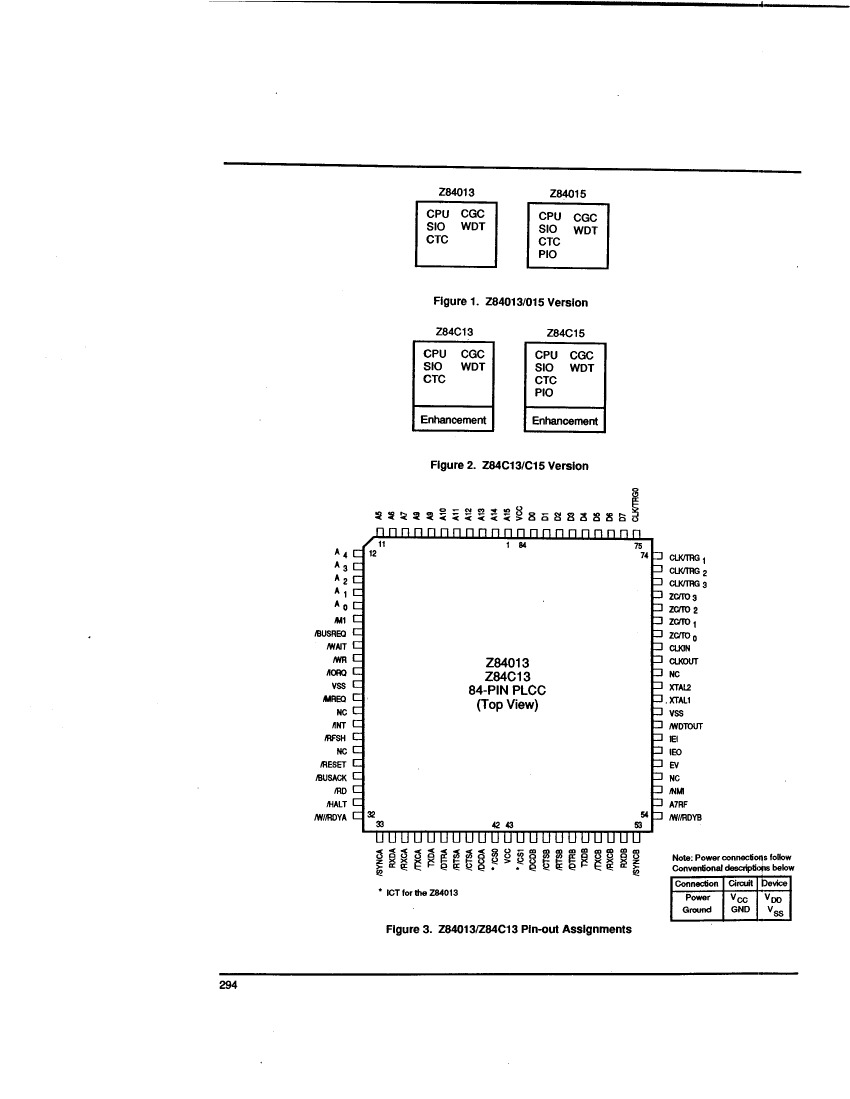

Preview

Download Datasheet

View All

PS018201-0602

Z84C1510AEC Related Products

	Z84C1510AEC	Z84C1510FEG	Z84C1510AEG	Z84C1516FSC	Z84C1510FEC	Z84C1500ZCO
Description	I/O Controller Interface IC 10MHz Z80 IPC XTEMP	I/O Controller Interface IC 10MHz Z80 IPC	I/O Controller Interface IC 10MHz Z80 IPC XTEMP	I/O Controller Interface IC 16MHz Z80 IPC	I/O Controller Interface IC 10MHz Z80 IPC	Development Boards and Kits - Other Processors Z84C1500ZCO Kit
Is it lead-free?	Contains lead	Lead free	Lead free	Contains lead	Contains lead	-
Is it Rohs certified?	incompatible	conform to	conform to	incompatible	incompatible	-
Maker	Zilog, Inc.	-	-	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.
Parts packaging code	QFP	QFP	QFP	QFP	QFP	-
package instruction	LFQFP, QFP100(UNSPEC)	QFP, QFP44,.47SQ,32	LFQFP, QFP100,.63SQ,20	QFP, QFP100,.7X.9	QFP, QFP100,.7X1.0	-
Contacts	100	100	100	100	100	-
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	-
Has ADC	NO	NO	NO	NO	NO	-
Address bus width	16	16	16	16	16	-
bit size	8	8	8	8	8	-
boundary scan	NO	NO	NO	-	NO	-
maximum clock frequency	10 MHz	10 MHz	10 MHz	16 MHz	10 MHz	-
DAC channel	NO	NO	NO	NO	NO	-
DMA channel	NO	NO	NO	NO	NO	-
External data bus width	8	8	8	8	8	-
Format	FIXED POINT	FIXED POINT	FIXED POINT	-	FIXED POINT	-
Integrated cache	NO	NO	NO	-	NO	-
JESD-30 code	S-PQFP-G100	R-PQFP-G100	S-PQFP-G100	R-PQFP-G100	R-PQFP-G100	-
JESD-609 code	e0	e3	e3	e0	e0	-
length	14 mm	20 mm	14 mm	20 mm	20 mm	-
low power mode	YES	YES	YES	-	YES	-
Number of external interrupt devices	2	2	2	-	2	-
Number of I/O lines	16	16	16	16	16	-
Number of serial I/Os	2	2	2	-	2	-
Number of terminals	100	100	100	100	100	-
Number of timers	1	1	1	-	1	-
Maximum operating temperature	100 °C	100 °C	100 °C	70 °C	100 °C	-
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-	-40 °C	-
PWM channel	NO	NO	NO	NO	NO	-
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-
encapsulated code	LFQFP	QFP	LFQFP	QFP	QFP	-
Encapsulate equivalent code	QFP100(UNSPEC)	QFP44,.47SQ,32	QFP100,.63SQ,20	QFP100,.7X.9	QFP100,.7X1.0	-
Package shape	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	-
Package form	FLATPACK, LOW PROFILE, FINE PITCH	FLATPACK	FLATPACK, LOW PROFILE, FINE PITCH	FLATPACK	FLATPACK	-
Peak Reflow Temperature (Celsius)	225	260	260	225	225	-
power supply	5 V	5 V	5 V	5 V	5 V	-
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-
Maximum seat height	1.6 mm	3.1 mm	1.6 mm	3.1 mm	3.1 mm	-
speed	10 MHz	10 MHz	10 MHz	16 MHz	10 MHz	-
Maximum slew rate	50 mA	50 mA	50 mA	-	50 mA	-
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	-
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	-
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	-
surface mount	YES	YES	YES	YES	YES	-
technology	CMOS	CMOS	CMOS	CMOS	CMOS	-
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	-
Terminal surface	Tin/Lead (Sn/Pb)	Matte Tin (Sn)	MATTE TIN	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	-
Terminal pitch	0.5 mm	0.65 mm	0.5 mm	0.65 mm	0.65 mm	-
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	-
Maximum time at peak reflow temperature	30	40	40	30	30	-
width	14 mm	14 mm	14 mm	14 mm	14 mm	-
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	-
Base Number Matches	-	1	1	1	1	-
