FIN1048 3.3V LVDS 4-Bit Flow-Through High Speed Differential Receiver
September 2001
Revised August 2003
FIN1048
3.3V LVDS 4-Bit Flow-Through
High Speed Differential Receiver
General Description
This quad receiver is designed for high speed interconnect
utilizing Low Voltage Differential Signaling (LVDS) technol-
ogy. The receiver translates LVDS levels, with a typical dif-
ferential input threshold of 100mV, to LVTTL signal levels.
LVDS provides low EMI at ultra low power dissipation even
at high frequencies. This device is ideal for high speed
transfer of clock and data.
The FIN1048 can be paired with its companion driver, the
FIN1047, or any other LVDS driver.
Features
s
Greater than 400Mbs data rate
s
Flow-through pinout simplifies PCB layout
s
3.3V power supply operation
s

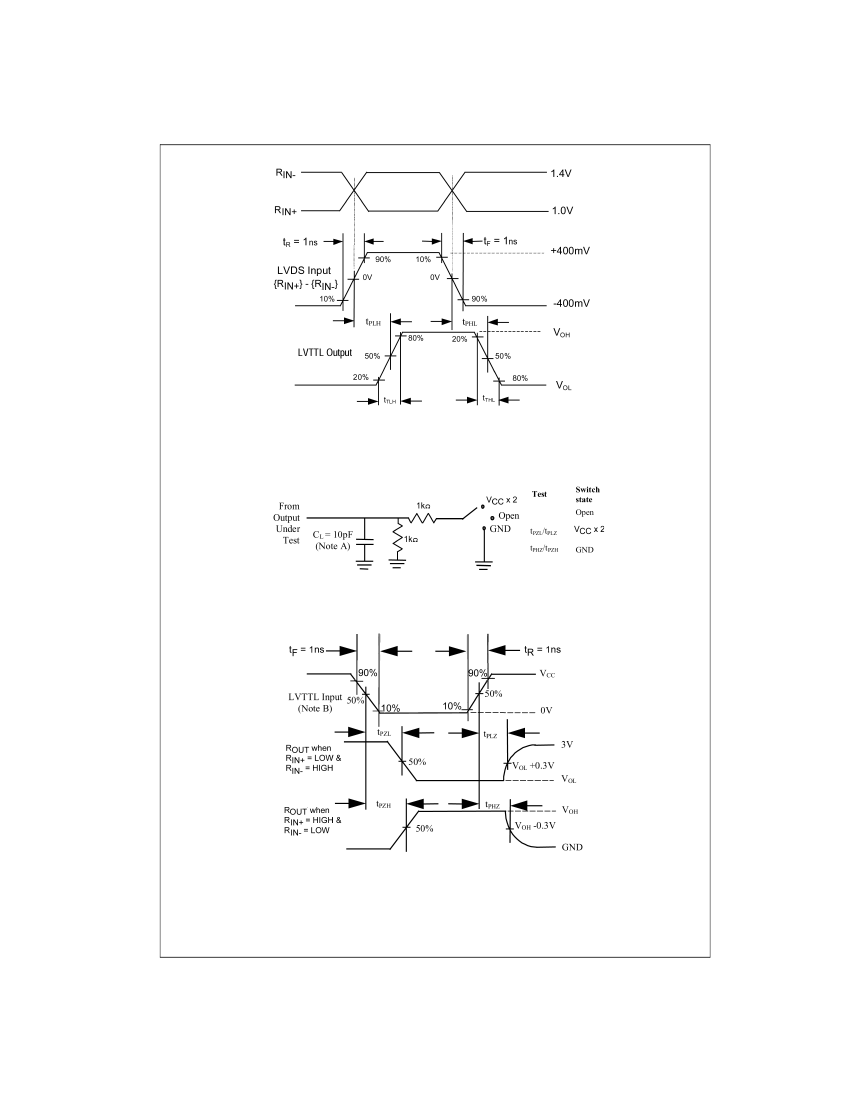

0.4ns maximum differential pulse skew
s
2.5ns maximum propagation delay
s
Low power dissipation
s
Power-Off protection
s
Fail safe protection for open-circuit, shorted and termi-
nated conditions
s
Meets or exceeds the TIA/EIA-644 LVDS standard
s
Pin compatible with equivalent RS-422 and LVPECL
devices
s
16-Lead SOIC and TSSOP packages save space
Ordering Code:
Order Number
FIN1048M
FIN1048MTC
Package Number
M16A
MTC16
Package Description
16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150" Narrow
