89852-301LF datasheet, PDF - EEWORLD Datasheet

89852-301LF: DescriptionBoard Connector, 23 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Blue Insulator, Plug, ROHS COMPLIANT; File Size59KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

89852-301LF Overview

Board Connector, 23 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Blue Insulator, Plug, ROHS COMPLIANT

89852-301LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1580536649
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	9.1
Other features	1 contact omitted
body width	0.23 inch
subject depth	0.331 inch
body length	1.197 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLUE
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	7.62 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Guideline	UL
Terminal length	0.114 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	23
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

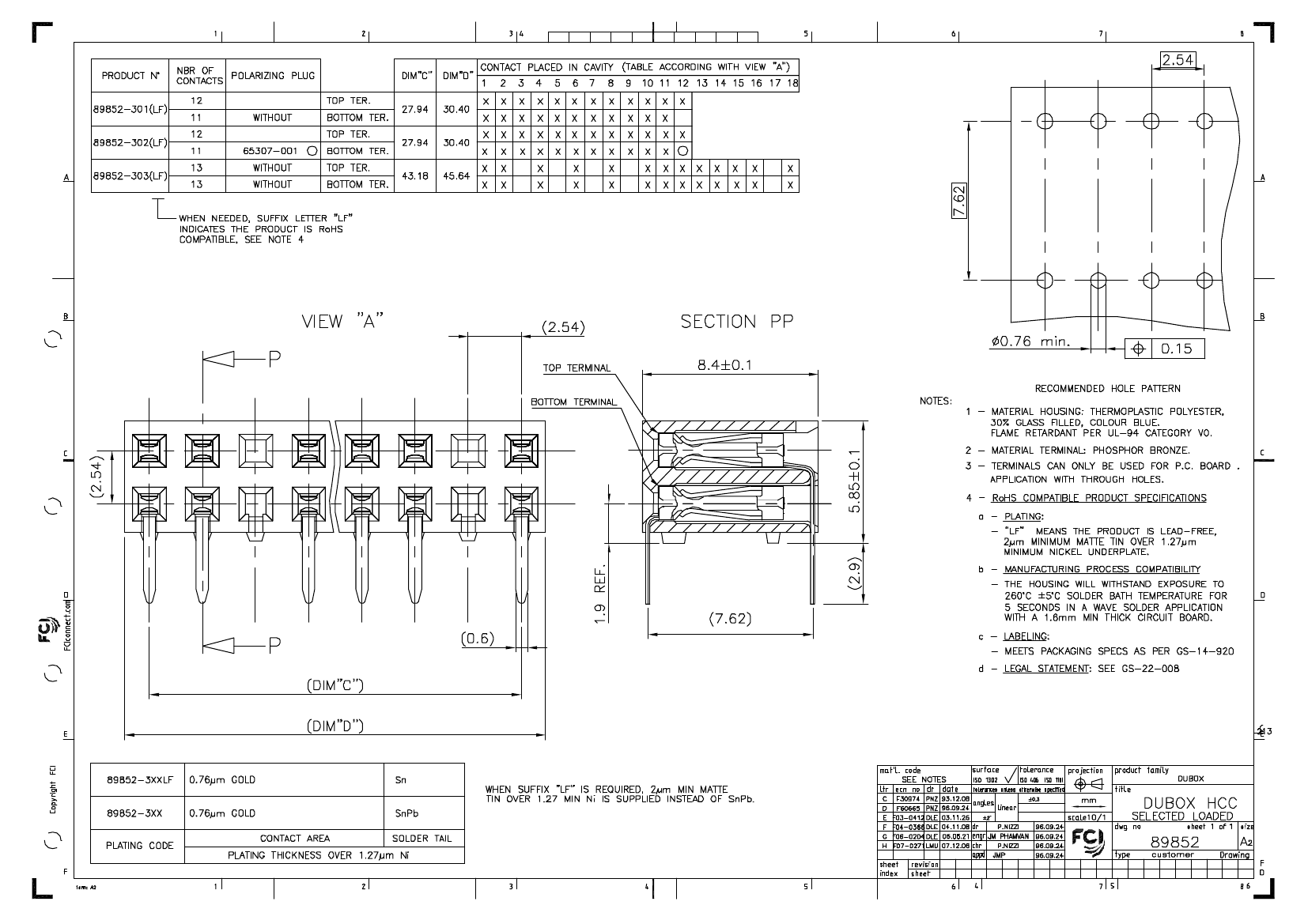

R:\Dcu\Public\Engineering\Product\ELX\f07-0271\89852c01.dwg

PDM: Rev:H

STATUS:

Released

Printed: Feb 20, 2010

89852-301LF Related Products

	89852-301LF	89852-301	89852-302	89852-302LF	89852-303
Description	Board Connector, 23 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Blue Insulator, Plug, ROHS COMPLIANT	Board Connector, 23 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal	Board Connector, 23 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal,	Board Connector, 23 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Blue Insulator, Plug, ROHS COMPLIANT	Board Connector, 26 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal
Is it Rohs certified?	conform to	incompatible	incompatible	conform to	incompatible
Reach Compliance Code	compliant	unknown	compliant	compliant	unknown
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	Matte Tin (Sn) - with Nickel (Ni) barrier	TIN LEAD OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
DIN compliance	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
JESD-609 code	e3	e0	e0	e3	e0
MIL compliance	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	23	23	23	23	26
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
Objectid	1580536649	-	2140618568	1580536650	-
ECCN code	EAR99	-	EAR99	EAR99	-
YTEOL	9.1	-	9.1	9.1	-
Other features	1 contact omitted	-	POLARIZED	1 contact omitted	-
Manufacturer's serial number	-	89852	89852	-	89852
