GP12MSABE datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> GP12MSABE

GP12MSABE: DescriptionPUSHBUTTON SWITCH, SPST, MOMENTARY, 0.02A, 20VDC, THROUGH HOLE-RIGHT ANGLE; CategoryMechanical and electronic products switch; File Size339KB，4 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/; Environmental Compliance

Download Datasheet Parametric View All

GP12MSABE Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	GP12MSABE	-	-	View	Buy Now

GP12MSABE Overview

PUSHBUTTON SWITCH, SPST, MOMENTARY, 0.02A, 20VDC, THROUGH HOLE-RIGHT ANGLE

GP12MSABE Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ITT
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknow
ECCN code	EAR99
Actuator length	0.078 inch
Actuator material	GLASS FILLED NYLON
Actuator stroke	1.016 mm
Actuator type	PUSHBUTTON
Other features	ROHS COMPLIANT, TAPE/REEL PKG
body width	6.6 mm
body height	5.46 mm
Body length or diameter	7.01 mm
Casing diameter
Nozzle length
center contact material	COPPER ALLOY
Center contact plating	GOLD OVER NICKEL
Contact (AC) maximum rated power R load	0.4VA@20VAC
Contact (AC) maximum rated R load	.02A@20VAC
Maximum contact current (AC)	0.02 A
Maximum contact current (DC)	0.02 A
Contact (DC) maximum rated R load	.02A@20VDC
Contact function	ON-(OFF)
Contact resistance	0.05 mΩ
contact time	MAKE-BEFORE-BREAK
Maximum contact voltage (AC)	20 V
Maximum contact voltage (DC)	20 V
Dielectric withstand voltage	500VRMS V
Electrical life	40000 Cycle(s)
End contact material	COPPER ALLOY
End contact plating	GOLD OVER NICKEL
Shell material	GLASS FILLED NYLON
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED NYLON
JESD-609 code	e4
Manufacturer's serial number	GP
Installation features	SURFACE MOUNT-RIGHT ANGLE
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
method of packing	TAPE AND REEL
seal	EPOXY TERMINAL SEALED
Solderability	MIL-STD
surface mount	NO
Switch action	MOMENTARY
switch function	SPDT
Switch type	PUSHBUTTON SWITCH
Terminal surface	Gold (Au) - with Nickel (Ni) barrie
Terminal length
Terminal material	COPPER ALLOY
Termination type	SOLDER

Preview

Download Datasheet

View All

C&K GP Series

Sealed Ultraminiature Pushbutton Switches

Features/Benefits

•

Ultraminiature design saves space

•

Process compatible, withstands most

soldering and washing processes

•

Thru-hole and surface mount models

available

•

Sealed construction—internal o-ring

and epoxy base

Typical Applications

•

Telecommunications and

network equipment

•

Computers and peripheral products

•

Instrumentation

Pushbutton

•

RoHS compliant

Specifications

CONTACT RATING: 0.4 VA max. @ 20 V AC or DC max.

MECHANICAL & ELECTRICAL LIFE: 40,000 make-and-break

cycles at full load.

CONTACT RESISTANCE: Below 50 mΩ typ. initial @

2-4 V DC, 100 mA.

INSULATION RESISTANCE: 109

Ω

min.

DIELECTRIC STRENGTH: 500 Vrms min. @ sea level.

OPERATING TEMPERATURE: –30ºC to 85ºC.

SOLDERABILITY: Per MIL-STD-202F method 208D, or

EIA RS-186E method 9 (1 hour steam aging).

DEGREE OF PROTECTION: IP57; Protection against harmful dust

deposit, full-scale voltage protection, temporary immersion.

PACKAGING: Surface mount switches standard in anti-static tape

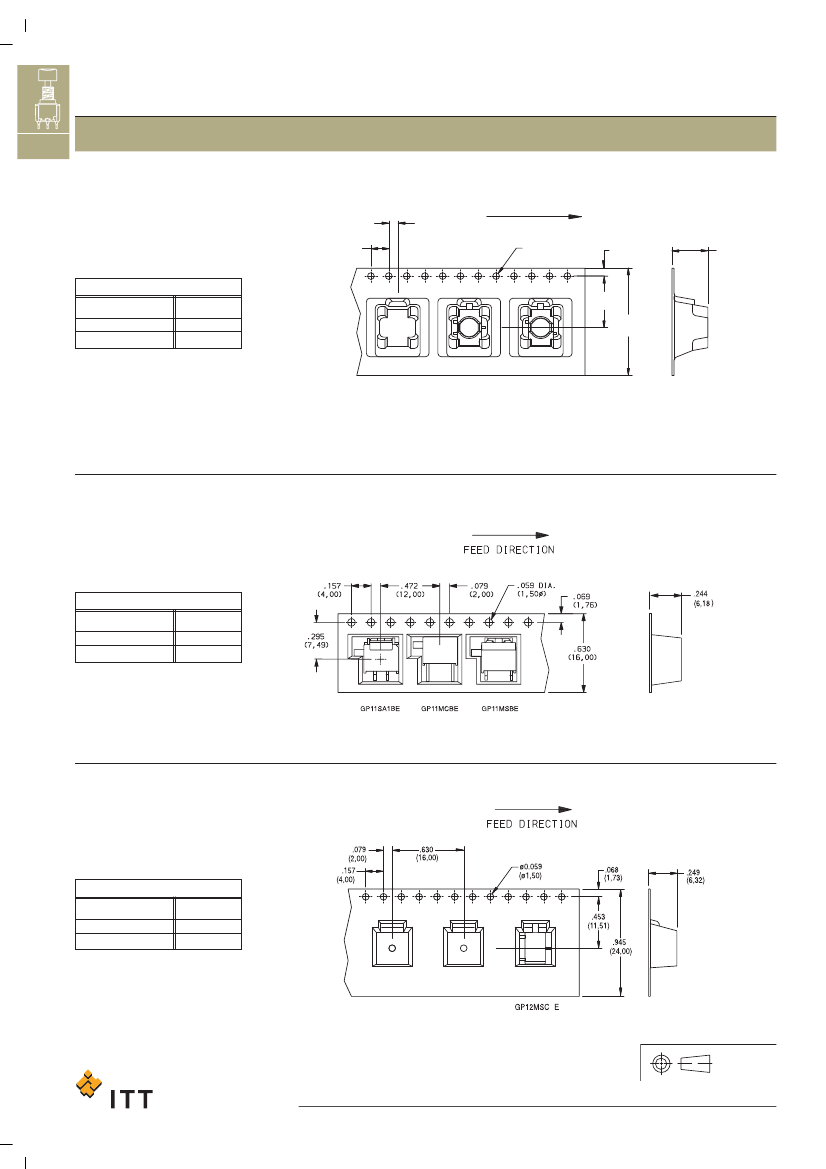

and reel packaging per EIA 481-3, see page A-78 for drawings

and reel information.

All models are RoHS compliant and compliant.

Materials

HOUSING & BASE: Glass filled nylon 4/6, flame retardant, heat

stabilized (UL 94V-0).

ACTUATOR: Glass filled nylon 4/6, flame retardant (UL 94V-0)

with standard internal o-ring seal.

SWITCH SUPPORT: Brass, tin plated.

MOVABLE CONTACT: Copper alloy, with gold plate over nickel plate.

STATIONARY CONTACTS Copper alloy, with gold plate over

nickel plate.

TERMINALS: Copper alloy, with gold flash over nickel plate.

TERMINAL SEAL: Epoxy/Urethane. All terminals insert molded.

NOTE:

Any models supplied with B contact material are RoHS compliant and compatible.

For the latest information regarding RoHS compliance, please go to: www.ittcannon.com/rohs.

NOTE:

Materials listed above are general specifications. Specifications available for

specific and custom switches, consult Customer Service Center.

CAUTION:

PC mounting layouts and pads as shown are designed to be compatible with the

latest equipment and reflow techniques. Care should be taken in the design and location of

PC lands to suit individual needs. Orientation relative to reflow direction may significantly

impact solder joint integrity.

How To Order

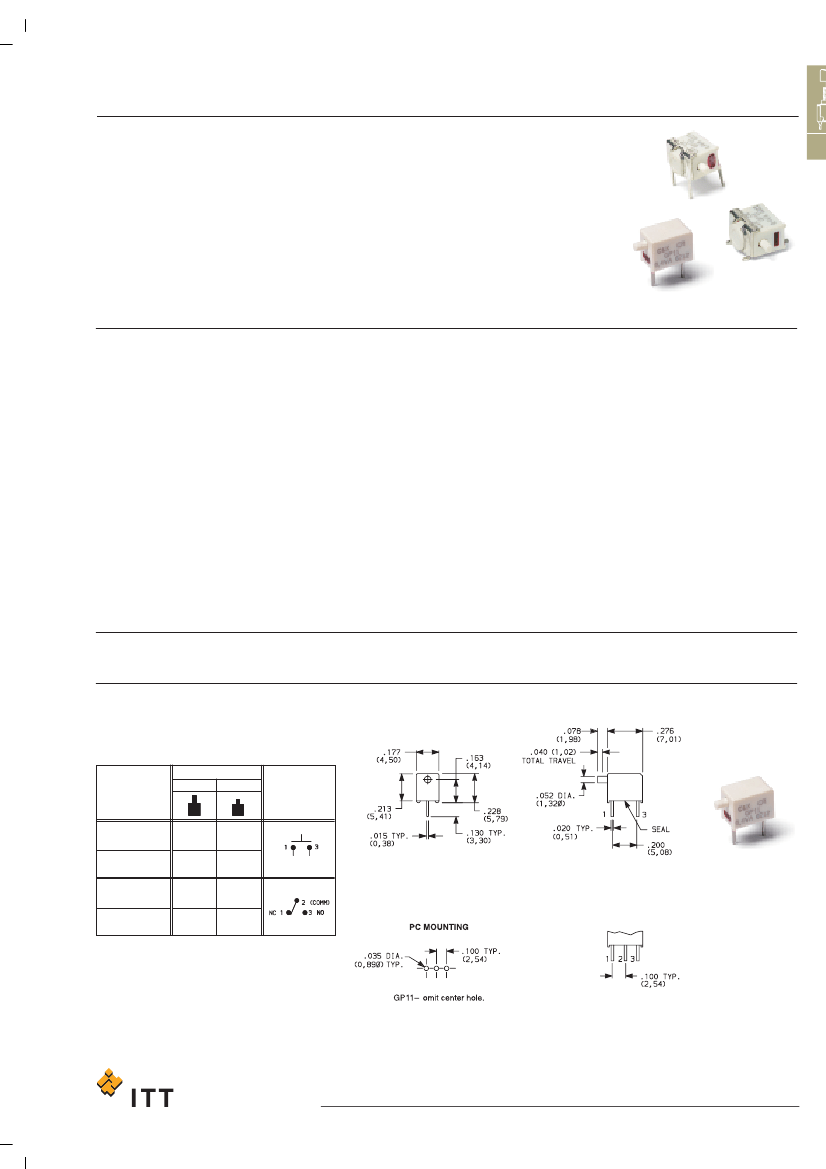

Complete part numbers for GP Series Sealed Ultraminiature Pushbutton Switches are shown on pages A-76 thru A-78.

SWITCH FUNCTION

POS.1

PART NUMBER

POS. 2

SCHEMATIC

OFF

OPEN

MOM.

1-3

GP11MCBE

Conn. Terms.

SPST

Terminal nos.

for reference only.

GP11MCBE

SPST

GP12MCBE

Conn. Terms.

MOM. = Momentary

2-1

MOM.

2-3

SPDT

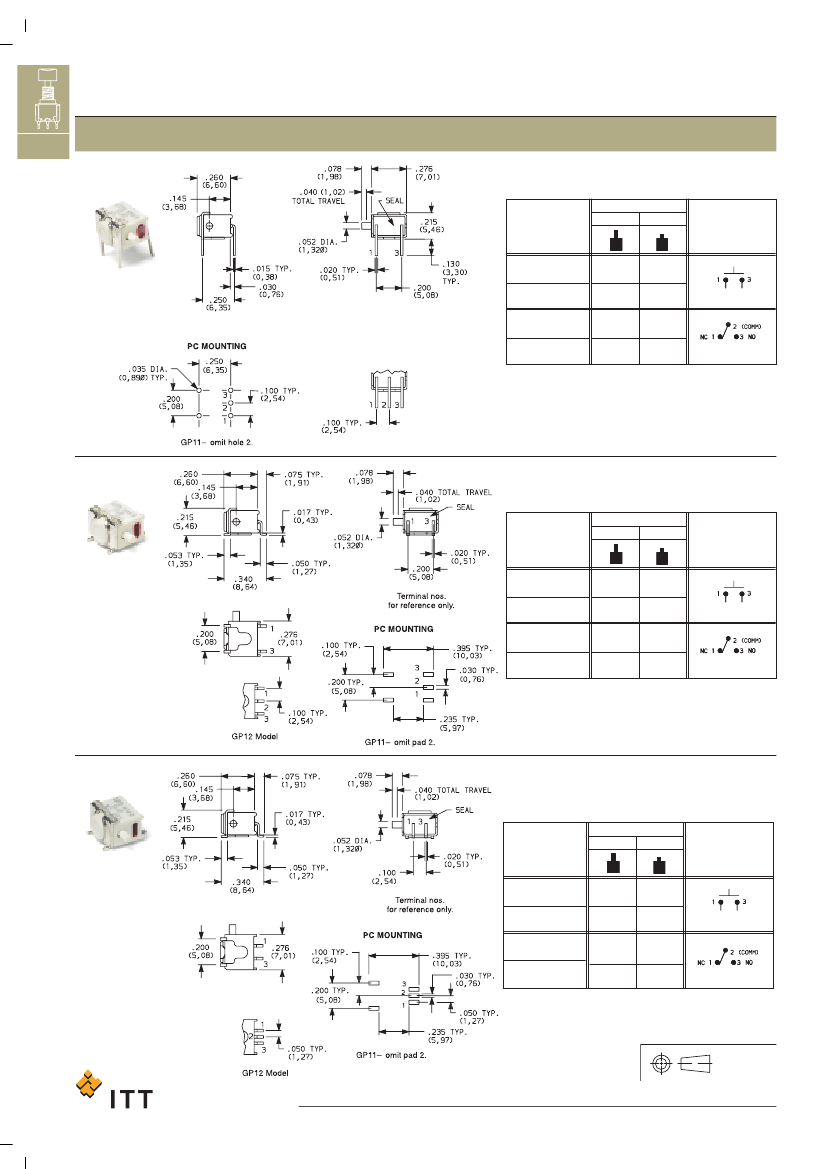

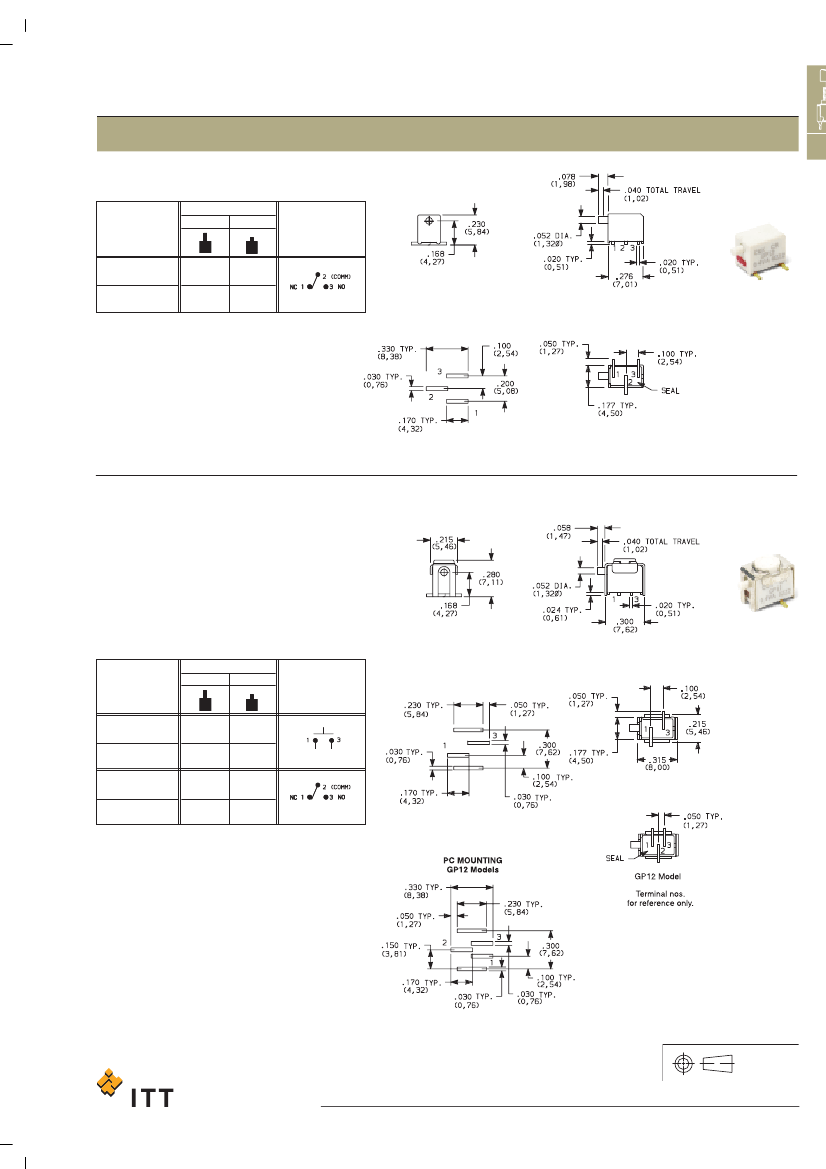

GP12 Model

Dimensions are shown: Inches (mm)

Specifications and dimensions subject to change

A–75

www.ittcannon.com
