Cable gland - HC-M-KV-M16(5-9) - 1690558
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Metal screw connection up to 5 bar, thread length: 5 mm, cable diameter 5 - 9 mm, WAF 17, screw connection:
M16

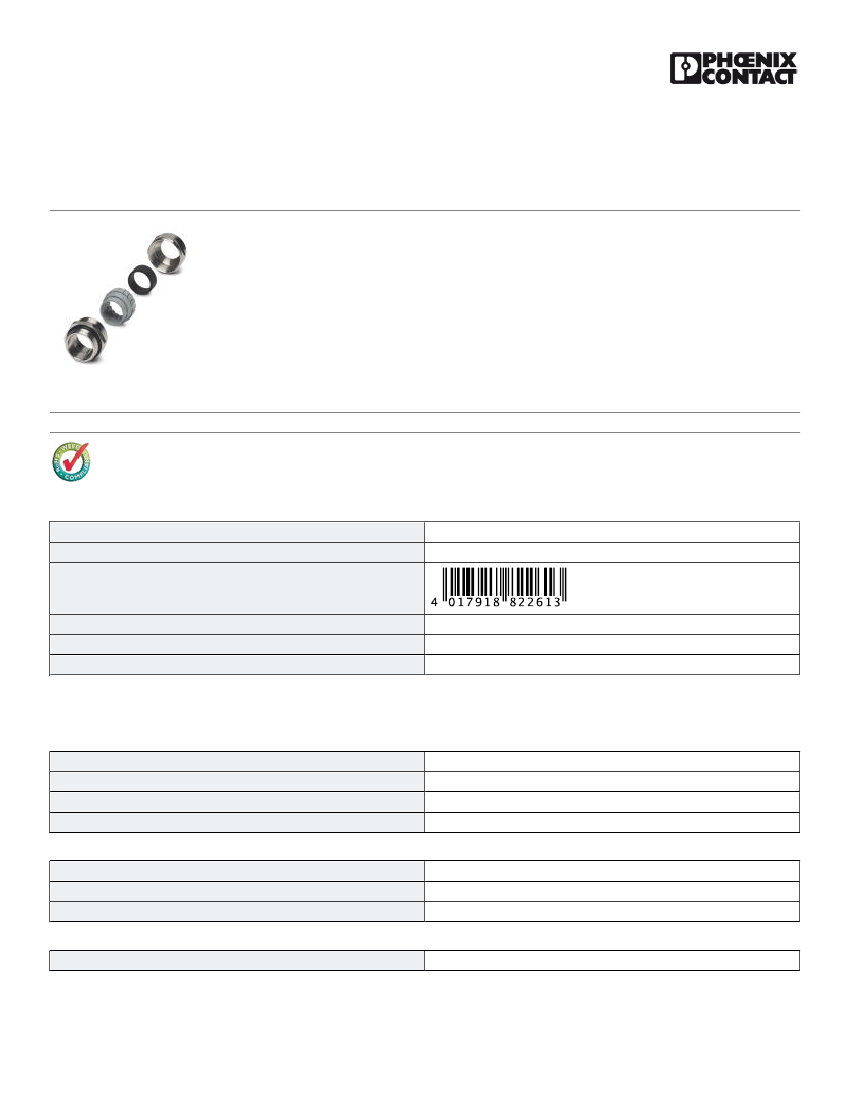

The illustration shows version HC-M-
KV-M20
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
19.18 g
74199990
Germany
1 pc
25 pc
Technical data
Dimensions
Wrench size, union nut
Wrench size, support
Length of the connecting thread
External cable diameter
17 mm
17 mm
5 mm
5 mm ... 9 mm
Ambient conditions
Degree of protection
Ambient temperature (operation)
IP68, to 5 bar
IP68 (Up to 5 bar)
-20 °C ... 100 °C
General
Type of the screw connection
M16
04/21/2016 Page 1 / 3
https://www.phoenixcontact.com/us/products/1690558
Cable gland - HC-M-KV-M16(5-9) - 1690558
Technical data
General
No. of conductors
Cable gland material
Seal material
Cable seal material
O-ring material
Shielded
Thread type on connection side
Torque
Tightening torque, union nut
1
Nickel-plated brass
Neoprene
Neoprene
NBR
No
M16
5 Nm (Union nut)
5.00 Nm
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27141209
27141209
27149109
27149109
27149109
27149109
27149109
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000441
EC000441
EC000441
EC000441
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
31261502
31261502
31261502
31261502
31261502
Drawings
04/21/2016 Page 2 / 3
https://www.phoenixcontact.com/us/products/1690558
Cable gland - HC-M-KV-M16(5-9) - 1690558
Dimensional drawing
30
5
M16
17
19
17
Dimensional drawing
