Description
GM6251 combines high accuracy with very low power con-
sumption, and provides high output current even when the
application requires extremely low input-output voltage dif-
ferential.
GM6251 includes a precision voltage reference, an error
correction circuit, over-temperature protection, and a cur-
rent limited output driver. Fast transient response to load
variations provides excellent stability under dynamic load
conditions.
GM6251 comes in SOT-25 (150mW), SOT-89 (500mW)
and TO-92 packages.
Features
Maximum output current 250mA (within
maximum power dissipation)
Output voltage: from 1.8 V to 6.0V in 0.1V
increments
Output voltage ±2%
CMOS low power consumption, typically
1.0µA at V
OUT
= 5.0V
Input stability typically 0.2%/ V
Ultra-low dropout voltage 0.38V @ I
OUT
=
200mA at V
OUT
= 5.0V
Small input/ output differential:
0.4V at 160mA (V
OUT
= 3.3V)
SOT-25 (150mW), SOT-89 (500mW) and
TO-92 packages
Application
Palmtops
Portable Cameras
Video Recorders
Battery Powered Equipment
Reference Voltage Sources

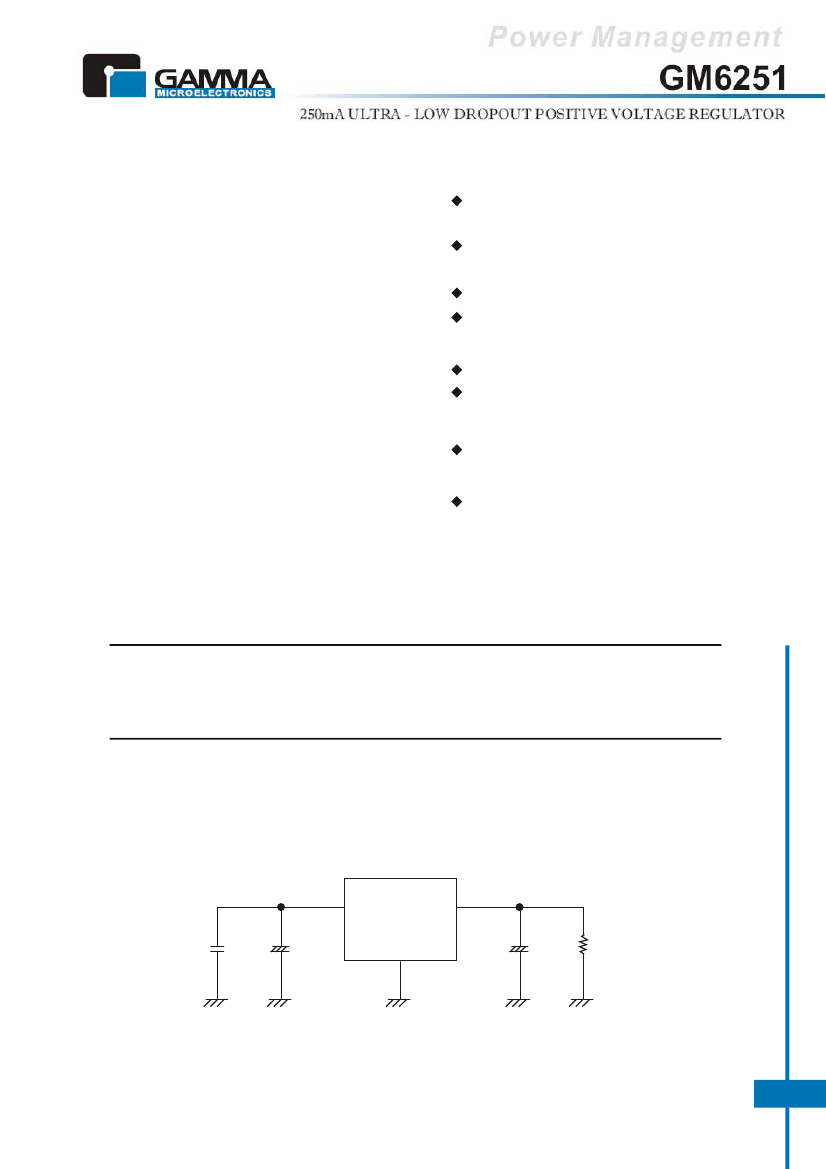

TYPICAL APPLICATION CIRCUITS
V
IN
+
C
IN
V
SS
C
L
1µF
(Tantalum)
+
R
L
1µF
(Tantalum)
www.gammamicro.com
GM6251
V0.1
1
V
IN
GM6251
V
OUT

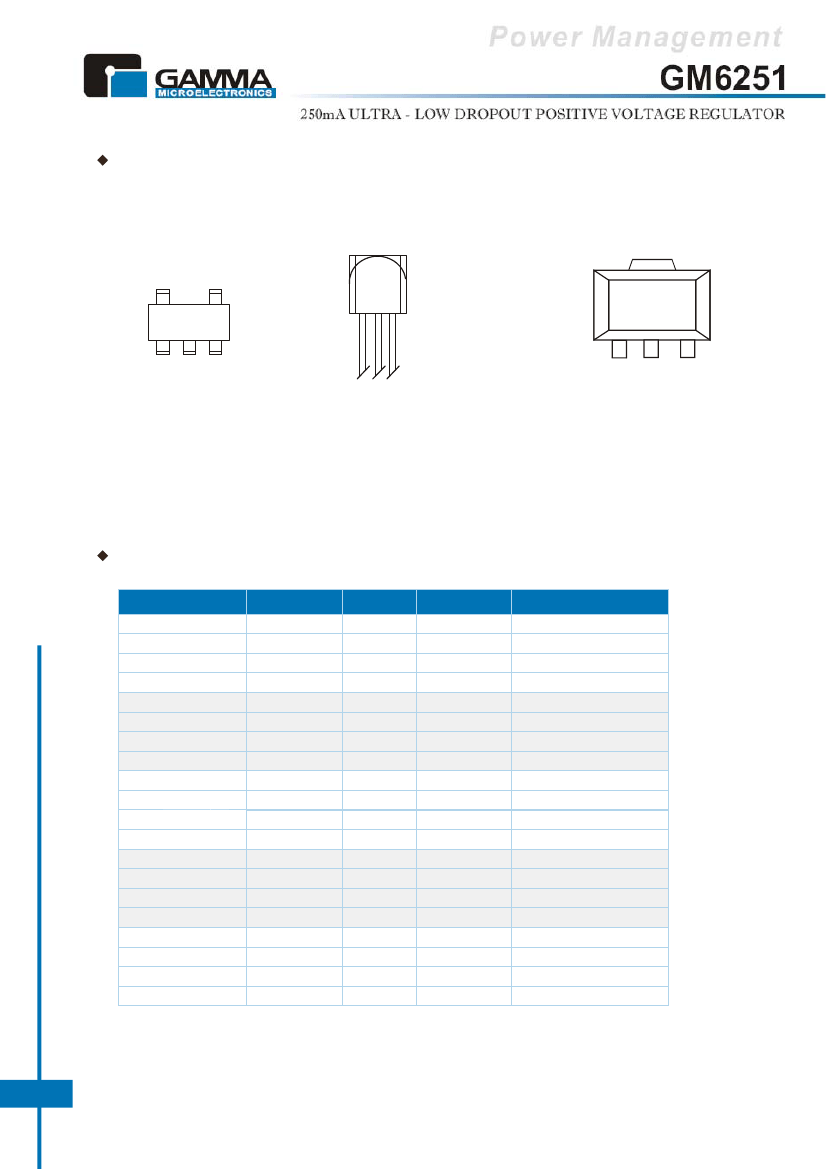

MARKING INFORMATION & PIN CONFIGURATIONS
(TOP VIEW)
SOT-25(SOT-23-5)
TO-92
SOT-89
V
OUT
5
NC
4
6251
VV
AYWW
1. V
OUT
2. V
SS
3. V
IN
1
2 3
XXVYW
1
2
3
GM6251
VVAYWW
1
2
3
V
IN
V
SS
NC
V
OUT
V
SS
V
IN
XX = Marking Code
(FA = GM6251)
V
= Voltage Code
VV
= Voltage Suffix (18=1.8V ,50=5.0V)
A
= Assembly Location
Y
= Year
WW, W= Weekly
ORDERING INFORMATION
Ordering Number
GM6251-1.8T92B
GM6251-1.8T92RL
GM6251-1.8ST25R
GM6251-1.8ST89R
GM6251-2.5T92B
GM6251-2.5T92RL
GM6251-2.5ST25R
GM6251-2.5ST89R
GM6251-2.7T92B
GM6251-2.7T92RL
GM6251-2.7ST25R
GM6251-2.7ST89R
GM6251-2.8T92B
GM6251-2.8T92RL
GM6251-2.8ST25R
GM6251-2.8ST89R
GM6251-3.0T92B
Output Voltage
1.8V
1.8V
1.8V
1.8V
2.5V
2.5V
2.5V
2.5V
2.7V
2.7V
2.7V
2.7V
2.8V
2.8V
2.8V
2.8V
3.0V
3.0V
3.0V
3.0V
Voltage Code
Package
TO-92
TO-92
Shipping
1,000 Units/ ESD Bag
2,000 Units/ Ammo Pack (Tape)
3,000 Units/ Tape and Reel
1,000 Units/ Tape and Reel
1,000 Units/ ESD Bag
2,000 Units/ Ammo Pack (Tape)
3,000 Units/ Tape and Reel
1,000 Units/ Tape and Reel
1,000 Units/ ESD Bag
2,000 Units/ Ammo Pack (Tape)
3,000 Units/ Tape and Reel
1,000 Units/ Tape and Reel
1,000 Units/ ESD Bag
2,000 Units/ Ammo Pack (Tape)
3,000 Units/ Tape and Reel
1,000 Units/ Tape and Reel
1,000 Units/ ESD Bag
2,000 Units/ Ammo Pack (Tape)
3,000 Units/ Tape and Reel
1,000 Units/ Tape and Reel
E
SOT-25
SOT-89
TO-92
TO-92
G
SOT-25
SOT-89
TO-92
TO-92
T
SOT-25
SOT-89
TO-92
TO-92
H
SOT-25
SOT-89
TO-92
TO-92
GM6251
GM6251-3.0T92RL
GM6251-3.0ST25R
GM6251-3.0ST89R
J
SOT-25
SOT-89
* For detail Ordering Number identification, please see last page.
2
ORDERING INFORMATION
(Continued)
Ordering Number
GM6251-3.2T92B
GM6251-3.2T92RL
GM6251-3.2ST25R
GM6251-3.2ST89R
GM6251-3.3T92B
GM6251-3.3T92RL
GM6251-3.3ST25R
GM6251-3.3ST89R
GM6251-3.5T92B
GM6251-3.5T92RL
GM6251-3.5ST25R
GM6251-3.5ST89R
GM6251-3.6T92B
GM6251-3.6T92RL
GM6251-3.6ST25R
GM6251-3.6ST89R
GM6251-4.0T92B
GM6251-4.0T92RL
GM6251-4.0ST25R
GM6251-4.0ST89R
GM6251-4.4T92B
GM6251-4.4T92RL
GM6251-4.4ST25R
GM6251-4.4ST89R
GM6251-4.5T92B
GM6251-4.5T92RL
GM6251-4.5ST25R
GM6251-4.5ST89R
GM6251-5.0T92B
GM6251-5.0T92RL
GM6251-5.0ST25R
GM6251-5.0ST89R
Output Voltage
3.2V
3.2V
3.2V
3.2V
3.3V
3.3V
3.3V
3.3V
3.5V
3.5V
3.5V
3.5V
3.6V
3.6V
3.6V
3.6V
4.0V
4.0V
4.0V
4.0V
4.4V
4.4V
4.4V
4.4V
4.5V
4.5V
4.5V
4.5V
5.0V
5.0V
5.0V
5.0V
Voltage Code
Package
TO-92
TO-92
Shipping
1,000 Units/ ESD Bag
2,000 Units/ Ammo Pack (Tape)
3,000 Units/ Tape and Reel
1,000 Units/ Tape and Reel
1,000 Units/ ESD Bag
2,000 Units/ Ammo Pack (Tape)
3,000 Units/ Tape and Reel
1,000 Units/ Tape and Reel
1,000 Units/ ESD Bag
2,000 Units/ Ammo Pack (Tape)
3,000 Units/ Tape and Reel
1,000 Units/ Tape and Reel
1,000 Units/ ESD Bag
2,000 Units/ Ammo Pack (Tape)
3,000 Units/ Tape and Reel
1,000 Units/ Tape and Reel
1,000 Units/ ESD Bag
2,000 Units/ Ammo Pack (Tape)
3,000 Units/ Tape and Reel
1,000 Units/ Tape and Reel
1,000 Units/ ESD Bag
2,000 Units/ Ammo Pack (Tape)
3,000 Units/ Tape and Reel
1,000 Units/ Tape and Reel
1,000 Units/ ESD Bag
2,000 Units/ Ammo Pack (Tape)
3,000 Units/ Tape and Reel
1,000 Units/ Tape and Reel
1,000 Units/ ESD Bag
2,000 Units/ Ammo Pack (Tape)
3,000 Units/ Tape and Reel
1,000 Units/ Tape and Reel
U
SOT-25
SOT-89
TO-92
TO-92
K
SOT-25
SOT-89
TO-92
TO-92
V
SOT-25
SOT-89
TO-92
TO-92
L
SOT-25
SOT-89
TO-92
TO-92
M
SOT-25
SOT-89
TO-92
TO-92
W
SOT-25
SOT-89
TO-92
TO-92
N
SOT-25
SOT-89
TO-92
TO-92
Q
SOT-25
SOT-89
* For detail Ordering Number identification, please see last page.
GM6251
3
ABSOLUTE MAXIMUM RATINGS
PARAMETER
Input Voltage
Output Voltage
Output Current
Continuous Total Power
Dissipation (
SOT - 89)
Operating Ambient Temperature
Storage Temperature
SYMBOL
V
IN
V
OUT
I
OUT
P
D
T
opr
T
stg
RATINGS
12
V
SS
- 0.3 ~ V
IN
+ 0.3
500
500
-30 ~ +80
-40 ~ +125
UNITS
V
V
mA
mW
°C
°C

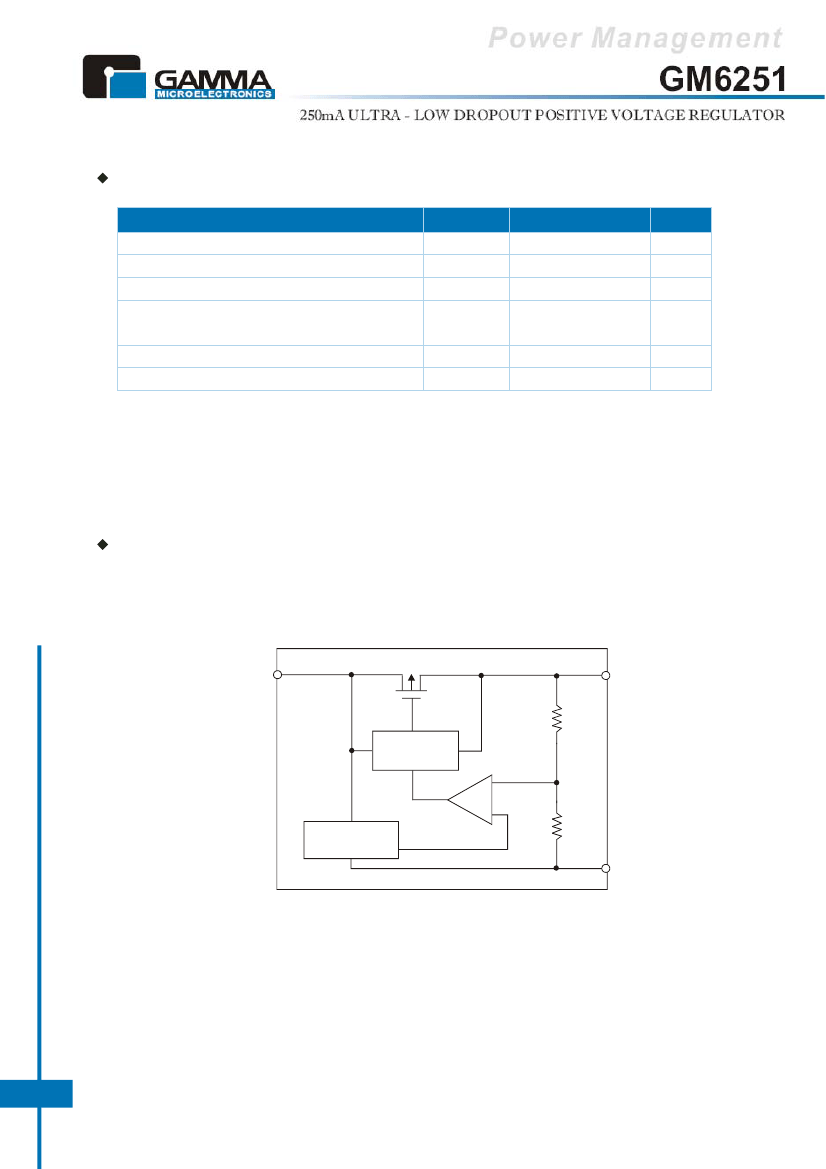

BLOCK DIAGRAM
V
IN
V
OUT
Current Limiter
+
-
Voltage
Reference
V
SS
GM6251
4
ELECTRICAL CHARACTERISTICS
(T
A
= 25°C unless otherwise noted)
Parameter
GM6251-1.8V
GM6251-2.5V
GM6251-2.7V
GM6251-2.8V
GM6251-3.0V
GM6251-3.2V
Output Voltage
GM6251-3.3V
GM6251-3.5V
GM6251-3.6V
GM6251-4.0V
GM6251-4.4V
GM6251-4.5V
GM6251-5.0V
GM6251-1.8V
GM6251-2.5V
GM6251-2.7V
GM6251-2.8V
GM6251-3.0V
GM6251-3.2V
Maximum Output Current
GM6251-3.3V
GM6251-3.5V
GM6251-3.6V
GM6251-4.0V
GM6251-4.4V
GM6251-4.5V
GM6251-5.0V
I
OUT
max
V
IN
=3.0V, V
OUT
(E)
V
IN
=4.0V, V
OUT
(E)
V
IN
=4.0V, V
OUT
(E)
V
IN
=4.0V, V
OUT
(E)
V
IN
=4.0V, V
OUT
(E)
V
IN
=4.0V, V
OUT
(E)
V
IN
=4.0V, V
OUT
(E)
V
IN
=5.0V, V
OUT
(E)
V
IN
=5.0V, V
OUT
(E)
V
IN
=5.0V, V
OUT
(E)
V
IN
=6.0V, V
OUT
(E)
V
IN
=6.0V, V
OUT
(E)
V
IN
=6.0V, V
OUT
(E)
1.62V
2.3V
2.43V
2.52V
2.7V
2.88V
2.97V
3.15V
3.24V
3.6V
3.96V
4.05V
4.5V
Symbol
Condition
Min
Typ
Max
Unit Circuit
1.764 1.800 1.836
2.450 2.500 2.550
2.646 2.700 2.754
2.744 2.800 2.856
2.940 3.000 3.060
3.136 3.200 3.264
V
OUT
(E)
(Note 2)
I
OUT
=40mA,
V
IN
>V
Drop
+V
OUT
3.234 3.300 3.366
3.430 3.500 3.570
3.528 3.600 3.672
3.920 4.000 4.080
4.312 4.400 4.488
4.410 4.500 4.590
4.900 5.000 5.100
V
1
250
mA
1
GM6251
5
