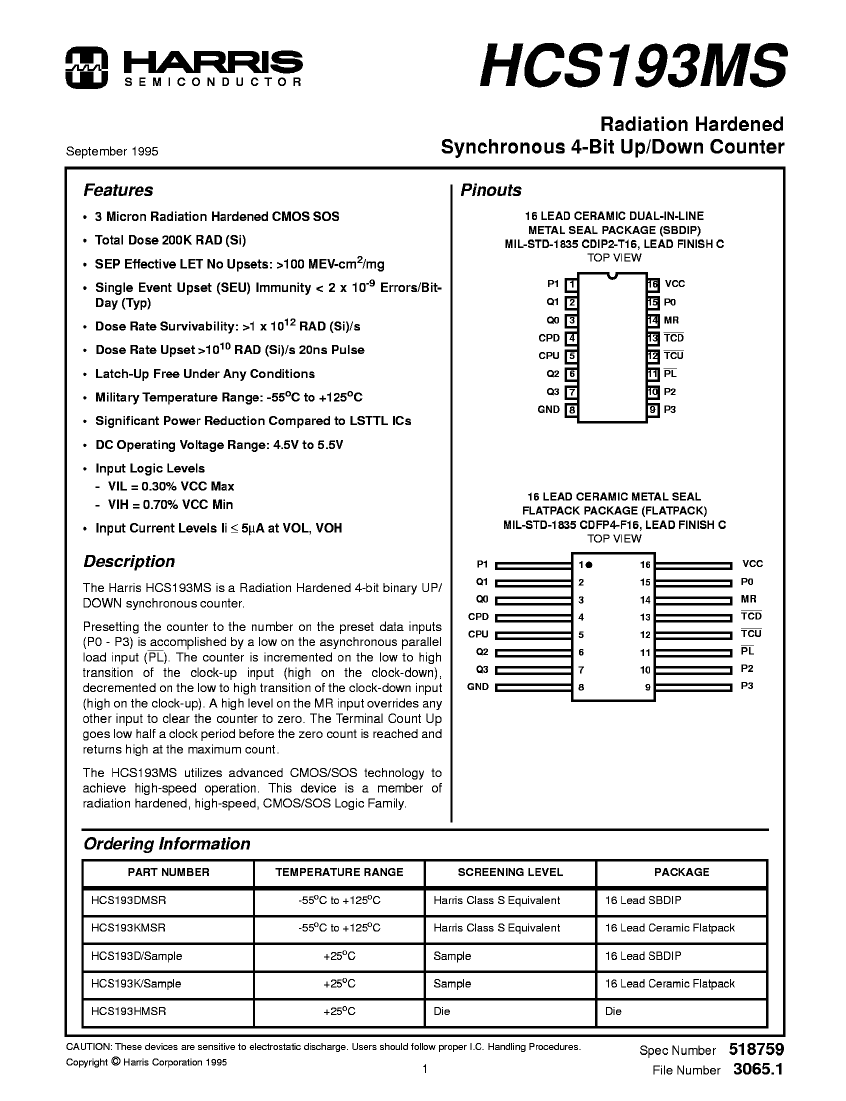

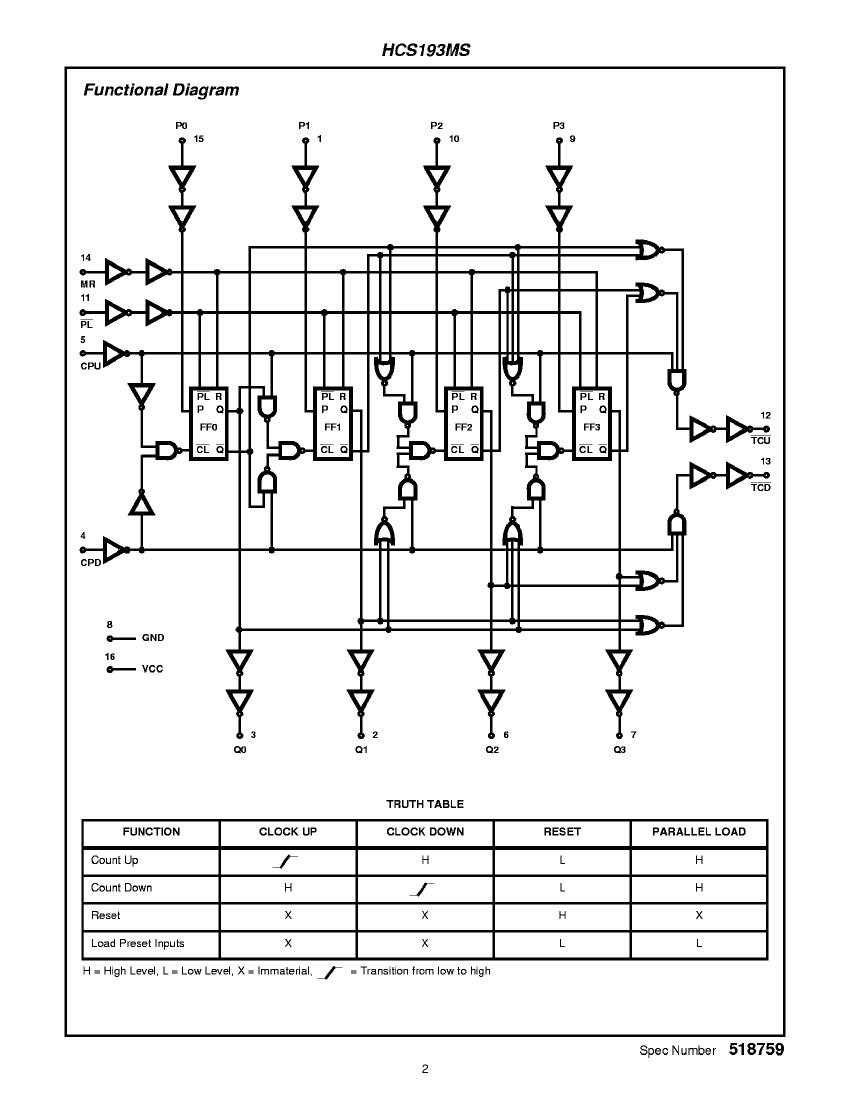

Binary Counter, HC/UH Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, CMOS, CDIP16

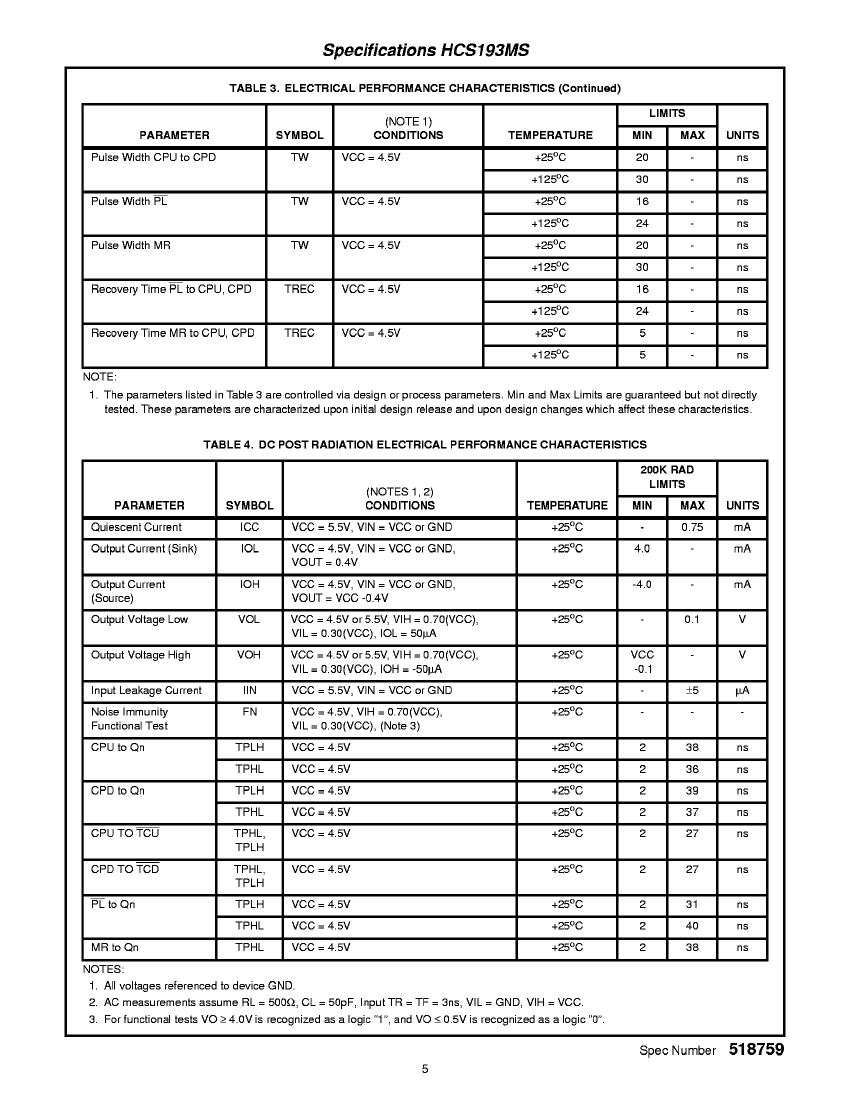

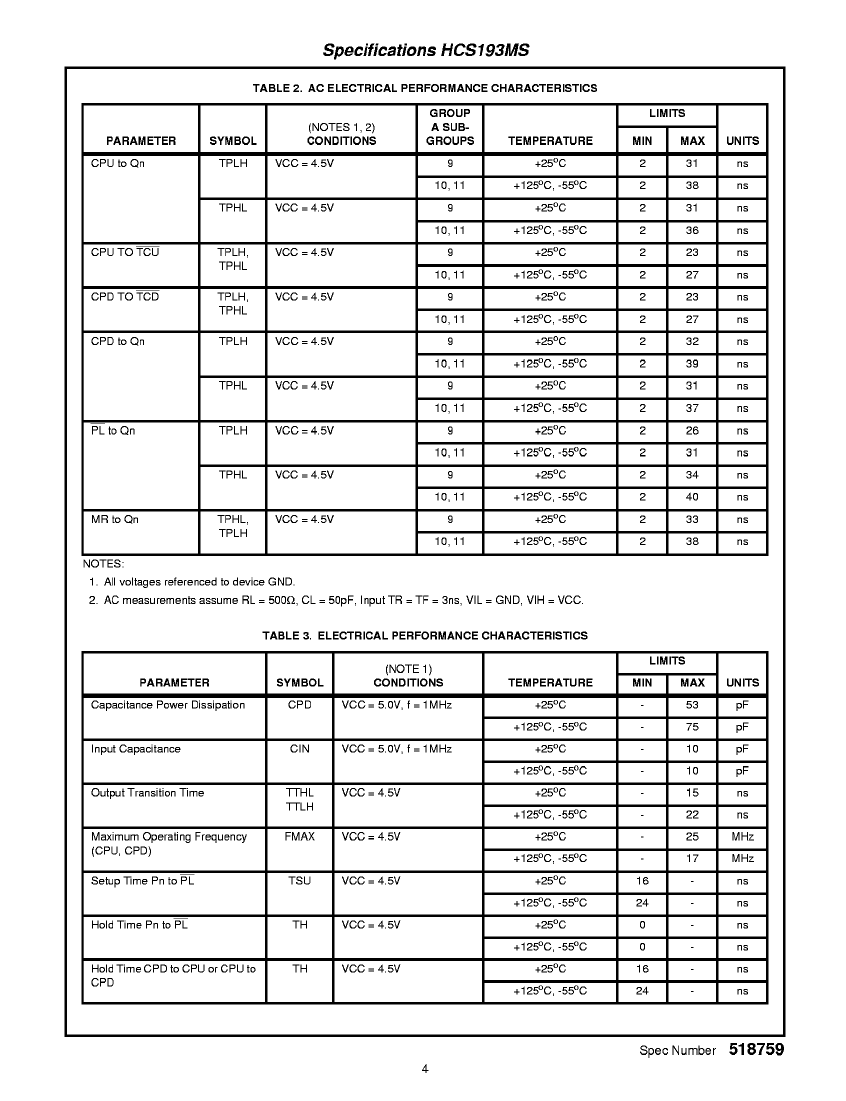

| Parameter Name | Attribute value |
| Maker | Harris |
| package instruction | , |
| Reach Compliance Code | unknown |
| Is Samacsys | N |
| Counting direction | BIDIRECTIONAL |
| series | HC/UH |
| JESD-30 code | R-CDIP-T16 |
| JESD-609 code | e4 |
| Load capacitance (CL) | 50 pF |
| Load/preset input | YES |
| Logic integrated circuit type | BINARY COUNTER |
| Operating mode | SYNCHRONOUS |
| Number of digits | 4 |
| Number of functions | 1 |
| Number of terminals | 16 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| propagation delay (tpd) | 37 ns |
| Certification status | Not Qualified |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | CMOS |
| Temperature level | MILITARY |
| Terminal surface | GOLD |
| Terminal form | THROUGH-HOLE |
| Terminal location | DUAL |
| total dose | 100k Rad(Si) V |
| Trigger type | POSITIVE EDGE |
| Base Number Matches | 1 |
| 5962R9578801VEC | HCS193HMSR | HCS193D/SAMPLE | HCS193KMSR | 5962R9578801VXC | HCS193DMSR | HCS193K/SAMPLE | 5962R9578801V9A | |
|---|---|---|---|---|---|---|---|---|
| Description | Binary Counter, HC/UH Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, CMOS, CDIP16 | Binary Counter, HC/UH Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, CMOS | Binary Counter, HC/UH Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, CMOS, CDIP16 | Binary Counter, HC/UH Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, CMOS, CDFP16 | Binary Counter, HC/UH Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, CMOS, CDFP16 | Binary Counter, HC/UH Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, CMOS, CDIP16 | Binary Counter, HC/UH Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, CMOS, CDFP16 | Binary Counter, HC/UH Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, CMOS |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| Counting direction | BIDIRECTIONAL | BIDIRECTIONAL | BIDIRECTIONAL | BIDIRECTIONAL | BIDIRECTIONAL | BIDIRECTIONAL | BIDIRECTIONAL | BIDIRECTIONAL |
| series | HC/UH | HC/UH | HC/UH | HC/UH | HC/UH | HC/UH | HC/UH | HC/UH |
| JESD-30 code | R-CDIP-T16 | X-XUUC-N16 | R-CDIP-T16 | R-CDFP-F16 | R-CDFP-F16 | R-CDIP-T16 | R-CDFP-F16 | X-XUUC-N16 |
| Load capacitance (CL) | 50 pF | 50 pF | 50 pF | 50 pF | 50 pF | 50 pF | 50 pF | 50 pF |
| Load/preset input | YES | YES | YES | YES | YES | YES | YES | YES |
| Logic integrated circuit type | BINARY COUNTER | BINARY COUNTER | BINARY COUNTER | BINARY COUNTER | BINARY COUNTER | BINARY COUNTER | BINARY COUNTER | BINARY COUNTER |
| Operating mode | SYNCHRONOUS | SYNCHRONOUS | SYNCHRONOUS | SYNCHRONOUS | SYNCHRONOUS | SYNCHRONOUS | SYNCHRONOUS | SYNCHRONOUS |
| Number of digits | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Package body material | CERAMIC, METAL-SEALED COFIRED | UNSPECIFIED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | UNSPECIFIED |
| Package shape | RECTANGULAR | UNSPECIFIED | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | UNSPECIFIED |
| Package form | IN-LINE | UNCASED CHIP | IN-LINE | FLATPACK | FLATPACK | IN-LINE | FLATPACK | UNCASED CHIP |
| propagation delay (tpd) | 37 ns | 37 ns | 37 ns | 37 ns | 37 ns | 37 ns | 37 ns | 37 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | YES | NO | YES | YES | NO | YES | YES |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Terminal form | THROUGH-HOLE | NO LEAD | THROUGH-HOLE | FLAT | FLAT | THROUGH-HOLE | FLAT | NO LEAD |
| Terminal location | DUAL | UPPER | DUAL | DUAL | DUAL | DUAL | DUAL | UPPER |
| Trigger type | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Maker | Harris | Harris | Harris | Harris | - | Harris | Harris | - |
| JESD-609 code | e4 | - | - | e0 | e4 | e0 | - | e0 |
| Maximum operating temperature | 125 °C | 125 °C | - | 125 °C | 125 °C | 125 °C | - | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | - | -55 °C | -55 °C | -55 °C | - | -55 °C |
| Temperature level | MILITARY | MILITARY | - | MILITARY | MILITARY | MILITARY | - | MILITARY |
| Terminal surface | GOLD | - | - | Tin/Lead (Sn/Pb) | GOLD | Tin/Lead (Sn/Pb) | - | TIN LEAD |
| total dose | 100k Rad(Si) V | - | - | 200k Rad(Si) V | 100k Rad(Si) V | 200k Rad(Si) V | - | 100k Rad(Si) V |
