MB4S: Description0.8 A, 400 V, SILICON, BRIDGE RECTIFIER DIODE; CategoryDiscrete semiconductor diode; File Size207KB，2 Pages; ManufacturerSEMIKRON; Websitehttp://www.semikron.com; Environmental Compliance

Download Datasheet Parametric Compare View All

MB4S Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MB4S	-	-	View	Buy Now

0.8 A, 400 V, SILICON, BRIDGE RECTIFIER DIODE

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SEMIKRON
package instruction	4.70 X 3.90 MM, 2.40 MM HEIGHT, LEAD FREE, PLASTIC PACKAGE-2
Contacts	2
Reach Compliance Code	compli
ECCN code	EAR99
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
JESD-30 code	R-PDSO-G4
Maximum non-repetitive peak forward current	35 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	0.8 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	400 V
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL

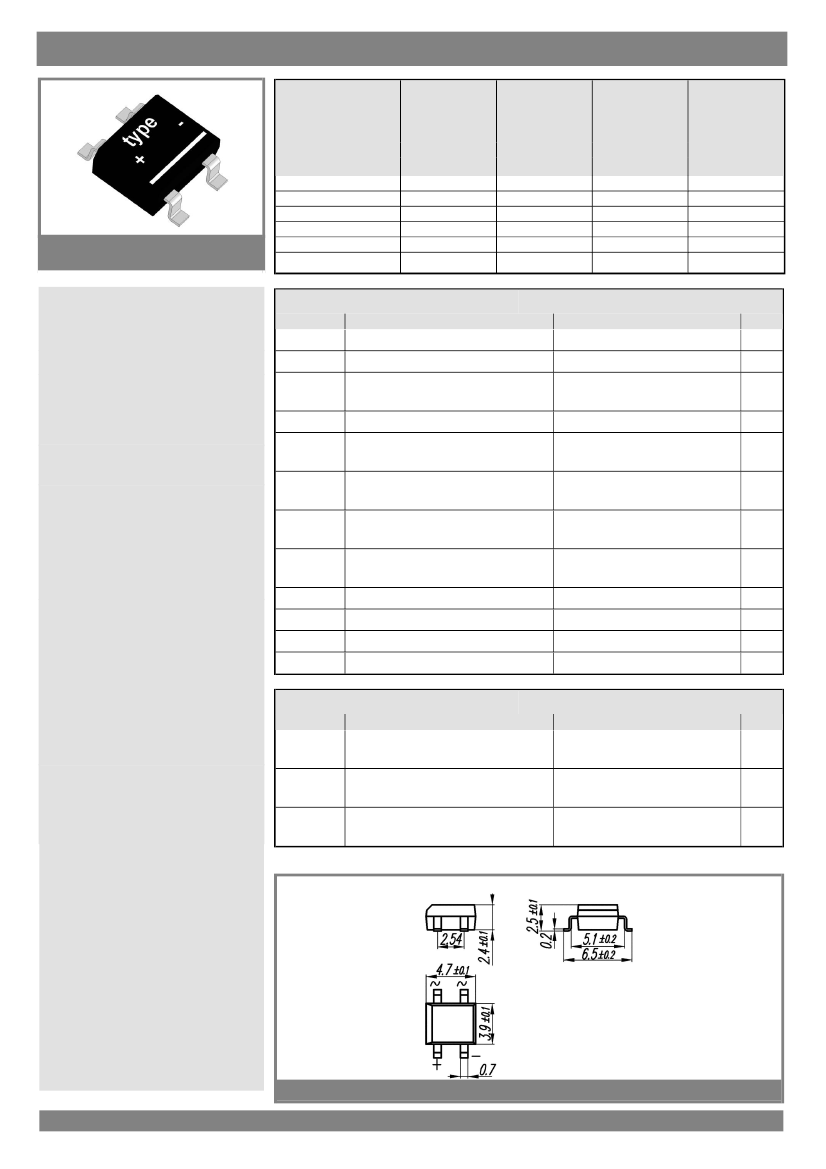

MB2S ... MB6S

Square bridge

Surface Mount Si-Bridge

Rectifiers

MB2S ... MB6S

Forward Current: 0,8 A

Reverse Voltage: 80 to 600 V

Absolute Maximum Ratings

Symbol Conditions

Values

Units

Publish Data

Features

Mechanical Data

Characteristics

Symbol Conditions

Values

Units

Dimensions in mm

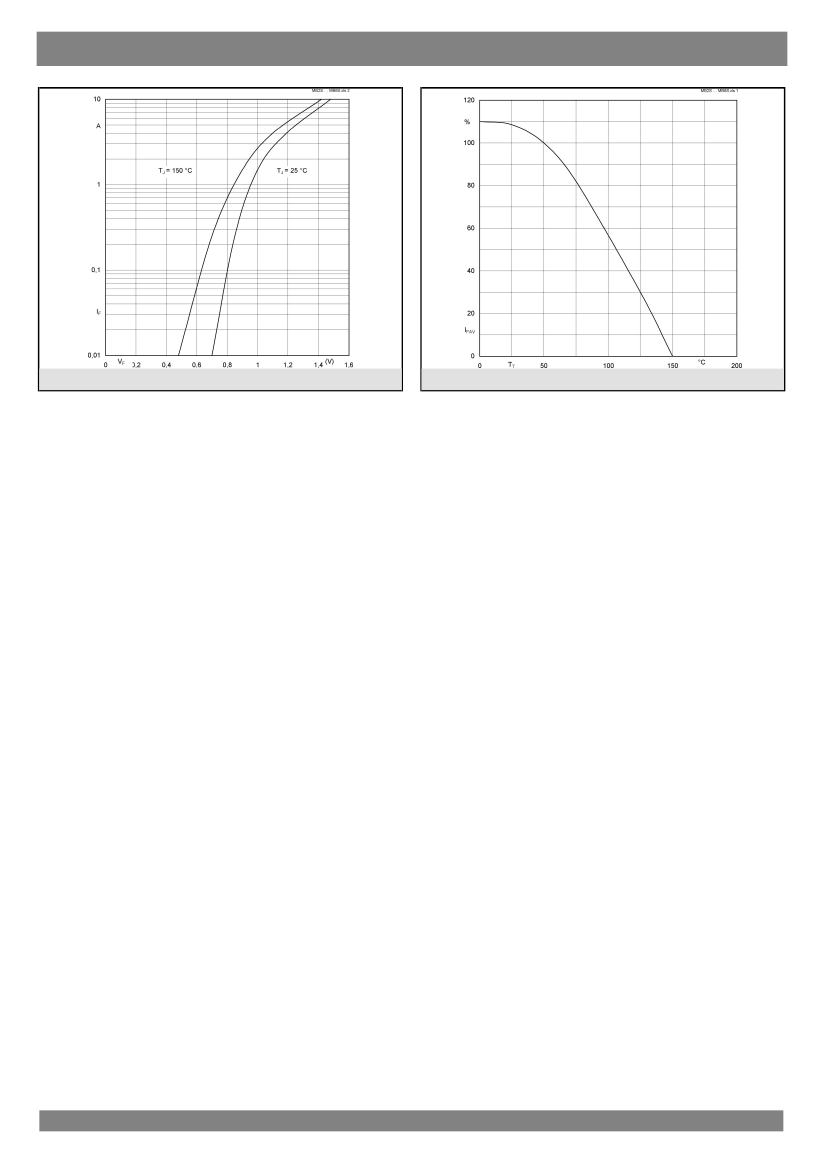

1

23-03-2005 SCT

	MB4S	MB2S	MB6S
Description	0.8 A, 400 V, SILICON, BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	MULTICOMP - MB6S - BRIDGE RECTIFIER; Single PHASE; 800mA; 600V; MBS; FULL REEL
Is it Rohs certified?	conform to	conform to	conform to
package instruction	4.70 X 3.90 MM, 2.40 MM HEIGHT, LEAD FREE, PLASTIC PACKAGE-2	4.70 X 3.90 MM, 2.40 MM HEIGHT, LEAD FREE, PLASTIC PACKAGE-2	4.70 X 3.90 MM, 2.40 MM HEIGHT, LEAD FREE, PLASTIC PACKAGE-2
Contacts	2	2	2
Reach Compliance Code	compli	compli	compli
ECCN code	EAR99	EAR99	EAR99
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1 V	1 V	1 V
JESD-30 code	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4
Maximum non-repetitive peak forward current	35 A	35 A	35 A
Number of components	4	4	4
Phase	1	1	1
Number of terminals	4	4	4
Maximum operating temperature	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Maximum output current	0.8 A	0.8 A	0.8 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	400 V	200 V	600 V
surface mount	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL
Maker	SEMIKRON	SEMIKRON	-
Base Number Matches	-	1	1
