GBS-9280F-CXX0G
1
***********************************************************************************************************************************************************************
GBS-9280F-CXX0G
(RoHS Compliant)
5V / CWDM / 2.125 Gb/s Single-Mode Gigabit Interface Converter (GBIC)
**********************************************************************************************************************************************************************
DESCRIPTION
18-Wavelength CWDM GBIC Transceivers
Up to 2. 5 Gbps Bi-directional Data Links
Compliant with 1X / 2X Fibre Channel FC-PI 13.0
Compliant with Gigabit Interface Converter (GBIC)
Specification Rev. 5.5
CWDM DFB Laser Transmitter
Multi-rate Operation for 2.5 / 2.125 / 1.062 / 1.25 Gbps
Duplex SC Connector
23 dB Power Budget At Least
SCA-2 Host Connector
Single +5 V Power Supply
Differential PECL Inputs and Outputs
TTL RX-LOS Output
Hot Pluggable
Class 1 Laser International Safety Standard IEC-60825
Compliant
The GBS-9280F-CXX0G series optical transceivers meet the
Gigabit Interface Converter (GBIC) specification Rev. 5.5. It
satisfies the optical interface specifications defined in IEEE
802.3z Drift 5.0 1000 BASE-SX for Gigabit Ethernet and 1x/2x
Fiber Channel FC-PI13.0. This module is designed for
single-mode fiber and operates at a nominal wavelength of
CWDM.
There are eighteen center wavelengths available
from 1270 nm to 1610 nm, each step 20 nm. A guaranteed
minimum optical link budget of 23 dB is offered. The
transmission distance is depended on the wavelength and
loss of fiber.
The transmitter section uses a multiple quantum
well CWDM DFB laser
and is a class 1 laser compliant
according to International Safety Standard IEC-60825. The
receiver section uses an integrated InGaAs detector preamplifier
(IDP) mounted in an optical header and a limiting post-amplifier
IC. A PECL input / output logic interface is used. TTL RX-LOS
output simplifies interface to external circuitry. A 20-pin SCA-2
host connector is used to connect the converter to the host system.
l
RoHS Compliant
APPLICATIONS
l
l
l
l
Switch to Switch Interface
High Speed Interface for File Servers
Bus Extension Application
Data Storage
l
Dual Rate 1.06 / 2.125 Gb/s Fibre Channel
LASER SAFETY
This single mode transceiver is a Class 1 laser product. It complies
with IEC-60825 and FDA 21 CFR 1040.10 and 1040.11. The
transceiver must be operated within the specified temperature and
voltage limits. The optical ports of the module shall be terminated
with an optical connector or with a dust plug.
ORDER INFORMATION
P/No.
Bit Rate
(Gb/s)
FC-PI
Power
Budget
(dB)
> 23
Wavelength Package
(nm)
CWDM*
SC GBIC
Temp.
(
o
C)
0 to 70
TX Power RX Sens.
RoHS
(dBm)
(dBm) Compliant
5 to 0
-23
Yes
GBS-9280F-CXX0G 2.125/1.063
o
200/100
CWDM Wavelength (0 to 70 C)
Central
Min.
Typ.
Max.
Central
Wavelength
(nm)
(nm)
(nm)
Wavelength
-C270
1264.5
1270
1277.5
-C450
-C290
1284.5
1290
1297.5
-C470
-C310
1304.5
1310
1317.5
-C490
-C330
1324.5
1330
1337.5
-C510
-C350
1344.5
1350
1357.5
-C530
-C370
1364.5
1370
1377.5
-C550
-C390
1384.5
1390
1397.5
-C570
-C410
1404.5
1410
1417.5
-C590
-C430
1424.5
1430
1437.5
-C610
CWDM*: 18 Wavelengths from 1270 nm to 1610 nm, each step 20 nm.
Min.
(nm)
1444.5
1464.5
1484.5
1504.5
1524.5
1544.5
1564.5
1584.5
1604.5
Typ.
(nm)
1450
1470
1490
1510
1530
1550
1570
1590
1610
Max.
(nm)
1457.5
1477.5
1497.5
1517.5
1537.5
1557.5
1577.5
1597.5
1617.5
***********************************************************************************************************************************************************************
OPTOWAY TECHNOLOGY INC.
No.38, Kuang Fu S. Road, Hu Kou, Hsin Chu Industrial Park, Hsin Chu, Taiwan 303
Tel: 886-3-5979798
Fax: 886-3-5979737
E-mail: sales@optoway.com.tw http: // www.optoway.com.tw
12/1/2005 V2.0
Optoway
Absolute Maximum Ratings
Parameter
Storage Temperature
Operating Temperature
Power Supply Voltage
Input Voltage
Symbol
Tstg
Topr
Vcc
---
Min
-40
-5
-0.5
-0.5
Max
85
70
6
Vcc
Units
o
C
o
C
V
V
GBS-9280F-CXX0G
Notes
Air flow 1m/sec
2
**********************************************************************************************************************************************************************
Recommended Operating Conditions
Parameter
Power Supply Voltage
Power Supply Current
Operating Temperature
Data Rate
Symbol
Vcc
I
TX
+ I
RX
Topr
Min
4.75
0
1.0625 / 1.25
2.125 / 2.5
Typ
5
200
Max
5.25
300
70
2.5
Units
V
mA
C
Gb/s
o
Conditions
Reference to GND.
Air flow 1m/sec
Transmitter Specifications (0
o
C < Topr < 70
o
C, 4.75V < Vcc < 5.25V)
Parameter
Optical
Optical Transmit Power
Output Center Wavelength
Output Spectrum Width
Side Mode Suppression Ratio
Extinction Ratio
Optical Rise Time
Optical Fall Time
Electrical
Differential Input Voltage
Transmit Fault Load
Transmit Fault Output-Low
Transmit Fault Output-High
TX-Disable Input - Low
TX-Disable Input - High
TX-Disable Assert Time
TX-Disable Negate Time
Time to initialize, includes reset
of TX-FAULT
TX FAULT from fault to
assertion
TX-Disable time to start reset
Symbol
Po
λ
∆λ
SMSR
E
R
t
r
t
f
V
IH
- V
IL
TX-FAULT
LOAD
V
TX-FAULT
-L
V
TX-FAULT-H
V
TX-DISABLE
-L
V
TX-DISABLE-H
t_off
t-on
t-int
t-fault
t-reset
10
Min
0
λ-5.5
30
9
---
150
150
2.0
10
0.5
Vcc + 0.3
0.8
Vcc + 0.3
10
1
300
100
Typ
---
λ
---
Max
5
λ+7.5
1
Units
dBm
nm
nm
dB
dB
ps
ps
Vp-p
kΩ
V
V
V
V
µs
ms
ms
µs
µs
Notes
1
2
-20 dB Width
20% to 80% value
20% to 80% value
0.65
4.7
0.0
Vcc
–
0.5
0
2.0
3
1. Output power is power coupled into a 9/125
µm
SM fiber.
2. ITU-T G.694.2 CWDM wavelength from 1270 nm to 1610 nm, each step 20 nm.
3. Pull-up resistor on host Vcc.
***********************************************************************************************************************************************************************
OPTOWAY TECHNOLOGY INC.
No.38, Kuang Fu S. Road, Hu Kou, Hsin Chu Industrial Park, Hsin Chu, Taiwan 303
Tel: 886-3-5979798
Fax: 886-3-5979737
E-mail: sales@optoway.com.tw http: // www.optoway.com.tw
12/1/2005 V2.0
Optoway
Receiver Specifications (0
o
C < Topr < 70
o
C, 4.75 V < Vcc < 5.25V)
Parameter
Optical
Sensitivity @2.125Gb/s @ BER=10
-12
GBS-9280F-CXX0G
Symbol
SENS
Pin
Min
---
-3
1.0
1260
---
-31
0.37
Typ
---
---
---
---
---
Max
-23
---
1620
-23
---
2.0
0.35
0.35
10
0.5
Vcc
100
100
Units
dBm
dBm
dB
nm
dBm
dBm
Vp-p
ns
ns
kΩ
V
V
µs
µs
Notes
4
4
3
**********************************************************************************************************************************************************************
Maximum Input Power
Signal detect
–
Hysteresis
Wavelength of Operation
RX-LOS
–
Asserted
RX-LOS
–
Deasserted
Electrical
Differential Output Voltage
Data Output Rise Time
Data Output Fall Time
Receiver Loss of Light Load
Loss of Signal Output Voltage --- Low
Loss of Signal Output Voltage --- High
Loss of Signal Assert Time (off to on)
Loss of Signal Deassert Time (on to off)
Pa
Pd
±RX-DAT
Tr
RX-DAT
Tf
RX-DAT
RX-LOS
LOAD
RX-LOS
L
RX-LOS
H
T
A,RX-LOS
T
D,RX-LOS
Transition: low to high
Transition: high to low
4.7
0
2.4
5
4. Minimum sensitivity and saturation levels at BER=1E-12 for a 2
7
-1 PRBS.
5. Pull-up resistor on host Vcc.
***********************************************************************************************************************************************************************
OPTOWAY TECHNOLOGY INC.
No.38, Kuang Fu S. Road, Hu Kou, Hsin Chu Industrial Park, Hsin Chu, Taiwan 303
Tel: 886-3-5979798
Fax: 886-3-5979737
E-mail: sales@optoway.com.tw http: // www.optoway.com.tw
12/1/2005 V2.0
Optoway
PIN ASSIGNMENT
GBS-9280F-CXX0G
4
**********************************************************************************************************************************************************************
PIN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Signal Name
RX-LOS
R
GND
R
GND
MOD-DEF(0)
MOD-DEF(1)
MOD-DEF(2)
TX-DIABLE
T
GND
T
GND
TX-FAULT
R
GND
-RX-DAT
+RX-DAT
R
GND
V
CC
R
V
CC
T
T
GND
+TX-DAT
-TX-DAT
T
GND
Sequence
2
2
2
2
2
2
2
2
2
2
1
1
1
1
2
2
1
1
1
1
Description
Receiver Loss of Signal, logic high, open collector compatible,
4.7K to 10K ohm pull-up to V
CC
T on host
Receiver Ground
Receiver Ground
TTL Low
SCL Serial Clock Signal
SDA Serial Data Signal
Transmitter Disable, logic high, open collector compatible
Transmitter Ground
Transmitter Ground
Transmitter Fault, logic high, open collector compatible, 4.7K to
10K ohm pull-up to V
CC
T on GBIC
Receiver Ground
Receiver Data Bar, Differential PECL, AC coupled
Receiver Data, Differential PECL, AC coupled
Receiver Ground
Receiver +3.3V Supply
Transmitter +3.3V Supply
Transmitter Ground
Transmitter Data, Differential PECL, AC coupled
Transmitter Data Bar, Differential PECL, AC coupled
Transmitter Ground
A sequence value of 1 indicates that the signal is in the first group to engage during plugging of a module. A sequence value of 2
indicates that the signal is the second and last group. The two guide pins on the connector are electrically connected to the transceiver circuit
ground. These two guide pins make contact with circuit prior to sequence 1 signals.
Module Definition
Module Definition
4
MOD-DEF(0)
PIN 4
TTL Low
MOD-DEF (1)
PIN 5
SCL
MOD-DEF (2)
PIN 6
SDA
Interpretation by
Host
Serial module definition
protocol
Module Definition 4 specifies a serial definition protocol. For this definition, upon power up, MOD-DEF(1:2) appear as no connector
(NC) and MOD-DEF(0) is TTL LOW. When the host system detects this condition, it activates the serial protocol. The protocol uses the
2-wire serial CMOS E
2
PROM protocol of the ATMEL AT24C01A/02/04 family of components.
***********************************************************************************************************************************************************************
OPTOWAY TECHNOLOGY INC.
No.38, Kuang Fu S. Road, Hu Kou, Hsin Chu Industrial Park, Hsin Chu, Taiwan 303
Tel: 886-3-5979798
Fax: 886-3-5979737
E-mail: sales@optoway.com.tw http: // www.optoway.com.tw
12/1/2005 V2.0
Optoway

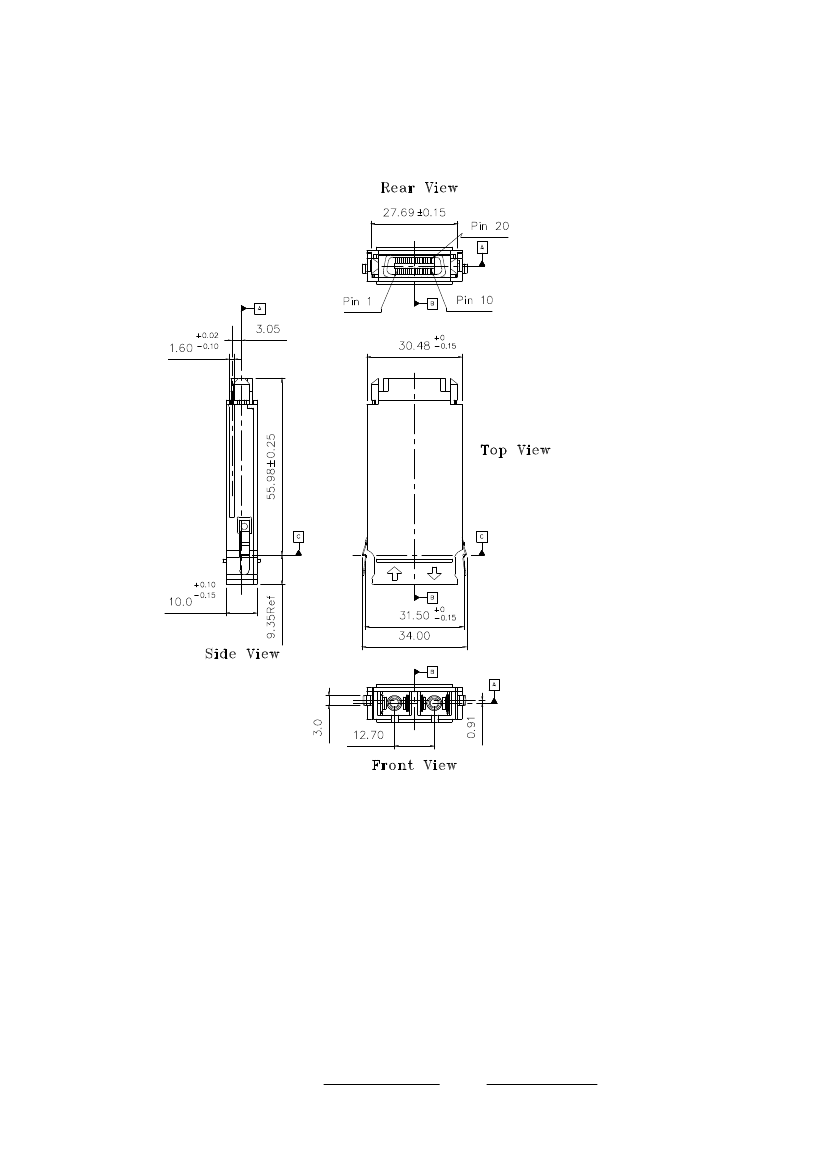

PACKAGE DIAGRAM
Units in mm
GBS-9280F-CXX0G
5
**********************************************************************************************************************************************************************
Note:
Specifications subject to change without notice.
***********************************************************************************************************************************************************************
OPTOWAY TECHNOLOGY INC.
No.38, Kuang Fu S. Road, Hu Kou, Hsin Chu Industrial Park, Hsin Chu, Taiwan 303
Tel: 886-3-5979798
Fax: 886-3-5979737
E-mail: sales@optoway.com.tw http: // www.optoway.com.tw
12/1/2005 V2.0
