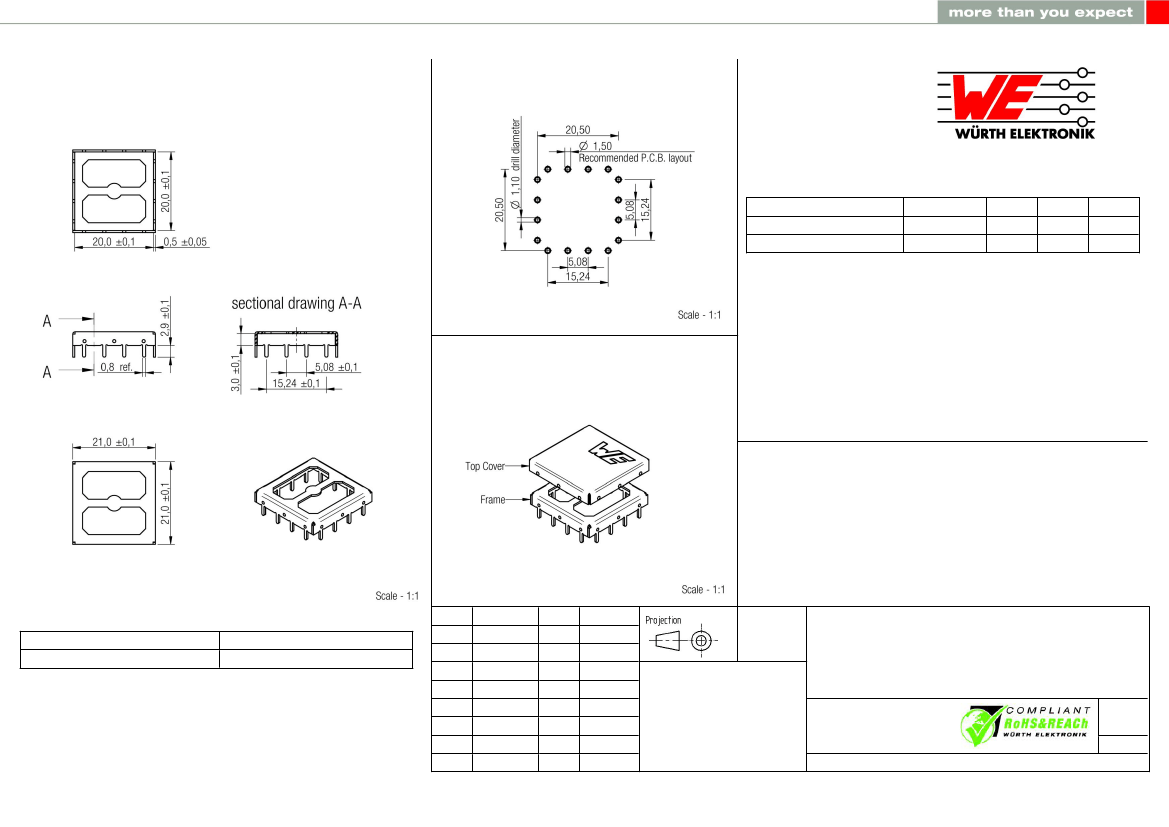

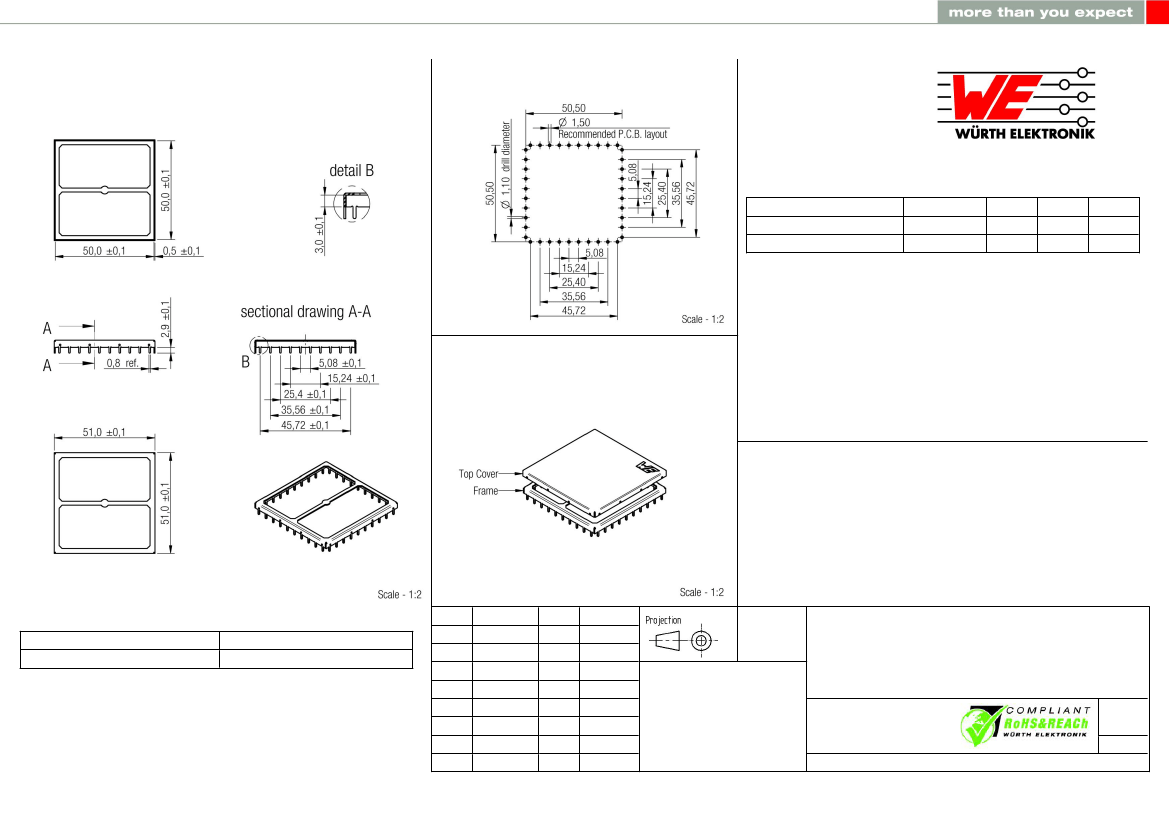

A Dimensions: [mm]
B Recommended hole pattern: [mm]
D Properties:
Properties
Shielding effectiveness @ 1 GHz
Hardness
Test conditions
500MHz - 3GHz
HR30TM
Value
60
58.03
Unit
dB
Tol.
max.
C Assembly with THT Frame:
E General information:
•Storage Temperature: -20°C to 60°C
•Operating Temperature: -40°C to 125°C
•Shielding effectiveness based on MIL-STD-225
•Test conditions of Electrical Properties: 25°C, 33% RH
if not specified differently
DESCRIPTION
Basic material
Surface material
tin plate
tin-plated surface
3.2
3.1
3.0
2.0
REV
2013-04-24
2012-12-04
2012-11-26
2010-06-18
DATE
SSt
SSt
SSt
WJ
BY
CHECKED
SSt
SSt
WJ
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
WE-SHC Shielding Cabinet
Order.- No.
SIZE
A4
36503205
