Type SF Motor-Run and Power Supply Capacitors
Oil Filled/Impregnated, AC Rated, Metallized Polypropylene Capacitors
Type SF, AC rated metallized polypropylene capacitors provide
starting torque and power factor correction for split phase
motors typically used in refrigeration and air conditioning motor-
run applications. Type SF also may be used to provide noise
suppression, voltage regulation and line current reduction in power
supply applications.
Highlights
Specifications
Capacitance Range
Capacitance Tolerance
Rated Voltage
Operating Temperature Range with Ripple
Dissipation Factor
Service Life Objective
- Self healing
- Fault current protection up to 10,000 amps AFC
- Low energy consumption
- 4 - tine, 1/4” quick connect lug terminals are standard
- Meets EIA Standard EIA-456-A
- UL recognized File Number E71645
- CSA File Number 223507
5.0 µF to 120.0 µF
±10% standard, ± 6% and ±3% available
240 Vac to 660 Vac
–40 ºC to 70 ºC standard, 90 ºC available
<0.1%
60,000 h with 94% survival rate
RoHS Compliant

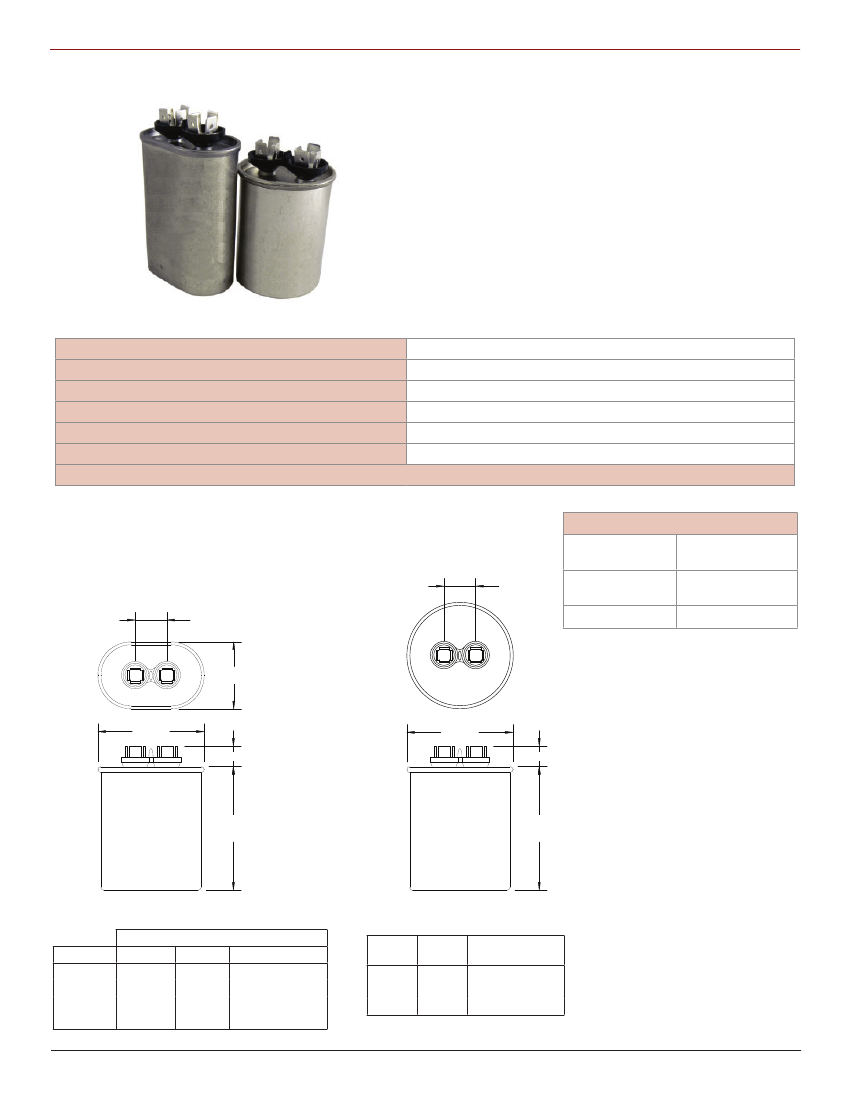

Dimensions
Oval Case Style
Round Case Style
.81" ± .06"
Construction Details
Case Material
Encapsulation
Terminal Material
Tin Plated Steel or
Aluminum
Enviromentally Safe
Dielectric Fluid
Tin Plated Steel
.81" ± .06"
A ± .06"
B ± .06"
.50" Max.
D ± .06"
.50" Max.
H +.12"
-.06"
H +.12"
-.06"
Note: The capacitor’s safety pressure
interrupter is designed to disconnect
the capacitor element as the cover
expands upward due to gas pressure
build up. Catastrophic failure may
result if movement of the cover and
or terminals are restricted. Rigid bus
bars are not recommended as they
may restrict movement of the cover
or terminals. Customers are advised to
provide at least 0.5” clearance above
the cover to allow for its expansion.
Dimensions (Inches)
Case Code
A
B
C
D
A
1.31
1.56
1.91
1.97
B
2.16
2.69
2.91
3.66
H
See Ratings Table
Case
Code
P
S
T
D
(Inches)
1.87
2.12
2.62
H
See Ratings Table
CDE Cornell Dubilier
•
1605 E. Rodney French Blvd.
•
New Bedford, MA 02744
•
Phone: (508)996-8561
•
Fax: (508)996-3830
Type SF Motor-Run and Power Supply Capacitors
Part Numbering System
SF
Series
SF
C
Case
A
= 1 1/4" Oval
B
= 1 1/2 Oval
C
= 1 3/4" Oval
D
= 2.0" Oval
P
= 1 3/4" Round
S
= 2.0" Round
T
= 2 1/2" Round
37
AC Volt
24
= 240 Vac
37
= 370 Vac
44
= 440 Vac
66
= 660 Vac
S
Case Material
S
= Steel
T
= Aluminum
w/steel cover
35
Cap
7
= 7.0 µF
35
= 35.0 µF
K
Tol. ±%
L
= ±3%
H
= ±6%
K
= ±10%
291
Can Height
238
= 2.38"
291
= 2.91"
388
= 3.88"
475
= 4.75"
488
= 4.88"
Oil Filled/Impregnated, AC Rated, Metallized Polypropylene Capacitors
B
VAR
A
= 2 way 70ºC
B
= 4 way 70 ºC
C
= 2 way 90 ºC
D
= 4 way 90 ºC
E
= Dual 2,3,4 70 ºC
F
= Forks 70 ºC
G
= Forks 90 ºC
H
= Forks 100 ºC
J
= Forks, 70 ºC Res.
K
= Forks, 90 ºC Res.
-F
RoHS
Compliant
-F
= Compliant
Blank
= Not
Compliant
Round Ratings
Cap
(µF)
2.0
3.0
4.0
5.0
6.0
7.5
10.0
12.5
15.0
17.5
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
65.0
70.0
75.0
80.0
90.0
100.0
2.0
3.0
4.0
5.0
Stock
Items
*
*
S
*
*
*
S
S
S
*
S
S
S
S
S
S
S
S
S
*
*
*
S
*
*
*
*
*
*
Catalog
Part Number
SFP37S2K238B-F
SFP37S3K238B-F
SFP37S4K238B-F
SFP37S5K238B-F
SFP37S6K238B-F
SFP37S7.5K238B-F
SFP37S10K238B-F
SFP37S12.5K238B-F
SFP37S15K238B-F
SFP37S17.5K238B-F
SFP37S20K238B-F
SFP37S25K288B-F
SFP37S30K288B-F
SFS37S35K288B-F
SFS37S40K288B-F
SFS37S45K375B-F
SFS37S50K375B-F
SFS37S55K375B-F
SFT37S60K303B-F
SFT37S65K303B-F
SFT37S70K303B-F
SFT37S75K391B-F
SFT37S80K391B-F
SFT37S90K475B-F
SFT37S100K475B-F
SFP44S2K238B-F
SFP44S3K238B-F
SFP44S4K238B-F
SFP44S5K238B-F
Case
H
Cap
(µF)
6.0
7.5
10.0
12.5
15.0
17.5
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
2.0
3.0
5.0
7.5
10.0
12.5
15.0
17.5
20.0
25.0
2.38
2.38
2.38
2.38
30.0
35.0
40.0
Stock
Items
*
*
S
*
S
*
S
*
S
*
S
*
S
*
S
*
*
*
*
*
*
*
*
*
*
*
*
*
Catalog
Part Number
SFP44S6K238B-F
SFP44S7.5K238B-F
SFP44S10K238B-F
SFP44S12.5K238B-F
SFP44S15K288B-F
SFP44S17.5K288B-F
SFP44S20K288B-F
SFS44S25K288B-F
SFS44S30K288B-F
SFT44S35K303B-F
SFT44S40K391B-F
SFT44S45K391B-F
SFT44S50K391B-F
SFT44S55K391B-F
SFT44S60K475B-F
SFP66S2K238B-F
SFP66S3K238B-F
SFP66S5K238B-F
SFP66S7.5K288B-F
SFP66S10K288B-F
SFS66S12.5K288B-F
SFS66S15K375B-F
SFT66S17.5K391B-F
SFT66S20K391B-F
SFT66S25K491B-F
SFT66S30K491B-F
SFT66S35K491B-F
SFT66S40K491B-F
Case
H
Code (Inches)
P
P
P
P
P
P
P
P
P
P
P
P
P
S
S
S
S
S
T
T
T
T
T
T
T
P
P
P
P
2.38
2.38
2.38
2.38
2.38
2.38
2.38
2.38
2.38
2.38
2.38
2.88
2.88
2.88
2.88
3.75
3.75
3.75
3.03
3.03
3.03
3.91
3.91
4.75
4.75
Code (Inches)
P
P
P
P
P
P
P
S
S
T
T
T
T
T
T
P
P
P
P
P
S
S
T
T
T
T
T
T
2.38
2.38
2.38
2.38
2.88
2.88
2.88
2.88
2.88
3.03
3.91
3.91
3.91
3.91
4.75
2.38
2.38
2.38
2.88
2.88
2.88
3.75
3.91
3.91
4.91
4.91
4.91
4.91
L
= Forks 100 ºC Res.
Z
= Other
Options
Tinplated steel or aluminum cans, with
and without studs, are available upon
request.
Tighter capacitance tolerances such as
±3% or ±6% are available.
+90 °C ratings are available for HID
lighting and power supply applications.
Discharge resistors are available.
Special terminal lugs such as 2 tines plus
1 fork lug are available.
Dual capacitance values are available for
370 Vac and 440 Vac applications.
370 Vac Round 70 °C Case Temperature
440 Vac Round 70 °C Case Temperature
660 Vac Round 70 °C Case Temperature
440 Vac Round 70 °C Case Temperature
