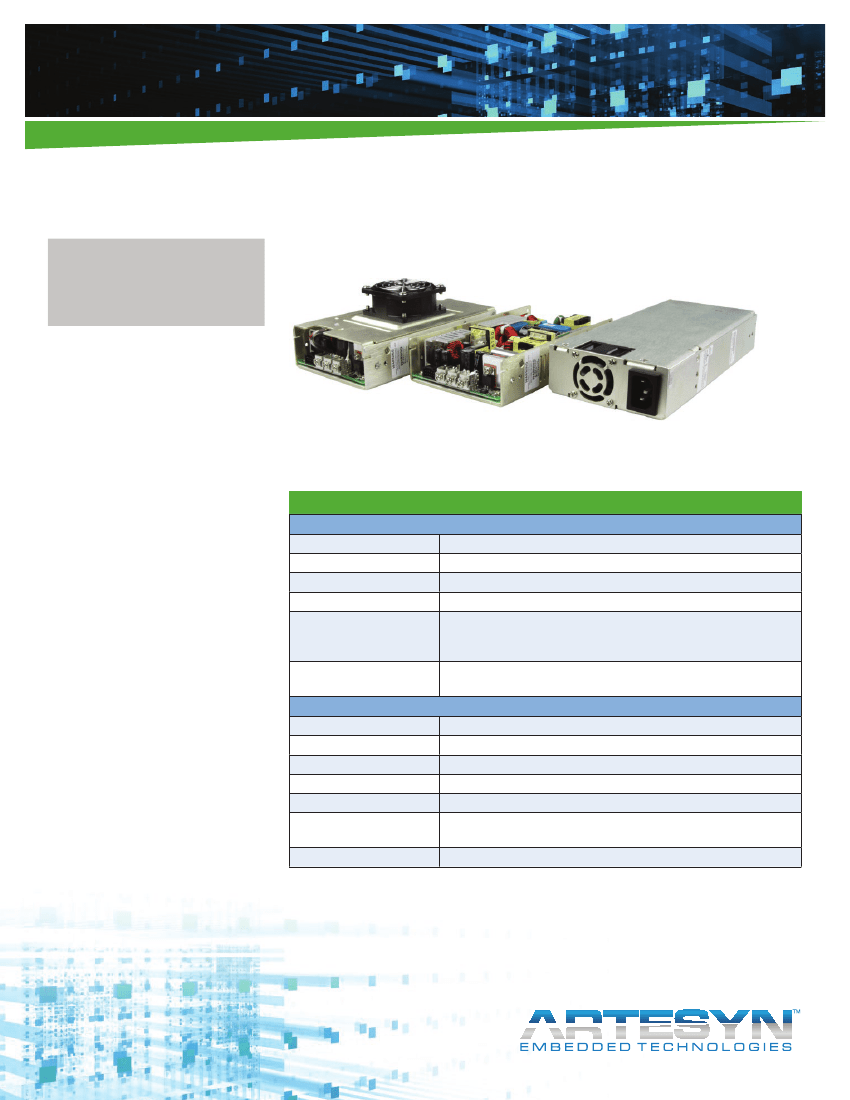

POWER
Data Sheet
Total Power:
200 - 350 Watts
Input Voltage:
85 - 264 Vac
120 - 300 Vdc
# of Outputs:
Single
SPECIAL FEATURES
Active power factor correction
IEC EN6100-3-2 compliance
Remote sense
Power fail and remote inhibit
Single wire current sharing
Built-in EMI filter
Low output ripple
5 V standby
12 V fan output
Overvoltage protection
Overload protection
Thermal overload protection
DC power good
Built in OR-ing diode/FET
Optional fan cover (-CF suffix)
Optional end fan cover (-CEF suffix)
NTS350 Series
350 Watts
Electrical Specifications
Input
Input range:
Frequency:
Inrush current:
Efficiency:
EMI filter:
85 - 264 Vac (wide range)
47 - 440 Hz (47- 63 Hz for -CEF versions)
38 A max., cold start @ 25 °C
85% typical at full load
FCC Class B conducted and radiated; CISPR22 Class B conducted
and radiated; EN55022 Class B conducted and radiated;
VDE0878PT3 Class B conducted and radiated.
< 0.5 mA @ 50/60 Hz, 264 Vac input
SAFETY
TUV
UL
CSA
cULus
NEMKO
AUSTEL
CB
CE
CCC
60950
0950
60950
60950 (-CEF)
60950
60950
Certificate and report
Mark (LVD)
Certificate
Safety ground leakage
current:
Output
Maximum power:
Adjustment range:
Standby output:
Fan output:
Hold-up time:
Overload protection:
Overvoltage protection:
200 W for convection; 350 W with 30CFM forced air
± 5%
5 V @ 2 A regulated, ± 5%
12 V @ 1 A, -5 %, +7%, 0.5 A for -CF version
20 ms @ 350 W load, 115 Vac nominal line at factory voltage setting
Short circuit protection on all outputs. Case overload protected @
115 - 130% of peak rating
20 - 35% above nominal output
NTS350 Series Data Sheet
LPS100-M Series Data Sheet
Logic Control
Power failure
Remote on/off
DC OK
Remote sense
TTL logic signal goes high 100 - 500 msec after main output. It goes low at least 4 msec before loss of regulation
Requires an external contact closure to inhibit outputs
TTL logic goes high after the output is in regulation. It goes low when there is loss of regulation.
Compensates for 0.5 V lead drop min. Will operate without remote sense connected. Reverse connection protected.
Environmental Specifications
Operating temperature:
Storage temperature:
Electromagnetic susceptibility:
Humidity:
Vibration:
MTBF demonstrated:
0° to 50 °C ambient derate each output as 2.5% per degree from 50° to 70 °C.
-40 °C to +85 °C
Designed to meet EN61000-4; -2, -3, -4, -5, -6, -8, -11 Level 3
Operating; non-condensing 10% to 90% RH
Three orthogonal axes, sweep at
1 oct/min, 5 min. dwell at four major resonances. 2 G peak 8 Hz to 500 Hz, operational
1M hours at full load and 25 °C ambient conditions
Ordering Information
Model Number
NTS353
NTS355
NTS358
NTS359
1.
2.
3.
4.
Output Voltage
12 V
24 V
48 V
54 V
Maximum Load Maximum Load
Minimum Load with Convection with 30CFM
Cooling
Forced Air
0A
0A
0A
0A
16.6 A
8.3 A
4.2 A
3.7 A
29.2 A
14.6 A
7.3 A
6.5 A
Peak Load
1
33 A
16.5 A
8.2 A
7.4 A
Regulation
2
± 2%
± 2%
± 2%
± 2%
Ripple
P/P (PARD)
3
120 mV
240 mV
480 mV
540 mV
Peak current lasting < 30 seconds with a maximum 10% duty cycle.
At 25 °C including initial tolerance, line voltage, load currents and output voltages adjusted to factory settings.
Peak-to-peak with 20 MHz bandwidth and 10 µF (tantalum capacitor) in parallel with a 0.1 µF capacitor at rated line voltage and load ranges.
CF suffix added to the model number indicates cover with top fan. -CEF suffix added to the model number indicates cover with end mounted
fan cover and AC inlet
5. This product is a Component Power Supply and is only for inclusion by professional installers within other equipment and must not be operated
as a standalone product. EMC compliance to appropriate standards must be verified at the system level. This product is for sale to OEMs and
System Integrators, including through Distribution Channels. It is not intended for sale to End Users.
NTS350 Series Data Sheet
LPS100-M Series Data Sheet
Pin Assignments
Connector
SK1
PIN 1
PIN 3
PIN 5
SK5
1
5
10
6
Adjustment Potentiometers
P1
+V1 Output adjust
+5VSB adjust
Molex 09-50-8051 (USA)
Molex 09-91-0500 (UK)
PINS:08-52-0113
SK2,3,4
SK5 Control signals
Or
Molex BB-124-08
Molex 90142-0010
PINS: 90119-2110
Amp: 87977-3
PINS: 87309-8
Artesyn Embedded Technologies Connector Kit #70-841-022 includes all of the above
1.Specifications subject to change without
2.All dimensions in inches (mm), tolerance is ± 0.2”.
3.Specifications are at factory settings
4.Mounting maximum insertion depth is 0.12”.
5.Warranty: 2 year
6.Weight: NTS35X 1.65 lbs/750g. NTS35X-CF 2 lbs/909g. NTS35X-CEF 2.25 lbs/1022g.
P3
Line
Neutral
Ground
V1 swp
- Remote Sense
+ Remote Sense
5VSB (standby)
5VSB return
+12V
Common
Inhibit
DC power good (DC OK)
Mating Connectors
SK1 AC input
PIN 1
PIN 2
PIN 3
PIN 4
PIN 5
PIN 6
PIN 7
PIN 8
PIN 9
PIN 10 Power Fail (POK)
NTS350 Series Data Sheet

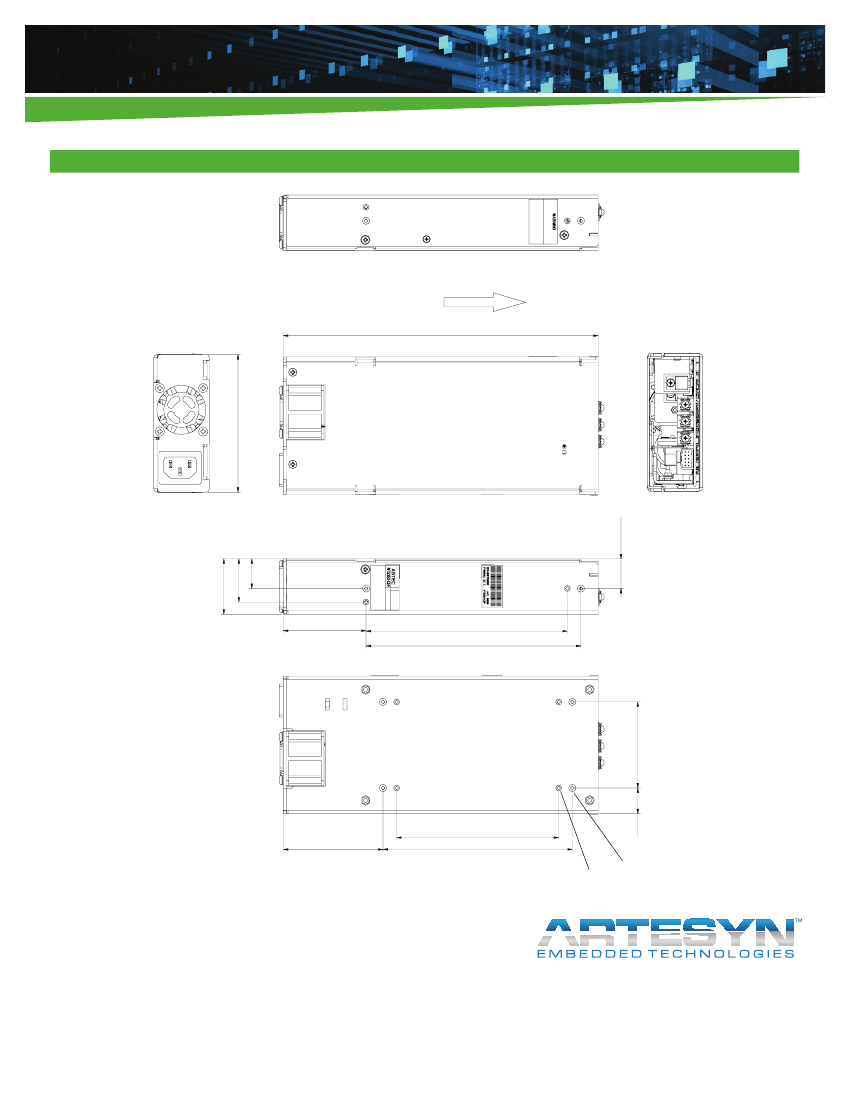

Mechanical Drawing - CEF option
b
a
a
b
AIR FLOW DIRECTION
9.15"
(232.3)
4.0"
(101.6)
1.61"
(40.9)
1.255"
(31.9)
0.862"
(21.9)
b
a
2.40"
(61)
5.85"
(148.6)
a b
6.244"
(158.6)
a b
a b
a b
a b
2.9"
(73.6)
4.7"
(119.6)
5.5"
(139.7)
#6-32 (8 places)
M3 (8 places)
WORLDWIDE OFFICES
Americas
2900 S.Diablo Way
Tempe, AZ 85282
USA
+1 888 412 7832
Europe (UK)
Waterfront Business Park
Merry Hill, Dudley
West Midlands, DY5 1LX
United Kingdom
+44 (0) 1384 842 211
Asia (HK)
14/F, Lu Plaza
2 Wing Yip Street
Kwun Tong, Kowloon
Hong Kong
+852 2176 3333
www.artesyn.com
For more information:
www.artesyn.com/power
For support:
productsupport.ep@artesyn.com
NTS350 DS 21Mar2016
Artesyn Embedded Technologies, Artesyn and the Artesyn Embedded Technologies logo are trademarks and
service marks of Artesyn Embedded Technologies, Inc. All other names and logos referred to are trade names,
trademarks, or registered trademarks of their respective owners. © 2016 Artesyn Embedded Technologies, Inc.
All rights reserved. For full legal terms and conditions, please visit www.artesyn.com/legal.
0.752"
(19.1)
6.437"
(63.5)
0.862"
(21.9)

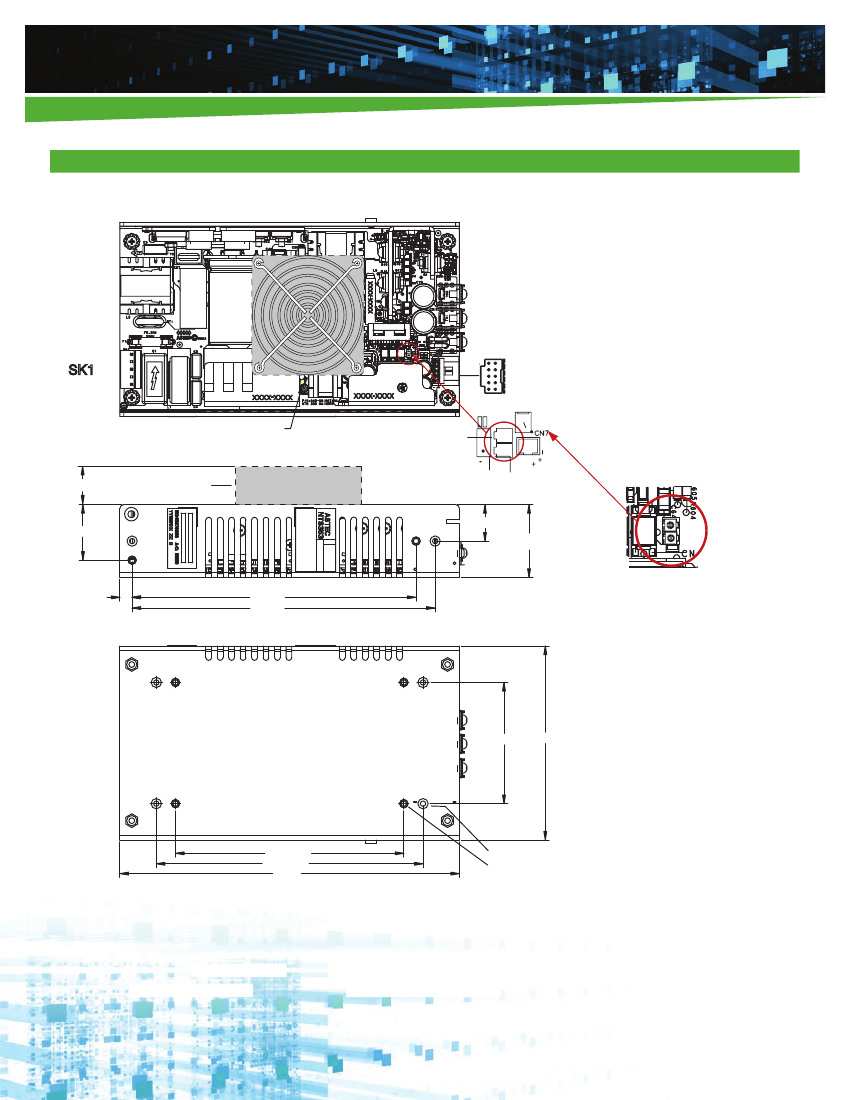

NTS350 Series Data Sheet
Mechanical Drawing
+ V OR-ing out
(Must be used in parallel operation)
+ V out
Common
5
(Do not use in parallel operation)
531
-CF option
(SEE NOTE 5)
SK1
10
1
6
P1
Voltage
ADJ POT
P1
P3
1.27 (32.26)
-CF option
b
a
5.85 (148.7)
6.25 (158.7)
1.14 (29.1)
a b
.75 (19.1) (3X)
1.5 (38.10)
P1
P3
6.4 (2X)
b a
a b
2.5 (63.5) (4X)
4.0 (101.6)
b a
a b
4.7 (119.6)(2X)
5.5 (139.7) (2X)
7.0 (177.8)
#6-32 (8 places)
M3 (8 places)
