LFPPXO023435BULK datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> LFPPXO023435BULK

LFPPXO023435BULK: DescriptionCMOS Output Clock Oscillator, 11.04282MHz Nom; CategoryPassive components oscillator; File Size707KB，2 Pages; ManufacturerIQD Frequency Products; Environmental Compliance

Download Datasheet Parametric View All

LFPPXO023435BULK Overview

CMOS Output Clock Oscillator, 11.04282MHz Nom

LFPPXO023435BULK Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; BULK
maximum descent time	4 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
Installation features	SURFACE MOUNT
Nominal operating frequency	11.04282 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	CMOS
Output load	50 pF
physical size	7.0mm x 5.0mm x 1.7mm
longest rise time	4 ns
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	45/55 %
Base Number Matches	1

Preview

Download Datasheet

View All

Fast Make Oscillator Specification

Part No. + Packaging:

LFPPXO023435Bulk

Description

PLL based, one time only factory programmable for a fast lead

time

Crystal oscillator in a hermetically sealed ceramic package with

a metal lid

Model

CFPP-72

Model Issue number

Frequency Parameters

Frequency

Frequency Stability

Operating Temperature Range

Ageing

Electrical Parameters

11.042820MHz

±100.00ppm

0.00 to 70.00°C

±5ppm max in 1st year @ 25°C

Supply Voltage

Current Draw

Output Details

5.0V ±0.5V

45.00mA

Outline (mm)

CMOS

Output Compatability

Drive Capability

50pF max

4.0ns max

Rise and Fall Time

45/55%

Duty Cycle

Logic ‘1’ to pad 1 enables oscillator output

Logic ‘0’ to pad 1 disables oscillator output; when disabled the

oscillator output goes to the high impedance state

No connection to pad 1 enables oscillator output

Noise Parameters

Jitter pk-pk:

1 to 33MHz 250ps max

>33MHz

175ps max

Jitter pk-pk:

1 to 33MHz 100ps typ

>33MHz

75ps typ

Environmental Parameters

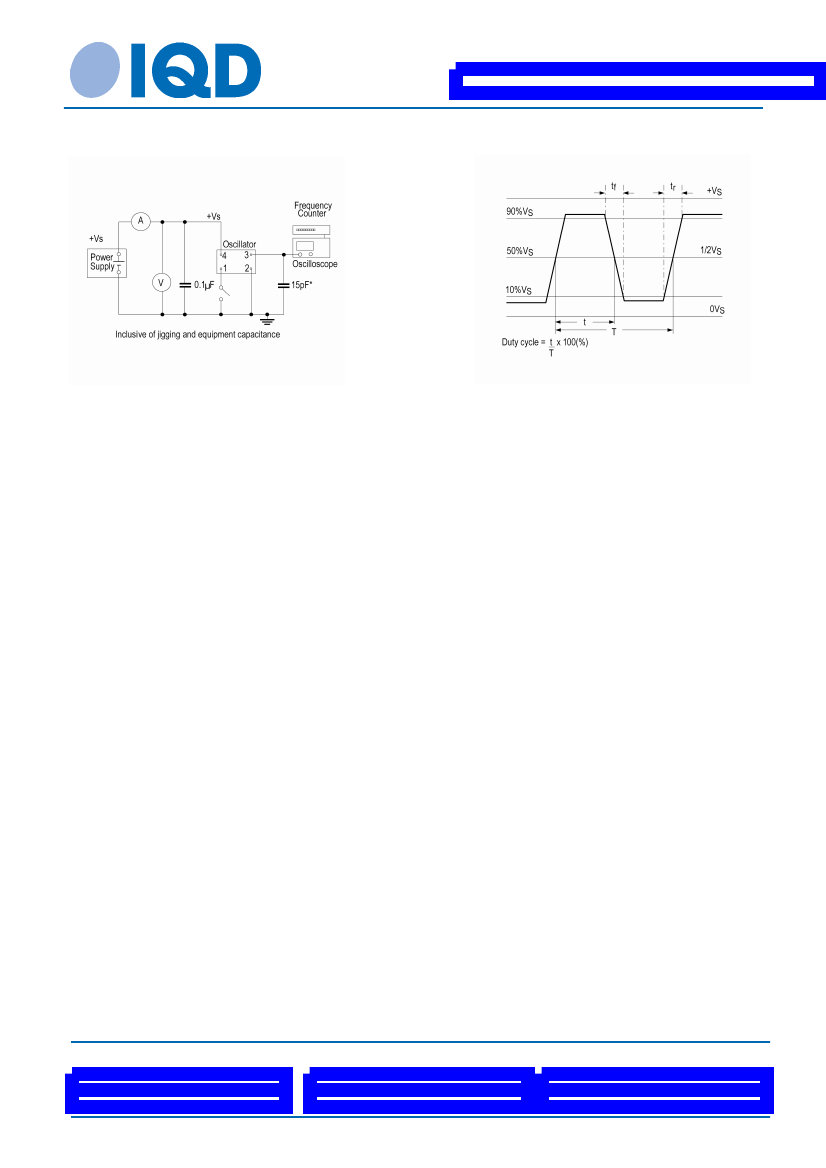

Test Circuit

Storage Temperature Range: –55 to 125°C

Compliance

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Bulk

Pack Size: 1

Loose in bulk pack

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1 408.273.4530

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 2
