Interface module - FLKM HDSUB-78/F - 5600455
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
VARIOFACE module, with screw connection and high density D-Subminiature female connector, for mounting on
NS 32 or NS 35/7.5, no. of pos.: 78, width: 169 mm
Key Commercial Data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
439.1 g
85369010
United States
Technical data
Dimensions
Width
Height
Depth
169 mm
77 mm
72 mm
Ambient conditions
Ambient temperature (operation)
Ambient temperature (storage/transport)
-20 °C ... 50 °C
-20 °C ... 70 °C
General
Max. perm. operating voltage
Max. perm. current (per branch)
Number of positions
Mounting position
125 V
1A
78
any
Connection data for connection 1
Connection name
Connection in acc. with standard
Connection method
Stripping length
Screw thread
Field level
IEC / EN
Screw connection
8 mm
M3
04/25/2016 Page 1 / 4
https://www.phoenixcontact.com/us/products/5600455
Interface module - FLKM HDSUB-78/F - 5600455
Technical data
Connection data for connection 1
Conductor cross section solid
Conductor cross section flexible
Conductor cross section AWG
Number of positions
0.2 mm² ... 4 mm²
0.2 mm² ... 2.5 mm²
24 ... 12
78
Connection data for connection 2
Connection name
Connection method
Number of positions
Controller level
D-SUB socket strip
10
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27250313
27250313
27250313
27250313
27242608
27242608
27242608
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001434
EC001604
EC001604
EC001604
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211824
39121421
39121421
39121421
39121421
Drawings
04/25/2016 Page 2 / 4
https://www.phoenixcontact.com/us/products/5600455
Interface module - FLKM HDSUB-78/F - 5600455

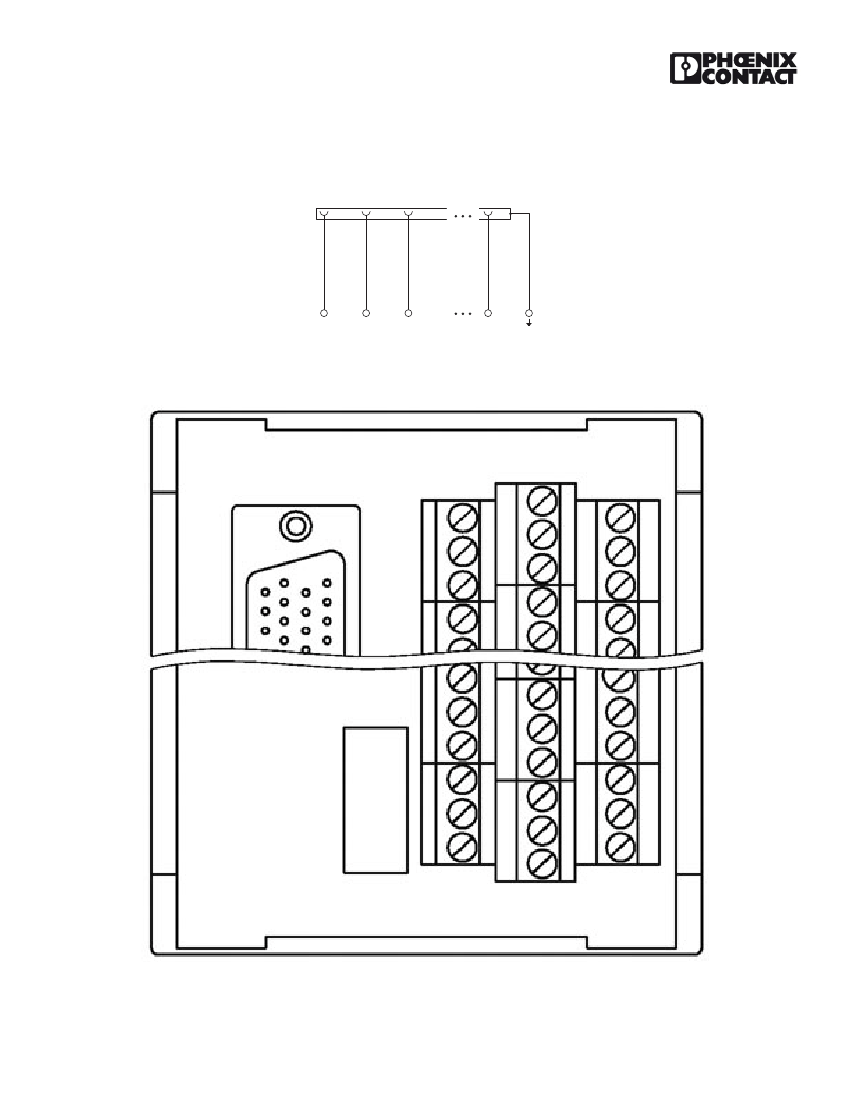

Circuit diagram
1
2
3
n
1
2
3
n
Universal circuit diagram
Product drawing
04/25/2016 Page 3 / 4
