51204-1200: DescriptionHeavy Duty Power Connectors POWER CONN SOCKET HS OWER CONN SOCKET HSG; CategoryThe connector The connector; File Size29KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

51204-1200 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	51204-1200	-	-	View	Buy Now

51204-1200 Overview

Heavy Duty Power Connectors POWER CONN SOCKET HS OWER CONN SOCKET HSG

51204-1200 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Factory Lead Time	12 weeks
Other features	ROHS AND ELV COMPLIANT
body width	0.488 inch
subject depth	1.087 inch
body length	1.575 inch
Body/casing type	SOCKET
Connector type	RECTANGULAR POWER CONNECTOR
Contact arrangement	S0P12
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1750VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	GLASS FILLED NYLON
MIL compliance	NO
Mixed contacts	NO
Installation option 1	LATCH
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	PANEL
Number of connectors	ONE
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Guideline	CSA,TUV,UL
reliability	COMMERCIAL
Shell material	POLYAMIDE
Termination type	CRIMP
Total number of contacts	12
UL Flammability Code	94V-0
Base Number Matches	1

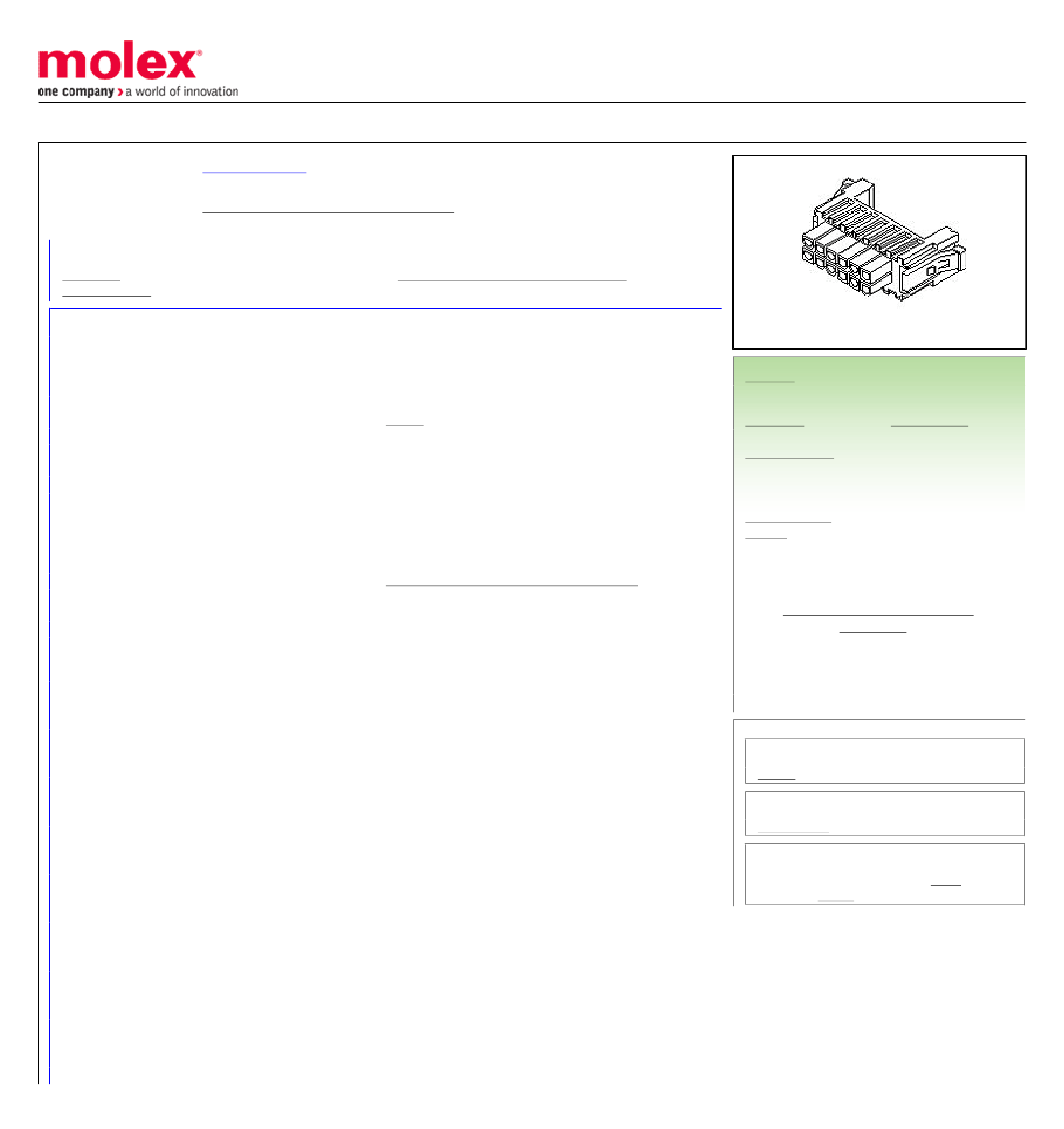

Preview

Download Datasheet

View All

This document was generated on 03/02/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

Documents:

3D Model

Drawing (PDF)

Agency Certification

CSA

UL

General

Product Family

Series

Application

Component Type

Current Released Drawing

Current Released Revision

Data Load Status

Doc Info - Component

0512041200

Active

HMC Heavy Duty Rectangular Connectors

HMC Rectangular Industrial Female Housing, Multi-Module Type, 12 Circuits

RoHS Certificate of Compliance (PDF)

LR19980

E29179

I/O Connectors

51204

Panel-Mount

Housing

E-51204-001

H

Saqqara Bulk Load-Verified 08

CAT-51204-A_A, E-51204-001_H, RPS-51200-003_0,

RPS-58719-004_C, RPS-58719-007_A,

SD-51204-002_A

0899920598

HMC Heavy Duty Rectangular Connectors

HMC

N/A

800753247741

N/A

No

N/A

12

Natural

50

94V-0

Plug

Yes

N/A

Nylon

5719.000/mg

2

Vertical

No

Bag

N/A

4.20mm

Yes

N/A

1

No

-55°C to +125°C

N/A

Yes

Series image - Reference only

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per

-ED/01/2018 (15

January 2018)

Halogen-Free

Status

Not Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Made From

Overview

Product Name

Type

UPC

Physical

Boot Color

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Flammability

Gender

Lock to Mating Part

Material - Plating Mating

Material - Resin

Net Weight

Number of Rows

Orientation

PCB Locator

Packaging Type

Panel Mount

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to Mating Part

Polarized to PCB

Ports

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Waterproof / Dustproof

Search Parts in this Series

51204 Series

Mates With

51203-1200

Use With

58719 Panel Mount Bracket, 5556 GSX

Terminal, 58721 Hood Bracket

Recommended Resources
