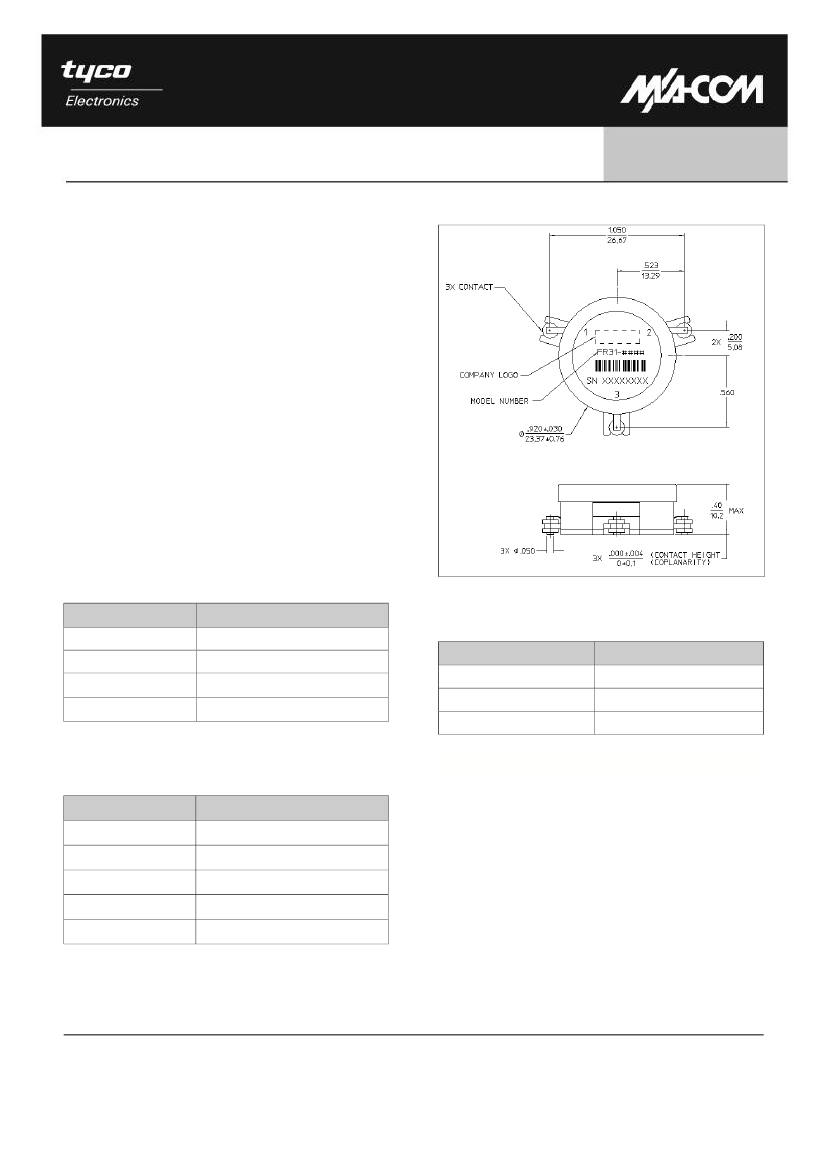

Single Junction Surface Mount Circulator

800MHz, 900MHz, 1800MHz, 1900MHz, 2100MHz

Features

•

20dB Isolation

0.35dB Insertion Loss

Low cost surface mount package

Custom products available with alternative con-

figurations such as couplers, attenuators, high

power termination and reverse circulation.

FR31 Series

Outline Drawing

Description

M/A COM’s drop-in circulators and isolators, de-

signed for Wireless base station and power amplifier

applications, feature high reliability performance at a

low cost. These designs feature a low cost package

ideally suited for high volume manufacturing. M/A

Com is one of the largest suppliers of isolator and

circulators in the world.

Electrical Specifications: Z

= 50Ω

Parameter

Isolation

Insertion Loss

VSWR, all ports

Circulation

-30°C to +85°C

20dB minimum

0.35dB maximum

1.22:1

Clockwise

Absolute Maximum Ratings

Parameter

Forward Power

Operating Temperature

Storage Temperature

Absolute Maximum

65 Watts

-30°C to +85°C

-45°C to +125°C

Ordering Information

Part Number

FR31-0001

FR31-0002

FR31-0003

FR31-0004

FR31-0009

1. Operation of this device above any one of these parameters

may cause permanent damage.

Frequency Range (MHz)

869—894

925—960

1805—1880

1930—1990

2110—2170

M/A-COM Inc. and its affiliates reserve the right to make changes to the

product(s) or information contained herein without notice. M/A-COM makes

no warranty, representation or guarantee regarding the suitability of its

products for any particular purpose, nor does M/A-COM assume any liability

whatsoever arising out of the use or application of any product(s) or

information.

•

North America

Tel: 800.366.2266 / Fax: 978.366.2266

•

Europe

Tel: 44.1908.574.200 / Fax: 44.1908.574.300

•

Asia/Pacific

Tel: 81.44.844.8296 / Fax: 81.44.844.8298

Visit www.macom.com for additional data sheets and product information.

FR31-0004 Related Products

	FR31-0004	FR31-0001	FR31	FR31-0002	FR31-0003	FR31-0009
Description	Surface Mount Circulator	Surface Mount Circulator	Surface Mount Circulator	Surface Mount Circulator	Surface Mount Circulator	Surface Mount Circulator
Maker	MACOM	MACOM	-	MACOM	MACOM	MACOM
Reach Compliance Code	compliant	compli	-	compli	compli	compli
Other features	-	HIGH RELIABILITY	-	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY
Characteristic impedance	-	50 Ω	-	50 Ω	50 Ω	50 Ω
structure	-	MODULE	-	MODULE	MODULE	MODULE
Maximum input power (CW)	-	48.13 dBm	-	48.13 dBm	48.13 dBm	48.13 dBm
Maximum insertion loss	-	0.35 dB	-	0.35 dB	0.35 dB	0.35 dB
Maximum operating frequency	-	894 MHz	-	960 MHz	1880 MHz	2170 MHz
Minimum operating frequency	-	869 MHz	-	925 MHz	1805 MHz	2110 MHz
Maximum operating temperature	-	85 °C	-	85 °C	85 °C	85 °C
Minimum operating temperature	-	-30 °C	-	-30 °C	-30 °C	-30 °C
RF/Microwave Device Types	-	3 PORT CIRCULATOR	-	3 PORT CIRCULATOR	3 PORT CIRCULATOR	3 PORT CIRCULATOR
Maximum voltage standing wave ratio	-	1.22	-	1.22	1.22	1.22
