EA30QS10 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> EA30QS10

EA30QS10: DescriptionRECTIFIER DIODE; CategoryDiscrete semiconductor diode; File Size46KB，6 Pages; ManufacturerNihon Inter Electronics Corporation; Websitehttp://www.niec.co.jp

Download Datasheet Parametric View All

EA30QS10 Overview

RECTIFIER DIODE

EA30QS10 Parametric

Parameter Name	Attribute value
Maker	Nihon Inter Electronics Corporation
Objectid	1534101671
Parts packaging code	TO-251AA
package instruction	R-PSIP-T3
Contacts	3
Reach Compliance Code	unknow
ECCN code	EAR99
compound_id	6050979
Other features	LOW POWER LOSS
application	GENERAL PURPOSE
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.85 V
JEDEC-95 code	TO-251AA
JESD-30 code	R-PSIP-T3
Maximum non-repetitive peak forward current	45 A
Number of components	1
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-40 °C
Maximum output current	1.6 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	100 V
surface mount	NO
technology	SCHOTTKY
Terminal form	THROUGH-HOLE
Terminal location	SINGLE

Preview

Download Datasheet

View All

SBD

Type :

EA30QS10

OUTLINE DRAWING

FEATURES

* TO-251AA Case

* Low Forward Voltage drop

* Low Power Loss

* High Surge Capability

* 40 Volts thru 100 Volts Types Available

Maximum Ratings

Rating

Repetitive Peak Reverse Voltage

P.C.Board

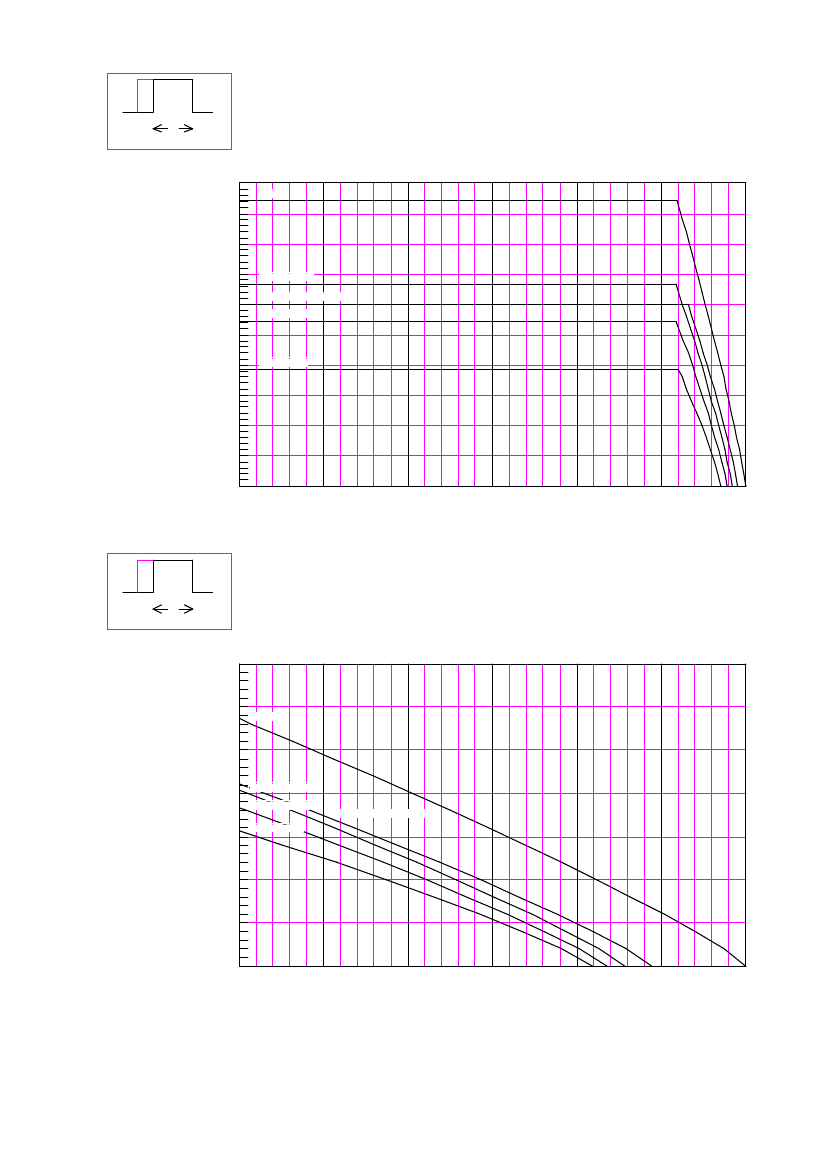

Average Rectified

mounted *

Output Current

RMS Forward Current

Surge Forward Current

Operating JunctionTemperature Range

Storage Temperature Range

Symbol

RRM

F(RMS)

FSM

Tjw

Tstg

1.6

3.0

Ta=34°C

Tc=133°C

Approx Net Weight:0.35g

EA30QS10

50Hz Half Sine Wave

Resistive Load

Unit

°C

4.71

50Hz Half Sine Wave,1cycle,

Non-repetitive

- 40 to + 150

Electrical

•

Thermal Characteristics

Characteristics

Peak Reverse Current

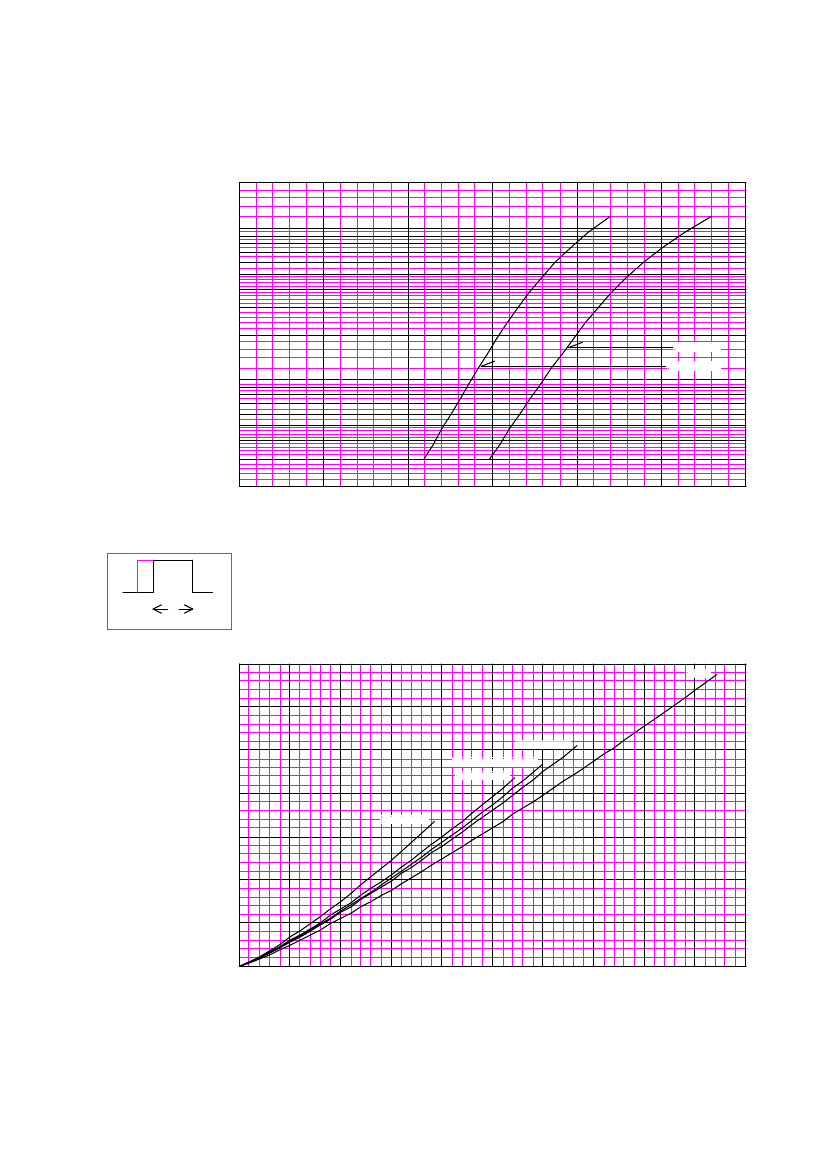

Peak Forward Voltage

Junction to Ambient

Thermal

Resistance

Junction to Case

* Print Land = 20x20 mm

Symbol

Conditions

Min Typ Max

1.0

0.85

Unit

°C/W

Tj=25°C,V

RRM

Tj=25°C,I

= 3 A

Rth(j-a) P.C.Board mounted *

Rth(j-c)
