ADC-00110-12 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> ADC-00110-12

ADC-00110-12: DescriptionADC, Flash Method, 12-Bit, 1 Func, 1 Channel, Parallel, Word Access, Hybrid, CDIP46, HERMETIC SEALED, PLUG IN-46; CategoryAnalog mixed-signal IC converter; File Size329KB，6 Pages; ManufacturerData Device Corporation

Download Datasheet Parametric Compare View All

ADC-00110-12 Overview

ADC, Flash Method, 12-Bit, 1 Func, 1 Channel, Parallel, Word Access, Hybrid, CDIP46, HERMETIC SEALED, PLUG IN-46

ADC-00110-12 Parametric

Parameter Name	Attribute value
Maker	Data Device Corporation
Parts packaging code	DIP
package instruction	HERMETIC SEALED, PLUG IN-46
Contacts	46
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Maximum analog input voltage	2.5 V
Minimum analog input voltage	-2.5 V
Converter type	ADC, FLASH METHOD
JESD-30 code	R-CDIP-P46
Maximum linear error (EL)	0.05%
Nominal negative supply voltage	-15 V
Number of analog input channels	1
Number of digits	12
Number of functions	1
Number of terminals	46
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output bit code	OFFSET BINARY, 2\'S COMPLEMENT BINARY
Output format	PARALLEL, WORD
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Sampling rate	10 MHz
Sample and hold/Track and hold	TRACK
Maximum seat height	5.334 mm
Maximum slew rate	700 mA
Nominal supply voltage	15 V
surface mount	NO
technology	HYBRID
Temperature level	MILITARY
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	DUAL
width	33.02 mm

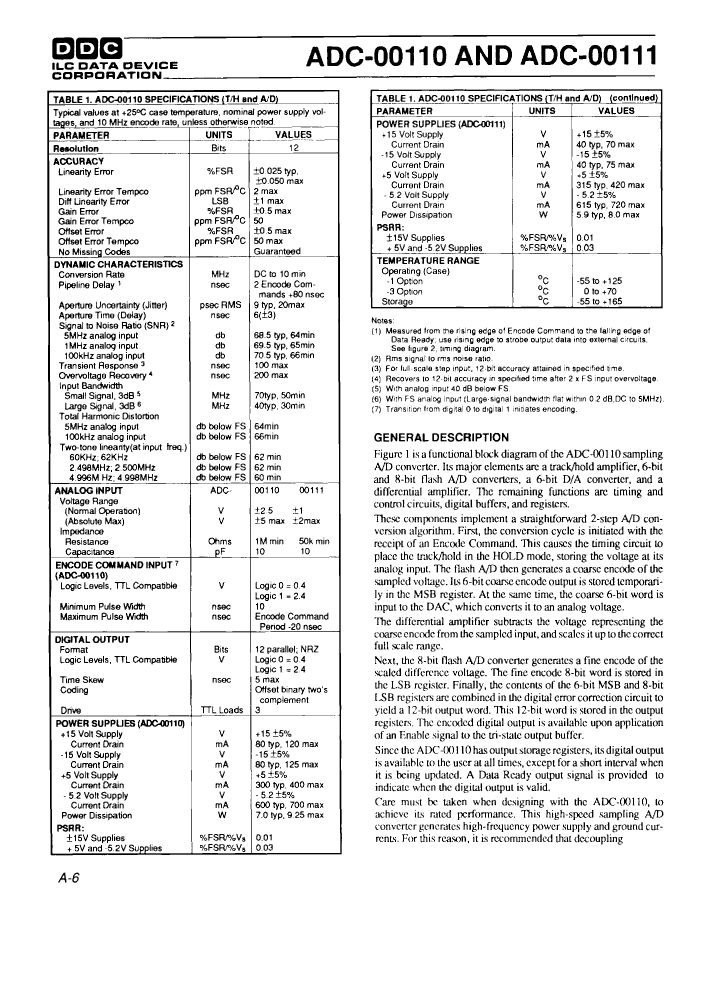

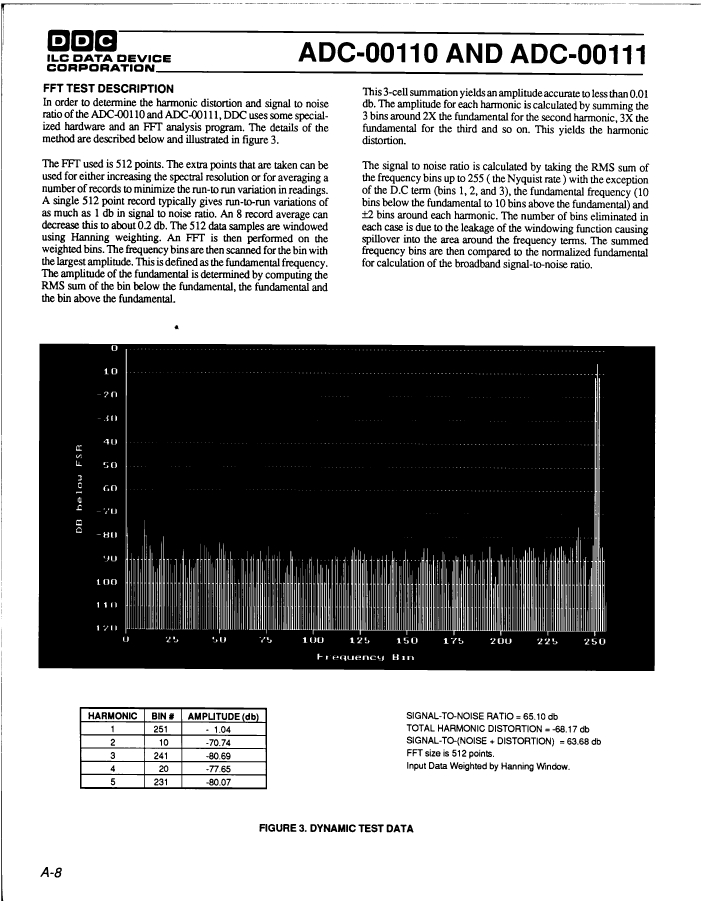

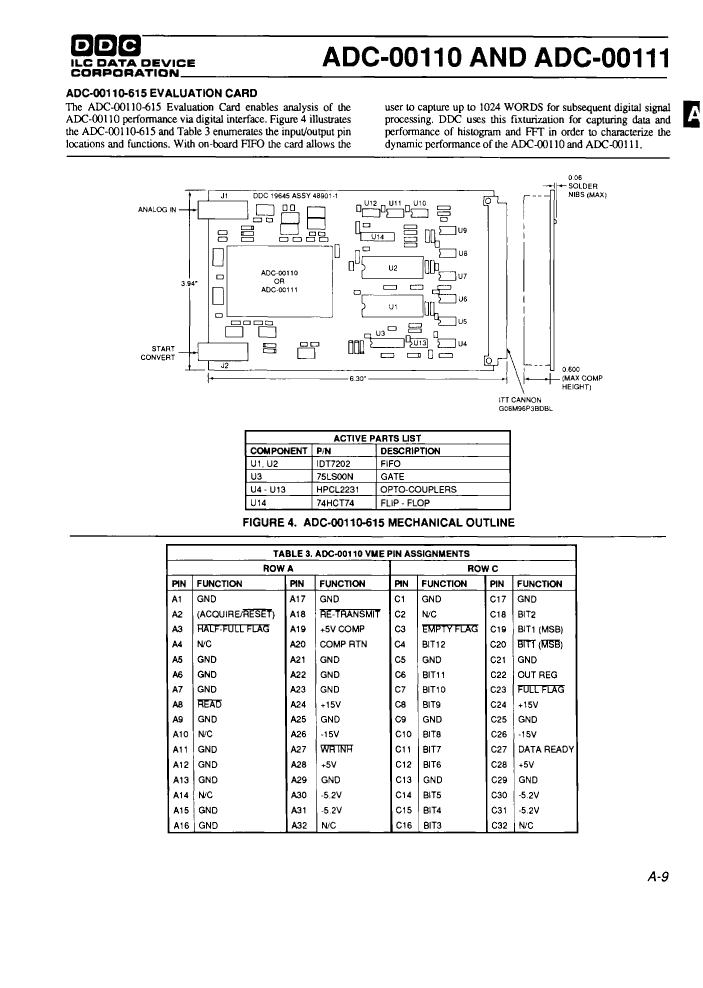

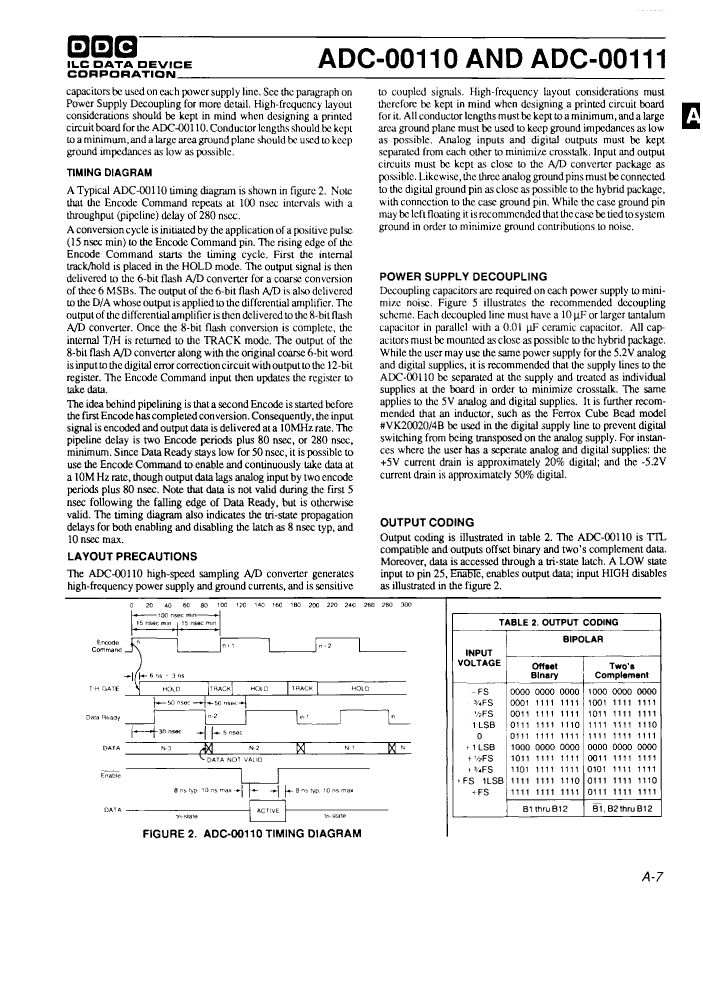

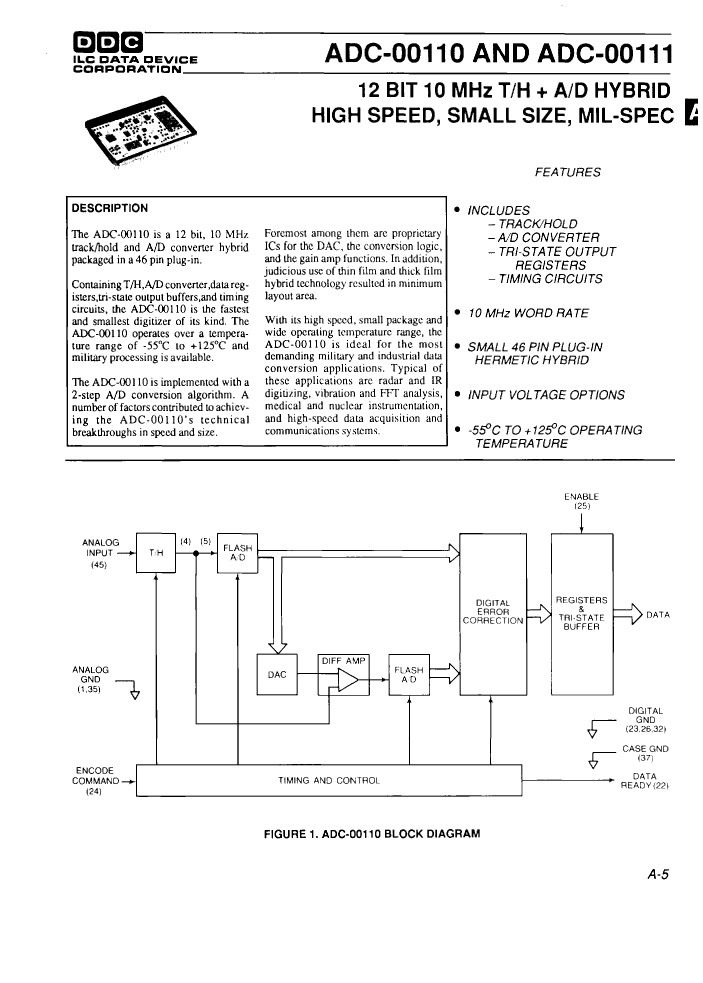

Preview

Download Datasheet

View All

ADC-00110-12 Related Products

	ADC-00110-12	ADC-00110-11	ADC-00111-30	ADC-00110-10
Description	ADC, Flash Method, 12-Bit, 1 Func, 1 Channel, Parallel, Word Access, Hybrid, CDIP46, HERMETIC SEALED, PLUG IN-46	ADC, Flash Method, 12-Bit, 1 Func, 1 Channel, Parallel, Word Access, Hybrid, CDIP46, HERMETIC SEALED, PLUG IN-46	ADC, Flash Method, 12-Bit, 1 Func, 1 Channel, Parallel, Word Access, Hybrid, CDIP46, HERMETIC SEALED, PLUG IN-46	ADC, Flash Method, 12-Bit, 1 Func, 1 Channel, Parallel, Word Access, Hybrid, CDIP46, HERMETIC SEALED, PLUG IN-46
Parts packaging code	DIP	DIP	DIP	DIP
package instruction	HERMETIC SEALED, PLUG IN-46	DIP,	DIP,	HERMETIC SEALED, PLUG IN-46
Contacts	46	46	46	46
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C	EAR99	3A001.A.2.C
Maximum analog input voltage	2.5 V	2.5 V	2.5 V	2.5 V
Minimum analog input voltage	-2.5 V	-2.5 V	-2.5 V	-2.5 V
Converter type	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD
JESD-30 code	R-CDIP-P46	R-CDIP-P46	R-CDIP-P46	R-CDIP-P46
Maximum linear error (EL)	0.05%	0.05%	0.05%	0.05%
Nominal negative supply voltage	-15 V	-15 V	-15 V	-15 V
Number of analog input channels	1	1	1	1
Number of digits	12	12	12	12
Number of functions	1	1	1	1
Number of terminals	46	46	46	46
Maximum operating temperature	125 °C	125 °C	70 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-	-55 °C
Output bit code	OFFSET BINARY, 2\'S COMPLEMENT BINARY	OFFSET BINARY, 2'S COMPLEMENT BINARY	OFFSET BINARY, 2'S COMPLEMENT BINARY	OFFSET BINARY, 2\'S COMPLEMENT BINARY
Output format	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Sampling rate	10 MHz	10 MHz	10 MHz	10 MHz
Sample and hold/Track and hold	TRACK	TRACK	TRACK	TRACK
Maximum seat height	5.334 mm	5.334 mm	5.334 mm	5.334 mm
Maximum slew rate	700 mA	700 mA	700 mA	700 mA
Nominal supply voltage	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	MILITARY	MILITARY	COMMERCIAL	MILITARY
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
width	33.02 mm	33.02 mm	33.02 mm	33.02 mm
