UUG1J331MNQ1MS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> UUG1J331MNQ1MS

UUG1J331MNQ1MS: DescriptionAluminum Electrolytic Capacitors - SMD 63volts 330uF 85C 16X16.5; CategoryPassive components capacitor; File Size289KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp; Environmental Compliance

Download Datasheet Parametric View All

UUG1J331MNQ1MS Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	UUG1J331MNQ1MS	-	-	View	Buy Now

UUG1J331MNQ1MS Overview

Aluminum Electrolytic Capacitors - SMD 63volts 330uF 85C 16X16.5

UUG1J331MNQ1MS Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Nichicon
package instruction	, 6767
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	UUG1J331MNQ1MS
capacitance	330 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
high	16.5 mm
JESD-609 code	e3
leakage current	0.6237 mA
length	18.1 mm
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
Package form	SMT
method of packing	TAPE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	63 V
ripple current	680 mA
size code	6767
surface mount	YES
Delta tangent	0.1
Terminal surface	Matte Tin (Sn)
Terminal shape	FLAT
width	17.1 mm

Preview

Download Datasheet

View All

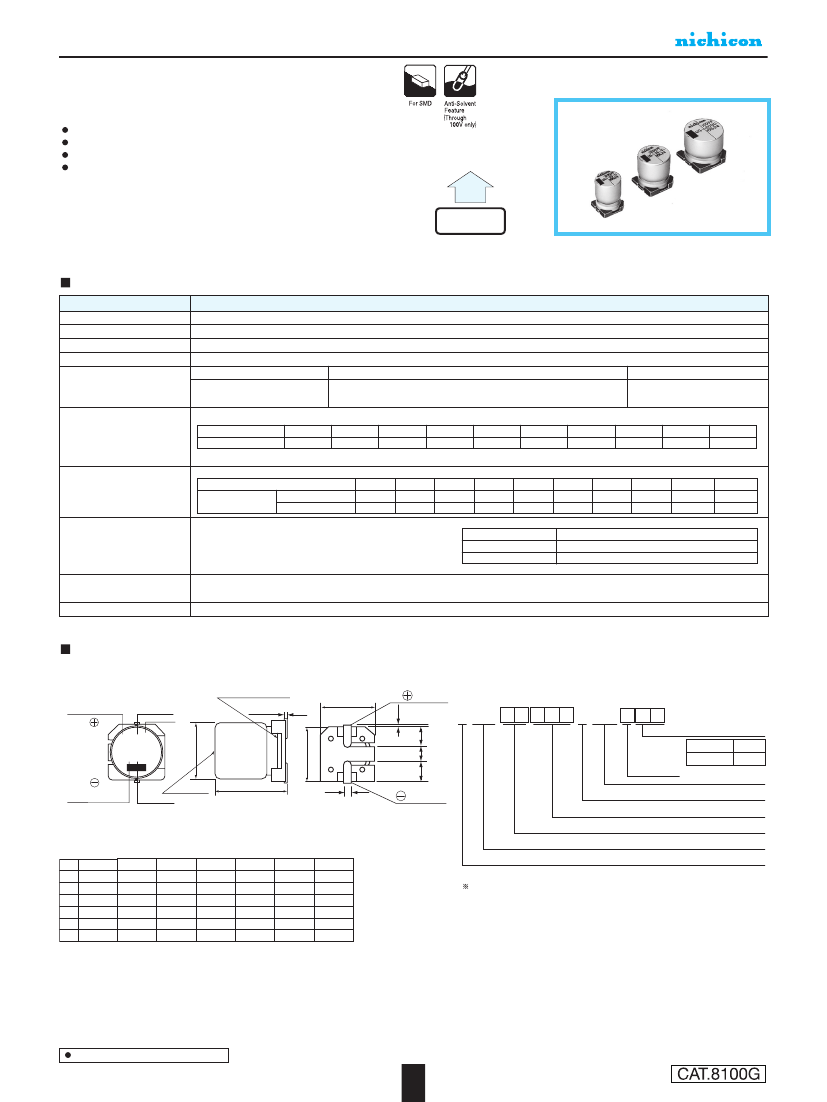

ALUMINUM ELECTROLYTIC CAPACITORS

UUG

Chip Type, Higher Capacitance Range

Chip Type, higher capacitance in larger case sizes (φ12.5,

φ16, φ18)

Designed for surface mounting on high density PC board.

Applicable to automatic mounting machine fed with carrier tape and tray.

Compliant to the RoHS directive (2011/65/EU).

UUJ

Wide

Temperature

UUG

Specifications

Item

Category Temperature Range

Rated Voltage Range

Rated Capacitance Range

Capacitance Tolerance

Leakage Current

Performance Characteristics

–40 to +85°C

6.3 to 450V

4.7 to 10000µF

± 20% at 120Hz, 20°C

Rated voltage (V)

—

6.3 to 100

160 to 450

After 1 minute's application of rated voltage at 20°C, leakage current is not

more than 0.03CV or 4 (µA), whichever is greater.

= 0.04CV+100 ( µA) max.

(1 minute's at 20°C)

Measurement frequency : 120Hz at 20°C

Tangent of loss angle (tan

δ)

Rated voltage (V)

tan

(MAX.)

6.3

0.28

0.24

0.20

0.16

0.14

0.12

0.10

100

0.08

160 to 250 400

•

450

0.25

0.20

For capacitance of more than 1000µF, add 0.02 for every increase of 1000µF.

Measurement frequency: 120Hz

Rated voltage (V)

Stability at Low Temperature

Impedance ratio

ZT / Z20 (MAX.)

Z–25°C / Z+20°C

Z–40°C / Z+20°C

6.3

100

160 to 250 400

•

450

Endurance

The specifications listed at right shall be met when the

capacitors are restored to 20°C after the rated voltage is

applied for 2000 hours at 85°C.

Capacitance change

tan

Leakage current

Within ±20% of the initial capacitance value

200% or less than the initial specified value

Less than or equal to the initial specified value

Shelf Life

Marking

After storing the capacitors under no load at 85°C for 1000 hours and then performing voltage treatment based on JIS C 5101-4

clause 4.1 at 20°C, they shall meet the specified values for the endurance characteristics listed above.

Black print on the case top.

Chip Type

Type numbering system (Example : 50V 330

Plastic platform

Trade mark

Voltage

Lot No.

nichicon

C ±0.2

0.5 MAX.

Positive

10 11 12 13

Package code

Taping

Tray

0.3 MAX.

U U G 1 H 3 3 1 M NQ 1 M S

A ±0.2 E

A ±0.2

330 µF

UG 50V

H1015

D ±0.5

B ±0.2

Size code

Pressure

relief vent

Capacitance

Series

L ±1.0

Configuration

Negative

Capacitance Tolerance (±20%)

Rated capacitance (330µF)

Rated voltage (50V)

Series name

(mm)

φD

12.5×13.5 12.5×16. 12.5×21. 16×16.5. 16×21.5. 18×16.5. 18×21.5.

4.8

5.4

6.4

4.8

13.6

17.1

19.1

13.6

17.1

19.1

13.6

4.0

6.3

4.0

13.5

16.0

16.5

21.5

16.5

21.5

21.0

H 1.0 to 1.4 1.0 to 1.4 1.0 to 1.4 1.0 to 1.4 1.0 to 1.4 1.0 to 1.4 1.0 to 1.4

Type

The vibration structure-resistant product is also available upon request,

please ask for details.

Dimension table in next page.

160
