6TPF220M9L: DescriptionTantalum Capacitors - Polymer SMD 6.3volts 220uF ESR 9mohm; CategoryPassive components capacitor; File Size61KB，3 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html; Environmental Compliance

Download Datasheet Parametric Compare View All

6TPF220M9L Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	6TPF220M9L	-	-	View	Buy Now

6TPF220M9L Overview

Tantalum Capacitors - Polymer SMD 6.3volts 220uF ESR 9mohm

6TPF220M9L Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Panasonic
package instruction	, 2917
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	14 weeks
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (SOLID POLYMER)
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C

Preview

Download Datasheet

View All

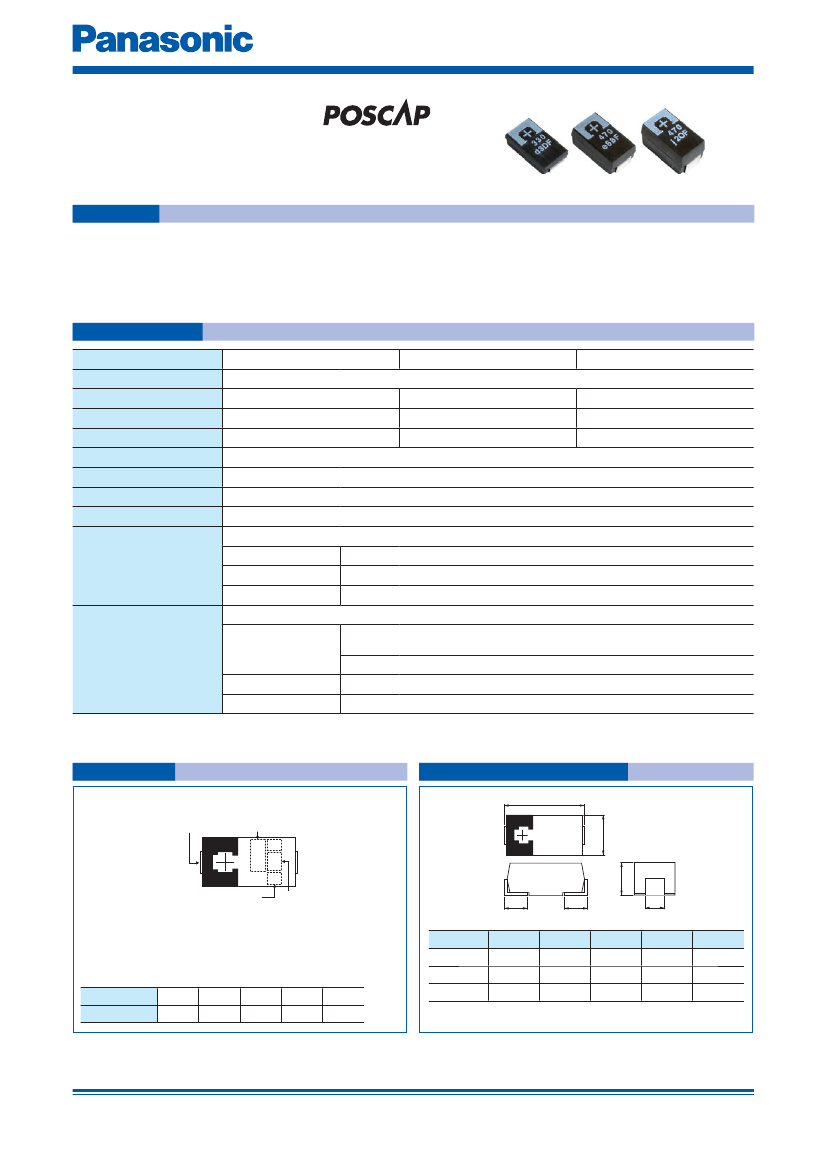

Conductive Polymer Tantalum Solid Capacitors

Surface Mount Type

Series :

TPF

Features

low ESR (5 mΩ max.)

●

Large capacitance (1000 μF max.)

●

RoHS compliance, Halogen free

●

Super

Specifications

Size code

Category temperature range

Rated voltage range

Category voltage range

Rated capacitance range

Capacitance tolerance

Leakage current

Dissipation factor (tan

d)

Surge voltage (V.DC)

2.0 V.DC

220 μF to 330 μF

D2E

D3L

–55 °C to +105 °C

2.5 V.DC to 10 V.DC

150 μF to 680 μF

±20 % (120 Hz / + 20 °C)

Please see the attached characteristics list

Rated voltage

×

1.15

+105 °C, 2000 h rated voltage applied

Endurance

Capacitance change Within ±20 % of the initial value

tan

d

<

1.5 times of the initial limit

DC leakage current Within the initial limit

+60 °C, 90 % to 95 %, 500 h, No-applied voltage

Within +50 %, −20 % of the initial value

Capacitance change (2TPF220M6, 2TPF330M6, ETPF1000M6H (5H))

Within +40 %, −20 % of the initial value (Except for above model)

tan

d

<

1.5 times of the initial limit

DC leakage current

<

3 times of the initial limit

2.5 V.DC to 6.3 V.DC

470 μF to 1000 μF

D4

Damp heat

(Steady State)

Marking

Dimensions (not to scale)

L

W

H

R. Voltage code

Lot. No.

Polarity marking(+)

R.Cap. code

S

W1

Unit : mm

R. Voltage (V.DC)

Code

2.0

d

2.5

e

4.0

g

6.3

j

10.0

A

Size code L±0.3

D2E

7.3

D3L

7.3

D4

7.3

W±0.2 H±0.2

½1

S±0.2

4.3

1.8

1.3

4.3

2.8

1.3

4.3

3.8

1.3

W1±0.1

2.4

½

Externals of ﬁgure are the reference.

½

1 ±0.1 :D2E

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Nov. 2015

6TPF220M9L Related Products

	6TPF220M9L	2R5TPF680M7L	2R5TPF680ML	4TPF470ML
Description	Tantalum Capacitors - Polymer SMD 6.3volts 220uF ESR 9mohm	Tantalum Capacitors - Polymer SMD 2.5volts 680uF ESR 7mohm	Tantalum Capacitors - Polymer SMD 2.5volts 680uF ESR 10mohm	Tantalum Capacitors - Polymer SMD 4volts 470uF ESR 10mohm
Is it Rohs certified?	conform to	conform to	conform to	conform to
package instruction	, 2917	, 2917	, 2917	CHIP
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Capacitor type	TANTALUM CAPACITOR	TANTALUM CAPACITOR	TANTALUM CAPACITOR	TANTALUM CAPACITOR
dielectric materials	TANTALUM (SOLID POLYMER)	TANTALUM (SOLID POLYMER)	TANTALUM (SOLID POLYMER)	TANTALUM (SOLID POLYMER)
Number of terminals	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Factory Lead Time	14 weeks	14 weeks	-	14 weeks
capacitance	-	680 µF	680 µF	470 µF
ESR	-	7 mΩ	10 mΩ	10 mΩ
high	-	2.8 mm	2.8 mm	2.8 mm
JESD-609 code	-	e4	e4	e4
leakage current	-	0.17 mA	0.17 mA	0.188 mA
length	-	7.3 mm	7.3 mm	7.3 mm
Installation features	-	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
negative tolerance	-	20%	20%	20%
Package shape	-	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
Package form	-	SMT	SMT	SMT
method of packing	-	TR	TR	TR
polarity	-	POLARIZED	POLARIZED	POLARIZED
positive tolerance	-	20%	20%	20%
Rated (DC) voltage (URdc)	-	2.5 V	2.5 V	4 V
ripple current	-	4400 mA	4400 mA	4400 mA
size code	-	2917	2917	2917
surface mount	-	YES	YES	YES
Delta tangent	-	0.1	0.1	0.1
Terminal surface	-	Palladium/Gold (Pd/Au)	Palladium/Gold (Pd/Au)	Palladium/Gold (Pd/Au)
Terminal shape	-	J BEND	J BEND	J BEND
width	-	4.3 mm	4.3 mm	4.3 mm
