Molded Case Rotary Potentiometer with Switch
Specifications:
Electrical Characteristics:
• Total Resistance: 100Ω~ 1MΩ
• Total Resistance Tolerance: ±20%
• Max. Operation Voltage: Linear Taper B: AC 200V
• Rated Power: Linear Taper B: 0.1W
• Sliding Noise: Less than 100 mV
• Insulation Resistance: More than 50 MΩ at DC 500V
• Switch Circuit: S.P.S.T
• Switch Rated Power: 1.0 A at AC/DC 12V
Durability:
• Rotational Life: 10,000 Cycles

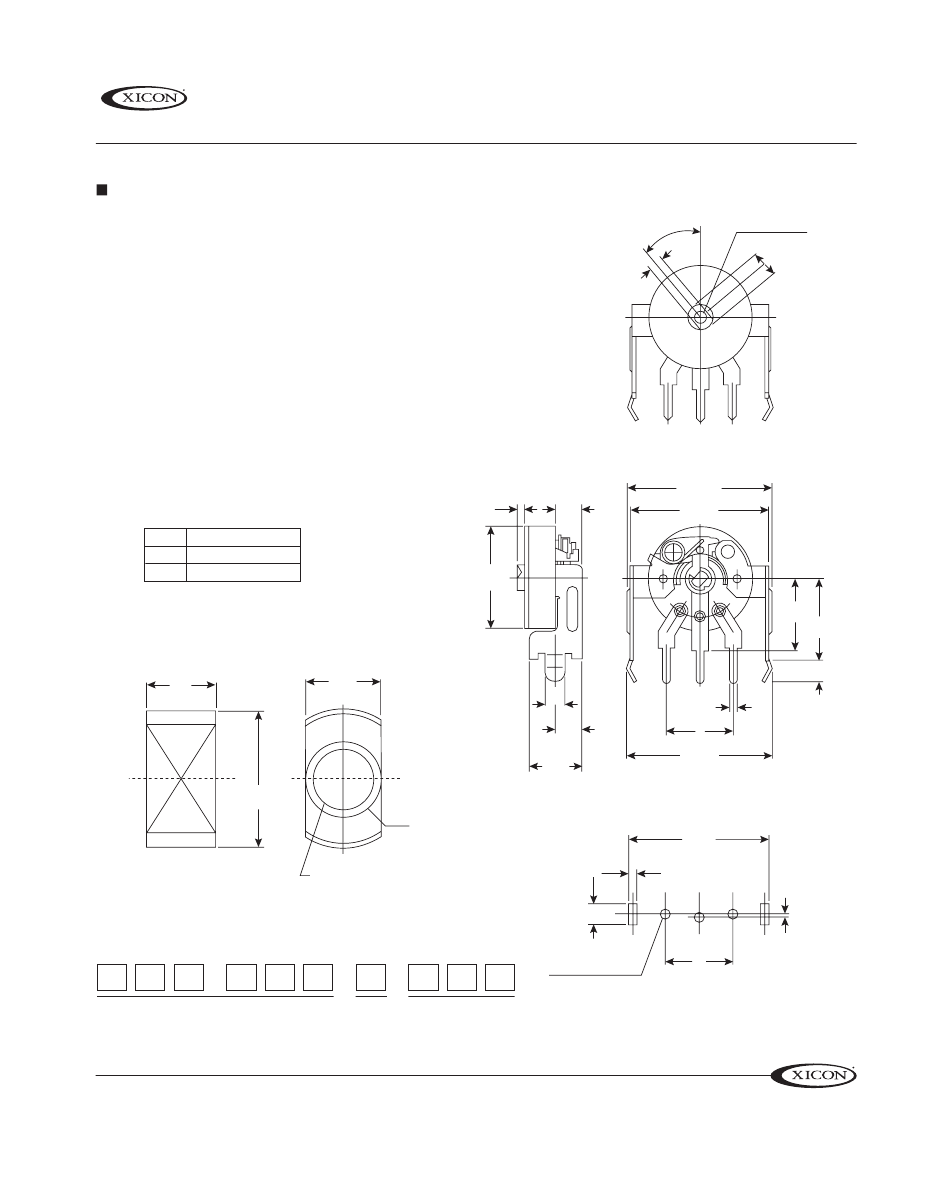

40°
VTW Series
M1.7XP 0.35
ø4.0
2.4
4.3
1.2 ± 0.1
4
21.8
21
L
A
O
1.0~5.0
2.2 ± 0/0.1
ø4.0
ø16
11.5
13
L 0.1
A
3
4.1
7.6
O
C.03
21
M1.7XP 0.36 Deep 3.5
+0.2
-0
3.5
1.2
10
22
2 - 1.2
+0.2
-0
2 - 3.1
0.5
Part Numbering System:
3
1
Series
1
-
1
7
0
0
Taper
-
1
0
Value
K
3 - ø1.4 - 0
+0.2
-0
Hole
10
Taper - 0
-1
Linear
Audio
XICON PASSIVE COMPONENTS • (800) 628-0544
XC-600009
Date Revised: 9/30/05
