Pulse Connectors
Pulse is a leader in the design and manufacturing of RJ45, RJ11 and keystone jack CAT5e/6 connectors. Pulse offers an extensive
range of connectors that support a wide variety of applications, such as networking (SFP cage and connector), PC peripheral devices
(SATA, USB, IEEE 1394 connectors), telecommunications (IDC connector, patch panel), and consumer electronics (HDMI connector).
Pulse offers design support for OEM and ODM customers which reduces development time and ensures seamless integration of
design, development, production, and time-to-market.
With manufacturing sites throughout Asia and a global network of sales offices, Pulse understands the importance of performance
and time-to-market and provides excellent worldwide logistics and technical support for local and international customers.
For more information and detailed product data sheets, please go to our website at
http://www.pulseeng.com/connectors
or contact
your local Pulse sales representative.
Pulse Connector Attribute Search Instructions

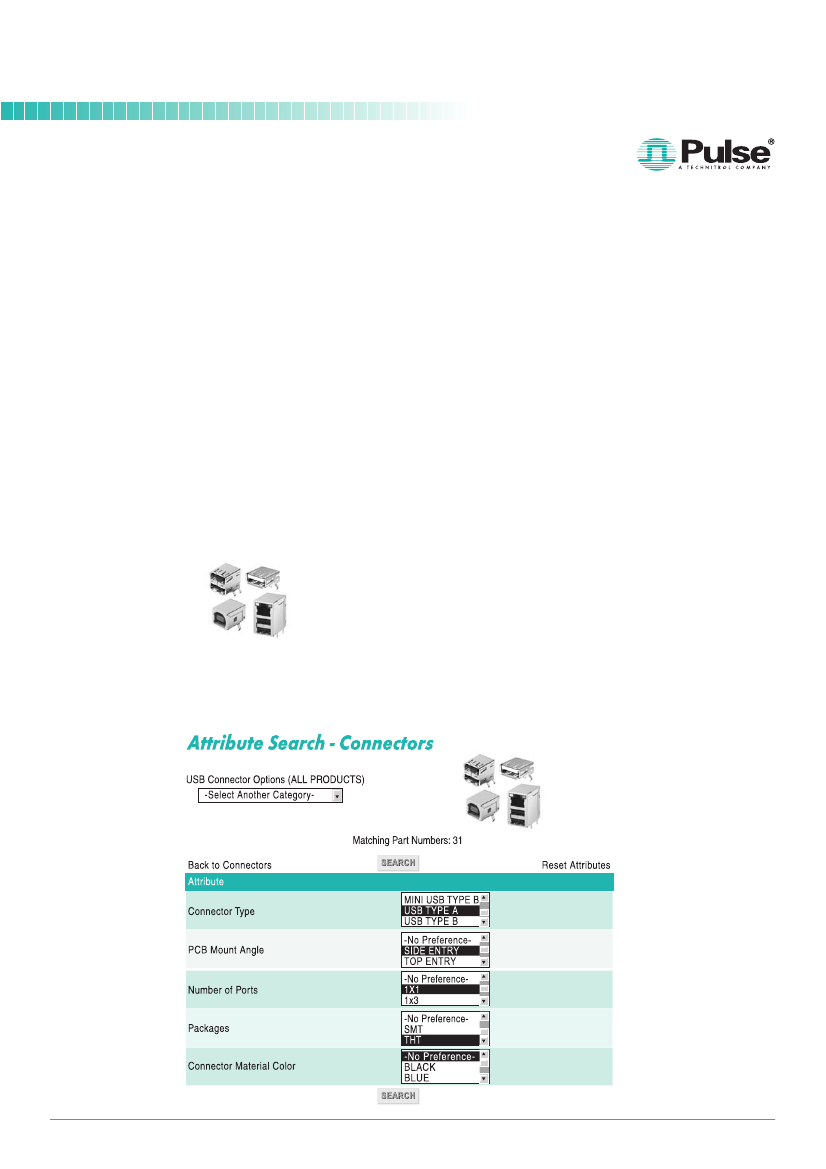

A powerful “attribute” search tool is available on the Pulse website to help you find the connector you need. Just click on the
connector link on the landing page, choose the attributes you are looking for. A comparison list will be displayed. The following is a
three-step example on how to use this new search engine:
Step 1
Go to
http://www.pulseeng.com/connectors
on the Pulse website. This lands the user on the Connectors landing page. Browse the
products and the links. For this example, click on the text link below that says “USB Connectors (All PRODUCTS)” as shown here.
USB Connectors
USB Connector Options (ALL PRODUCTS)
Step 2
After clicking the text link, you land on this page
(http://www.pulseeng.com/products/AttributeSearch.aspx?CID=6211).
Shown
below is a replication of the attribute search for the USB Connectors, with various “attributes” selected. See white type on black
background. For the purpose of this example, continue with the USB TYPE A query by clicking a “SEARCH” button.
Yes, the user can pick another category to search other USB connector options.
40
www.pulseeng.com
G003.U (2/07)

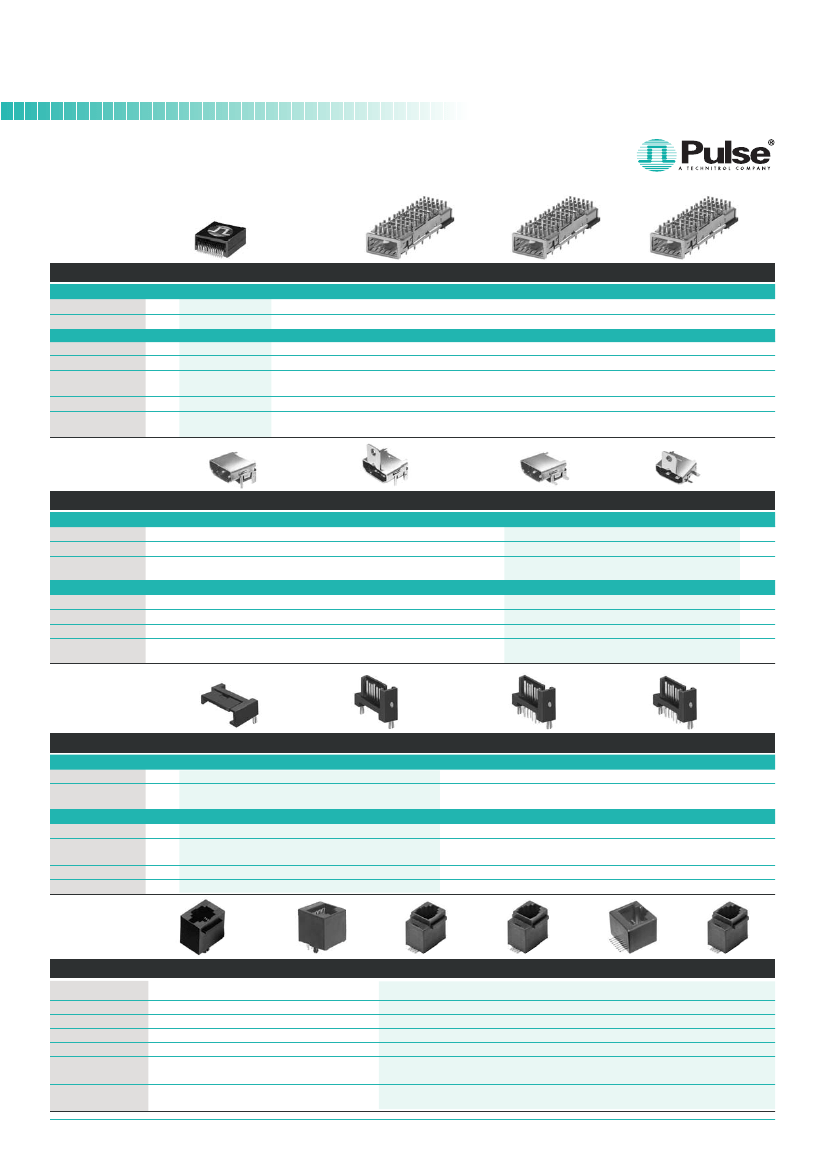

Connector Products
CONNECTOR PRODUCTS
Step 3

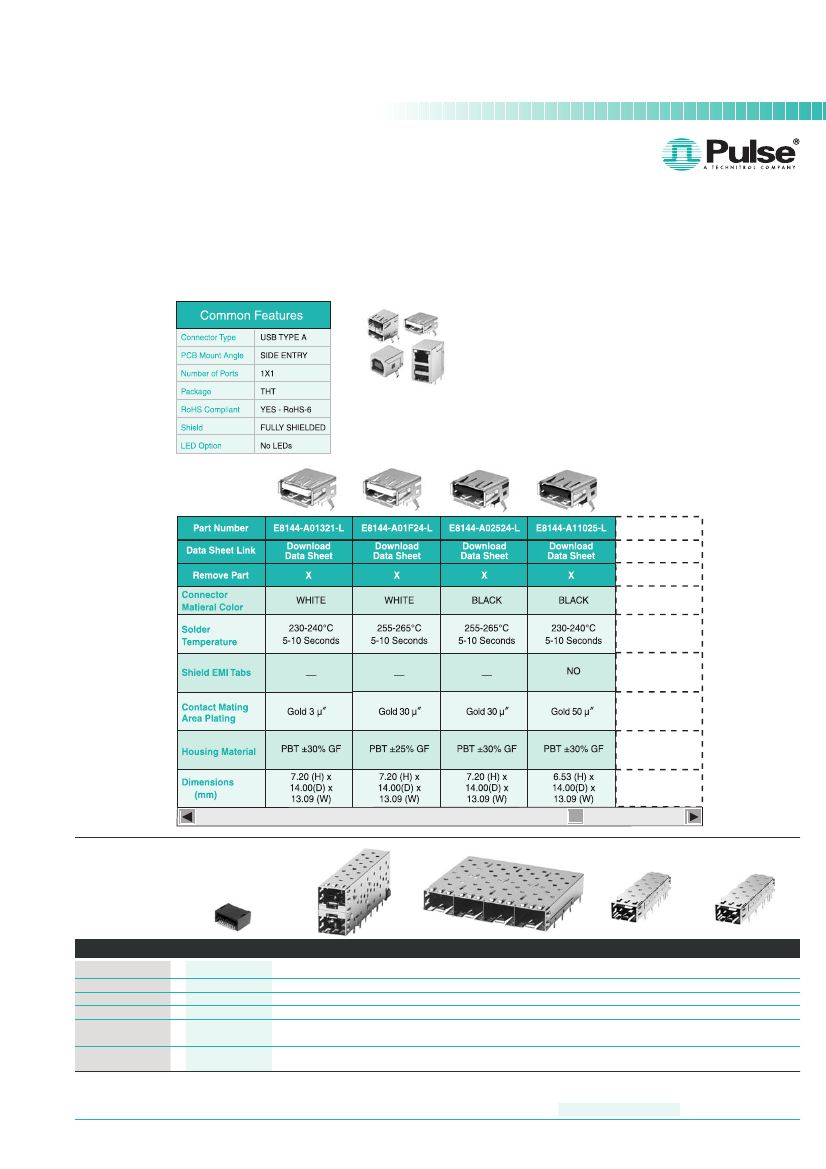

Completing Step 2 will display a series of related connectors for part comparison, showing common and specific features. If there
are more than 3 or 4 results, a horizontal scroll bar appears at the bottom of the screen so that all of the search results are displayed.
Click on “Download Data Sheet” to review the product details or eliminate unwanted parts by clicking the “X” to make them disappear,
leaving the part number(s) that best fit(s) your connector requirements. Both maneuvers can be done in reverse order as needed.
SFP Cage and Connector for Servers and Routers
Part Number
Number of Ports
Connector Type
Package
Solder Temperature
Contact Mating
Area Plating
E81M0-VCYF83-L
1X1
SFP Connector
SMT
255°C to 265°C
5-10 Seconds
Gold 15 µ"
E81M0-TCYB91-L
2X1
SFP Cage & Connector
Press Fit
⎯
Gold 3 µ"
E81M0-WCYFEB-L
1X4
SFP Cage
Press Fit
⎯
⎯
SFPCAGE002-L
1X1
SFP Cage
Press Fit
⎯
⎯
SFPCAGE005-L
1X1
SFP Cage
THT
255°C to 265°C
5-10 Seconds
⎯
SMT -
Surface Mount Package
THT -
Through Hole Package
G003.U (2/07)
www.pulseeng.com
41

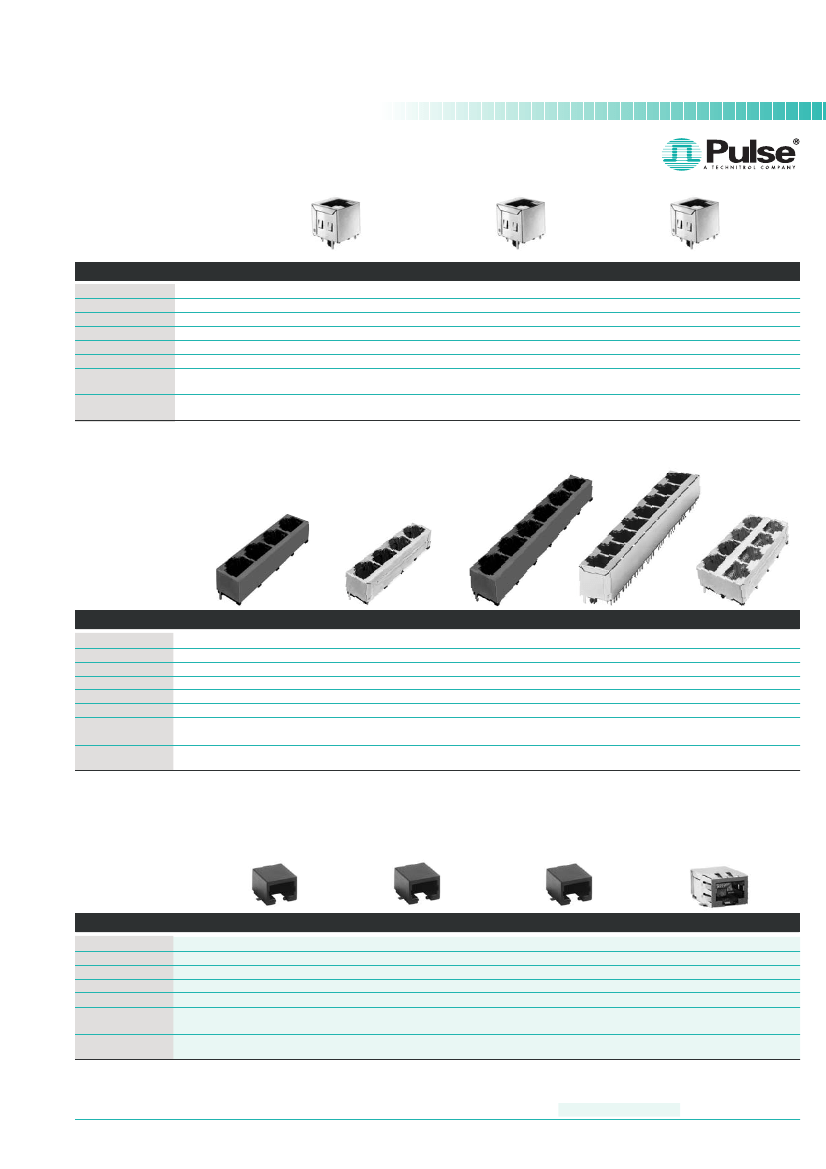

Connector Products
CONNECTOR PRODUCTS
RJ Connectors, Single Port, Top Entry, Shielded
Part Number
Number of Positions
Number of Contacts
Package
Shield EMI Tabs
LED Option
Contact Mating
Area Plating
Solder Temperature
E5288-320045-L
8
8
THT
YES
No LEDs
Gold 50 µ"
230°C to 240°C
5-10 Seconds
E5288-320B42-L
8
8
THT
YES
No LEDs
Gold 6 µ"
255°C to 265°C
5-10 Seconds
E5288-RA0C04-L
8
8
THT
NO
Yellow & Green
Gold 30 µ"
230°C to 240°C
5-10 Seconds
RJ Connectors, Multiport, Top Entry
Part Number
Number of Positions
Number of Contacts
Number of Ports
Package
Shield Option
Contact Mating
Area Plating
Solder Temperature
E5288-30C142-L
8
8
1X4
THT
No Shield
Gold 6 µ"
230°C to 240°C
5-10 Seconds
E5288-32C142-L
8
8
1X4
THT
Nickel Shield
Gold 6 µ"
230°C to 240°C
5-10 Seconds
E5288-30E145-L
8
8
1X6
THT
No Shield
Gold 50 µ"
230°C to 240°C
5-10 Seconds
E5288-32G142-L
8
8
1X8
THT
Nickel Shield
Gold 6 µ"
230°C to 240°C
5-10 Seconds
E5288-YCCB02-L
8
8
2X4
THT
Nickel Shield
Gold 6 µ"
230°C to 240°C
5-10 Seconds
RJ Connectors, Single Port, Side Entry, Surface Mount (SMT)
Part Number
Number of Positions
Number of Contacts
Tab
Shield Option
Contact Mating
Area Plating
Solder Temperature
E5344-HH05Y2-L
4
4
Down
No Shield
Gold 6 µ"
255°C to 265°C
5-10 Seconds
E5366-FH05Y2-L
6
6
Down
No Shield
Gold 6 µ"
255°C to 265°C
5-10 Second
E5388-EH05Y2-L
8
8
Down
No Shield
Gold 6 µ"
255°C to 265°C
5-10 Seconds
E5388-UH05V5-L
8
8
Down
Nickel Shield
Gold 50 µ"
255°C to 265°C
5-10 Seconds
SMT -
Surface Mount Package
THT -
Through Hole Package
G003.U (2/07)
www.pulseeng.com
43

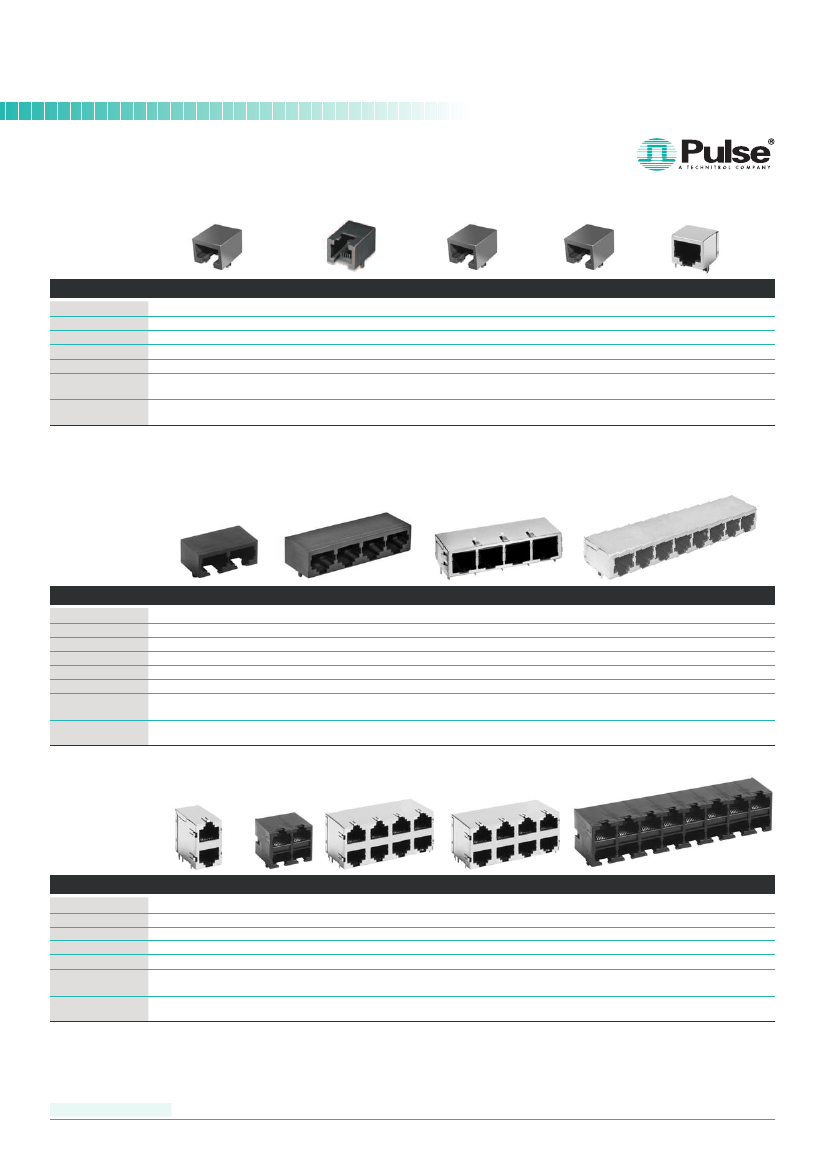

Connector Products
CONNECTOR PRODUCTS
RJ Connectors, Single Port Side Entry, Through Hole (THT)
Part Number
Number of Positions
Number of Contacts
Tab
Shield Option
Contact Mating
Area Plating
Solder Temperature
E5344-000012-L
4
4
Down
No Shield
Gold 6 µ"
230°C to 240°C
5-10 Seconds
E5564-60L122-L
6
4
Up
No Shield
Gold 6 µ"
230°C to 240°C
5-10 Seconds
E5388-E00212-L
8
8
Down
No Shield
Gold 6 µ"
230°C to 240°C
5-10 Seconds
E5908-000042-L
10
8
Down
No Shield
Gold 6 µ"
230 to 240°C
5-10 Seconds
E5908-150742-L
10
8
Down
Nickel Shield
Gold 6 µ"
230°C to 240°C
5-10 Seconds
RJ Connectors, Multi-Port, 1XN, Side Entry, Through Hole (THT)
Part Number
Number of Positions
Number of Contacts
Number of Ports
Tab
Shield Option
Contact Mating
Area Plating
Solder Temperature
E5608-00A0R4-L
10
8
1X2
Down
No Shield
Gold 30 µ"
230°C to 240°C
5-10 Seconds
E5608-00C082-L
10
8
1X4
Down
No Shield
Gold 6 µ"
230°C to 240°C
5-10 Seconds
E5908-15C344-L
10
8
1X4
Down
Nickel Shield
Gold 30 µ"
230 to 240°C
5-10 Seconds
E5908-15G642-L
10
8
1X8
Down
Nickel Shield
Gold 6 µ"
230°C to 240°C
5-10 Seconds
RJ Connectors, Multi-Port, 2XN, Side Entry, Through Hole (THT)
Part Number
Number of Positions
Number of Contacts
Number of Ports
Shield Option
Contact Mating
Area Plating
Solder Temperature
E5908-5V0145-L
10
8
2X1
Nickel Shield
Gold 50 µ"
230°C to 240°C
5-10 Seconds
E5908-5VA144-L
10
8
2X2
No Shield
Gold 30 µ"
230°C to 240°C
5-10 Seconds
E5966-57C122-L
6
6
2X4
Nickel Shield
Gold 6 µ"
230°C to 240°C
5-10 Seconds
E5908-5VC153-L
10
8
2X4
Nickel Shield
Gold 15 µ"
255°C to 265°C
5-10 Seconds
E5908-0TG0U4-L
10
8
2X8
No Shield
Gold 30 µ"
230°C to 240°C
5-10 Seconds
SMT -
Surface Mount Package
THT -
Through Hole Package
44
www.pulseeng.com
G003.U (2/07)
