D37S24A6RX09LF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> D37S24A6RX09LF

D37S24A6RX09LF: DescriptionD-Sub Standard Connectors 37 POS STRT SOCKET SHELL SZ C UNC 4-40; CategoryThe connector; File Size481KB，3 Pages; ManufacturerFCI / Amphenol; Environmental Compliance

Download Datasheet Parametric View All

D37S24A6RX09LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	D37S24A6RX09LF	-	-	View	Buy Now

D37S24A6RX09LF Overview

D-Sub Standard Connectors 37 POS STRT SOCKET SHELL SZ C UNC 4-40

D37S24A6RX09LF Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	FCI / Amphenol
Product Category	D-Sub Standard Connectors
RoHS	Details
Number of Positions	37 Position
Contact Gender	Socket (Female)
Termination Style	Through Hole
Mounting Angle	Straight
Number of Rows	2 Row
Shell Size	4 (C)
Contact Plating	Gold
Packaging	Tray
Current Rating	5 A
Gender	Female
Type	Receptacle
Voltage Rating	300 V
Shell Plating	Semi bright Nickel
Insert Arrangement	C37
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 55 C
Factory Pack Quantity	15

Preview

Download Datasheet

View All

Plating

Termination

Code

24A

Type

Length of PCB

Foot Print/Pitch

termination

thickness

1.6

Straight version 2.84mm

6 /

See Note RoHS

Number of contacts

09 , 15 , 25 , 37 , 50

S : Socket

Packaging specification

6 = 500 Mating / Unmating Mini

Series

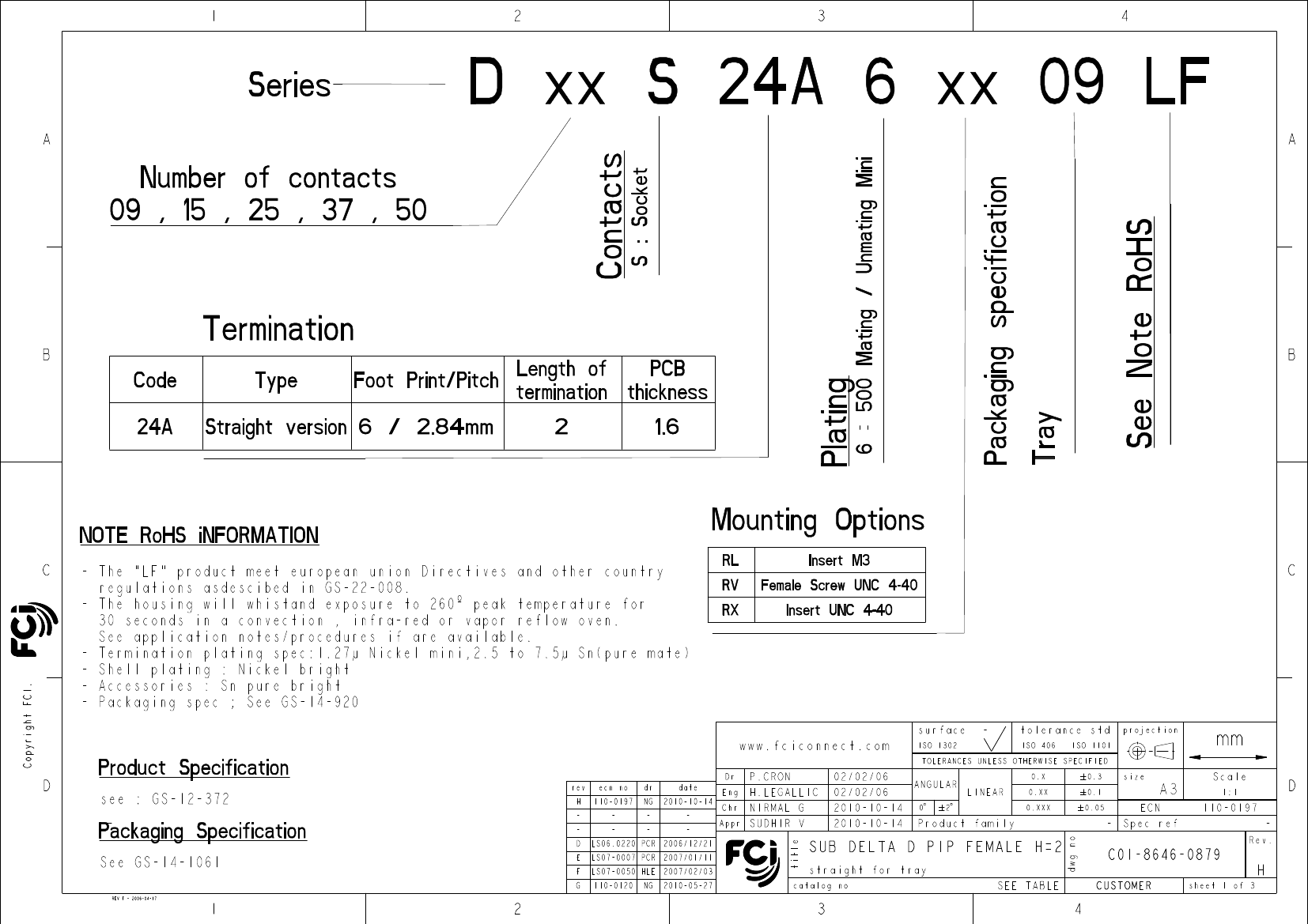

D xx S 24A 6 xx 09 LF

Contacts

NOTE RoHS iNFORMATION

- The "LF" product meet european union Directives and other country

regulations asdescibed in GS-22-008.

- The housing will whistand exposure to 260º peak temperature for

30 seconds in a convection , infra-red or vapor reflow oven.

See application notes/procedures if are available.

- Termination plating spec:1.27µ Nickel mini,2.5 to 7.5µ Sn(pure mate)

- Shell plating : Nickel bright

- Accessories : Sn pure bright

- Packaging spec ; See GS-14-920

Mounting Options

Insert M3

Female Screw UNC 4-40

Insert UNC 4-40

surface

tolerance std

ISO 406

ISO 1101

Tray

projection

www.fciconnect.com

ISO 1302

Scale

1:1

Product Specification

see : GS-12-372

rev

REV F - 2006-04-17

TOLERANCES UNLESS OTHERWISE SPECIFIED

ecn no

I10-0197

date

2010-10-14

Eng

Chr

Appr

P.CRON

H.LEGALLIC

NIRMAL G

SUDHIR V

title

02/02/06

2010-10-14

ANGULAR

0.X

0.3

0.1

0.05

size

LINEAR

0.XX

0.XXX

ECN

- Spec ref

Rev.

I10-0197

dwg no

Packaging Specification

See GS-14-1061

Product family

LS06.0220 PCR 2006/12/21

LS07-0007 PCR 2007/01/11

LS07-0050 HLE 2007/02/03

I10-0120

2010-05-27

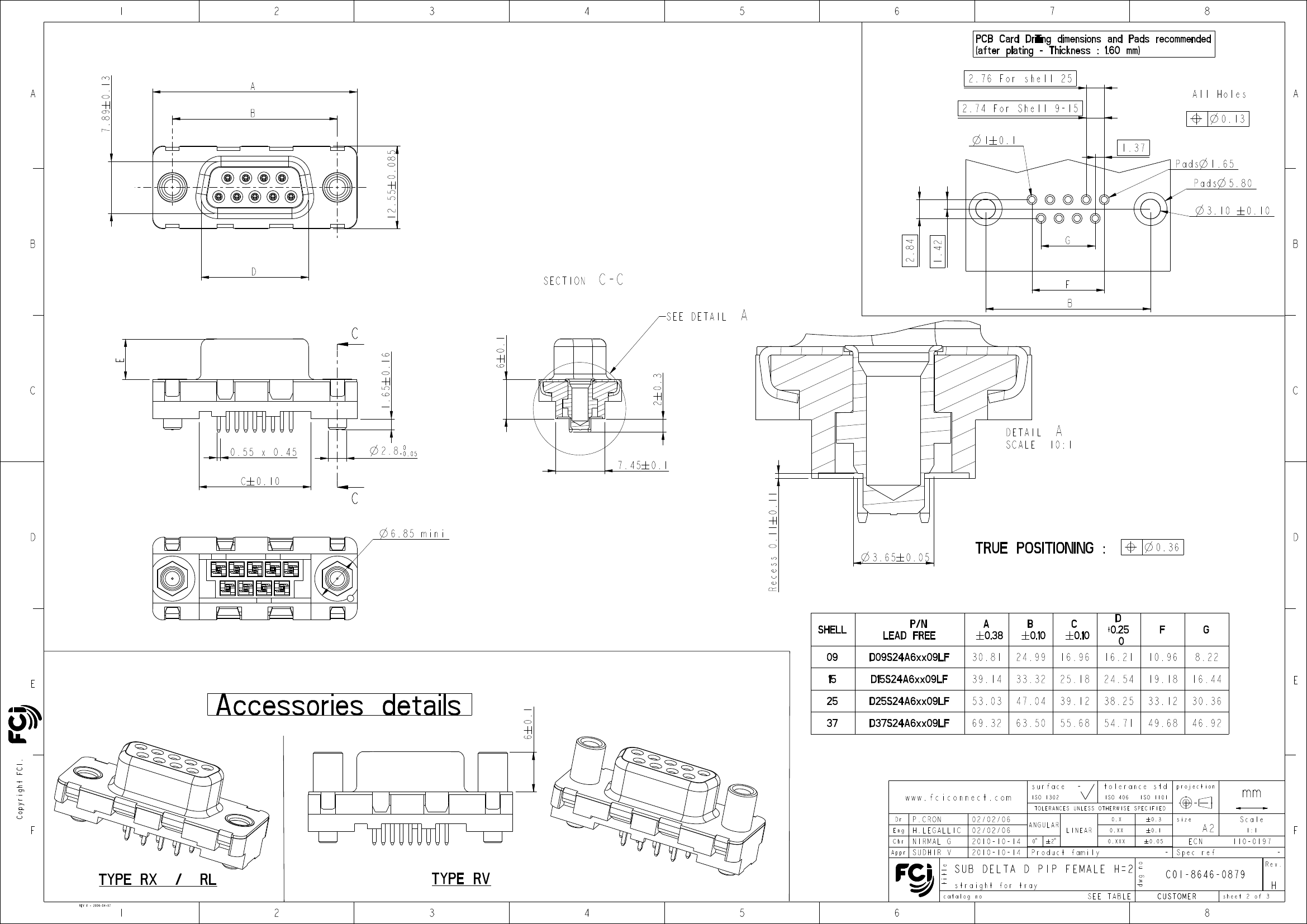

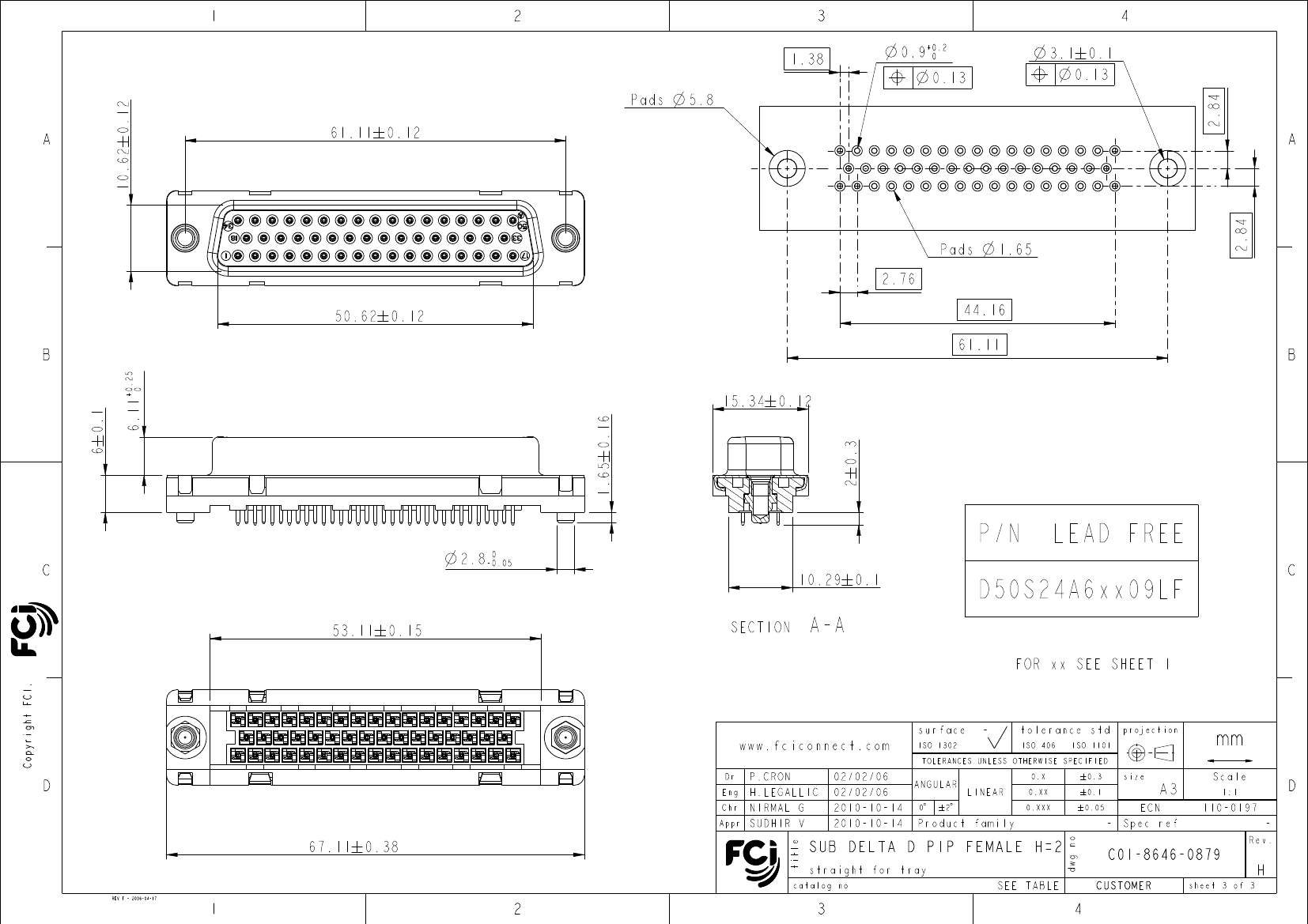

SUB DELTA D PIP FEMALE H=2

straight for tray

SEE TABLE

C01-8646-0879

CUSTOMER

sheet

1 of 3

catalog no

PDM: Rev:H

STATUS:

Released
