39-01-3042 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 39-01-3042

39-01-3042: DescriptionHeaders & Wire Housings MINI-FIT JR. RECEPT; CategoryThe connector The connector; File Size26KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

39-01-3042 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	39-01-3042	-	-	View	Buy Now

39-01-3042 Overview

Headers & Wire Housings MINI-FIT JR. RECEPT

39-01-3042 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	Molex MINI-FIT JR. Series 4 Way 2 Row Female Straight PCB Housing 5557
Other features	MINI-FIT JR, COMPATIBLE CONTACTS: 39-00-0077; 39-00-0038, POLARIZED
body width	0.457 inch
subject depth	0.772 inch
body length	0.457 inch
Body/casing type	RECEPTACLE
Connector type	RECTANGULAR POWER CONNECTOR
Contact arrangement	S0P4
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact style	SQ PIN-SKT
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	14.6784 N
Insulator color	NATURAL
insulator material	NYLON
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	CABLE
Number of connectors	ONE
Number of rows loaded	2
Options	GENERAL PURPOSE
Guideline	UL
reliability	COMMERCIAL
Shell material	POLYAMIDE66
Termination type	CRIMP
Total number of contacts	4
UL Flammability Code	94V-2

Preview

Download Datasheet

View All

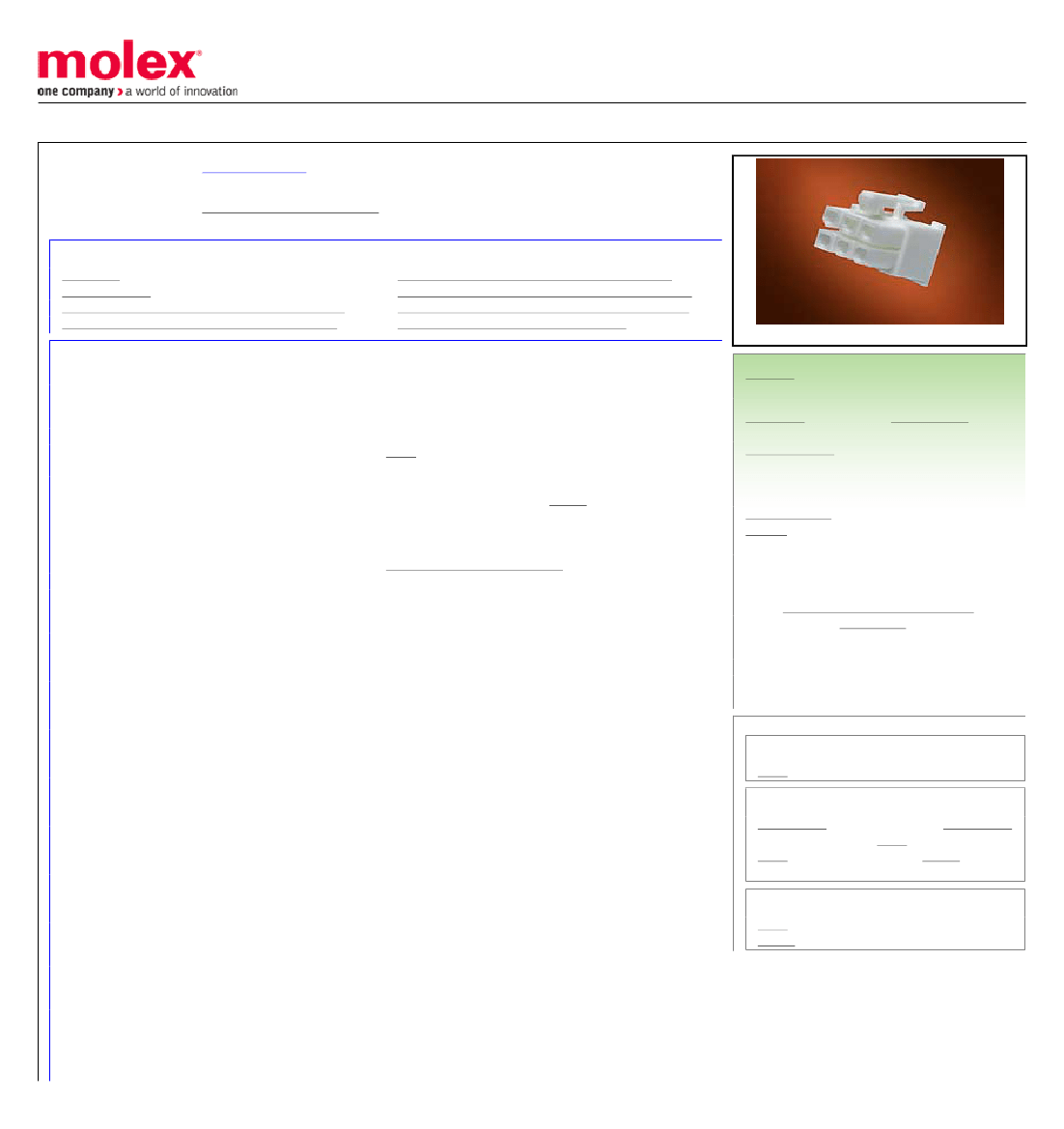

This document was generated on 05/23/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0039013042

Active

Mini-Fit Jr. Power Connectors

Mini-Fit Jr. Receptacle Housing, Dual Row, 4 Circuits, UL 94V-2, Natural

Documents:

3D Model

Drawing (PDF)

Product Specification PS-45750-001-001 (PDF)

Product Specification PS-5556-001-001 (PDF)

Agency Certification

CSA

General

Product Family

Series

Application

Comments

Product Specification TS-5556-002-001 (PDF)

Application Specification AS-5557-001-001 (PDF)

Packaging Specification PK-5557-002-000 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per

-ED/01/2018 (15

January 2018)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

LR19980

E29179

Crimp Housings

5557

Power, Wire-to-Board, Wire-to-Wire

Current = 13A max. per circuit when header is mated

to a receptacle loaded with 45750 series terminals

crimped to 16 AWG wire. . See Molex product

specification PS-45750-001 for additional current

derating information.. See Molex product specification.

Mini-Fit Jr. Power Connectors

Mini-Fit Jr.

800754203630

Natural

94V-2

Receptacle

None

Yes

Nylon

1.120/g

Bag

4.20mm

Yes

-40°C to +105°C

13.0A

N/A

5557-04R1

Overview

Product Name

UPC

Physical

Breakaway

Circuits (maximum)

Color - Resin

Flammability

Gender

Glow-Wire Capable

Keying to Mating Part

Lock to Mating Part

Material - Resin

Net Weight

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to Mating Part

Stackable

Temperature Range - Operating

Electrical

Current - Maximum per Contact

Solder Process Data

Lead-freeProcess Capability

Material Info

Engineering Number

Reference - Drawing Numbers

Search Parts in this Series

5557 Series

Mates With

39-01-2041 Panel Mount Plug, 39-01-3043

Free Hanging Plug, 5566 Vertical Headers,

5569 Right Angle Headers, 42440 PCB

Headers

Use With

5556 Mini-Fit Female Crimp Terminals,

45750 Mini-Fit Plus HCS Crimp Terminal
