370-003
Water-Tight Cable Sealing Backshell
with Strain Relief
Low Profile - Rotatable Coupling
370 F S 003 M 16 10 C 6
37
CONNECTOR
DESIGNATORS
Product Series
Connector
Designator
Angle and Profile
A = 90°
B = 45°
S = Straight
Basic Part No.
Length: S only
(1/2 inch increments:
e.g. 6 = 3 inches)
Strain Relief Style
(B, C, E)
Cable Entry (Tables IV, V)
Shell Size (Table I)
Finish (Table II)
A-F-H-L-S
ROTATABLE
COUPLING

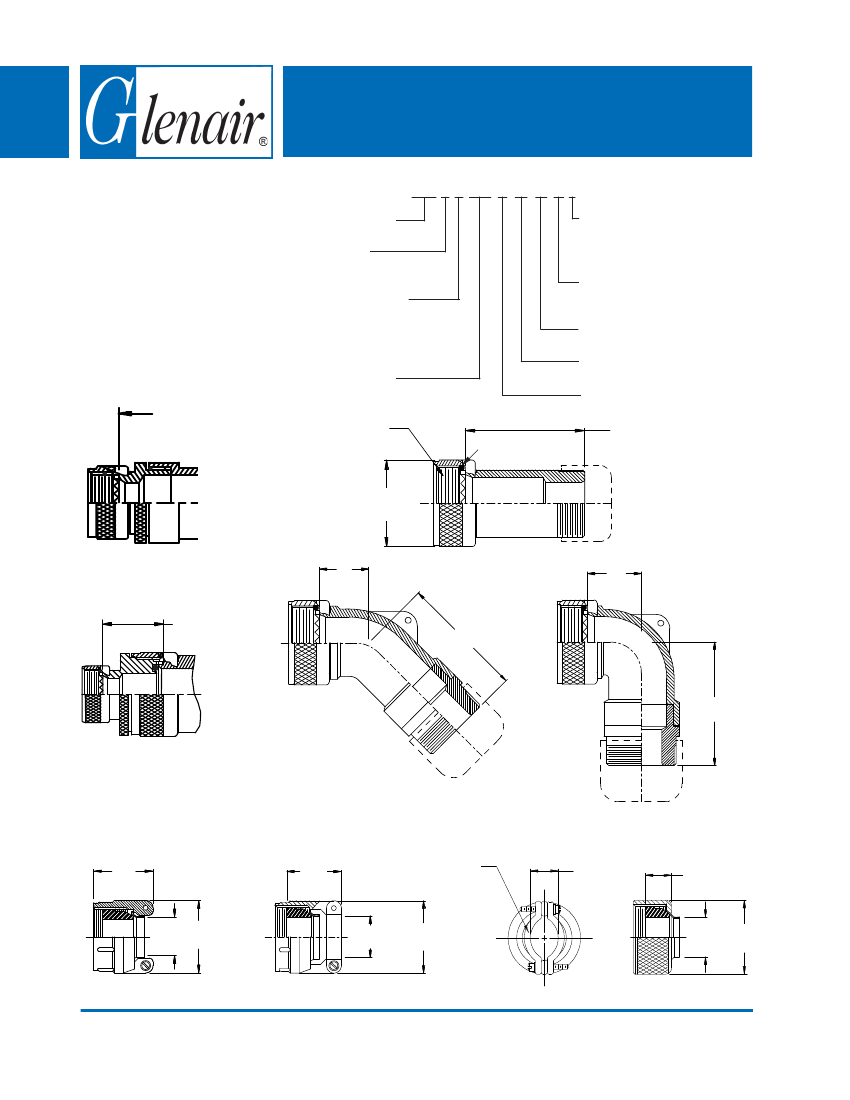

Length ± .060 (1.52)
Min. Order Length 2.0 Inch
(See Note 6)
A Thread
(Table I)
O-Ring
Length ± .060 (1.52)
Min. Order Length 1.5 Inch
(See Note 6)
C Typ.
(Table I)
STYLE 2
(STRAIGHT
See Note 1)
.88 (22.4)
Max
E
(Table III)
G
(Table III)
F (Table III)
H (Table III)
STYLE 2
(45° & 90°
See Note 1)
STYLE B
(Table IV)
P
J
STYLE C
Medium Duty
(Table IV)
Clamping
Bars
STYLE E
Medium Duty
(Table V)
N (See
Note 4)
L
Cable
Range
K
Cable
Range
K
Cable
Range
M
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 37 - Page 14
with Strain Relief
Low Profile - Rotatable Coupling
See inside back cover fold-out or pages 13 and 14 for unabridged Tables I and II.
Dash
No.
03
04
06
08
10
12
16
20
24
28
32
J
Max
1.219 (31.0)
1.219 (31.0)
1.219 (31.0)
1.219 (31.0)
1.281 (32.5)
1.281 (32.5)
1.406 (35.7)
1.656 (42.1)
1.906 (48.4)
1.906 (48.4)
2.000 (50.8)
TABLE iV: CABLE ENTRY
Cable Range
N
K
Ref
Min
Max
Max
.135 (3.4)
.156 (4.0)
.812 (20.6)
.219 (5.6)
.188 (4.8)
.203 (5.2)
.937 (23.8)
.312 (7.9)
.285 (7.2)
.281 (7.1)
1.062 (27.0)
.438 (11.1)
.350 (8.9)
.312 (7.9)
1.188 (30.2)
.531 (13.5)
.390 (9.9)
.375 (9.5)
1.312 (33.3)
.625 (15.9)
.460 (11.7)
.500 (12.7)
1.562 (39.7)
.750 (19.1)
.625 (15.9)
.510 (13.0)
1.750 (44.5)
.938 (23.8)
.938 (23.8)
.695 (17.7)
2.250 (57.2)
1.250 (31.8)
.715 (18.2)
1.000 (25.4)
2.375 (60.3)
1.375 (34.9)
.915 (23.2)
1.250 (31.8)
2.625 (66.7)
1.625 (41.3)
1.070 (27.2)
1.500 (38.1)
2.812 (71.4)
1.875 (47.6)
P
Max
1.031 (26.2)
1.031 (26.2)
1.031 (26.2)
1.031 (26.2)
1.094 (27.8)
1.219 (31.0)
1.219 (31.0)
1.344 (34.1)
1.547 (39.3)
1.547 (39.3)
1.734 (44.0)
TABLE III: ELBOW DIMENSIONS
Shell Size
Conn. Desig.
H
A-F-L-S
09
08
11
10
13
12
15
14
17
16
19
18
21
20
23
22
25
24
28
32
36
E
Max
.457 (11.6)
.520 (13.2)
.582 (14.8)
.645 (16.4)
.738 (18.7)
.926 (23.5)
.926 (23.5)
1.020 (25.9)
1.020 (25.9)
1.145 (29.1)
1.207 (30.7)
1.238 (31.4)
F
Max
1.810 (46.0)
1.869 (47.5)
1.929 (49.0)
2.359 (59.9)
2.469 (62.7)
2.659 (67.5)
2.659 (67.5)
2.872 (72.9)
2.872 (72.9)
2.905 (73.8)
3.005 (76.3)
3.315 (84.2)
G
Max
.500 (12.7)
.595 (15.1)
.610 (15.5)
.700 (17.8)
.885 (22.5)
.975 (24.8)
.975 (24.8)
1.125 (28.6)
1.125 (28.6)
1.225 (31.1)
1.575 (40.0)
1.775 (45.1)
H
Max
1.820 (46.2)
1.940 (49.3)
1.960 (49.8)
2.369 (60.2)
2.459 (62.5)
2.629 (66.8)
2.629 (66.8)
2.802 (71.2)
2.802 (71.2)
2.955 (75.1)
3.205 (81.4)
3.255 (82.7)
TABLE II: STANDARD FINISHES
GLENAIR
SYMBOL
B
C
G
M
NF
FINISH
Cadmium Plate, Olive Drab
Anodize, Black
Hard Coat, Anodic
Electroless Nickel
Cadmium Plate, Olive Drab
Over Electroless Nickel
See Inside Back Cover
for Additional Finish Options
Dash
No.
03
04
06
08
10
12
16
20
24
28
32
L
Max
.739 (18.8)
.739 (18.8)
.739 (18.8)
.739 (18.8)
.791 (20.1)
.880 (22.4)
.901 (22.9)
1.031 (26.2)
1.250 (31.8)
1.250 (31.8)
1.312 (33.3)
TABLE V: CABLE ENTRY
Cable Range
M
Max
Min
Max
.812 (20.6)
.156 (4.0)
.219 (5.6)
.937 (23.8)
.188 (4.8)
.312 (7.9)
1.062 (27.0)
.281 (7.1)
.438 (11.1)
1.188 (30.2)
.312 (7.9)
.531 (13.5)
1.312 (33.3)
.375 (9.5)
.625 (15.9)
1.562 (39.7)
.500 (12.7)
.750 (19.1)
1.750 (44.5)
.625 (15.9)
.938 (23.8)
2.250 (57.2)
.938 (23.8)
1.250 (31.8)
2.375 (60.3)
1.000 (25.4)
1.375 (34.9)
2.625 (66.7)
1.250 (31.8)
1.625 (41.3)
2.812 (71.4)
1.500 (38.1)
1.875 (47.6)
CAGE Code 06324
1. When maximum cable entry
(page 21) is exceeded, Style 2
will be supplied. Dimensions E,
F, G and H will not apply. Please
consult factory.
2. Metric dimensions (mm) are
indicated in parentheses.
3. Cable range is defined as the
accommodations range for
the wire bundle or cable.
Dimensions shown are not
intended for inspection criteria.
4. Saddles are bottomed on Clamp
Ears.
5. Interface O-Ring not supplied with
Connector Designator A.
6. Consult factory for shorter
lengths on straight backshells.
© 2005 Glenair, Inc.
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 37 - Page 15
