SMD Transient Voltage Suppressor
TV04A5V0-G Thru. TV04A441-G
Working Peak Reverse Voltage: 5.0 to 440 Volts
Power Dissipation: 400 Watts
RoHS Device
Features
-Ideal for surface mount applications.
-Easy pick and place.
-Plastic package has Underwriters Lab.
flammability classification 94V-0.
-Typical IR less than 1μA above 10V.
-Fast response time: typically less than 1nS for
uni-direction, less than 5nS for bi-direction,
from 0V to BV min.
0.179(4.55)
0.162(4.10)
SMA/DO-214AC
0.064(1.63)
0.049(1.23)
0.109(2.76)
0.099(2.51)
0.206(5.22)
0.192(4.87)
0.012(0.30)
0.006(0.15)
Mechanical data
-Case: AMA/DO-214AC, molded plastic.
-Terminals: solderable per MIL-STD-750,
method 2026.
-Polarity: Color band denotes cathode end.
-Approx. weight: 0.064 grams
0.089(2.26)
0.077(1.96)
0.060(1.51)
0.030(0.75)
0.008(0.20) max
Dimensions in inches and (millimeter)
Maximum Ratings and Electrical Characteristics
Ratings at 25 C ambient temperature unless otherwise specified.
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
O
Characteristics
Peak power dissipation on 10/1000μS
waveform (Note1)
Peak pulse current on 10/1000μS
waveform (Note 1)
Steady state power dissipation at T
L
=75°C
Symbol
P
PPM
Value
400
Units
W
I
PPM
See Next Table
A
P
M(AV)
1.0
W
Peak forward surge current, 8.3mS single
half sine-wave unidirectional only (Note 2)
Maximum instantaneous forward voltage
at 25.0A for unidirectional only (Note 3)
Maximum operating junction temperature
Storage temperature range
Notes:
I
FSM
40
A
V
F
T
J
T
STG
3.5/5.0
-55 to +150
-55 to +150
V
°C
°C
1. Non-repetitive current pulse, per Fig. 5 and derated above T
A
=25°C, per Fig. 1.
2. Measured on 8.3mS single half sine-wave or equare wave,duty cycle=4 pulses per minute maximum.
3. VF<3.5V for devices of V
BR
<200V and V
F
<5.0V for devices of V
BR
>201V
REV:D
QW-BTV01
Page 1
Comchip Technology CO., LTD.
SMD Transient Voltage Suppressor

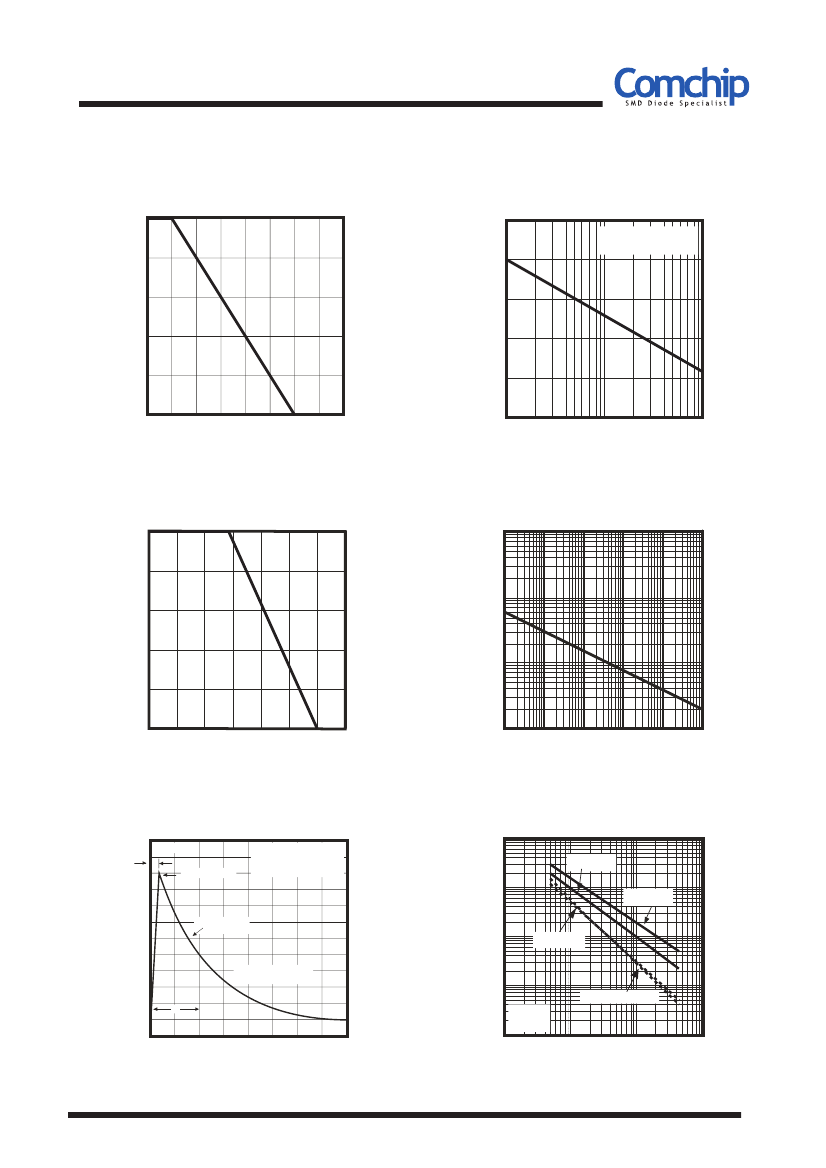

RATING AND CHARACTERISTIC CURVES (TV04A5V0-G Thru. TV04A441-G)
Fig.1- Pulse Derating Curve
100
50
Fig.2- Maximum Non-Repetitive
Surge Current
8.3mS single half
sine-wave (JEDEC method)
T
J
=T
J
, max.
Peak Pulse Derating in Percentage of Peak
Power or Current, ( % )
60
Peak Forward Current , (A)
80
40
30
40
20
20
10
0
0
25
50
75
100
125
150
175
200
0
1
10
100
Ambient Temperature,TA (
O
C )
Number of Cycles at 60Hz
Fig.3- Steady State Power Derating Curve
1.0
100
Fig.4- Peak Pulse Power Rating Curve
Steady Power Dissipation, (W)
0.8
Peak Power ( KW )
10
0.6
0.4
1.0
0.2
0.0
0
25
50
75
100
125
O
150
175
0.1
0.1
1
10
100
1000
10000
Lead Temperature , TL ( C )
Pulse Width,t
d
(
μS
)
Fig.5- Pulse Waveform
120
t
r
=10μS
T
J
= 25
O
C
Pulse width (t
d
) is defined
as the point where the peak
current decay to 50% of I
PP
Fig.6- Typical Junction Capacitance
10000
Bi-directional
@zero bias
100
Peak value I
PPM
C
J
, Junction Capacitance, (pF)
Peak Pulse Current , ( % )
1000
Uni-directional
@zero bias
Half value I
PP
/2
100
Uni-directional
@V
RWM
50
10/1000μsec. Waveform
as defined by R.E.A.
10
T
J
=25 C
f=1.0MHz
O
Bi-directional @ V
RWM
t
d
10
0
0
1
2
3
4
1
1
10
100
1000
Time, (ms)
Reverse Breakdown Voltage,V
BR
(V)
REV:D
QW-BTV01
Comchip Technology CO., LTD.
Page 2
SMD Transient Voltage Suppressor
Electrical Characteristics (T
A
=25
°
C
TV04A5V0-G Thru. TV04A441-G)
Absolute Maximum Rating (Ta=25°C)
Part No
TV04A5V0K(B)-G
TV04A5V0J(B)-G
TV04A6V0K(B)-G
TV04A6V0J(B)-G
TV04A6V5K(B)-G
TV04A6V5J(B)-G
TV04A7V0K(B)-G
TV04A7V0J(B)-G
TV04A7V5K(B)-G
TV04A7V5J(B)-G
TV04A8V0K(B)-G
TV04A8V0J(B)-G
TV04A8V5K(B)-G
TV04A8V5J(B)-G
TV04A9V0K(B)-G
TV04A9V0J(B)-G
TV04A100K(B)-G
TV04A100J(B)-G
TV04A110K(B)-G
TV04A110J(B)-G
TV04A120K(B)-G
TV04A120J(B)-G
TV04A130K(B)-G
TV04A130J(B)-G
TV04A140K(B)-G
TV04A140J(B)-G
TV04A150K(B)-G
TV04A150J(B)-G
TV04A160K(B)-G
TV04A160J(B)-G
TV04A170K(B)-G
TV04A170J(B)-G
TV04A180K(B)-G
TV04A180J(B)-G
TV04A190K(B)-G
TV04A190J(B)-G
TV04A200K(B)-G
TV04A200J(B)-G
TV04A220K(B)-G
TV04A220J(B)-G
TV04A240K(B)-G
TV04A240J(B)-G
TV04A260K(B)-G
TV04A260J(B)-G
TV04A280K(B)-G
TV04A280J(B)-G
TV04A300K(B)-G
TV04A300J(B)-G
TV04A330K(B)-G
TV04A330J(B)-G
TV04A360K(B)-G
TV04A360J(B)-G
Electrical Characteristic (Ta=25°C)
M
ax.
V
C
(V)
9.60
9.20
11.4
10.3
12.3
11.2
13.3
12.0
14.3
12.9
15.0
13.6
15.9
14.4
16.9
15.4
18.8
17.0
20.1
18.2
22.0
19.9
23.8
21.5
25.8
23.2
26.9
24.4
28.8
26.0
30.5
27.6
32.2
29.2
34.0
30.8
35.8
32.4
39.4
35.5
43.0
38.9
46.6
42.1
50.0
45.4
53.5
48.4
59.0
53.3
64.3
58.1
V
RWM
(V)
5.00
5.00
6.00
6.00
6.50
6.50
7.00
7.00
7.50
7.50
8.00
8.00
8.50
8.50
9.00
9.00
10.0
10.0
11.0
11.0
12.0
12.0
13.0
13.0
14.0
14.0
15.0
15.0
16.0
16.0
17.0
17.0
18.0
18.0
19.0
19.0
20.0
20.0
22.0
22.0
24.0
24.0
26.0
26.0
28.0
28.0
30.0
30.0
33.0
33.0
36.0
36.0
V
BR
M
in.
(V)
6.40
6.46
6.67
6.67
7.22
7.22
7.78
7.78
8.33
8.33
8.89
8.89
9.44
9.44
10.00
10.00
11.10
11.10
12.20
12.20
13.30
13.30
14.40
14.40
15.60
15.60
16.70
16.70
17.80
17.80
18.90
18.90
20.00
20.00
21.13
20.10
22.20
22.20
24.40
24.40
26.70
26.70
28.90
28.90
31.10
31.10
33.30
33.30
36.70
36.70
40.00
40.00
V
BR
M
ax.
(V)
7.30
7.00
8.15
7.37
8.82
7.98
9.51
8.60
10.20
9.21
10.90
9.83
11.50
10.40
12.20
11.10
13.60
12.30
14.90
13.50
16.30
14.70
17.60
15.90
19.10
17.20
20.40
18.50
21.80
19.70
23.10
20.90
24.40
22.10
25.76
23.30
27.10
24.50
29.80
26.90
32.60
29.50
35.30
31.90
38.00
34.40
40.70
36.80
44.90
40.60
48.90
44.20
I
T
(mA)
10
10
10
10
10
10
10
10
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
I
FSM
(A)@8.3mS
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
I
R
@ V
RWM
(uA)
800
800
800
800
500
500
200
200
100
100
50
50
10
10
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
Marking Code
Uni
AD
AE
AF
AG
AH
AK
AL
AM
AN
AP
AQ
AR
AS
AT
AU
AV
AW
AX
AY
AZ
BD
BE
BF
BG
BH
BK
BL
BM
BN
BP
BQ
BR
BS
BT
BA
BB
BU
BV
BW
BX
BY
BZ
CD
CE
CF
CG
CH
CK
CL
CM
CN
CP
I
PP
(A)
41.67
43.48
35.09
38.83
32.52
35.71
30.08
33.33
27.97
31.01
26.67
29.41
25.16
27.78
23.67
25.97
21.28
23.53
19.90
21.98
18.18
20.10
16.81
18.60
15.50
17.24
14.87
16.39
13.89
15.38
13.11
14.49
12.42
13.70
11.76
13.00
11.17
12.35
10.15
11.27
9.30
10.28
8.58
9.50
8.00
8.81
7.48
8.26
6.78
7.50
6.22
6.88
Bi
WD
WE
WF
WG
WH
WK
WL
WM
WN
WP
WQ
WR
WS
WT
WU
WV
WW
WX
WY
WZ
XD
XE
XF
XG
XH
XK
XL
XM
XN
XP
XQ
XR
XS
XT
XA
XB
XU
XV
XW
XX
XY
XZ
YD
YE
YF
YG
YH
YK
YL
YM
YN
YP
REV:D
QW-BTV01
Page 3
Comchip Technology CO., LTD.
SMD Transient Voltage Suppressor
Electrical Characteristics (TV04A5V0-G Thru. TV04A441-G)
Absolute Maximum Rating
(Ta=25°C)
Part No
TV04A400K(B)-G
TV04A400J(B)-G
TV04A430K(B)-G
TV04A430J(B)-G
TV04A450K(B)-G
TV04A450J(B)-G
TV04A480K(B)-G
TV04A480J(B)-G
TV04A510K(B)-G
TV04A510J(B)-G
TV04A540K(B)-G
TV04A540J(B)-G
TV04A580K(B)-G
TV04A580J(B)-G
TV04A600K(B)-G
TV04A600J(B)-G
TV04A640K(B)-G
TV04A640J(B)-G
TV04A700K(B)-G
TV04A700J(B)-G
TV04A750K(B)-G
TV04A750J(B)-G
TV04A780K(B)-G
TV04A780J(B)-G
TV04A800K(B)-G
TV04A800J(B)-G
TV04A850K(B)-G
TV04A850J(B)-G
TV04A900K(B)-G
TV04A900J(B)-G
TV04A101K(B)-G
TV04A101J(B)-G
TV04A111K(B)-G
TV04A111J(B)-G
TV04A121K(B)-G
TV04A121J(B)-G
TV04A131K(B)-G
TV04A131J(B)-G
TV04A141K(B)-G
TV04A141J(B)-G
TV04A151K(B)-G
TV04A151J(B)-G
TV04A161K(B)-G
TV04A161J(B)-G
TV04A171K(B)-G
TV04A171J(B)-G
TV04A181K(B)-G
TV04A181J(B)-G
Electrical Characteristic
(Ta=25°C)
M
ax.
V
C
(V)
71.4
64.5
76.7
69.4
80.3
72.7
85.5
77.4
91.1
82.4
96.3
87.1
103.0
93.6
107.0
96.8
114.0
103.0
125.0
113.0
134.0
121.0
139.0
126.0
143.2
129.6
151.0
137.0
160.0
146.0
179.0
162.0
196.0
177.0
214.0
193.0
231.0
209.0
250.6
226.8
268.0
243.0
287.0
259.0
304.0
275.0
322.2
291.6
V
RWM
(V)
40.0
40.0
43.0
43.0
45.0
45.0
48.0
48.0
51.0
51.0
54.0
54.0
58.0
58.0
60.0
60.0
64.0
64.0
70.0
70.0
75.0
75.0
78.0
78.0
80.0
80.0
85.0
85.0
90.0
90.0
100.0
100.0
110.0
110.0
120.0
120.0
130.0
130.0
140.0
140.0
150.0
150.0
160.0
160.0
170.0
170.0
180.0
180.0
V
BR
M
in.
(V)
44.40
44.40
47.80
47.80
50.00
50.00
53.30
53.30
56.70
56.70
60.00
60.00
64.40
64.40
66.70
66.70
71.10
71.10
77.80
77.80
83.30
83.30
86.70
86.70
88.96
88.80
94.40
94.40
100.00
100.00
111.00
111.00
122.00
122.00
133.00
133.00
144.00
144.00
155.68
155.00
167.00
167.00
178.00
178.00
189.00
189.00
200.16
200.00
V
BR
M
ax.
(V)
54.30
49.10
58.40
52.80
61.10
55.30
65.10
58.90
69.30
62.70
73.30
66.30
78.70
71.20
81.50
73.70
86.90
78.60
95.10
86.00
102.00
92.10
106.00
95.80
108.80
97.60
11500
104.00
122.00
111.00
136.00
123.00
149.00
135.00
163.00
147.00
176.00
159.00
190.40
171.00
204.00
185.00
218.00
197.00
231.00
209.00
244.80
220.00
I
T
(mA)
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
I
FSM
(A)@8.3mS
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
I
R
@ V
RWM
(uA)
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
Marking Code
Uni
CQ
CR
CS
CT
CU
CV
CW
CX
CY
CZ
RD
RE
RF
RG
RH
RK
RL
RM
RN
RP
RQ
RR
RS
RT
RA
RB
RU
RV
RW
RX
RY
RZ
SD
SE
SF
SG
SH
SK
SA
SB
SL
SM
SN
SP
SQ
SR
SS
ST
I
PP
(A)
5.60
6.20
5.22
5.76
4.98
5.50
4.68
5.17
4.39
4.85
4.15
4.59
3.88
4.27
3.74
4.13
3.51
3.88
3.20
3.54
2.99
3.31
2.88
3.17
2.79
3.09
2.65
2.92
2.50
2.74
2.23
2.47
2.04
2.26
1.87
2.07
1.73
1.91
1.60
1.76
1.49
1.65
1.39
1.54
1.32
1.45
1.24
1.37
Bi
YQ
YR
YS
YT
YU
YV
YW
YX
YY
YZ
ZD
ZE
ZF
ZG
ZH
ZK
ZL
ZM
ZN
ZP
ZQ
ZR
ZS
ZT
ZA
ZB
ZU
ZV
ZW
ZX
ZY
ZZ
VD
VE
VF
VG
VH
VK
VA
VB
VL
VM
VN
VP
VQ
VR
VS
VT
REV:D
QW-BTV04
Page 4
Comchip Technology CO., LTD.
SMD Transient Voltage Suppressor
Electrical Characteristics (TV04A5V0-G Thru. TV04A441-G)
Part No.
TV04A191K(B)-G
TV04A191J(B)-G
TV04A201J(B)-G
TV04A221J(B)-G
TV04A251J(B)-G
TV04A301J(B)-G
TV04A351J(B)-G
TV04A401J(B)-G
TV04A441J(B)-G
Absolute Maximum Rating (T
A
=25
O
C)
I
FSM
V
RWM
V
BR
Min. V
BR
Max.
I
T
(V)
(V)
(V)
(mA) (A)@8.3mS
190.0
190.0
200.0
220.0
250.0
300.0
350.0
400.0
440.0
211.28
211.00
224.00
246.00
279.00
335.00
391.00
447.00
492.00
258.40
232.00
247.00
272.00
309.00
371.00
432.00
494.00
543.00
1
1
1
1
1
1
1
1
1
40
40
40
40
40
40
40
40
40
Electrical Characteristic (T
A
=25 C)
I
R
@V
RWM
Marking Code
Max V
C
(V)
340.1
307.8
324.0
356.0
405.0
486.0
567.0
648.0
713.0
O
I
PP
(A)
1.18
1.30
1.23
1.12
0.99
0.82
0.71
0.62
0.56
(uA)
5
5
5
5
5
5
5
5
5
Uni
SU
SV
SW
SX
SZ
DE
DG
DK
DM
Bi
VU
VV
VW
VX
VZ
HE
HG
HK
HM
Note:
1) Suffix K denotes 10% tolerance devices, suffix J denotes 5% tolerance devices.
2) Suffix B after part number to specify Bi-directional devices.
3) For Bi-Directional devices having V
R
of 10 volts and under, the I
R
limit is double.
REV:D
QW-BTV01
Page 5
Comchip Technology CO., LTD.
京公网安备 11010802033920号
EEWORLD
