INIATURE
M
INIATURE
F
USEHOLDERS

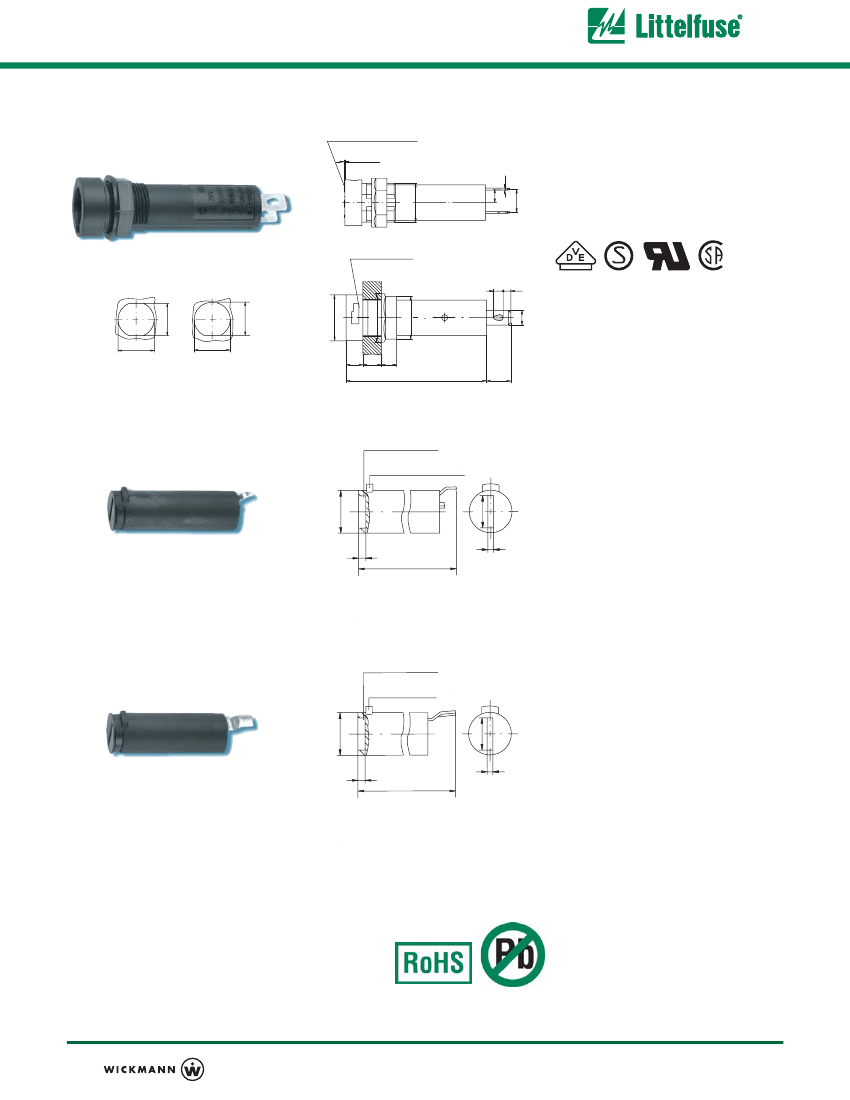

Holder / No. 800
Panel Mount, Shocksafe
5x20mm / 6.3x32mm Fuses
Fuse carrier inserted
max. 0,2
Specifications
Standard
IEC 60127-6
UL 512
CSA C22.2. No.39
VDE: License No. 122016
SEMKO: Certificate No. 9850284
UL Recognized: File No. E 70164
CSA Certified: File No. 47574
4,45
0,5
Approvals
M12,7x1,5
Bayonet-joint
3,2 2,5
11,7 -0,15
12 -0,1
7,62
Mounting
SW14
∅
15
∅
16
12.7mm diameter D-hole or double D-hole
Admissible torque on plastic hex nut is 1.2Nm
Solderable or 4.8mm quick connect-fits 0.5mm tab
IP 40 (IEC 60529)
PC2 (IEC 60127-6)
Holder/Cap:
Metal Parts:
4,8
Te r m i n a l s
12,7 -0,1
12,7 -0,1
Panel alternatives
5,5 1...6 5
45,7
8
Protection Class & Category
Materials
Cap / No. 815
Slot for screwdriver
Bayonet-connector-nose
Terminals:
Black Thermoplastic
Polyamide PA 6.6, UL94 V-0
Copper alloy,
corrosion protected
Solderable, tinned
Electrical Data (23ºC)
7
For 5x20mm Fuses
1,5
max. 34
1,2
Rated Voltage: 250V
Rated Current: 6.3A (800+815 - VDE/SEMKO)
10A (800+816 - VDE/SEMKO)
16A (UL/CSA)
Rated Power: 2.5W (VDE/SEMKO)
-25ºC to +70ºC (consider de-rating)
-25ºC/+70ºC/21 days (IEC 60068-2-1...3)
+10ºC to +60ºC
relative humidity
≤
75% yearly average,
without dew, maximum value for 30 days - 95%
24 cycles at 15 min. each (IEC 60068-2-6)
10 - 60Hz at 0.75mm amplitude
60 - 2000Hz at 10g acceleration
≤
5mΩ
∅
9,2
Temperature
Operating Temperature
Test
Climatic Test
Stock Conditions
Cap / No. 816
∅
9,2
Slot for screwdriver
Bayonet-connector-nose
Vibration Resistance
7
Contact Resistance
1,5
max. 33,8
1,2
For 6.3x32mm Fuses
Dielectric Strength
> 1.5 kV
Impulse Voltage
4 kV, 50 Hz, 1 min., dry
> 10
3
MΩ (500 VDC, 1 min.)
235ºC, 3 sec. (Wave)
350ºC, 1 sec. (Soldering Iron)
260ºC, 5 sec. (IEC 60068-2-20)
Conductor - 2.5mm
2
800, 250V, Approvals
4.7g (Holder) / 2.5g (Cap)
Insulation Resistance
Order Information
Packaging
Bulk (100 pcs.)
Holder
Cap, 5x20mm
Cap, 6.3x32mm
No. 800 0000 000
No. 815 0000 000
No. 816 0000 000
Solderability
Soldering Heat Resistance
Minimum Cross Section
Marking
Order Numbers
Note: 1.00 means the number one with two decimal places. 1,000 means the number one thousand.
Unit Weight
050906
In our continuing strategy to deliver unparalleled circuit protection solutions,
technical expertise and application leadership, we proudly introduce the
WICKMANN Group and its products to the Littelfuse portfolio.
WebSite
www.littelfuse.com
