BK/FBM datasheet, PDF - EEWORLD Datasheet

BK/FBM: DescriptionFuse Holder Accessories 5x20mm CARRIER ONLY for HB PC fuseholder; CategoryCircuit protection; File Size71KB，1 Pages; ManufacturerEaton

Download Datasheet Parametric Compare View All

BK/FBM Overview

Fuse Holder Accessories 5x20mm CARRIER ONLY for HB PC fuseholder

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Eaton
Product Category	Fuse Holder Accessories
RoHS	In Transition
Product	Caps
Fuse Size / Group	5 x 20 mm
Type	Slot Knob
For Use With	Fuse Holders, FBM, FBI
Packaging	Bulk
Termination Style	Solder
Mounting Style	PCB
Maximum Operating Temperature	+ 85 C
Minimum Operating Temperature	- 40 C
Factory Pack Quantity	100
Unit Weight	0.112000 oz

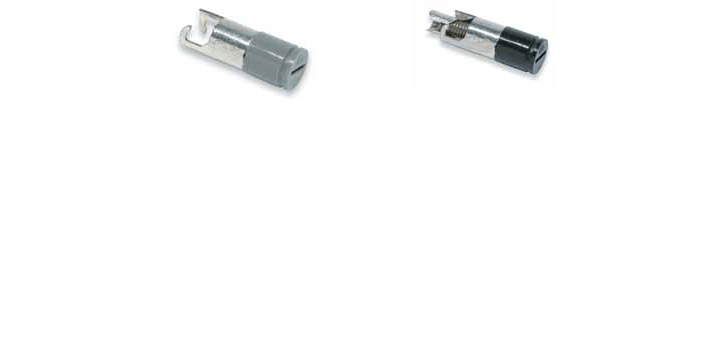

FBI

FBM

Fuse Holder Caps (Fit all three shown above)

Specifications

Electrical Ratings: UL — 16A @ 250V; CSA — 12A @ 250V; VDE — 6.3A @ 250V; SEMKO — 10A @ 250V

Insulation resistance — 10 megohm at 500Vdc. Contact resistance — less than 0.005 ohms

@ 200mV. Dielectric strength — over 200V/mil.

Molded Material: High dielectric molded phenolic with a UL 94V0 flammability rating.

Fuse Carrier & Knob: Spring-loaded, bayonet-type. Tin plated brass. Screwdriver slotted.

Mounting: “Kicked” terminals (all models) and stabilizer pins on HBV & HBW models for increased stability.

Temperature Rating (RTI): Body: 150ºC, Knob: 130ºC

Agency Information: CE, UL Recognized — Guide IZLT2, File EI4853;

CSA Certified — Class 6225-01, File 47235

VDE — 4009241 (HBV, HBW)

SEMKO — 800444

	BK/FBM	BK-FBM	BK-FBI
Description	Fuse Holder Accessories 5x20mm CARRIER ONLY for HB PC fuseholder	Fuse Holder Accessories 5x20mm CARRIER ONLY for HB PC fuseholder	Fuse Holder Accessories .25x1.25CARRIER ONLY for HB PC fuseholder
Product Attribute	Attribute Value	Attribute Value	Attribute Value
Manufacturer	Eaton	Eaton	Eaton
Product Category	Fuse Holder Accessories	Fuse Holder Accessories	Fuse Holder Accessories
RoHS	In Transition	In Transition	N
Product	Caps	Caps	Caps
Fuse Size / Group	5 x 20 mm	5 x 20 mm	1/4 x 1-1/4 in
Type	Slot Knob	Slot Knob	Printed Circuit Board Fuse Holders
Packaging	Bulk	Bulk	Bulk
Factory Pack Quantity	100	100	100
Unit Weight	0.112000 oz	0.112000 oz	0.096000 oz
For Use With	Fuse Holders, FBM, FBI	Fuse Holders, FBM, FBI	-
Termination Style	Solder	Solder	-
Mounting Style	PCB	PCB	-
Maximum Operating Temperature	+ 85 C	-	+ 85 C
Minimum Operating Temperature	- 40 C	-	- 40 C
