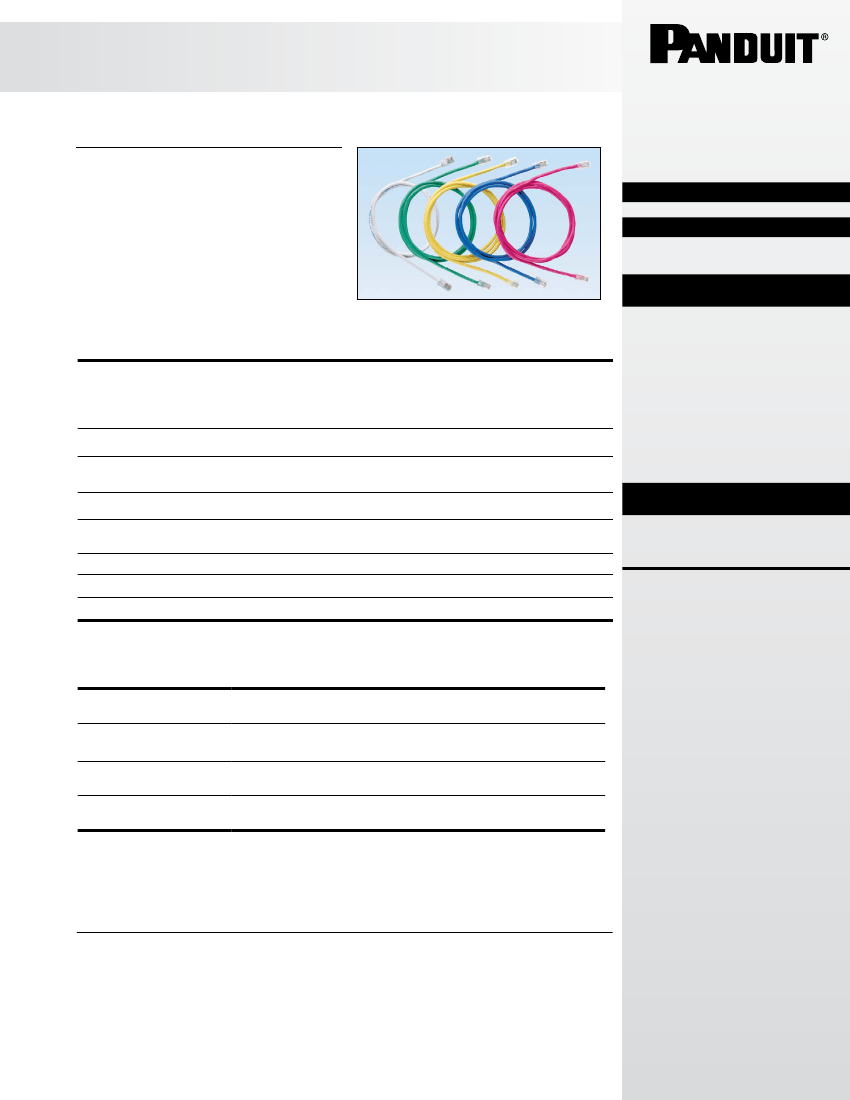

NetKey
®
Category 5e UTP Patch Cords
specifications
Category 5e/Class D patch cords are constructed
of UTP 24 AWG stranded copper cable and a
modular plug at each end. Patch cords are used
in all work area outlets and patch panels. Patch
cords are wired to be compatible with both T568A
and T568B wiring schemes.
DATA SHEET
NetKey
®
Network Components
NetKey
®
Category 5e Patch Cords
Foot lengths:
Meter lengths:
NK5EPC3*Y
NK5EPC1M^Y
NetKey
®
Category 5e
Jack Modules
technical information
Category 5e/Class D
performance:
Exceeds ANSI/TIA-568-C.2 Category 5e and ISO 11801 Class D
channel requirements at swept frequencies up to 100 MHz
Meets ANSI/TIA-568-C.2 and ISO 11801 Category 5e
component requirements at swept frequencies up to 100 MHz
Cable diameter:
FCC compliance:
IEC compliance:
PoE compliance:
Safety compliance:
RoHS compliance:
Flammability rating:
0.215 in. (5.5mm) nominal
Complies with ANSI/TIA-1096A (formerly FCC Part 68); contacts
plated with 50 microinches of gold
Meets IEC 60603-7
Supports IEEE 802.3af/802.3at and proposed 802.3bt type 3 and
type 4 PoE applications
cULus Listed; UL 1863 and CAN/CSA-C22.2 (UL File E129886)
Compliant
CM rated
Leadframe
module:
Convenience
pack of 25
leadframe
modules:
Punchdown
module:
Convenience
pack of 25
punchdown
modules:
NK5E88M**Y
NK5E88M**-Q
NKP5E88M**
NKP5E88M**-Q
NetKey
®
Category 5e Punchdown
Patch Panels
12-port:
24-port, 1 RU:
48-port, 2 RU:
NK5EPPG12WY
NK5EPP24P
NK5EPP48P
key features and benefits
100% performance
tested
Patented tangle free
latch
Identification
Variety of colors and
lengths available
Confidence that each patch cord delivers specified performance
Prevents snags and provides easy release
Provides identification of performance level, length, and quality
control number for future traceability
Meets individual length and color-coding requirements
*For standard lengths other than 3 feet (5, 7,
10, 14 or 20) change the length designation in
part number to the desired length. For standard
cable colors other than Off White, add suffix
BU (Blue), GR (Green), RD (Red) or
YL (Yellow) before the Y at the end of the part
number. For example, the part number for a
blue 5 foot patch cord is NK5EPC5BUY.
^For standard lengths other than 1 meter (2, 3,
4 or 5) change the length designation in part
number to the desired length. For standard
cable colors other than Off White, add suffix
BU (Blue), GR (Green), RD (Red) or
YL (Yellow) before the Y at the end of the part
number. For example, the part number for a
blue 5 meter patch cord is NK5EPC5MBUY.
**To designate a color, add suffix IW
(Off White), EI (Electric Ivory), IG (Int’l Gray),
WH (White), BL (Black), OR (Orange), RD
(Red), BU (Blue), GR (Green) or YL (Yellow).
applications
Applications include:
• Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), and 1000BASE-T (Gigabit Ethernet)
• 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM
• Token Ring 4/16
• Voice over internet protocol (VoIP)
w w w .pan duit.co m
