EML20
Transistors
General purpose transistor
(isolated transistor and diode)
EML20
DTC123J A and RB521S-30 are housed independently in a EMT6 package.
Applications
DC / DC converter
Motor driver
External dimensions
(Unit : mm)
EMT6
1.6
0.5
Features
1) Tr : NPN digital transistor
Di : Low V
F
2) Mounting possible with EMT3 automatic mounting
machines.
1.0
0.5 0.5
(6) (5) (4)
1.6
1.2
1pin mark
(1) (2) (3)
0.22
0.13
Each lead has same dimensions
Structure
NPN Silicon epitaxial planar digital transistor
Schottky barrier diode
Abbreviated symbol : L20
ROHM : EMT6

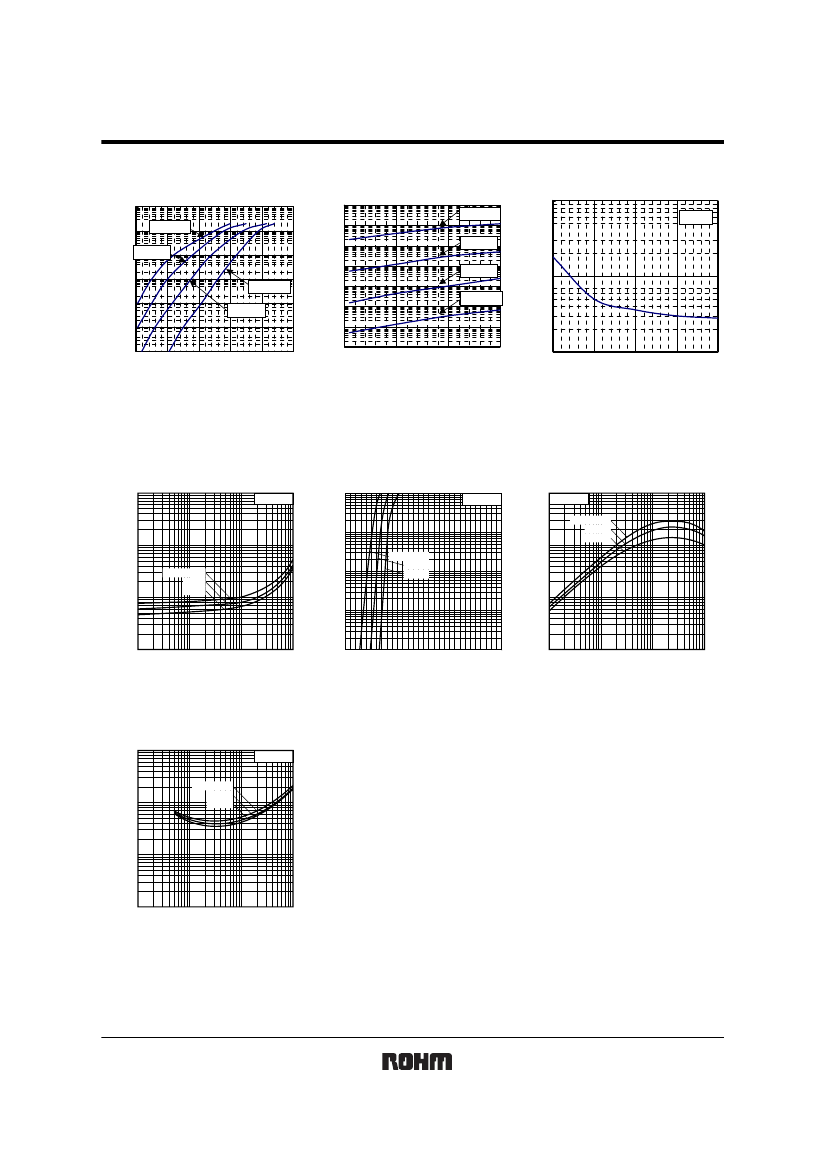

The following characteristics apply to both Di1 and DTr2.
Equivalent circuit
(6)
(5)
(4)
Di1
R1
DTr2
R2
(1)
(2)
(3)
R
1
=2.2kΩ, R
2
=47kΩ
Packaging specifications
Type
Package
Marking
Code
Basic ordering unit (pieces)
EML20
EMT6
L20
T2R
8000
1/3
