326-43-132-41-002000 datasheet, PDF

Datasheet> All Categories > The connector> socket> 326-43-132-41-002000

326-43-132-41-002000: DescriptionIC & Component Sockets 32P SGL IN LINE SKT GRID WP W/SLDR TAIL; CategoryThe connector socket; File Size381KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

326-43-132-41-002000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	326-43-132-41-002000	-	-	View	Buy Now

326-43-132-41-002000 Overview

IC & Component Sockets 32P SGL IN LINE SKT GRID WP W/SLDR TAIL

326-43-132-41-002000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	SIP SOCKET
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	SIP32
Shell material	PLASTIC
JESD-609 code	e3
Number of contacts	32
Base Number Matches	1

Preview

Download Datasheet

View All

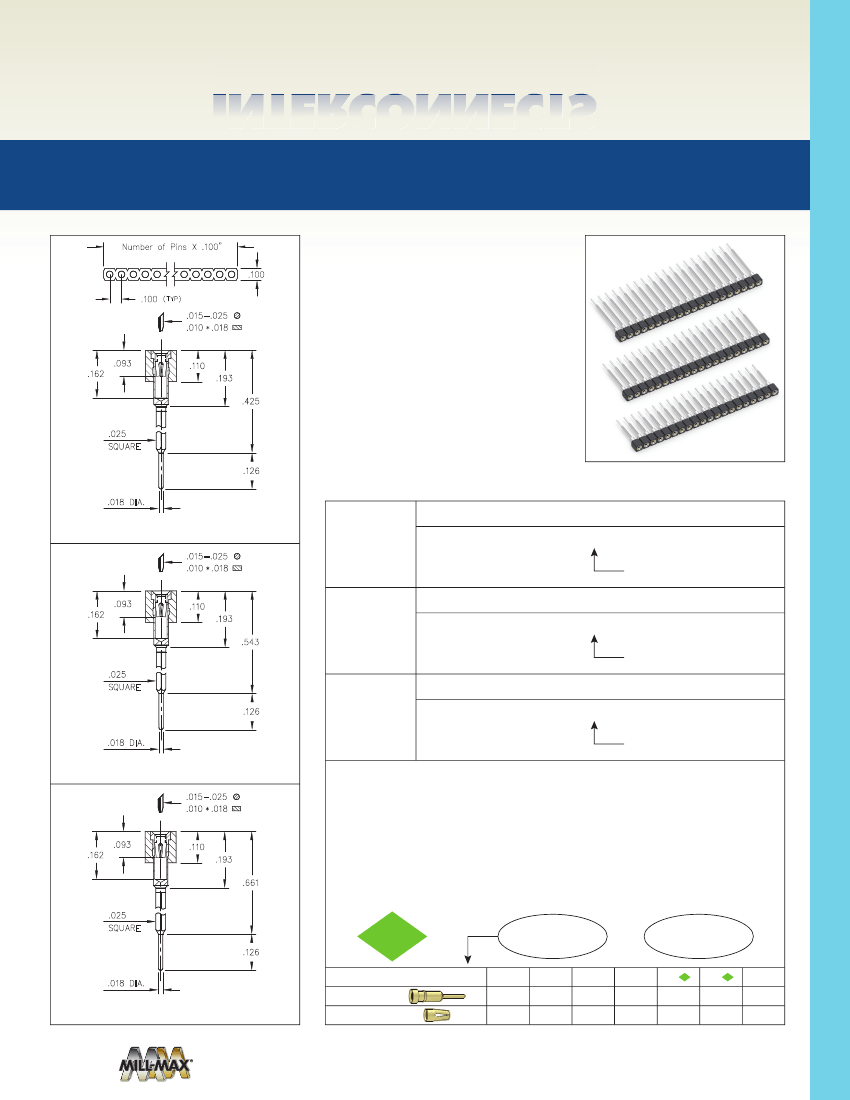

INTERCONNECTS

SERIES 326 • .100” GRID WRAPOST WITH SOLDER TAIL •

SINGLE ROW STRIPS

•

Wrapost / Solder Tail combinations are

available in 3 lengths using MM pin numbers:

326...001 uses pin # 2601

326...002 uses pin # 2602

326...003 uses pin # 2603

See page 199 for details

.015-.025

.010 * .018

.162

.093

.110

.193

.425

•

Hi-Rel, 4- nger BeCu #30 contact is rated at

3 amps. See page 253 for details

.025

SQUARE

.126

•

Insulators are high temperature thermoplastic,

suitable for all soldering operations

.018 DIA.

ORDERING INFORMATION

Series 326...001

1 Level Wrapost

326 XX 1_ _ 41 001000

Specify number of pins

01-64

FIG. 1

.015-.025

.010 * .018

FIG. 1

Series 326...002

.093

.162

.110

.193

.543

2 Level Wrapost

326 XX 1_ _ 41 002000

FIG. 2

Series 326...003

Specify number of pins

.025

SQUARE

.126

01-64

3 Level Wrapost

326 XX 1_ _ 41 003000

FIG. 3

.018 DIA.

Specify number of pins

01-64

FIG. 2

.015-.025

.010 * .018

.661

.025

SQUARE

.126

2011/65/EU

RoHS - 2

XX=Plating Code

See Below

µ”

For

Electrical, Mechanical

& Enviromental Data,

See page 264

.018 DIA.

SPECIFY PLATING CODE XX=

µ”

200

µ”

200

µ”

FIG. 3

Sleeve (Pin)

Contact (Clip)

200

µ”

Sn/Pb 200

µ”

Sn/Pb

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

PAGE 71 | INTERCONNECTS

.162

.093

.110

.193
