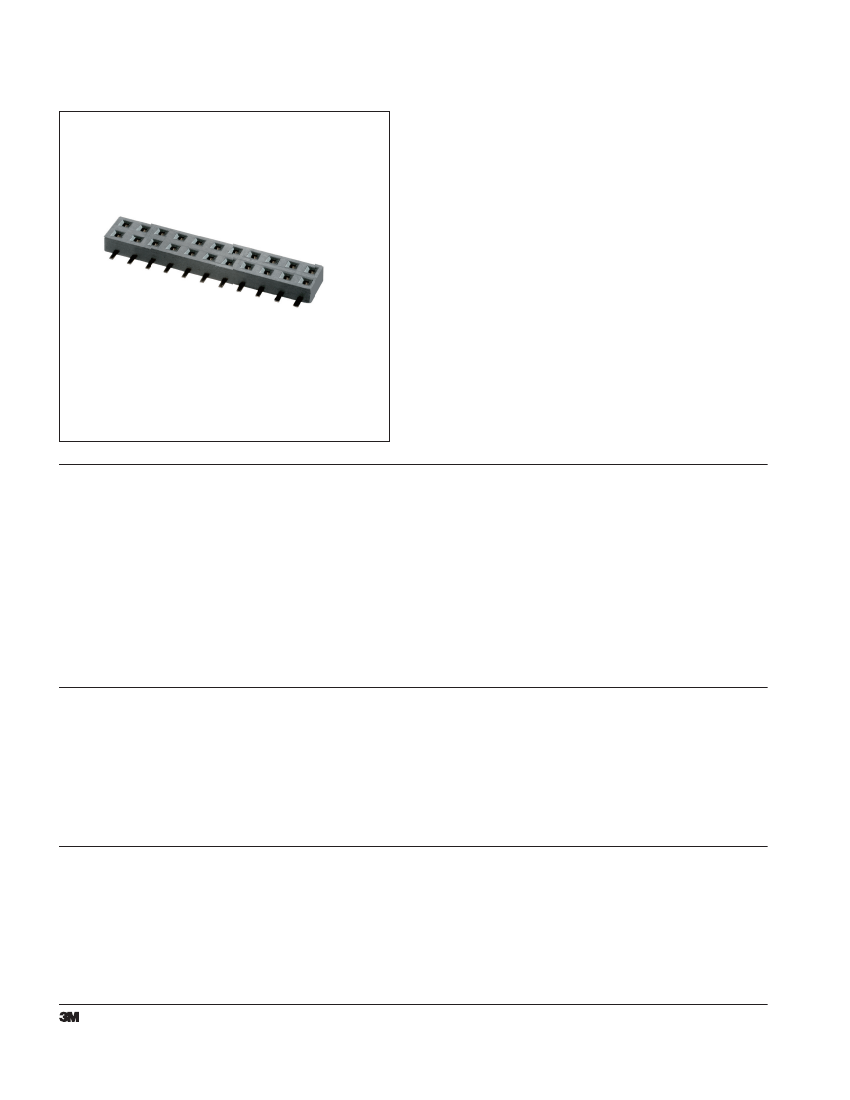

2 mm x 2 mm Straight, Dual or Bottom Entry, Surface Mount
•
Optimizes use of PC board space
•
High temperature dielectric
•
“No lead” reflow solder compatible
•
Dual row design, 6–50 pins
•
Minimized PC Board stacking heights
•
Ultra Low Profile Version
•
Mates with pin headers for board stacking
956 Series
applications
•
RoHS Compliant. See the Regulatory Information
Appendix (RIA) in the RoHS compliance section of
www.3Mconnectors.com for compliance information
(RIA E1 & C1 apply)
Date Modified: November 26, 2012
TS-2168-F
Sheet 1 of 2
Physical
Insulation
Material:
Flammability:
Color:
Contact
Material:
Plating
Underplating:
Wiping Area:
Solder Tail Area:
High Temperature Thermoplastic
UL 94V-0
Black
Copper Alloy
1.25–2.5 µm [50-100 µ"] Nickel
Flash Gold
1–3 µm [40–118 µ"] Matte Tin
Electrical
Current Rating:
Insulation Resistance:
Withstanding Voltage:
Transition Resistance:
1A
> 5 x 10
8
Ohm at 100 V
DC
1000 V
DC
≤
20 mOhm
Environmental
Temperature Range:
-40 °C to +105 °C
Processing Temperature:
max. 260 °C (Profile per J-STD-020C)
Moisture Sensitivity Level:
1 (per J-STD-020C)
UL File No.: E68080
3M is a trademark of the 3M Company
For technical, sales or ordering information
call your Local 3M Service Center
Interconnect Solutions
www.3Mconnectors.com
3M
™

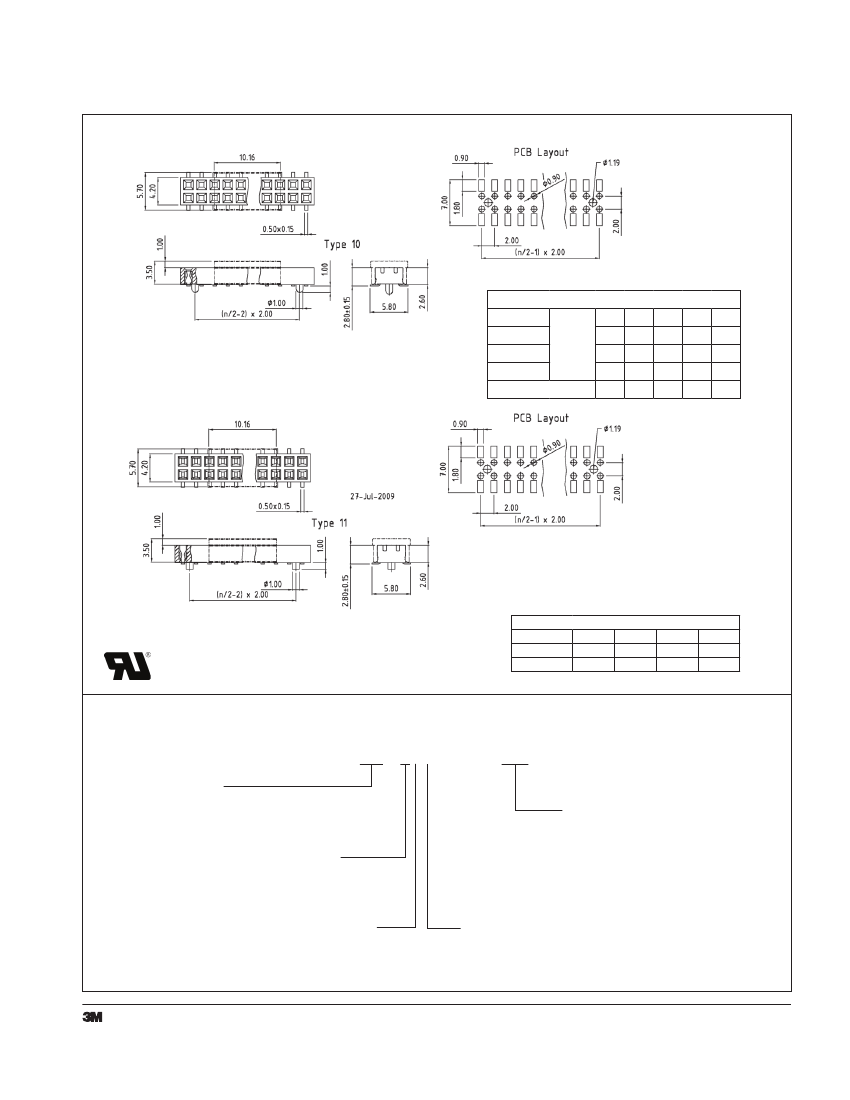

Low Profile Through-Board Socket
2 mm x 2 mm Straight, Dual or Bottom Entry, Surface Mount
Height 2.8 mm / Dual Entry
956 Series
PCB-Layout
Tape & Reel Option
9562xx-2000
9562xx-2700
9562xx-2720
Tape Width [mm]
Height 2.8 mm / Bottom Entry
10–14 16–18 20–30 32–44 46–50
Contact
10–14 16–18 20–30 32–42 44–50
9562xx-2020
Quantity
10–14 16–18 20–30 32–42 44–50
10–14 16–18 20–30 32–42 44–50
24
32
44
56
72
PCB-Layout
n = No. of Contacts
Tolerance Unless Noted [mm]
Nominal Size
0.5–3
3–6
6–30
Linear Dim
+/- 0.1
+/- 0.1
+/- 0.2
Radii
+/- 0.2
+/- 0.5
+/- 1
30–120
+/- 0.3
+/- 1
Ordering Information
9562XX - 2XX0 - AR -
XX
Contact Quantity:
06–50 Pins
(RIA E1 & C1 Apply)
Packaging:
TP = Tube
PT = Tube with Pad 10 to 50 pos
PR = Tape & Reel with Pad 10 to 50 pos
Tail Style:
2 = Straight,
Surface Mount
Special Features:
0 = Dual Entry Contact
7 = Bottom Entry Contact
see packaging option
Board Location Features:
0 = None
2 = with Board Loc. Posts
TS-2168-F
Sheet 2 of 2
Interconnect Solutions
www.3Mconnectors.com
3M is a trademark of the 3M Company
For technical, sales or ordering information
call your Local 3M Service Center
Important Notice
All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable, but the accuracy or completeness
is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for your intended application. You assume all risks and liability associated
with such use. Any statements related to the product which are not contained in 3M’s current publications, or any contrary statements contained on your purchase order
shall have no force or effect unless expressly agreed upon, in writing, by an authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and manufacture for a period of ninety (90) days from the time of purchase.
3M MAKES NO OTHER WARRANTIES INCLUDING,
BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
If this product is defective within the warranty period stated
above, your exclusive remedy shall be, at 3M’s option, to replace or repair the 3M product or refund the purchase price of the 3M product.
Except where prohibited by law, 3M will
not be liable for any indirect, special, incidental or consequential loss or damage arising from this 3M product, regardless of the legal theory asserted.
