82913600A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 82913600A

82913600A: DescriptionStandard Circular Contacts SOCKET CONTACT 16 AWG; CategoryThe connector; File Size662KB，2 Pages; ManufacturerSOURIAU; Environmental Compliance

Download Datasheet Parametric View All

82913600A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	82913600A	-	-	View	Buy Now

82913600A Overview

Standard Circular Contacts SOCKET CONTACT 16 AWG

82913600A Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	SOURIAU
Product Category	Standard Circular Contacts
RoHS	Details
Contact Gender	Socket (Female)
Current Rating	44 A
Contact Size	8
Wire Gauge	16 AWG
Termination Style	Crimp
Contact Plating	Silver
Contact Type	Machined Contacts
Product	Contacts
Contact Material	Copper Alloy
Factory Pack Quantity	100
Unit Weight	0.090407 oz

Preview

Download Datasheet

View All

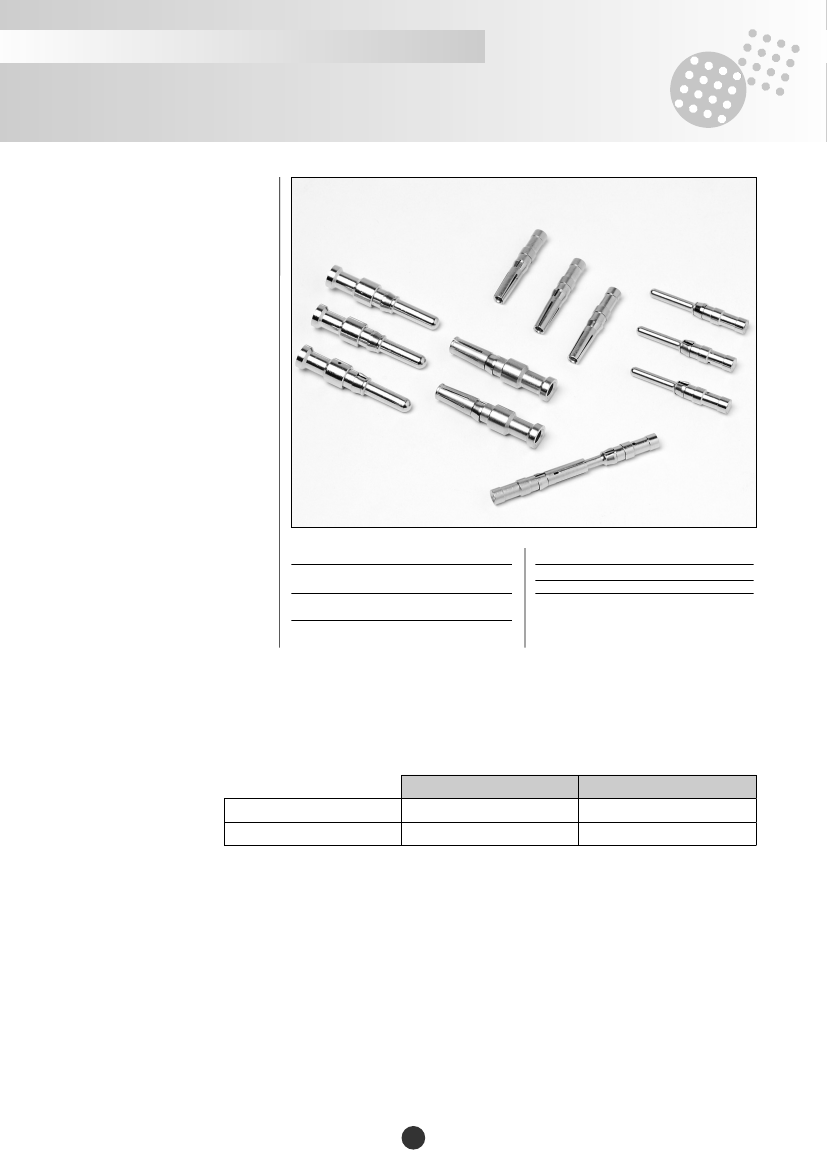

Power contacts 8291

Contacts

TRIM TRIO Connectors also offer

possibilities to use or combine power

contacts with the standard size 16 signal

contacts into the same housing.

It offers customers to reduce the number of

connectors when combining signal and high

current applications into 1 connector.

The signal cavities accept the full range of

TRIM TRIO size 16 contacts for applications

up till 1 A.

Power cavities will either accept:

• Size 1 contacts for applications

up till 26 A

• Size 8 contacts for applications

up till 44 A

Pin and Socket contacts are solid machined

crimp snap-in and sockets for heavy duty

top performance requirements

Springs on both contacts are made of

spring tempered, heat-treated, beryllium

copper.

Construction

Contact body : High conductive copper

alloy

Outer spring : Tempered, heat-treated, non

plated berylium copper.

Plating

K = 0.4m Gold mini all over, over Nickel

A = 3µ Silver all over

Performance characteristics

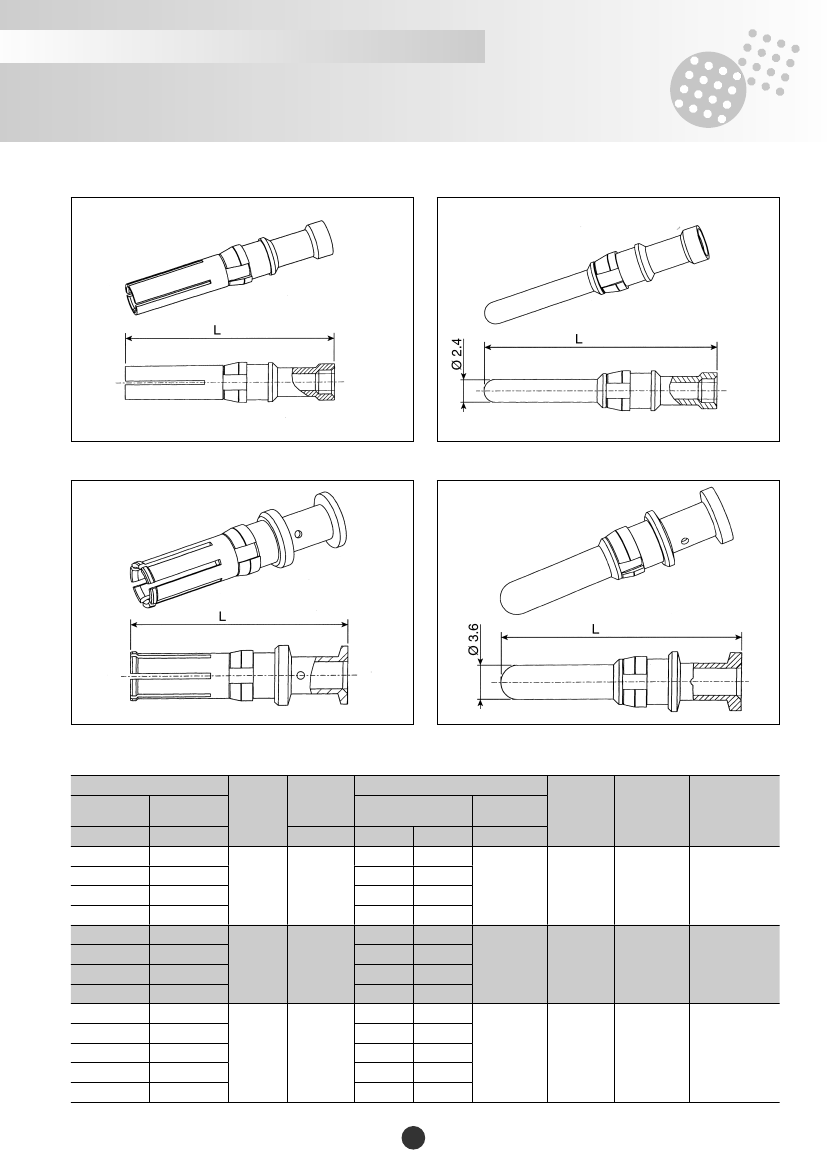

Contacts # 1 (Ø 2,4)

Current rating :

Contact resistance :

26 A

≤

5 mΩ

Contacts # 8 (Ø 3,6)

44 A

≤

5 mΩ

118
