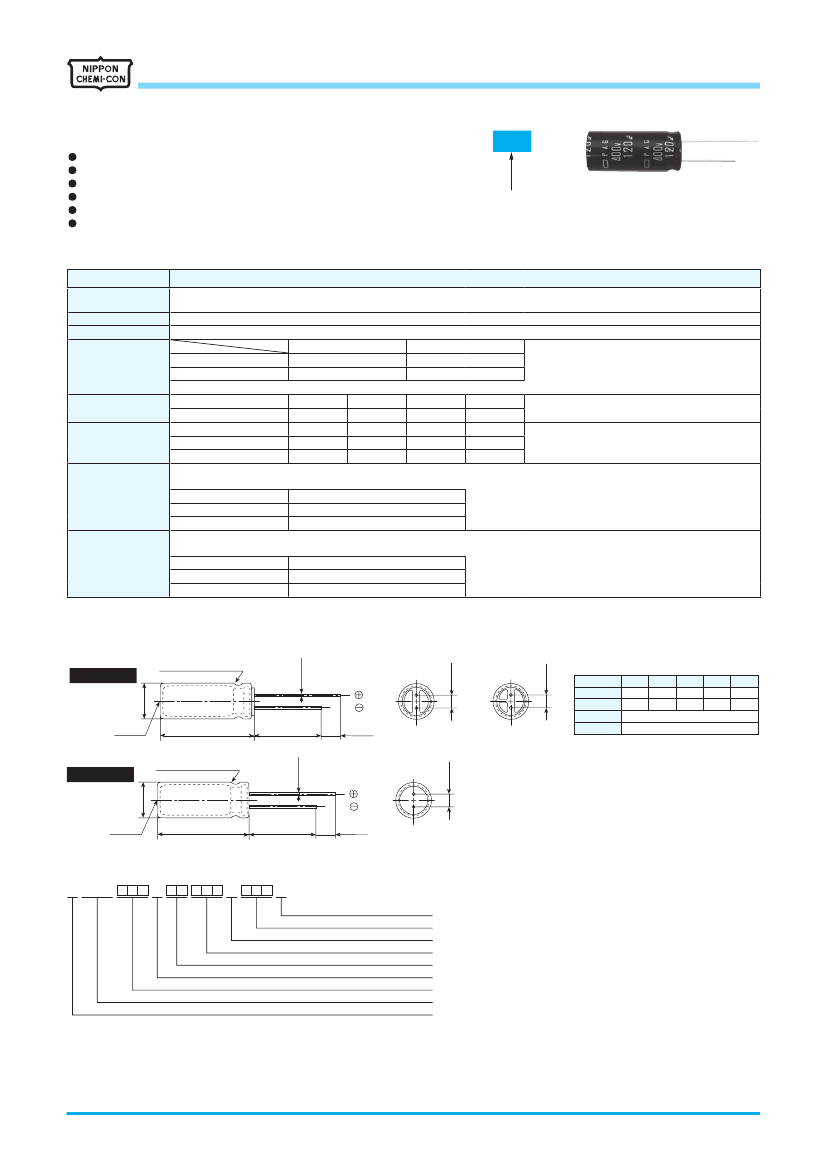

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS
200 to 450V
dc
, Downsized, 105℃
PAG
Series
PAG
Downsized
Higher ripple
KMG
・Downsize,
high ripple design (φ10 to 18)
・Rated
voltage range : 200 to 450V
dc
, Capacitance range : 18 to 560µF
・Endurance
with ripple current : 2,000 hours at 105℃
・Ideal
for low profile power supply applications
・Non
solvent resistant type
・RoHS2
Compliant
◆SPECIFICATIONS
Items
Category
Temperature Range
Rated Voltage Range
Capacitance Tolerance
Leakage Current
-40 to +105℃ (200, 400V
dc
) -25 to+105℃ (420, 450V
dc
)
(at 20℃, 120Hz)℃
After 1 minute
After 5 minutes
CV≦1,000
I=0.1CV+40
I=0.03CV+15
CV>1,000
I=0.04CV+100
I=0.02CV+25
Where, I : Max. leakage current(µA), C : Nominal capacitance (µF), V : Rated voltage (V)
(at 20℃)℃
Rated voltage (V
dc
)
200V
400V
420V
450V
tanδ (Max.)
0.12
0.15
0.20
0.20
(at 20℃, 120Hz)℃
Rated voltage (V
dc
)
200V
400V
420V
450V
Z(-25℃)/Z(+20℃)
3
5
6
6
Z(-40℃)/Z(+20℃)
6
6
(at 120Hz)
-
-
The following specifications shall be satisfied when the capacitors are restored to 20℃ after subjected to DC voltage with the rated
ripple current is applied (the peak voltage shall not exceed the rated voltage) for 2,000 hours at 105℃.
Capacitance change
≦±20%
of the initial value
D.F. (tanδ)
≦200%
of the initial specified value
Leakage current
≦The
initial specified value
The following specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for 1,000 hours at 105℃ without
voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4.
Capacitance change
≦±20%
of the initial value
D.F. (tanδ)
≦200%
of the initial specified value
Leakage current
≦500%
of the initial specified value
200 to 450V
dc
±20%
(M)
Characteristics
Dissipation Factor
(tanδ)
Low Temperature
Characteristics
(Max. Impedance Ratio)
Endurance
Shelf Life
◆DIMENSIONS
[mm]
●
Terminal
Code : E
F
±
0.5
F
±
0.5
φ
d
Sleeve (PET : Brown)
φ
D
φ
d
φ
10 &
φ
12.5
φD'
F
φ
D'
10
0.6
5.0
Vent
L'
15min.
4min.
( 10)
φ
( 12.5)
φ
L'
12.5 14.5
16
0.6
0.8
0.8
5.0
7.5
7.5
+0.5 max.
φ
D
L+2.0 max.
18
0.8
7.5
Gas escape end seal
≧
14.5
φ
φD'
Vent
L'
15min.
4min.
(
φ
14.5 to
φ
18)
◆PART
NUMBERING SYSTEM
E P AG
AAA
E
AA AAA
M
AAA
S
Supplement code
Size code
Capacitance tolerance code
Capacitance code (ex. 22µF:220,100µF:101)
Lead forming·taping code
Terminal code
Voltage code (ex. 200V:201,450V:451)
Series code
Category
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Please refer to "Product code guide (radial lead type)"
Product specifications in this catalog are subject to change without notice.Request our product specifications before purchase and/or use. Please use our products based on the information contained in this catalog and product specifications.
F
±
0.5
φd
Sleeve (PET : Brown)
CAT. No. E1001S
MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS
200 to 450V
dc
, Downsized, 105℃
PAG
Series
◆STANDARD
RATINGS
WV
(V
dc
)
Cap
(µF)
82
100
120
150
180
220
220
270
270
330
330
390
390
470
560
27
33
39
47
56
68
68
82
100
100
120
120
150
150
180
220
Rated ripple
current
Case size
tanδ
(mArms/
φD×L(mm)
105℃, 120Hz)
10×30
10×35
10×40
12.5×30
12.5×35
12.5×40
14.5×30
14.5×35
16×30
16×35
18×30
16×40
18×35
18×40
18×45
10×30
10×35
10×40
12.5×30
12.5×35
12.5×40
14.5×30
14.5×35
14.5×40
16×30
16×35
18×30
16×40
18×35
18×40
18×45
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
440
510
590
650
750
830
830
960
960
1,100
1,100
1,240
1,240
1,390
1,560
260
300
340
370
420
480
480
530
580
580
670
670
770
770
880
1,000
Part No.
EPAG201E□□820MJ30S
EPAG201E□□101MJ35S
EPAG201E□□121MJ40S
EPAG201E□□151MK30S
EPAG201E□□181MK35S
EPAG201E□□221MK40S
EPAG201E□□221MU30S
EPAG201E□□271MU35S
EPAG201E□□271ML30S
EPAG201E□□331ML35S
EPAG201E□□331MM30S
EPAG201E□□391ML40S
EPAG201E□□391MM35S
EPAG201E□□471MM40S
EPAG201E□□561MM45S
EPAG401E□□270MJ30S
EPAG401E□□330MJ35S
EPAG401E□□390MJ40S
EPAG401E□□470MK30S
EPAG401E□□560MK35S
EPAG401E□□680MK40S
EPAG401E□□680MU30S
EPAG401E□□820MU35S
EPAG401E□□101MU40S
EPAG401E□□101ML30S
EPAG401E□□121ML35S
EPAG401E□□121MM30S
EPAG401E□□151ML40S
EPAG401E□□151MM35S
EPAG401E□□181MM40S
EPAG401E□□221MM45S
WV
(V
dc
)
Cap
(µF)
22
27
33
39
47
56
56
68
68
82
82
100
100
120
150
18
22
27
33
39
47
47
56
56
68
68
82
82
100
120
150
Rated ripple
current
Case size
tanδ
(mArms/
φD×L(mm)
105℃, 120Hz)
10×30
10×35
10×40
12.5×30
12.5×35
12.5×40
14.5×30
14.5×35
16×30
14.5×40
16×35
16×40
18×30
18×35
18×40
10×30
10×35
10×40
12.5×30
12.5×35
12.5×40
14.5×30
14.5×35
16×30
14.5×40
16×35
16×40
18×30
18×35
18×40
18×45
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
230
270
310
330
390
430
430
510
510
570
570
610
610
690
790
210
240
280
310
350
390
390
440
440
500
500
550
550
650
740
810
Part No.
EPAG421E□□220MJ30S
EPAG421E□□270MJ35S
EPAG421E□□330MJ40S
EPAG421E□□390MK30S
EPAG421E□□470MK35S
EPAG421E□□560MK40S
EPAG421E□□560MU30S
EPAG421E□□680MU35S
EPAG421E□□680ML30S
EPAG421E□□820MU40S
EPAG421E□□820ML35S
EPAG421E□□101ML40S
EPAG421E□□101MM30S
EPAG421E□□121MM35S
EPAG421E□□151MM40S
EPAG451E□□180MJ30S
EPAG451E□□220MJ35S
EPAG451E□□270MJ40S
EPAG451E□□330MK30S
EPAG451E□□390MK35S
EPAG451E□□470MK40S
EPAG451E□□470MU30S
EPAG451E□□560MU35S
EPAG451E□□560ML30S
EPAG451E□□680MU40S
EPAG451E□□680ML35S
EPAG451E□□820ML40S
EPAG451E□□820MM30S
EPAG451E□□101MM35S
EPAG451E□□121MM40S
EPAG451E□□151MM45S
200
420
400
450
□□
: Enter the appropriate lead forming or taping code.
◆RATED
RIPPLE CURRENT MULTIPLIERS
・Frequency
Multipliers
Capacitance(µF)
Frequency(Hz)
18 to 82
100 to 560
120
1.00
1.00
1k
1.50
1.30
10k
1.75
1.40
100k
1.80
1.50
The endurance of capacitors is reduced with internal heating produced by ripple current at the rate of halving the lifetime with every 5℃ rise.
When long life performance is required in actual use, the rms ripple current has to be reduced.
Product specifications in this catalog are subject to change without notice.Request our product specifications before purchase and/or use. Please use our products based on the information contained in this catalog and product specifications.
CAT. No. E1001S
