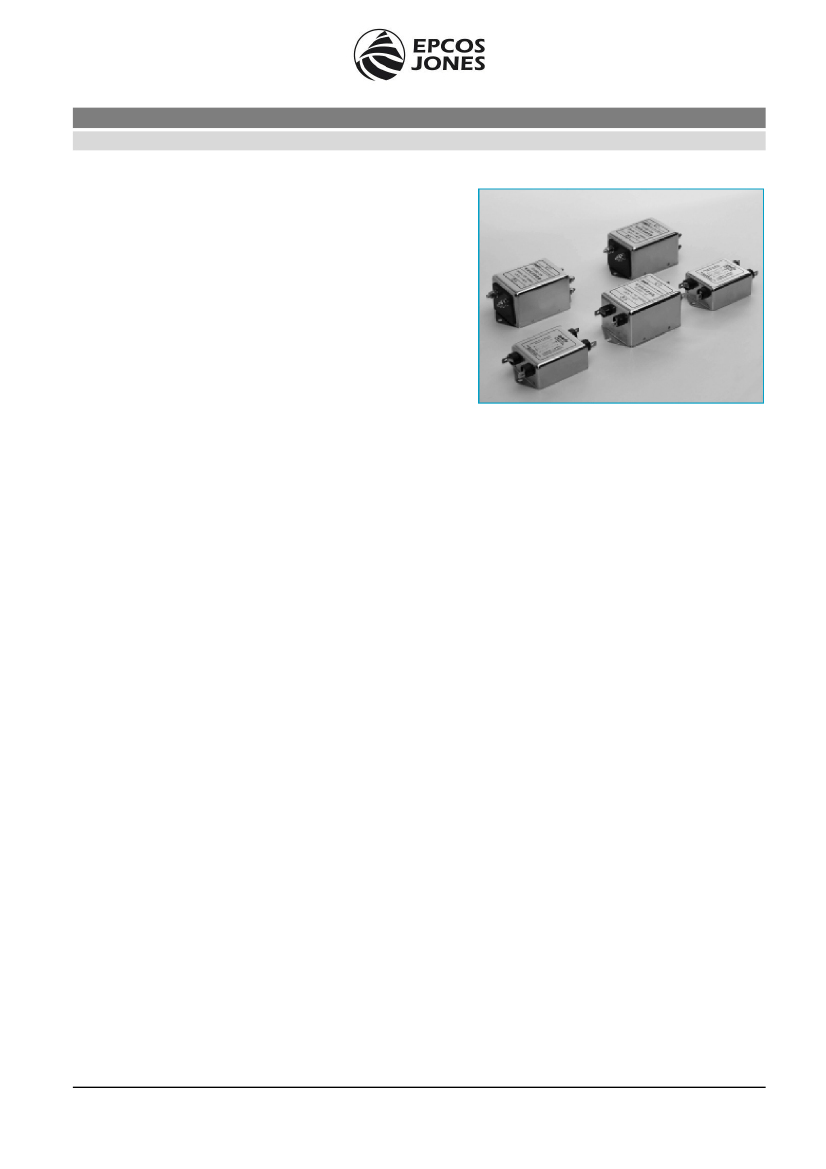

2-line filters
SIFI-P
Series/Type:
Ordering code:
Date:
Version:
Screw or tab connector
B84811D
2006-07-24
A.0
,GHQWLILFDWLRQ&ODVVLILFDWLRQ
KHDGHU WRS OHIW KHDGHU EDU
,GHQWLILFDWLRQ&ODVVLILFDWLRQ
KHDGHU ERWWRP OHIW KHDGHU EDU
2UGHULQJ FRGH
6HULHV7\SH
3UHOLPLQDU\ GDWD RSWLRQDO
'HSDUWPHQW
'DWH
2-line filters
SIFI-P
B84811D
Screw or tab connector
Preliminary data
IN FI PM
2006-07-24
©
EPCOS AG 2006. Reproduction, publication and dissemination of this data sheet, enclosures hereto and the information
contained therein without EPCOS’ prior express consent is prohibited.
2-line filters
SIFI-P
Preliminary data
Rated voltage 115/250 VAC, 50/60 Hz
Rated current 3 to 30 A
Construction
2-line filter
Metal case
Features
Two-stage filtering, excellent suppressing capability
of common mode and differential mode interference
Wide frequency attenuation
Excellent performance of high and low frequency
Low leakage current, high-quality component
ensure the safety of products
UL approval
Applications
PLC, powering monitoring and controlling
fire alarm system, medical instrument,
microprocessor application system.
Terminals
Case style A: tab connector
Case style G: screw connector
Marking
Marking on component:
Manufacturer’s logo, ordering code,
rated voltage, rated current, date code
Minimum marking on packaging:
Manufacturer’s logo, ordering code
B84811D
Screw or tab connector
IN FI PM
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 7
2006-07-24
2-line filters
SIFI-P
Preliminary data
Typical circuit diagram
B84811D
Screw or tab connector
Technical data and measuring conditions
Rated voltage V
R
Rated current I
R
Test voltage V
test
Leakage current I
leak
Climatic category
250/115 V AC, 50/60 Hz
Referred to 40
°C
ambient temperature
1768 V DC, 1 min (line/line)
2000 V AC, 1 min (lines/case)
< 0.5 mA (at 250 V AC, 50 Hz)
To EN 60068-1
25/085/21 (–25°C/+85°C/21 days damp heat test)
Characteristics and ordering codes
I
R
A
3
6
4
6
6
10
20
30
C
R
3 × 0.1 µF (X2) +
2 × 2200 pF (Y2)
3 × 0.1 µF (X2) +
2 × 4700 pF (Y2)
3 × 0.47 µF (X2) +
2 × 4700 pF (Y2)
3 × 0.68 µF (X2) +
2 × 3300 pF (Y2)
3 × 0.47 µF (X2) +
2 × 4700 pF (Y2)
3 × 0.1 µF (X2) +
2 × 4700 pF (Y2)
3 × 0.22 µF (X2) +
2 × 4700 pF (Y2)
3 × 0.22 µF (X2) +
2 × 4700 pF (Y2)
L
R
mH
2 × 1.8
2 × 2.0
2 × 16
2 ×15
2×
9.5 + 4.5
Ordering code
B84811D0003A001
B84811D0006A003
B84811D0004A001
B84811D0006A001
B84811D0006A002
B84811D0010A001
B84811D0020G001
B84811D0030G002
Approvals
x
x
x
x
x
x
x
x
2 × 0.7
2 × 0.4
2 × 0.28
x = approval granted
IN FI PM
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 3 of 7
2006-07-24
2-line filters
SIFI-P
Preliminary data

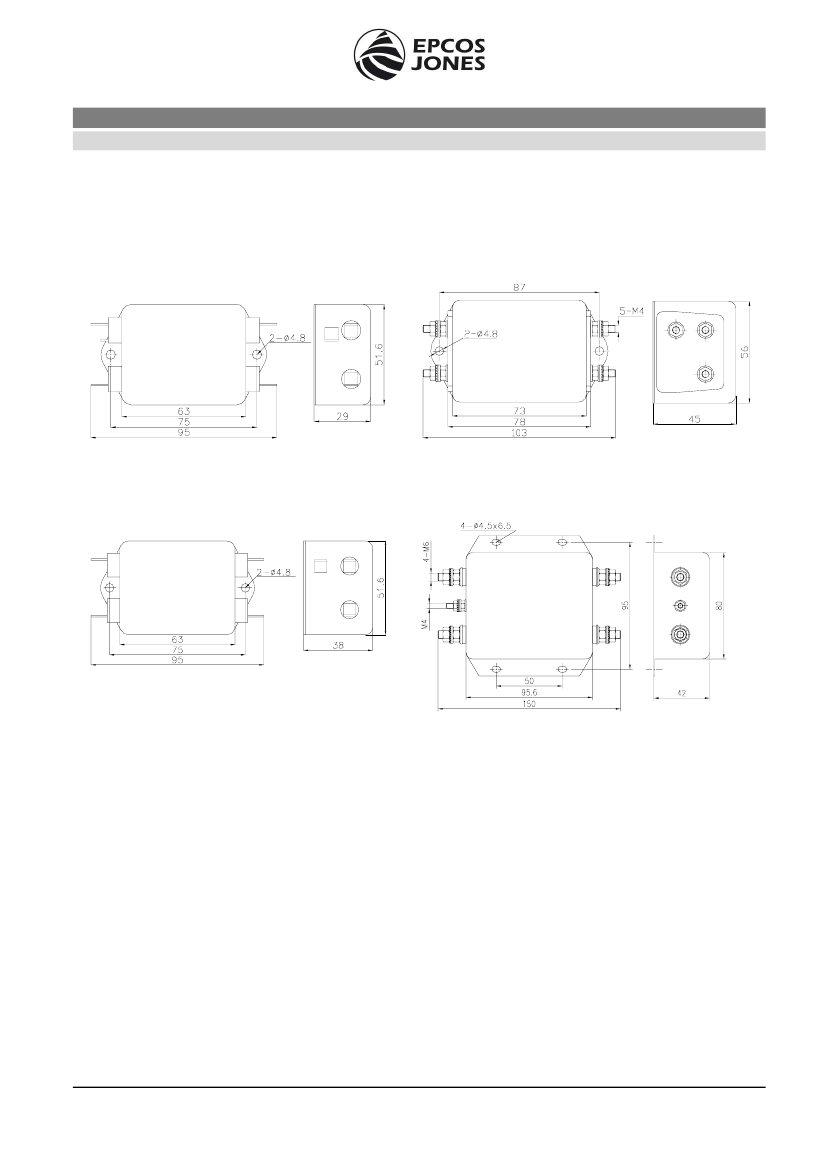

Dimensional drawings (unit: mm)
B84811D0003A001, B84811D0006A003,
B84811D0010A001
B84811D
Screw or tab connector
B84811D0020G001
B84811D0004A001, B84811D0006A001,
B84811D0006A002
B84811D0030G002
IN FI PM
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 4 of 7
2006-07-24
2-line filters
SIFI-P
Preliminary data
B84811D
Screw or tab connector

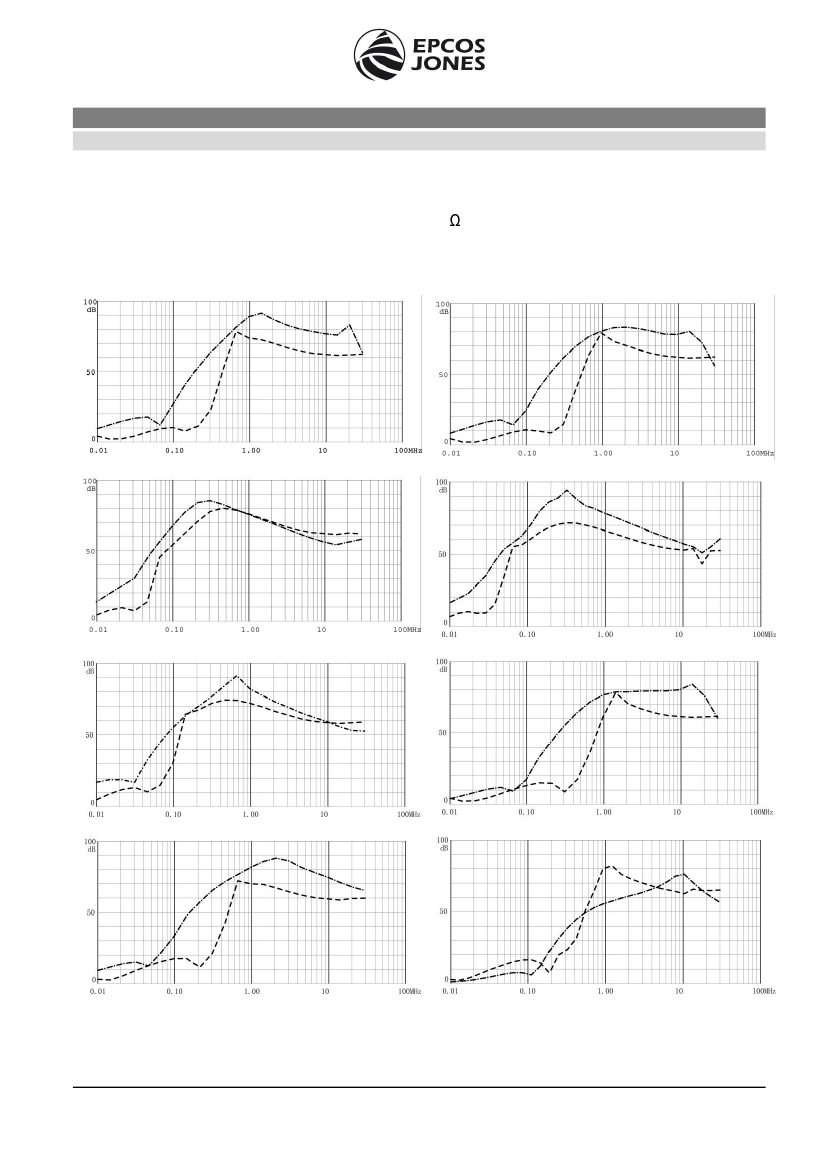

Insertion loss (to CISPR 17, typical values at Z = 50
í Â í Â í
common mode
í í í í
differential mode
B84811D0003A001
)
B84811D0006A003
B84811D0004A001
B84811D0006A001
B84811D0006A002
B84811D0010A001
B84811D0020G001
B84811D0030G002
IN FI PM
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 5 of 7
