15-47-6676 datasheet, PDF - EEWORLD Datasheet

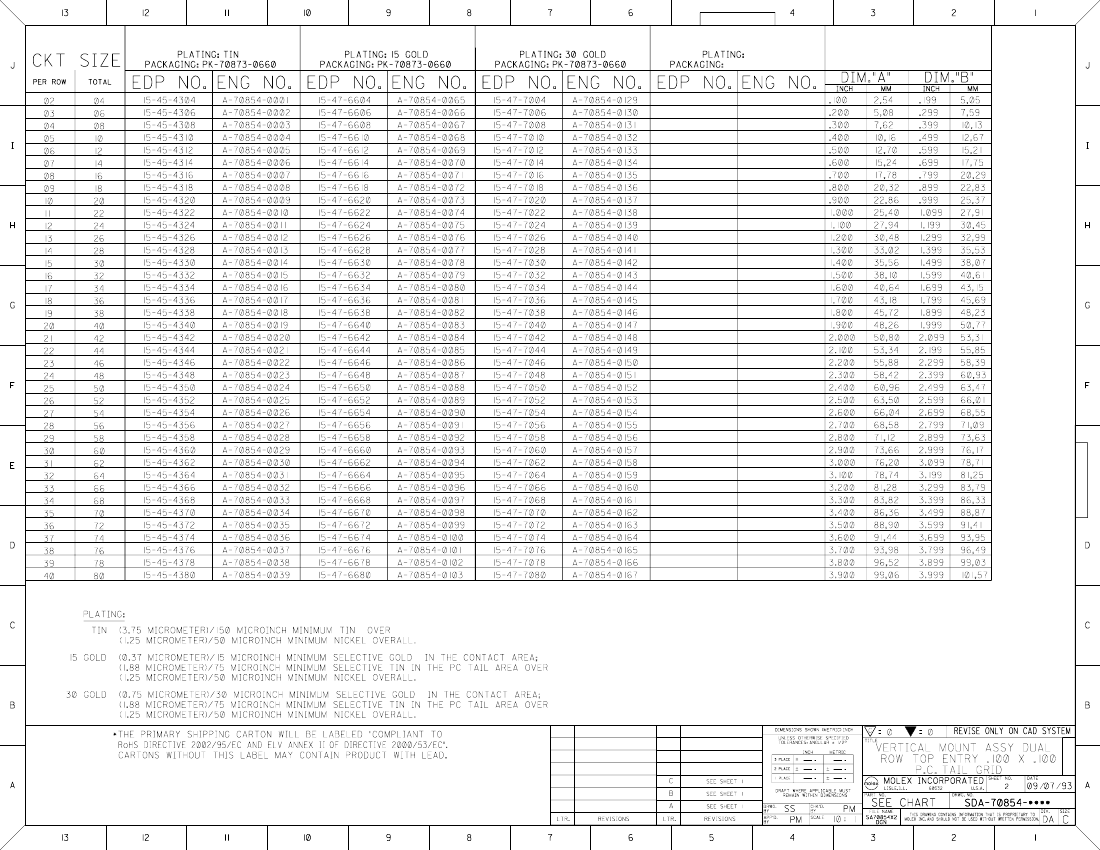

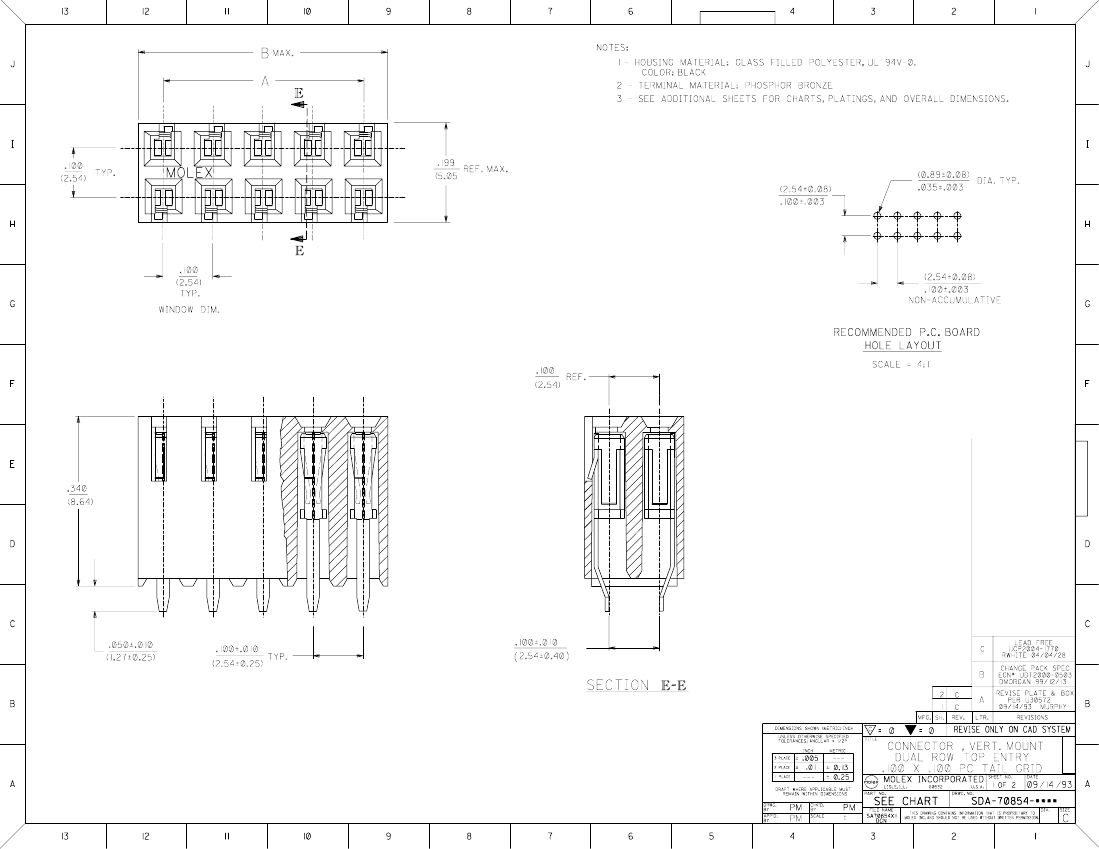

15-47-6676: DescriptionBoard Connector, 76 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Plug; CategoryThe connector The connector; File Size234KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

15-47-6676 Overview

Board Connector, 76 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Plug

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	TOP ENTRY
body width	0.199 inch
subject depth	0.34 inch
body length	3.799 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	50 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	2.224 N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Manufacturer's serial number	70854
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.81 mm
Plating thickness	15u inch
Rated current (signal)	2.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.05 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	76
UL Flammability Code	94V-0
Base Number Matches	1
