LSV_100_CTP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> LSV_100_CTP

LSV_100_CTP: DescriptionLED Light Pipes Light Pipe 3mm LSV100CTP; CategoryLED optoelectronic/LED; File Size64KB，1 Pages; ManufacturerVCC; Environmental Compliance

Download Datasheet Parametric Compare View All

LSV_100_CTP Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LSV_100_CTP	-	-	View	Buy Now

LSV_100_CTP Overview

LED Light Pipes Light Pipe 3mm LSV100CTP

LSV_100_CTP Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	VCC
Product Category	LED Light Pipes
RoHS	Details
Product	Rigid Light Pipes
Color	Clear
Body Shape	Tubular
Body Length	20.32 mm
Material	Acrylic, Optical Grade
Packaging	Bulk
Dimensions	3.18 mm
Mounting Style	Panel
Factory Pack Quantity	1000

Preview

Download Datasheet

View All

ECN #

REVISIONS

REV

DESCRIPTION

N/A INITIAL RELEASE

001 REVISED PER ECR111009AZ01

DATE

4/4/96

4/23/10

INITIALS

NOTES:

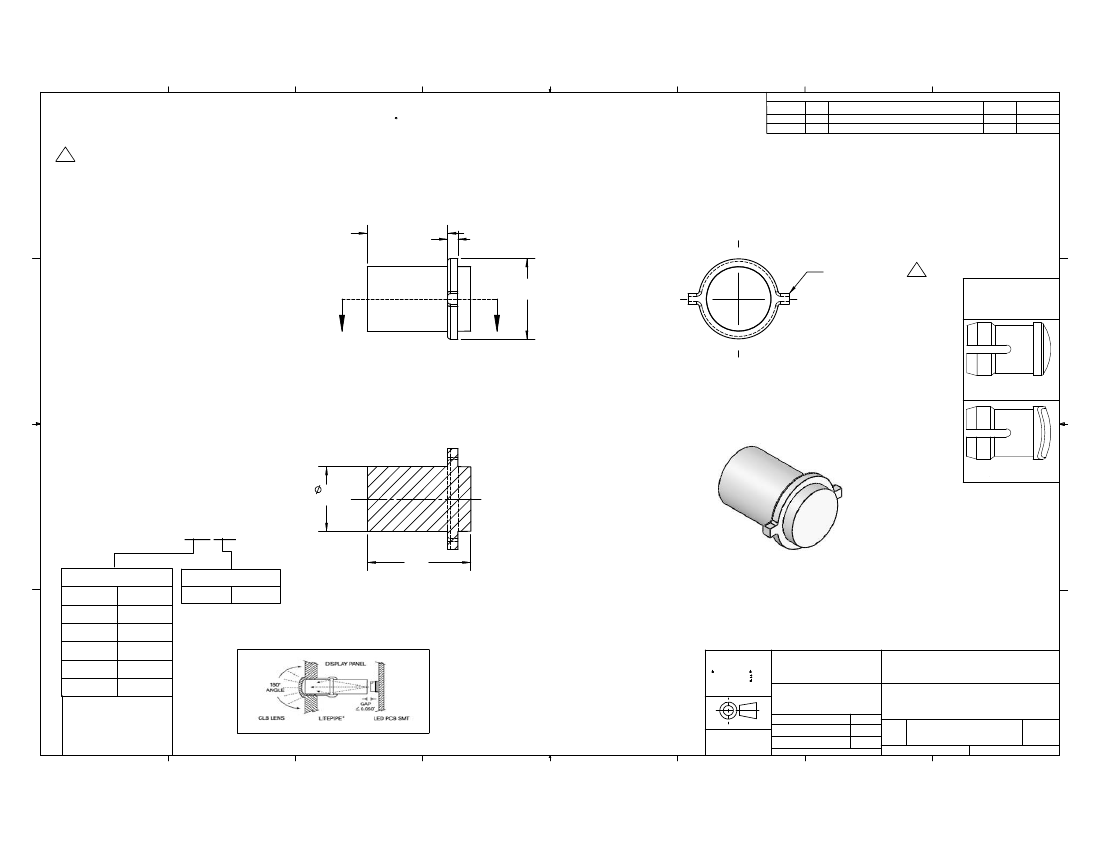

1. DESIGN: Lens mounts the Litepipe securely to display panel providing 180 viewing angle

2. MOUNTING: Panel mounting hole .171 (4.3mm)on 1/4" centers

3. PANEL THICKNESS: For SMB 200 & SMQ 250: 1/32" to 1/8"

4. LENS LOCK: Insert Litepipe into lens aligning the tabs with the lens slot

5. Standoff used to adjust the height of a standard LED above the PCB and maintain a maximum

.050" clearance between the Litepipe and LED.

6. Length is from front of panel to LED

7. Custom lengths available upon request (Minimum order quantity may apply)

8. U.S. & Foreign Pat. Issued & Pend.

.155

(3.937mm)

.020

(.508mm)

LENS LOCKING TAB 4

.155

(3.937mm)

LENSES

(ORDER SEPERATELY)

SMB 200

SMQ 250

.125

(3.175mm)

ORDERING CODE:

LSV XXX CTP

XXX

LENGTH CODE

020

040

060

080

COLOR

CTP

CLEAR

SECTION A-A

=.200"

.400

.600

.800

1.000

1.200

UNLESS OTHERWISE SPECIFIED

DIMENSIONS ARE IN INCHES:

MATERIAL

100

120

VISUAL COMMUNICATIONS COMPANY, INC.

190 Bosstick Boulevard, Suite101 San Marcos, CA 92069 USA

Phone (760) 560-1300 Fax (760) 560-1301 email vccsales@vcclite.com

ANGLES

FINISH

DECIMALS

.020

.010

.XX

.XXX .005

ACRYLIC (OPTICAL GRADE)

U.L. 94-HB

FINISH

BREAK ALL CORNERS AND SHARP

EDGES .030 MAX

TITLE:

SEE NOTES

APPROVAL

DATE

CUSTOM LENGTHS

AVAILABLE UPON

REQUEST

(SEE NOTE 7)

3MM ROUND LITEPIPE

4/23/10

5/4/10

THIRD ANGLE PROJECTION

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS

DRAWING IS THE SOLE PROPERTY OF

VISUAL COMMUNICATIONS COMPANY, INC. ANY

REPRODUCTION IN PART OR AS A WHOLE

WITHOUT THE WRITTEN PERMISSION OF

VISUAL COMMUNICATIONS COMPANY, INC IS

PROHIBITED.

DRAWN

CHECKED

K.Howard

DPZ

SIZE

DWG. NO.

REV

SCALE: 8:1

LSV XXX CTP

001

DO NOT SCALE DRAWING

SHEET 1 OF 1

LSV_100_CTP Related Products

	LSV_100_CTP	LSV_060_CTP
Description	LED Light Pipes Light Pipe 3mm LSV100CTP	LED Light Pipes Light Pipe 3mm LSV060CTP
Product Attribute	Attribute Value	Attribute Value
Manufacturer	VCC	VCC
Product Category	LED Light Pipes	LED Light Pipes
RoHS	Details	Details
Product	Rigid Light Pipes	Rigid Light Pipes
Color	Clear	Clear
Body Shape	Tubular	Tubular
Body Length	20.32 mm	10.16 mm
Material	Acrylic, Optical Grade	Acrylic, Optical Grade
Packaging	Bulk	Bulk
Dimensions	3.18 mm	3.18 mm
Mounting Style	Panel	Panel Mount
Factory Pack Quantity	1000	1000
