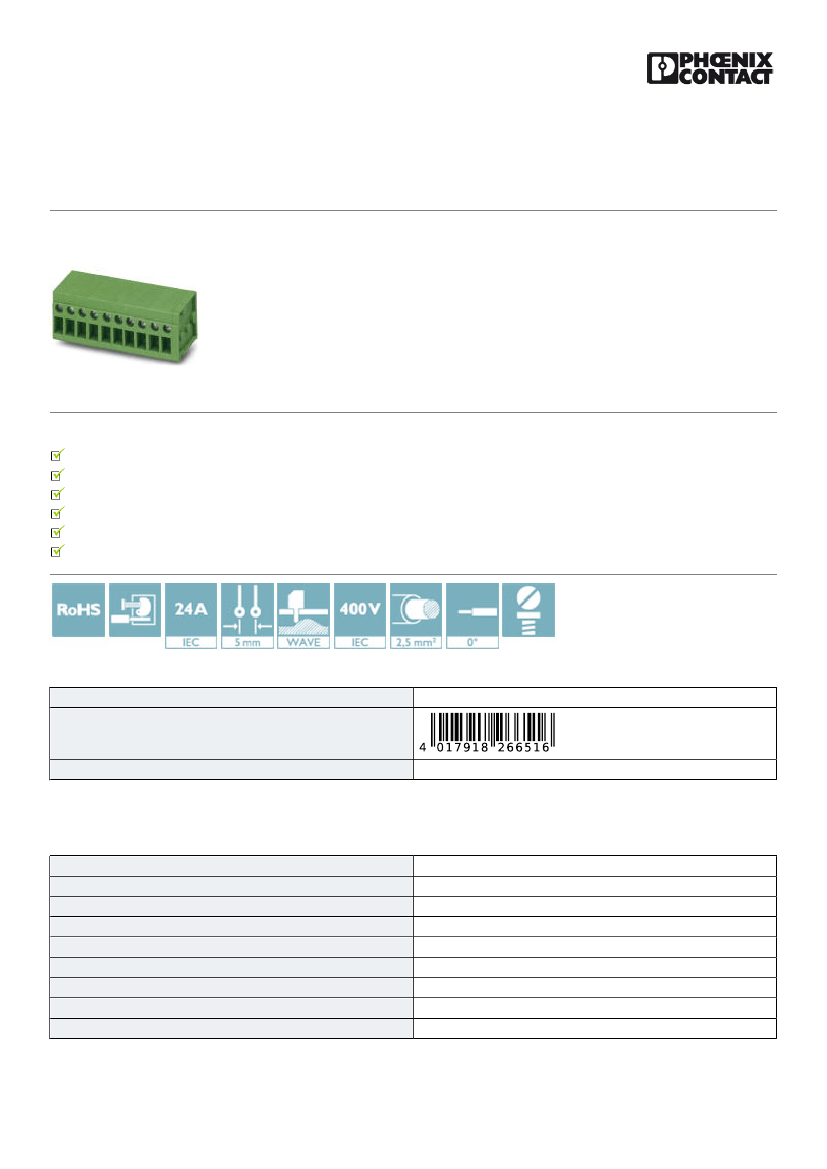

PCB terminal block - FRONT 2,5-H/SA 5/ 2 - 1868665
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB terminal block, nominal current: 24 A, nom. voltage: 400 V, pitch: 5 mm, number of positions: 2,
connection method: Front screw connection, mounting: Wave soldering, conductor/PCB connection direction:
0 °, color: green. The article can be aligned to create different nos. of positions!
The figure shows the 10-position
version
Your advantages
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Allows connection of two conductors
Operation and conductor connection from one direction enable integration into front of device
Two solder pins reduce the mechanical strain on the soldering spots
The latching on the side enables various numbers of positions to be combined
Key Commercial Data
Packing unit
GTIN
GTIN
4017918266516
20 pc
Technical data
Dimensions
Length [ l ]
Pitch
Dimension a
Width [ w ]
Height
Height [ h ]
Solder pin [P]
Pin spacing
Hole diameter
19.5 mm
5 mm
5 mm
12.5 mm
18.5 mm
22.1 mm
4.3 mm
5 mm
1.2 mm
11/12/2018 Page 1 / 4
https://www.phoenixcontact.com/pi/products/1868665
PCB terminal block - FRONT 2,5-H/SA 5/ 2 - 1868665
Technical data
General
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal cross section
Maximum load current
Insulating material
Flammability rating according to UL 94
Internal cylindrical gage
Stripping length
Number of positions
Screw thread
Tightening torque, min
Tightening torque max
FRONT 2,5-H/SA 5
I
4 kV
4 kV
4 kV
250 V
400 V
630 V
EN-VDE
24 A
2.5 mm²
17.5 A (with a 2.5 mm² conductor cross section)
PA
V0
A3
9 mm
2
M2,5
0.4 Nm
0.5 Nm
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Conductor cross section AWG min.
Conductor cross section AWG max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
0.2 mm²
2.5 mm²
0.2 mm²
2.5 mm²
0.25 mm²
0.25 mm²
1.5 mm²
24
14
0.2 mm²
0.75 mm²
0.2 mm²
0.75 mm²
0.25 mm²
0.34 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max. 1.5 mm²
Standards and Regulations
11/12/2018 Page 2 / 4
https://www.phoenixcontact.com/pi/products/1868665
PCB terminal block - FRONT 2,5-H/SA 5/ 2 - 1868665
Technical data
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
EN-VDE
CSA
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
Drilling diagram
Current strength [A]
Diagram
40
32
24
16
8
0
0
20
40
60
80
100
Ambient temperature [°C]
2,8
5
5
5,3
1,2
= 2,5 mm
2
Dimensional drawing
19,5
5
3,5
18,5
5
5,3
2,8
Approvals
Approvals
Approvals
CSA / EAC / cULus Recognized
Ex Approvals
Approval details
11/12/2018 Page 3 / 4
https://www.phoenixcontact.com/pi/products/1868665
PCB terminal block - FRONT 2,5-H/SA 5/ 2 - 1868665
Approvals
CSA
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
D
300 V
10 A
24-12
http://www.csagroup.org/services-industries/product-listing/
B
300 V
10 A
24-12
13631
EAC
D
300 V
20 A
30-12
B
300 V
20 A
30-12
B.01742
cULus Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm E60425-19860303
C
300 V
17 A
30-12
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Tel. +49 5235 300
Fax +49 5235 3 41200
http://www.phoenixcontact.com
11/12/2018 Page 4 / 4
