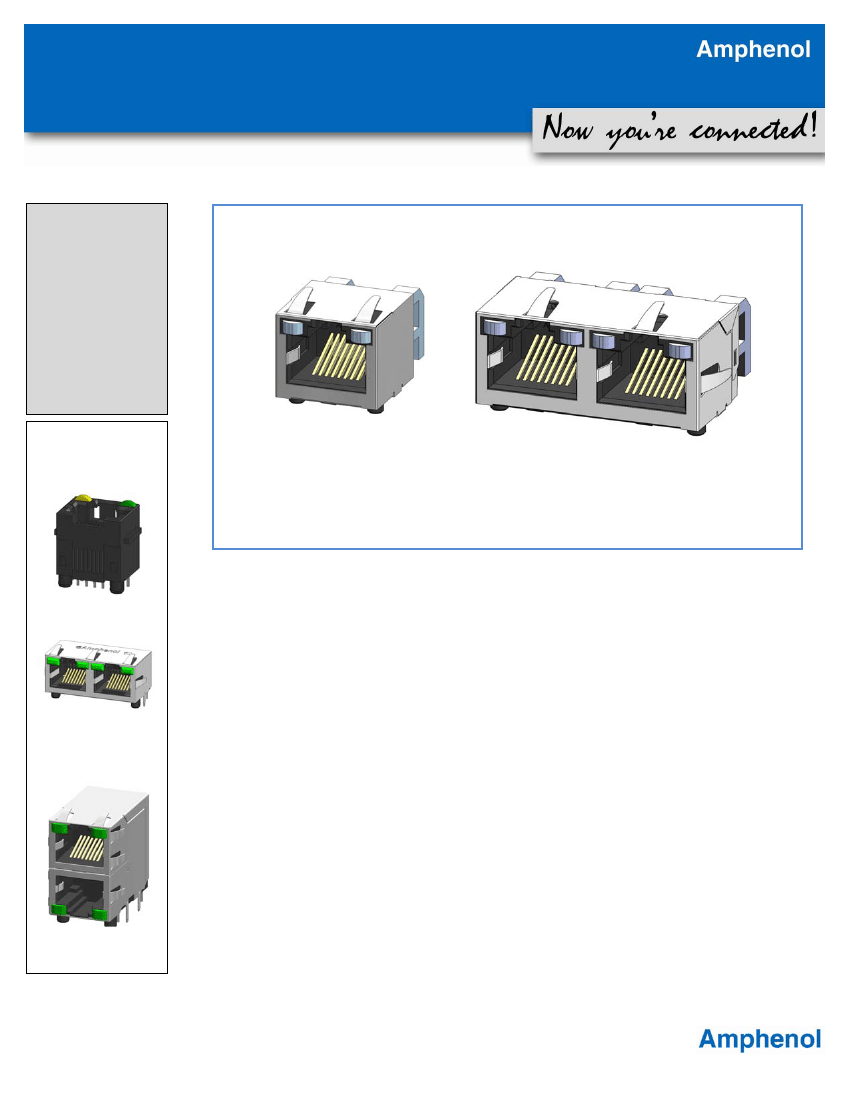

P/N RJSSE‐5381 SHOWN
SINGLE PORT, 8 POSITION,
WITH SHIELD AND LIGHT PIPE
P/N RJSSE‐5381‐02 SHOWN
DOUBLE PORT, 8 POSITION,
WITH SHIELD AND LIGHT PIPE
Overview
P/N RJHSE‐3081 SHOWN
SINGLE PORT VERTICAL MOUNT,
NO SHIELD, WITH LEDs
This product specification defines the general use and performance parameters for Amphenol’s
RJSSE Surface Mount series of inverted modular jacks.
Availability: Single and multiport connectors, shielded and unshielded versions available with or
without light pipe option.
Usage
P/N RJHSE‐5385‐02 SHOWN
TWO PORT REGULAR MOUNT,
WITH SHIELD AND LEDs
The RJSSE Surface Mount modular jacks supports Ethernet Protocols. Shielding available for
increased EMI performance and Light Pipes for Link Activity and Network Speed verification.
RJSAE
Applications
Intended for use in applications such as:
Networking & Telecom
Wireless (WiMAX)
Network servers
Hubs, routers, switches
Office & Home Equipment
PC’s, Laptops, Copiers/Printers
Telephones, modems
Surge Protectors
ATMs, Vending Machines
Consumer Goods
Security Systems
Set Top Boxes
Video Game Systems
Miscellaneous
Multi-Media Equipment
Industrial Equipment
POS Terminals
P/N RJSAE‐5385‐02 SHOWN
STACKED 2x1, 8 POSITION,
WITH SHIELD AND LEDs
Revision date: June 09, 2011
Page 1 of 2
S6035C Rev 1.2
About Amphenol
Commercial Products
Amphenol’s commercial
connector products are
used in a variety of end
user applications
including networking,
telecom, server &
computer, storage &
HDD, consumer
electronics and
entertainment,
professional audio &
Industrial &
Military/Aerospace.
Electrical Characteristics
Contact resistance:
Insulation resistance:
Current rating:
Voltage rating:
DWV
20 mΩ max.
500 MΩ minimum at 500V DC for 2 minutes max.
1.5 Amps
125 Volts AC
1500 VAC, 60 Hz. 1 min.
Mechanical Characteristics
Mating connector insertion force: 5.0 lbs. Maximum.
Mating connector pull retention force: 20 lbs Minimum.
Durability: 750 mating & unmating cycles
Suitable for IR Reflow (Light Pipes to be installed after soldering)
Operating temperature: -55° C to +85° C
Related Products
RJULE
Material Requirements
RJSSE connectors are RoHS compliant.
Unless otherwise specified, the materials for each component shall be:
Insulator:
High Temp thermoplastic. Complies with UL 94V-0, Black color
Contacts:
Phosphor Bronze hard temper with gold thickness options (6µ”, 15µ”, 30µ”, 50µ”) over
50µ” minimum Nickel on contact mating area.
100µ” minimum matte tin over nickel on soldering tail
Shield:
Copper alloy; Nickel or Matte Tin plating
Light Pipe:
Optical grade polycarbonate, UL 94V-0

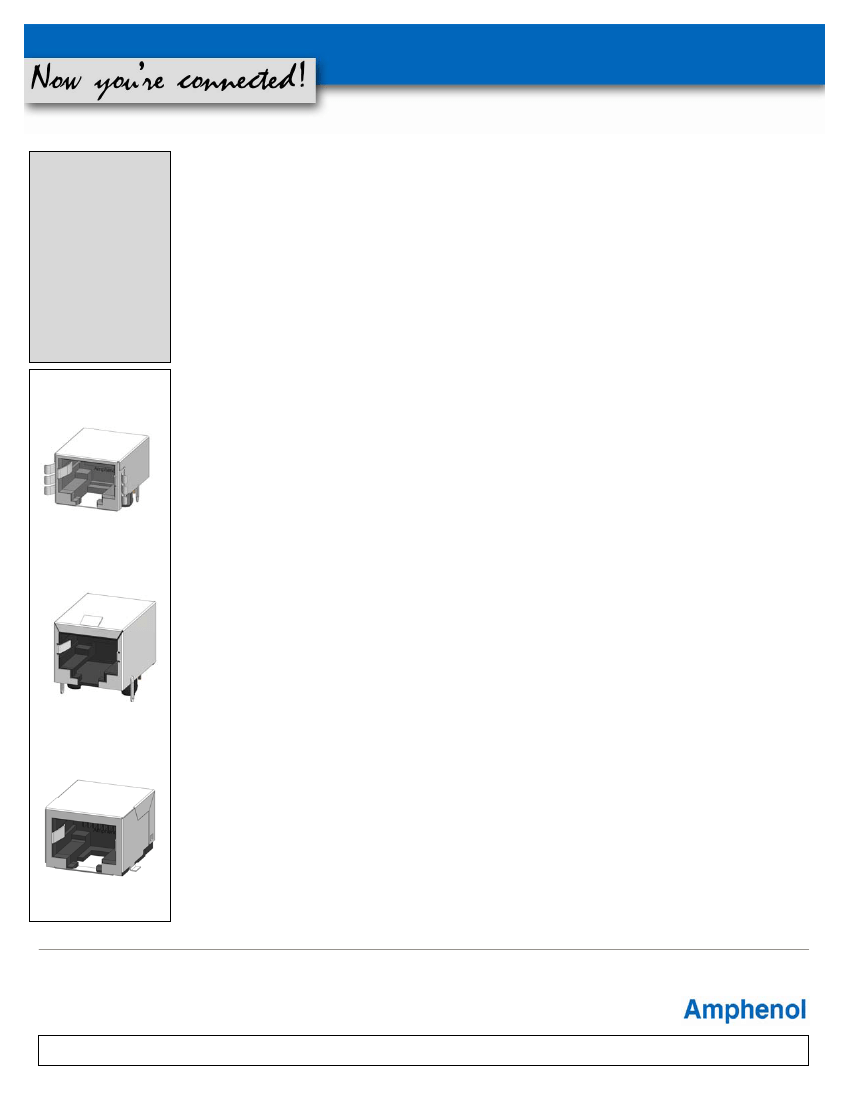

P/N RJULE‐4X182‐01 SHOWN
SINGLE PORT REGULAR MOUNT,
STANDARD SHIELD WITH SMT
FRJAE
Available Documents
P/N FRJAE‐418 SHOWN
SINGLE PORT, 8 POSITION,
WITH FERRITE FILTER AND
SHIELD (FRONT TABS)
Drawing Numbers:
P-RJSSE-508X-XX
Surface Mount, 8 Position Modular Jack, Unshielded, optional Light Pipes
P-RJSSE-5381-04
4 Port, Surface Mount, 8 Position Modular Jack, Shielded with Light Pipes
P-RJSSE-7061
Surface Mount, 6 Position, Unshielded with Light Pipes
Contact factory or Authorized Amphenol representative for additional configurations
RJLSE
P/N RJLSE‐41181‐01 SHOWN
SINGLE PORT REGULAR MOUNT,
STANDARD SHIELD WITH SMT
Amphenol Canada Corp.
605 Milner Avenue
Toronto, Ontario, Canada, M1B 5X6
+1 416 291 4401
www.amphenolcanada.com
Page 2 of 2
Copyright © Amphenol Corporation 2011 • All rights reserved
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION AND SUCH INFORMATION MAY NOT BE DISCLOSED TO OTHERS FOR ANY PURPOSE OR USED FOR MANUFACTURING PURPOSES
WITHOUT WRITTEN PERMISSION FROM AMPHENOL CANADA CORP.
