800-012-07M8-13PN datasheet, PDF

Datasheet> All Categories > The connector> The connector> 800-012-07M8-13PN

800-012-07M8-13PN: DescriptionCircular MIL Spec Connector MM UN MATING PCB JAM NUT PIN; CategoryThe connector The connector; File Size170KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/; Environmental Compliance

Download Datasheet Parametric View All

800-012-07M8-13PN Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	800-012-07M8-13PN	-	-	View	Buy Now

800-012-07M8-13PN Overview

Circular MIL Spec Connector MM UN MATING PCB JAM NUT PIN

800-012-07M8-13PN Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Glenair
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	9 weeks
Other features	POLARIZED
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Shell surface	NICKEL PLATED
Shell material	ALUMINUM ALLOY
Housing size	8
Termination type	SOLDER
Total number of contacts	13

Preview

Download Datasheet

View All

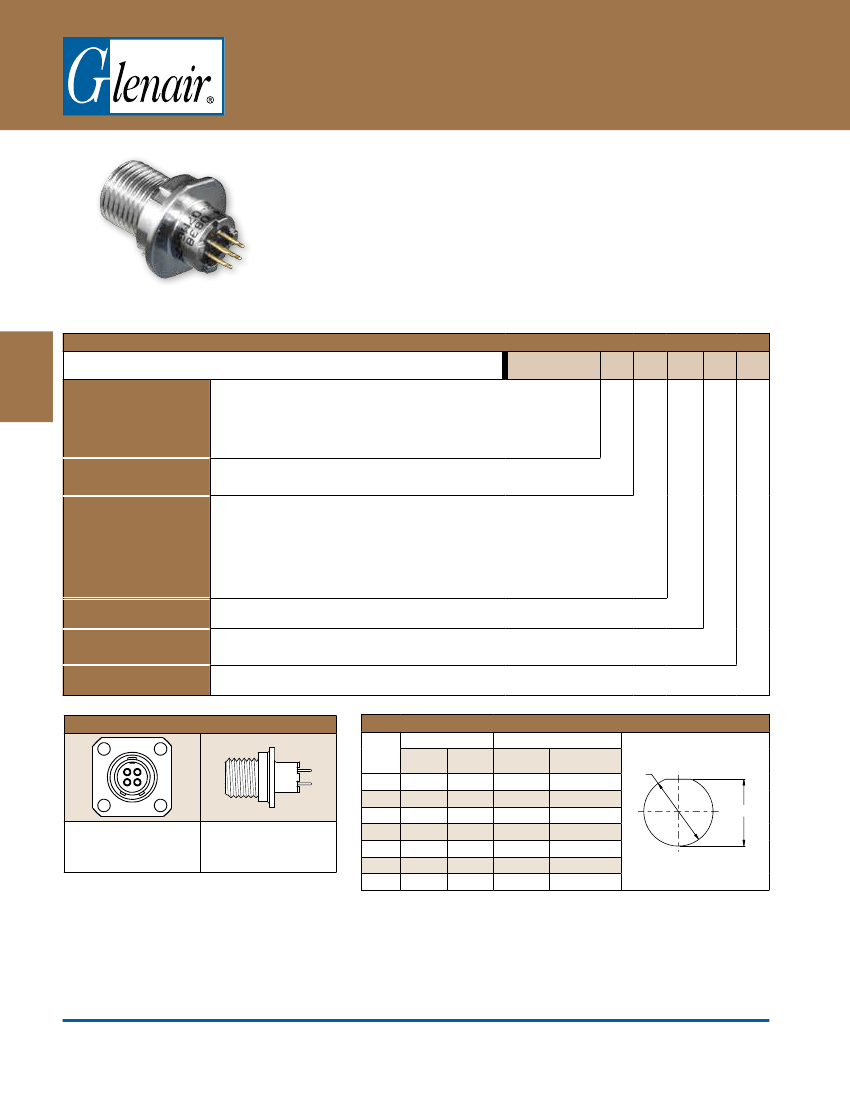

Series 800 Mighty Mouse UN Mating Thread

PC Tail or Solder Cup PCB Receptacle

800-012 and 800-040 Ordering Information

Printed Circuit Board/ Solder Cup Receptacles

feature low profile shells for

minimum protrusion inside enclosures and integral board standoffs. Contacts are

non-removable.

Water Immersion, Unmated

Specify

800-012

connectors for applications where

open face water immersion is not a requirement. For MIL-STD-810 Method 512G

immersion requirements, specify

800-040

watertight connectors . These 800-040

connectors are specially sealed (“MOD-518”) and are 100% tested to maintain a

helium leak rate of 1 x 10

-4

cc/second at one atmosphere pressure differential from

-40C to +70C.

How To Order

Shell

Size

Series 800

Sample Part Number

Series

Shell Style (See Table I)

-02

= Square Flange

Shell Material and Finish

Shell Size - Insert

Arrangement

Contact Type

Shell Key Position

(See Table II)

= Pin, PC Tail

= Socket , PC Tail

= Normal

800-012

Receptacle for Solder Cup or PCB Termination, with Standard

Epoxy Potting

800-040

Receptacle for Solder Cup or PCB Termination, With Special

“MOD-518” Sealing For Open Face (Unmated) Water Immersion

Requirements. 100% Leak Tested.

-07

= Jam Nut

(See

Jam Nut Panel Cutout Dimensions Page C-3)

= Aluminum / Black Anodize (Non-Conductive) RoHS Compliant

= Aluminum / Electroless Nickel RoHS Compliant

= Aluminum / Cadmium with Olive Drab Chromate

ZNU

= Aluminum / Zinc-Nickel with Black Chromate

= Aluminum / Nickel-PTFE RoHS Compliant

= Stainless Steel / Passivated RoHS Compliant

See Contact Arrangements page C-2

= Pin, Solder Cup

= Socket, Solder Cup

= Pos. Y

= Pos. Z

-07

7-10

= Pos. X

Table I: Shell Style

ØM

.318

.386

.449

.510

.574

.635

.760

8.08

9.80

11.40

12.95

14.58

16.13

19.30

Recommended Panel Cut Out

N Flat ± .002

.297/.292

.365/.360

.429/.424

.483

.540

.614

.722

7.54/7.42

9.27/9.14

10.90/10.77

12.67

13.71

15.60

18.34

øM

N FLAT

-02

Square Flange Front Mount

-07

Jam Nut for Rear Panel

Mounting

Dimensions in Inches (millimeters) are subject to change without notice.

Series 80 Mighty Mouse

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

C-12

E-Mail: sales@glenair.com
