• Accepts chip carriers conforming to JEDEC outline
MO-047 for square and MO-052 for rectangular
• Compatible with automated loading equipment
• Open top design allows unrestricted air flow
• Molded slots for ease of device extraction
• Wave solder compatible. Not suitable for reflow
soldering
• RoHS Compliant. See the Regulatory Information
Appendix (RIA) in the "RoHS Compliance" section
of www.3Mconnector.com for compliance
information (RIA E1 and C1 apply)
Date Modified: September 14, 2011
TS-2148-B
Sheet 1 of 2
Physical
Insulation
Material: Glass Filled Polyester (PBT)
Flammability: UL 94V-0
Color: Black
Contact
Material: Copper Alloy
Plating
Underplating: 50 µ" [ 1.27 µm ] Nickel - Overall
Wiping Area: 160 µ", [ 4.06 µm ] Matte Tin
Electrical
Contact Resistance:
15 mΩ
Insulation Resistance:
>10
3
MΩ minimum
Capacitance:
<1 pF at 1 MHz
Environmental
Temperature Rating:
-40ºC to +105ºC
Process Rating:
Wave Solder Only
Notice:
Please be aware that the 3M PLCC products are tin plated on the contact wiping surface. This is necessary to ensure mated reliability since standard PLCC contacts are also tin plated. Since tin
whiskers are an inherent characteristic of tin and mechanically stressing the tin is a known driver of whisker growth, it is possible the PLCC and PLCC socket may exhibit tin whisker growth after
mating. 3M follows the iNEMI plating recommendations which include whisker mitigating tin plating chemistry to reduce the likelihood of tin whisker growth. Please consider whether a PLCC
socket is suitable for your particular needs after considering your product applications life span and environment including mechanical stresses, humidity, and thermal cycling all of which have
been shown to stimulate tin whisker growth.
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™

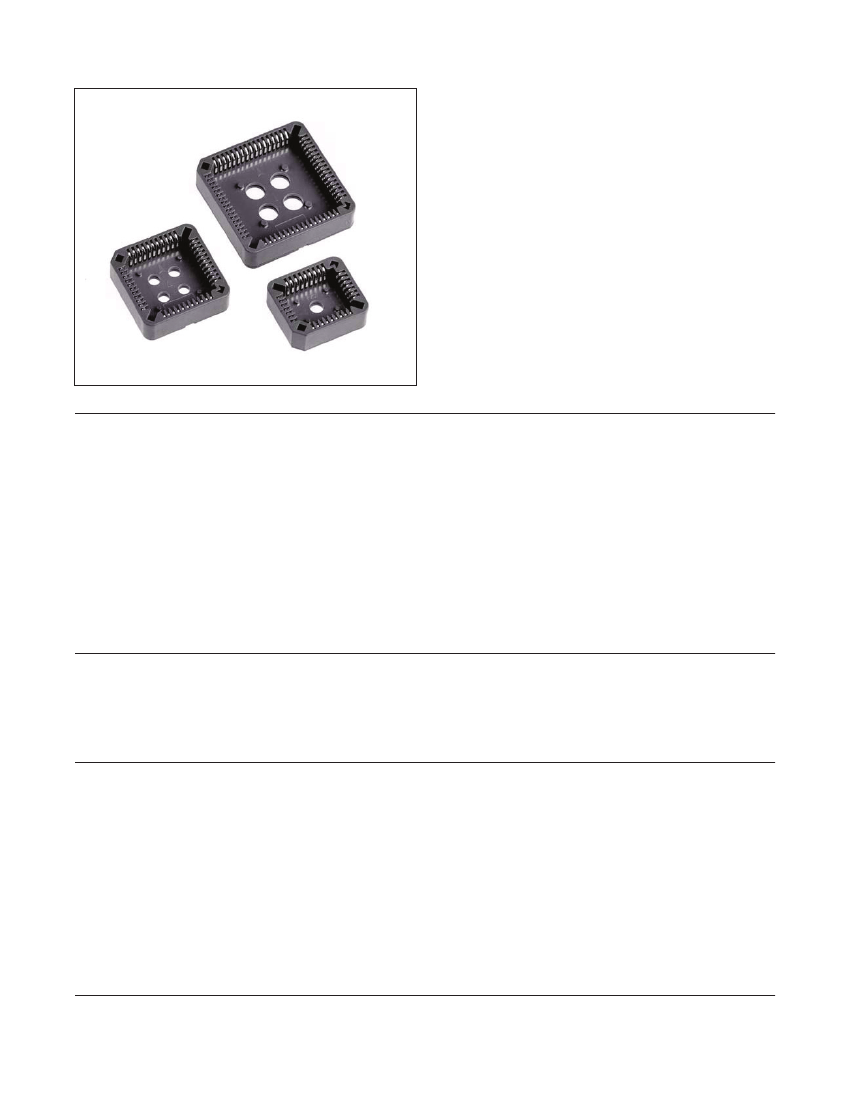

Chip Carrier Sockets
Low Profile, Four-Row, Through Hole
8400 Series
mm
(Inch)
Tolerance Unless Noted
mm
[ ] Dimensions for
Reference Only
.0 .00
±.3 ±.20
.000
Contact
Quantity
20
28
32
44
52
68
84
Part No.
8420-11B1-RK-TP
8428-11B1-RK-TP
8432-11B1-RK-TP
8444-11B1-RK-TP
8452-11B1-RK-TP
8468-11B1-RK-TP
8484-11B1-RK-TP
A
15.50 [0.611]
18.05 [0.711]
18.05 [0.711]
23.50 [0.926]
25.88 [1.020]
31.05 [1.223]
36.05 [1.420]
B
15.50 [0.611]
18.05 [0.711]
20.60 [0.812]
23.50 [0.926]
25.88 [1.020]
31.05 [1.223]
36.05 [1.420]
C
5.08 [0.200]
7.62 [0.300]
7.62 [0.300]
12.70 [0.500]
15.24 [0.600]
20.32 [0.801]
25.40 [1.001]
D
5.08 [0.200]
7.62 [0.300]
10.16 [0.400]
12.70 [0.500]
15.24 [0.600]
20.32 [0.801]
25.40 [1.001]
LAYOUT DIAGRAM
20 POSITION
3
4
6
8
5
7
10
9
12
11
1
2
19
20 18
17 16
15 14
13
5
7
9
28 POSITION
4
6
8
10
15 17
14 16
2
3
28
1
26
27 25
24 23
22
20
18
21
19
32 POSITION
4
5
7
9
6
8
10
2
3
32
1
30
31
29
7
9
11
44 POSITION
6
8
10
12
4
5
2
3
44
1
42
43
40
41 39
38 37
36 35
34 33
32 31
21
23 25
22
24
27
30 29
28 27
26 25
24
19
22
23
21
11 13
12
11 12
13 15 17
14 16
13 14
15 16
17 19
18 20
18 20
26 28
52 POSITION
7
8
9
5
6
3
4
1
2
51 49
52
50
47
48 46
45 44
43 42
41 40
39 38
37 36
24
26 28
27
30
32 35
33
34
10
9
11
7
8
64 POSITION
5
6
3
4
1
2
67
68
65
63 61
62
59
57
55
53
51
49
60
58
56
54
52
50
48
12
14
16
11
9
7
8
66 64
13 10
15
17
84 POSITION
5
6
3
4
1
2
83
84
81 79 77
82
80 78
75
76 74
73 72
71 70
69 68
67 66
65 64
63 62
61 60
59 58
57 56
36
38 40 42
39 41
44
43
46
48 50
49
52
51
55
53
54
10 11
12 13
14 15
16 17
18 19
20 22
21
12 13
14 15
16 17
18 19
20 21
22 23
24 25
26 28 30
27 29
32 34 36
31
33 35
38
37
40
39
18 19
20
22
21
23
24 25
26 27
28 29
30 31
32 34
33
23 25
29 31
47 46
42 45
41 43
44
35 37
45 47
Ordering Information
84XX - 11B1 - RK - TP
Contact Quantity
(See Table)
Note: Parts packaged in tubes.
TS-2148-B
Sheet 2 of 2
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
