214357 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 214357

214357: DescriptionBoard to Board & Mezzanine Connectors 5P 1MM HP MALE VERT SMT B-B MEZZ; CategoryThe connector; File Size64KB，2 Pages; ManufacturerERNI Electronics; Environmental Compliance

Download Datasheet Parametric View All

214357 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	214357	-	-	View	Buy Now

214357 Overview

Board to Board & Mezzanine Connectors 5P 1MM HP MALE VERT SMT B-B MEZZ

214357 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	ERNI Electronics
Product Category	Board to Board & Mezzanine Connectors
RoHS	Details
Product	Headers
Number of Positions	5 Position
Pitch	2 mm
Number of Rows	1 Row
Termination Style	SMD
Mounting Angle	Vertical
Current Rating	6.6 A
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Contact Plating	Gold
Housing Material	Liquid Crystal Polymer (LCP)
Contact Material	Copper Alloy
Insulation Resistance	10000 MOhms
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 55 C
Stack Height	1 mm
Factory Pack Quantity	420
Unit Weight	0.018342 oz

Preview

Download Datasheet

View All

12,15

8,95

Ansaughaube

5,85

4,6

Verpackt in Gurtverpackung

Tape on Reel Packaging

Verpackungseinheit: 420 Stück -

Packaging unit: 420 pcs

hood

1,5

6,95

4,75

6,25

100

0,5

0,6

0,7

0,8

330

32,5

12,15

ohne Angsaughaube

without hood

Abspulrichtung -

Reel off Direction

4x2=8

Anforderungsstufe 1

Leiterplatten-Layout Vorschlag /

PCB-Layout Proposal

0,85

1.)

0,9

±0,03

3x3=9

0,8

1.)

0,65

0,7

±0,03

0,75

Performance Level 1

Kontaktbereich vergoldet

Mating Area gold plating

Anschlussbereich verzinnt 4-6 µm

Terminal Area 4-6 µm tin plating

4,45

2,6

Coplanarity Area of Termination

≤

0,1 mm

Proprietary notice pursuant to ISO 16016 to be observed.

Koplanarität der Anschlüsse

≤

0,1 mm

0,8

1,5

4x2=8

0,85

Information:

Tolerances

All Dimensions

in mm

Scale

5:1

1.) Durchmesser des Bohrers /

Drill tool

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

30.08.2010

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

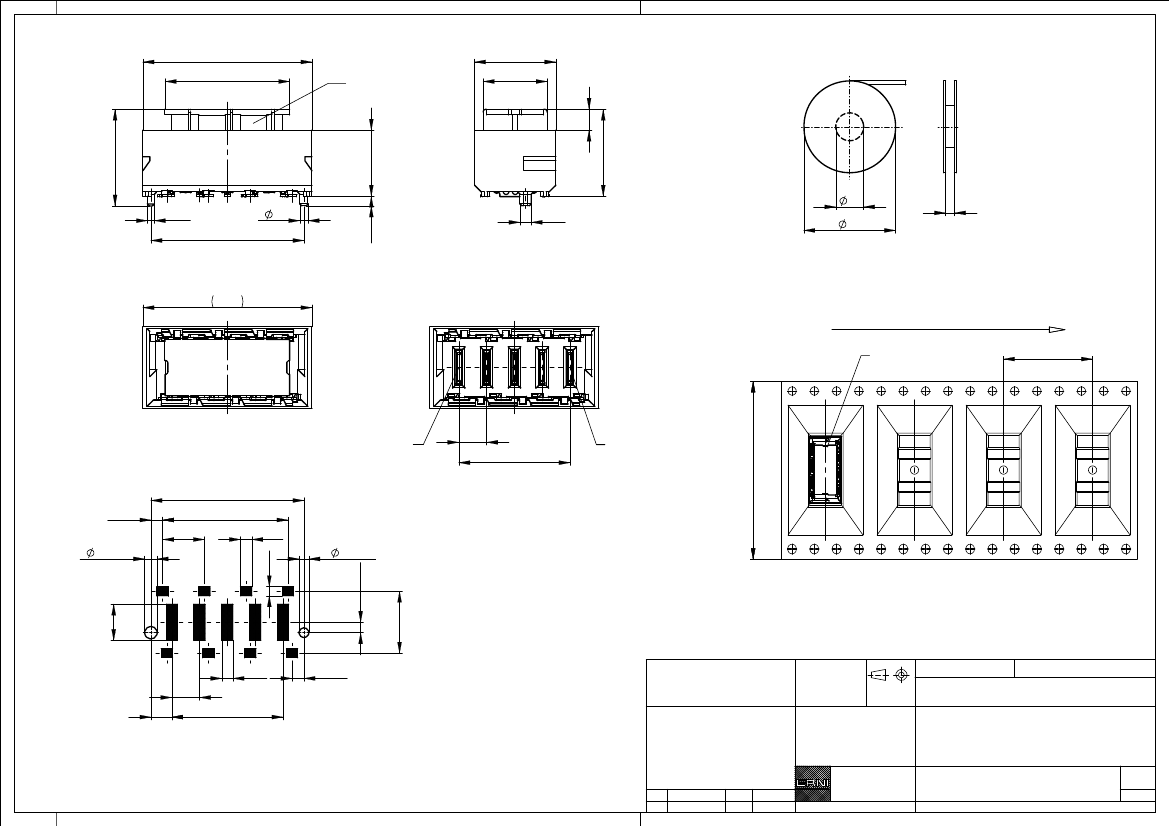

Messerleiste SMD, Powerm. 1mm

Male Con. SMD, Powerm. 1mm

www.ERNI.com

Class

214357

MSPEED
