D25S24A6RL22LF: DescriptionD-Sub Standard Connectors 25P SKT STRT PIP SHELL SIZE B; CategoryThe connector; File Size287KB，2 Pages; ManufacturerFCI / Amphenol; Environmental Compliance

Download Datasheet Parametric Compare View All

D25S24A6RL22LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	D25S24A6RL22LF	-	-	View	Buy Now

D25S24A6RL22LF Overview

D-Sub Standard Connectors 25P SKT STRT PIP SHELL SIZE B

D25S24A6RL22LF Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	FCI / Amphenol
Product Category	D-Sub Standard Connectors
RoHS	Details
Number of Positions	25 Position
Contact Gender	Socket (Female)
Termination Style	Through Hole
Mounting Angle	Straight
Number of Rows	2 Row
Shell Size	3 (B)
Contact Plating	Gold
Packaging	Reel
Current Rating	5 A
Gender	Female
Type	Receptacle
Voltage Rating	300 V
Shell Plating	Semi bright Nickel
Insert Arrangement	B25
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 55 C
Factory Pack Quantity	145

Preview

Download Datasheet

View All

1

2

3

4

6 = 500 Mating / Unmating Mini

Series

A

Tape and Reel

For connector with cap

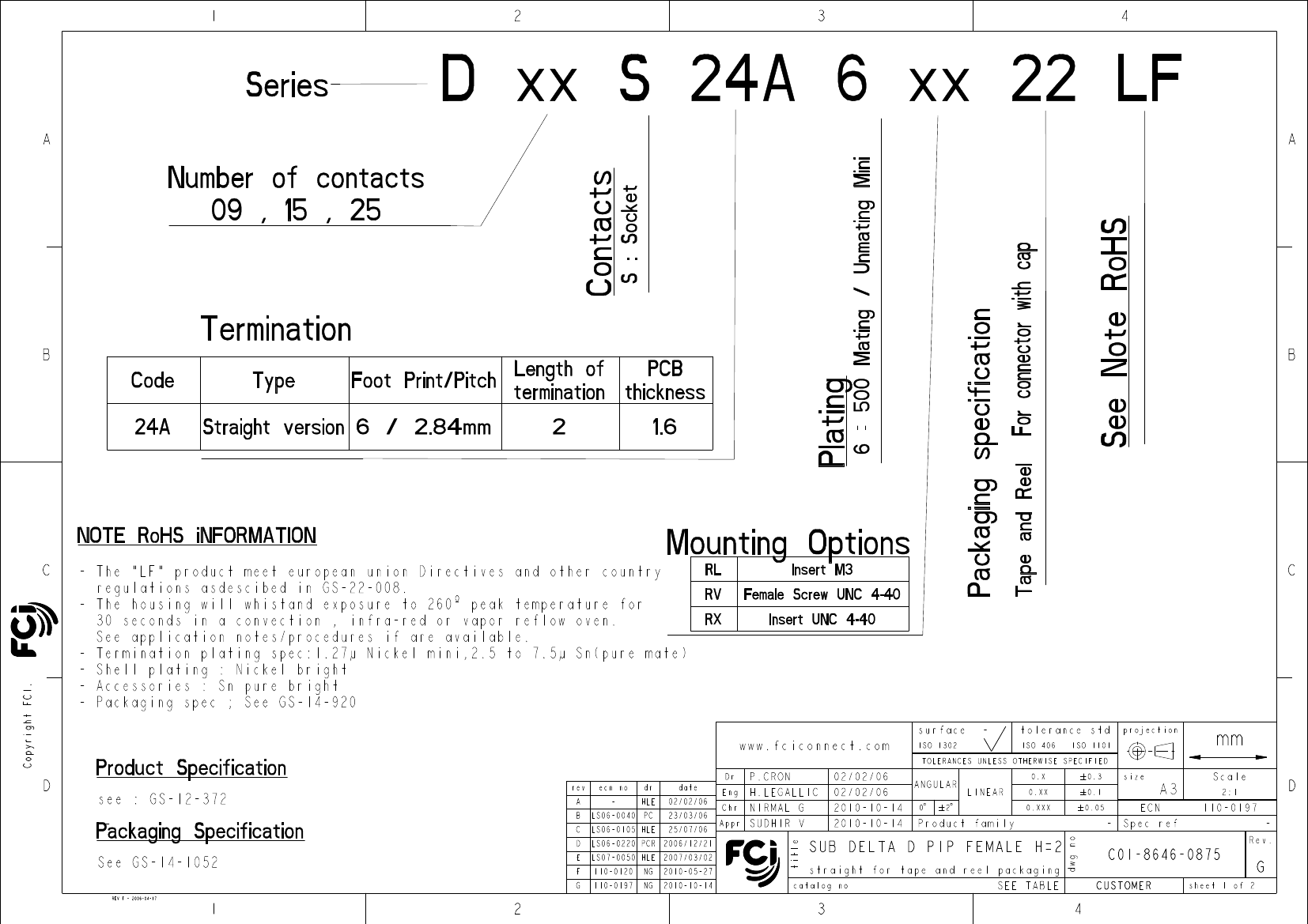

D xx S 24A 6 xx 22 LF

Contacts

A

B

Plating

Termination

Code

24A

Type

Length of PCB

Foot Print/Pitch

termination

thickness

2

1.6

Straight version 2.84mm

6 /

Packaging specification

See Note RoHS

Number of contacts

09 , 15 , 25

S : Socket

B

NOTE RoHS iNFORMATION

C

Mounting Options

RL

RV

RX

Insert M3

Female Screw UNC 4-40

Insert UNC 4-40

Copyright FCI.

- The "LF" product meet european union Directives and other country

regulations asdescibed in GS-22-008.

- The housing will whistand exposure to 260º peak temperature for

30 seconds in a convection , infra-red or vapor reflow oven.

See application notes/procedures if are available.

- Termination plating spec:1.27µ Nickel mini,2.5 to 7.5µ Sn(pure mate)

- Shell plating : Nickel bright

- Accessories : Sn pure bright

- Packaging spec ; See GS-14-920

C

surface

-

tolerance std

ISO 406

ISO 1101

projection

www.fciconnect.com

ISO 1302

mm

Scale

2:1

D

Product Specification

see : GS-12-372

rev

A

B

C

D

E

F

G

REV F - 2006-04-17

TOLERANCES UNLESS OTHERWISE SPECIFIED

Dr

ecn no

-

LS06-0040

dr

HLE

PC

date

02/02/06

23/03/06

25/07/06

Eng

Chr

Appr

P.CRON

H.LEGALLIC

NIRMAL G

SUDHIR V

title

02/02/06

2010-10-14

ANGULAR

0

2

0.X

0.3

0.1

0.05

size

LINEAR

0.XX

0.XXX

A3

ECN

- Spec ref

D

-

Rev.

I10-0197

dwg no

Packaging Specification

See GS-14-1052

1

2

LS06-0105 HLE

Product family

LS06-0220 PCR 2006/12/21

LS07-0050 HLE 2007/03/02

I10-0120

I10-0197

NG

2010-05-27

2010-10-14

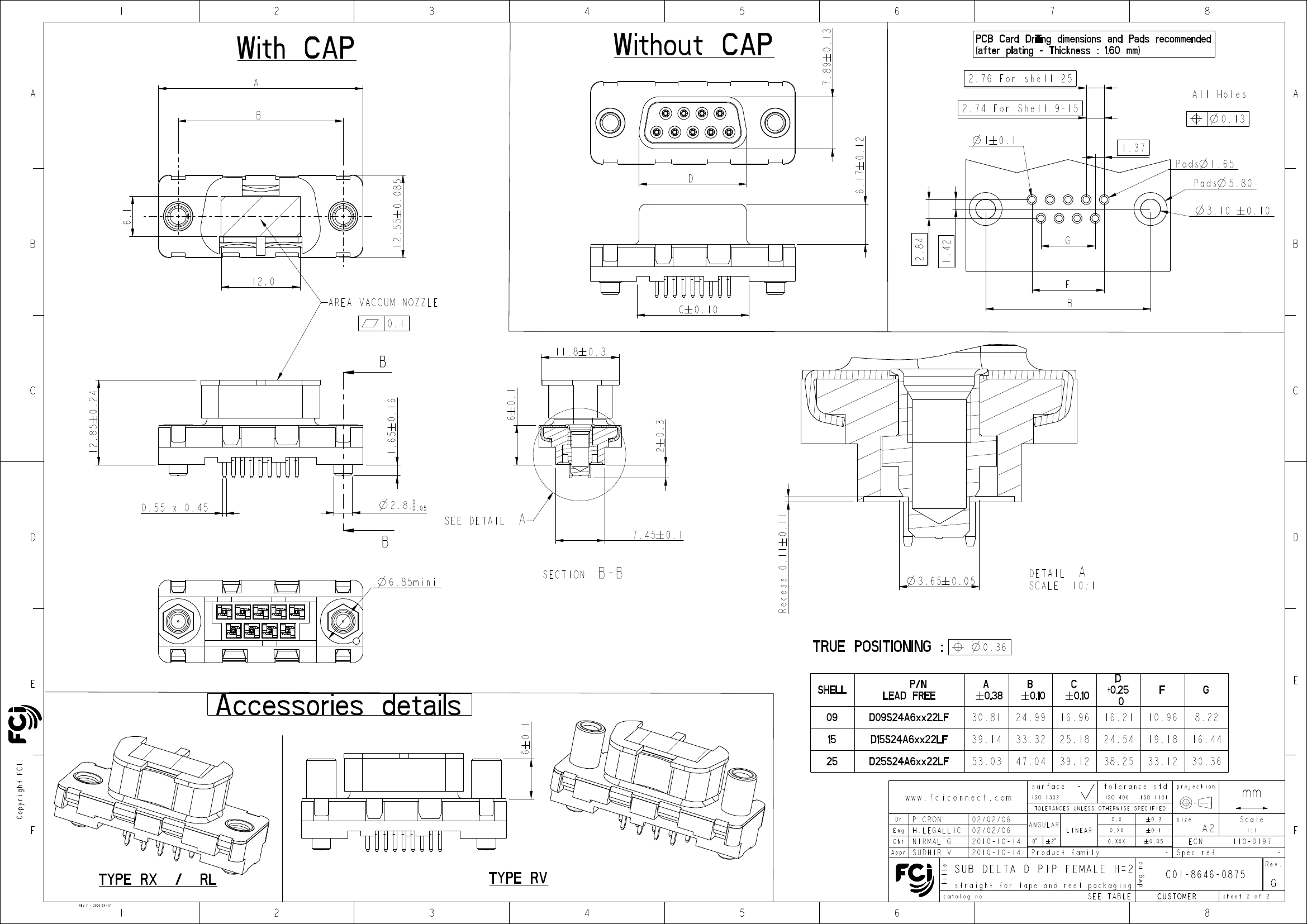

SUB DELTA D PIP FEMALE H=2

straight for tape and reel packaging

SEE TABLE

C01-8646-0875

CUSTOMER

sheet

1 of 2

G

catalog no

3

PDM: Rev:G

STATUS:

Released

4

Printed: Nov 15, 2011

.
