FERP15K: DescriptionUltra fast Plastic Power Rectifiers VOLTAGE: 800V CURRENT: 15.0A; CategoryDiscrete semiconductor diode; File Size58KB，2 Pages; ManufacturerGulf Semiconductor; Websitehttp://www.gulfsemi.com/

Download Datasheet Parametric View All

FERP15K Overview

Ultra fast Plastic Power Rectifiers VOLTAGE: 800V CURRENT: 15.0A

FERP15K Parametric

Parameter Name	Attribute value
Maker	Gulf Semiconductor
package instruction	PLASTIC, ITO-220AB, 3 PIN
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	FREE WHEELING DIODE, HIGH RELIABILITY
application	EFFICIENCY
Shell connection	ISOLATED
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	2.2 V
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
Maximum non-repetitive peak forward current	120 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	7.5 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Maximum repetitive peak reverse voltage	800 V
Maximum reverse current	10 µA
Maximum reverse recovery time	0.07 µs
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE

Preview

Download Datasheet

View All

FERP15K

Ultra fast Plastic Power Rectifiers

VOLTAGE: 800V

CURRENT: 15.0A

FEATURE

• Plastic package has Underwriters Laboratories Flammability

Classification 94V-0

• Ideally suited for use in very high frequency switching power supplies,

inverters and as free wheeling diodes

• Ultra fast recovery time for high efficiency

• Excellent high temperature switching

• Glass passivated junction

• High voltage and high reliability

• High speed switching

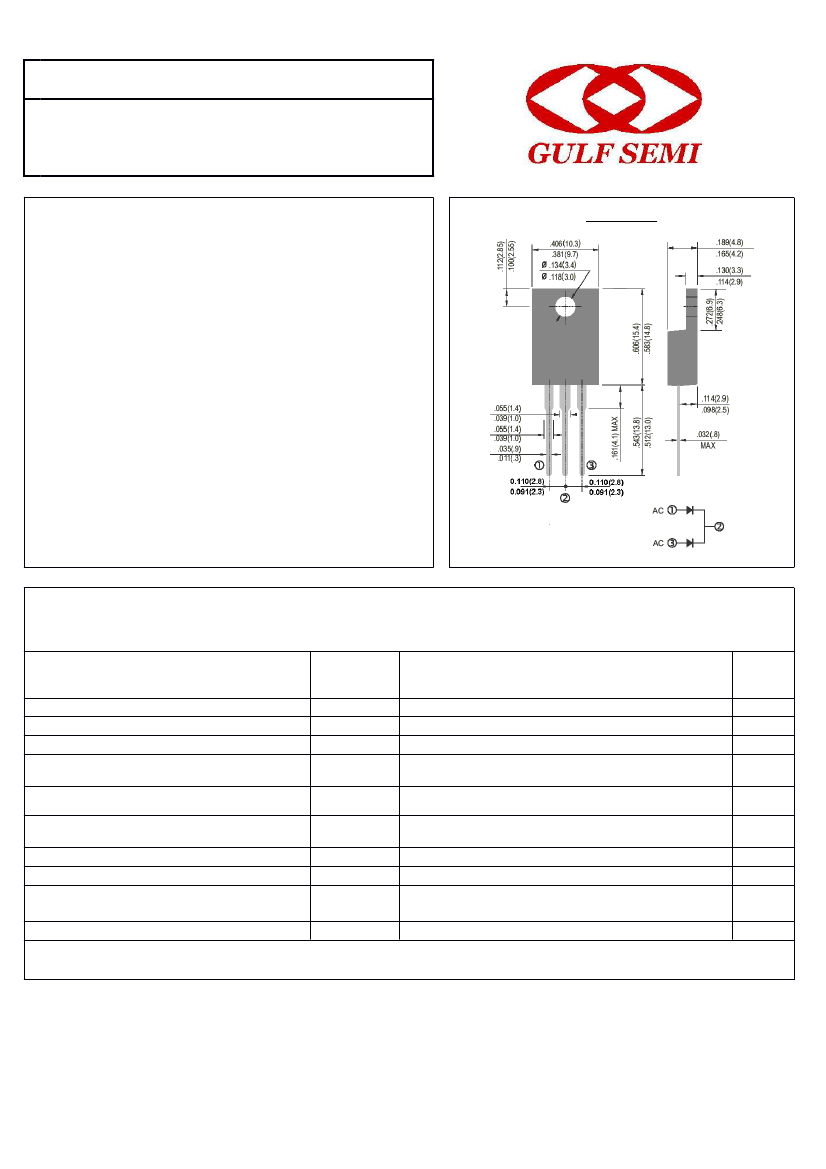

ITO-220AB

MECHANICAL DATA

Case: JEDEC ITO-220AB molded plastic body over passivated chip

Terminals: Plated Insert leads, solderable per MIL-STD-750,

Method 2026

Mounting Position: Any

Dimensions in inches and (millimeters)

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

(single-phase, half-wave, 60HZ, resistive or inductive load rating at 25°C, unless otherwise stated)

SYMBOL

Recurrent Peak Reverse Voltage

RMS Voltage

DC blocking Voltage

Average Forward Rectified

at Tc =100

°C

Peak Forward Surge Current 8.3ms single

half sine-wave superimposed on rated load

Maximum Forward Voltage at Forward

Current 7.5A and 25

°C

Maximum Reverse Recovery Time (Note 1)

Typical thermal resistance junction to case

Maximum DC Reverse Current

Ta =25

°C

at rated DC blocking voltage

Ta =125

°C

Storage and Operating Temperature Range

Note:

Reverse Recovery Condition If

=0.5A,

Ir =1.0A, Irr =0.25A

FERP15K

800

560

800

15.0

120

2.2

70

5.0

10.0

100.0

-55 to +150

units

V

A

V

nS

°

C/W

µA

Maximum

Vrrm

Vrms

Vdc

If(av)

Ifsm

Vf

Trr

R

th(jc)

Ir

Tstg, Tj

°C

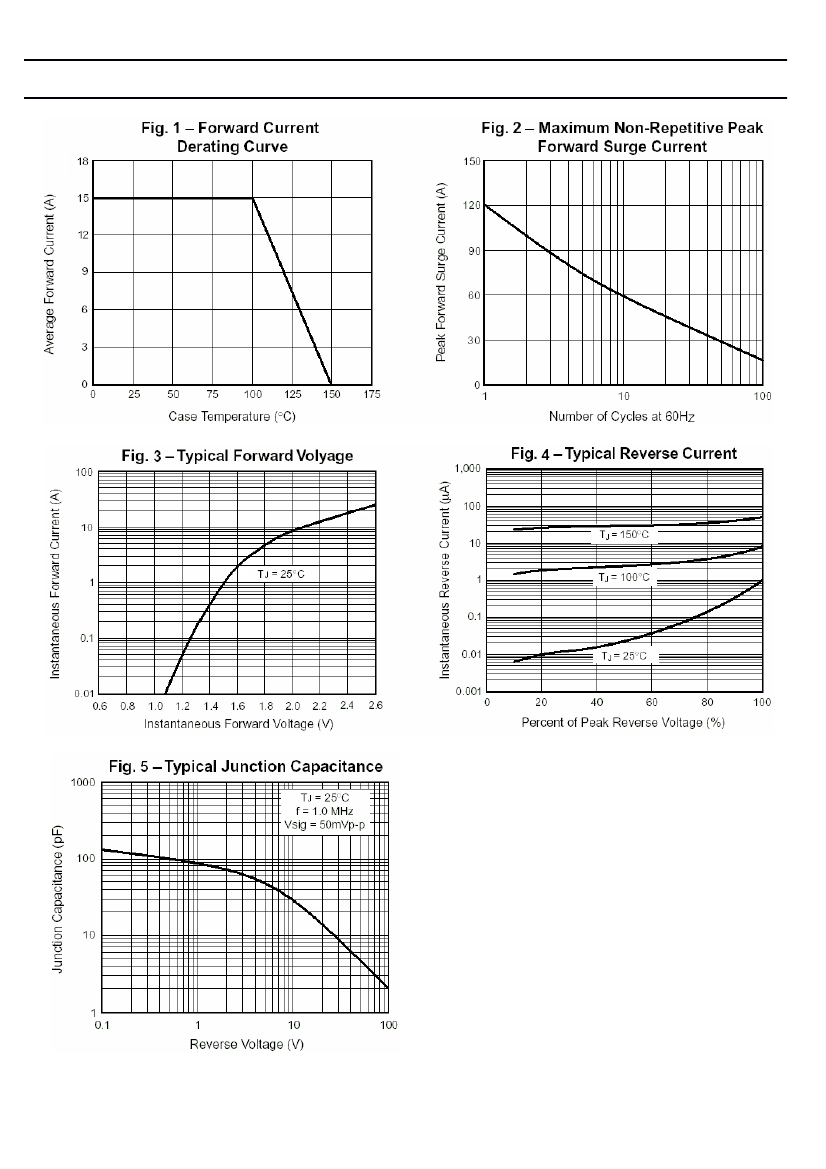

Rev.A1

www.gulfsemi.com
