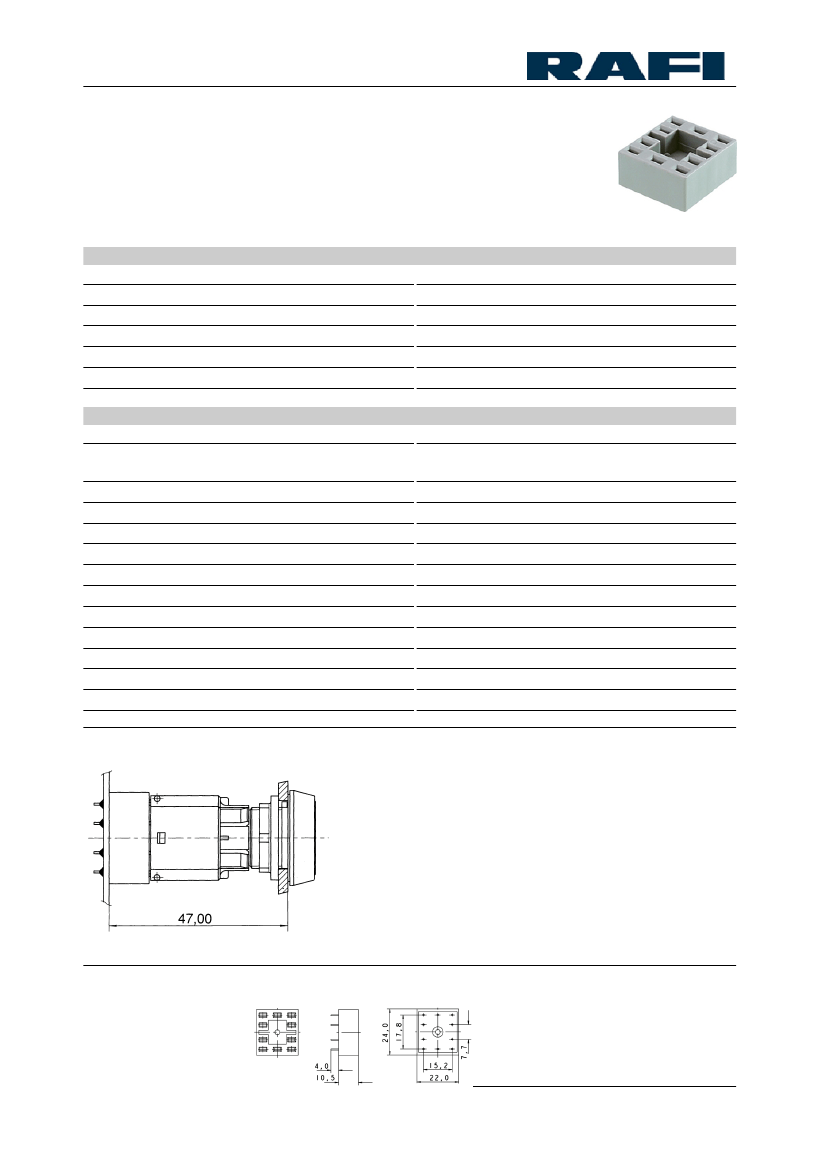

21.05.2018
PCB plug-in socket, 6 contacts (1 NC, 1 NO, lamp socket)
5.05.510.646/0000
For soldering onto PCBs. Additional fixing of the PCBs is not required. Solder terminals for PCB
3.5 mm long, for 1.3 mm hole.
Dimensions
Size not mounted
Length
Width
Height
Mounting depth
Mounting depth
Other specifications
Contacts
Shock resistance acc. to IEC 60068-2-27
Contact arrangement
Ambient temp. operating min.
Ambient temp. operating max. with lamp /LED
Storage temperature min.
Storage temperature max.
Environmental restistance
Flame class acc. to UL 94
Hot wire ignition acc. to IEC 60695-2-1
Resistance to vibrations acc. to IEC 60068-2-6
ROHS compliant
REACH compliant
22 mm
22 mm
24 mm
10.5/14.5 mm
47 mm
47 mm
6
amplitude < 50g, 11ms, half sinusoidal
1 NC, 1 NO, lamp socket
-25 °C
+55 °C
-40 °C
+85 °C
acc. to IEC 60068-2-14, -30, -33 and -78
V0
yes
10 g at 20 ... 500 Hz
yes
yes
Technical data are approximate and intended solely for general orientation in the selection of a product.
Subject to modifications and errors. Images and other graphics may only be similar.
